How Home Plumbing Is Laid in the Foundation

Have you ever wondered what lies beneath your feet before the concrete even pours? Understanding how home plumbing is laid in the house foundation is crucial for anyone building a new home or renovating an existing one. Getting this stage wrong can lead to catastrophic leaks, mold issues, and expensive repairs down the road.

In this guide, we will break down the complex process of underground plumbing into simple, actionable steps. Whether you are a DIY enthusiast, a new homeowner, or just curious about construction science, this article provides the clarity you need. We will explore the differences between slab-on-grade and crawl space installations, ensuring you have the knowledge to make informed decisions.

The Two Main Methods: Slab-on-Grade vs. Crawl Space

Before pipes are laid, the type of foundation determines the strategy. In the United States, two primary foundation types dictate how plumbing is installed: Slab-on-Grade and Crawl Space/Basement.

1. Slab-on-Grade Foundations

Common in warmer climates like Texas, Florida, and California, a slab-on-grade foundation involves pouring concrete directly onto the ground.

• The Challenge: Once the concrete cures, the pipes are encased forever. Accessing them requires breaking through the floor.
• The Strategy: Plumbers must install all supply lines and drain-waste-vent (DWV) systems before the concrete pour. Precision is non-negotiable.

2. Crawl Space or Basement Foundations

Prevalent in the Northeast and Midwest, these foundations elevate the home slightly or provide a full lower level.

• The Advantage: Pipes are accessible. If a leak occurs, you can often reach it without destroying your living space.
• The Strategy: Pipes are typically hung from joists or laid on the dirt floor (in crawl spaces) before the subfloor is installed.

Expert Insight: According to industry standards, slab installations require higher-grade materials because repair accessibility is near zero. Always opt for PEX (Cross-linked Polyethylene) or Copper for supply lines in slabs due to their durability and resistance to corrosion.

Step-by-Step: How Plumbing Is Installed in a Slab Foundation

If you are building on a slab, the plumbing process is a race against time and weather. Here is how professionals lay the groundwork.

Step 1: Excavation and Grading

The site is excavated to the required depth. The ground must be compacted and graded to ensure proper drainage away from the future structure. A layer of gravel is often added to facilitate drainage and provide a stable bed for the pipes.

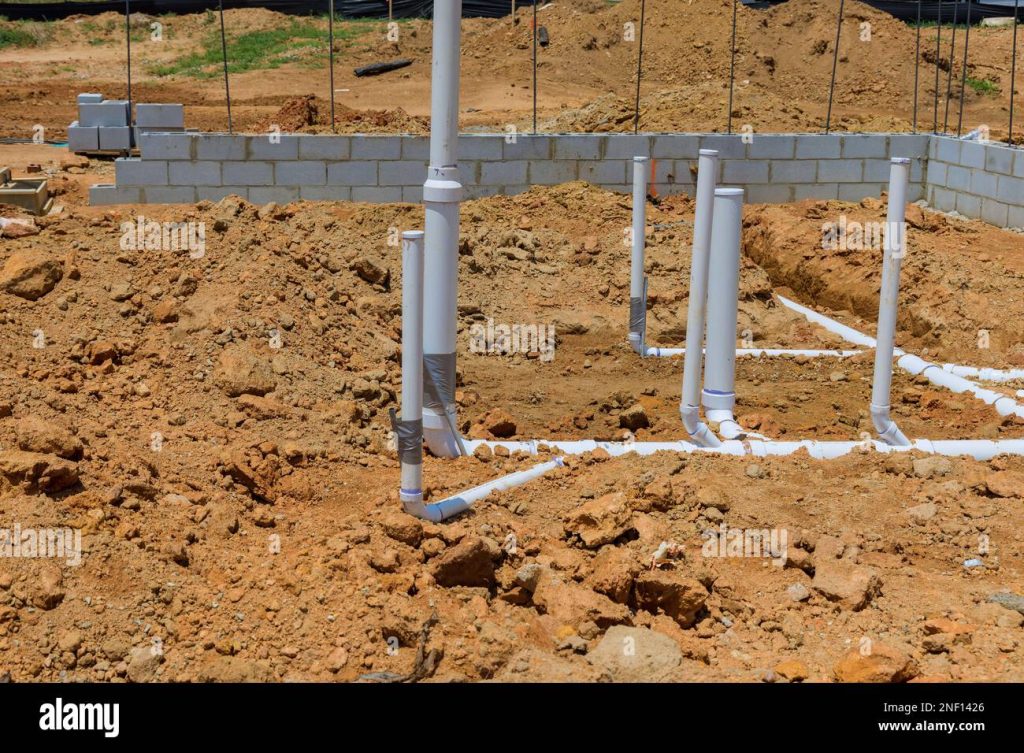

Step 2: Installing the DWV (Drain-Waste-Vent) System

This is the most critical phase. The DWV system relies on gravity, so slope is everything.

• Slope Requirements: Drain pipes must slope downward at a rate of 1/4 inch per foot toward the main sewer line or septic tank.
• Material: Typically, ABS (Acrylonitrile Butadiene Styrene) or PVC (Polyvinyl Chloride) pipes are used.
• Process: Plumbers assemble the main stack and branch lines. Each toilet, shower, and sink drain is connected. The pipes are secured with stakes to prevent them from floating up when the concrete is poured.

Step 3: Pressure Testing (The “Air Test”)

Before any concrete is poured, the system must be tested. Plumbers cap all openings and pressurize the system with air or water.

• Why? To detect leaks immediately. Fixing a leak in dry dirt is easy; fixing it in cured concrete is a nightmare.
• Standard: The system usually holds pressure for 15–30 minutes without dropping. If the pressure drops, there is a leak that must be found and fixed.

Step 4: Laying Supply Lines

While DWV handles waste, supply lines bring fresh water in.

• Manifold System: Modern homes often use a “home run” manifold system. A central hub distributes individual PEX lines to each fixture. This reduces fittings underground (fewer potential leak points).
• Protection: PEX pipes are often wrapped in foam insulation sleeves. This allows the pipe to expand and contract with temperature changes and protects it from the abrasive concrete.

Step 5: The Concrete Pour

Once inspections are passed, the concrete truck arrives. Workers must be careful not to displace the pipes. Vibrators used to settle the concrete should not directly touch the plastic pipes, as this can cause cracks or disconnections.

For more detailed technical specifications on piping materials, you can refer to the Wikipedia page on Pipe (material), which outlines the chemical properties and usage cases for various plumbing substrates.

Slab vs. Crawl Space: A Comparison Table

Choosing the right foundation impacts your plumbing’s longevity and maintenance ease. Here is a quick comparison:

Common Mistakes to Avoid During Foundation Plumbing

Even with professional help, errors can occur. Being aware of these pitfalls can save you thousands of dollars.

1. Incorrect Slope on Drain Lines

If a drain line is too flat, waste won’t move, leading to clogs. If it’s too steep, water moves faster than solids, leaving debris behind. Always verify the 1/4 inch per foot slope.

2. Lack of Protection for PEX

Direct contact with concrete can degrade certain pipes over decades due to chemical reactions or physical abrasion. Always use sleeving or conduit for supply lines running through slabs.

3. Skipping the Inspection

Never skip the municipal inspection. Inspectors check for proper venting, slope, and material codes. Skipping this step can void your home insurance and cause issues when selling the property.

4. Poor Ventilation Design

Vent pipes allow sewer gases to escape and maintain atmospheric pressure in the drains. If vents are blocked or improperly sized, you may experience gurgling sounds or slow drains. Ensure vent stacks extend through the roof line as per code.

FAQ: Frequently Asked Questions About Foundation Plumbing

1. Can I add plumbing to a slab foundation after it’s poured?

Yes, but it is invasive and expensive. You would need to cut through the concrete using a concrete saw, excavate the dirt beneath, install the new pipes, and then patch the concrete. It is far cheaper to plan ahead during the initial build.

2. What is the best pipe material for under-slab plumbing?

PEX-B and Copper Type K are the top choices. PEX is flexible, resistant to scale and chlorine, and less likely to burst if water freezes. Copper is durable but more expensive and susceptible to pinhole leaks in acidic soil conditions. Avoid PVC for supply lines under slabs; it is brittle and better suited for drains.

3. How deep should plumbing be laid in the foundation?

For slab-on-grade, pipes are typically laid 6 to 12 inches below the final surface grade, depending on local frost lines and code requirements. In crawl spaces, pipes should be high enough to avoid standing water but low enough to fit within the joist cavity if hanging.

4. Does homeowners insurance cover slab leaks?

It depends. Most standard policies cover “sudden and accidental” damage (like a burst pipe). However, they often exclude gradual leaks caused by wear and tear or poor maintenance. Slab leak coverage may require an additional rider or endorsement. Check with your provider.

5. How long does foundation plumbing last?

• Copper: 50–70 years.
• PEX: 40–50+ years (estimated, as it is a newer material).
• PVC/ABS (Drains): 50–80 years. Proper installation and water quality significantly impact these lifespans.

6. What are the signs of a slab leak?

• Unexplained increase in water bills.
• Hot spots on the floor (for hot water lines).
• Sound of running water when all fixtures are off.
• Cracks in walls or flooring due to soil erosion beneath the slab.

Conclusion

Understanding how home plumbing is laid in the house foundation empowers you to protect your biggest investment. Whether you are opting for a cost-effective slab or an accessible crawl space, the key lies in precision, quality materials, and rigorous testing.

Remember, the few days spent installing plumbing before the concrete pours determine the comfort and safety of your home for decades. Don’t cut corners here. Hire licensed professionals, insist on pressure tests, and keep detailed records of your plumbing layout for future reference.
