Is your pool filter struggling to maintain pressure, or are you hearing that dreaded gurgle of air in your pump basket? You are not alone. Many pool owners find themselves confused when connecting the hoses, often leading to reduced filtration efficiency and higher energy bills. Understanding how should plumbing for top mount pool pump run is the critical first step to ensuring your swimming hole remains crystal clear and inviting all season long.
In this guide, we will break down the complex world of hydraulic dynamics into simple, actionable steps. Whether you are installing a new system or troubleshooting an old one, getting the plumbing right is non-negotiable for performance. Let’s dive in.
Why Correct Plumbing Direction Matters
Before we touch a wrench, it is vital to understand why the direction of flow is so important. A top-mount sand or DE (Diatomaceous Earth) filter relies on gravity and pressure to force water through the media bed. If the plumbing is reversed or restricted, you risk channeling (where water bypasses the sand), poor filtration, and potentially damaging the multiport valve laterals.
According to basic fluid dynamics, water always seeks the path of least resistance. In a pool system, we want to control that path strictly: from the pool, through the pump, into the filter, and back to the pool. Any deviation causes turbulence and pressure loss.
The Golden Rule: Follow the Arrow
The most common mistake DIYers make is ignoring the directional arrows cast into the plastic of the pump and filter housing.
Identifying the Flow Path
- The Pump Intake: This is where water enters the pump. It is usually connected to the skimmer and main drain lines.
- The Pump Discharge: This is where water leaves the pump under pressure. It connects to the top of the filter tank.
- The Filter Return: Water exits the bottom (or side, depending on model) of the filter and returns to the pool jets.
For a top-mount filter, the water must enter from the top of the filter tank. This ensures the water spreads evenly over the sand bed before percolating down through the lateral assembly at the bottom. If you plumb it backward, you will push debris directly into the laterals, causing clogs that are difficult to clean.
Step-by-Step: How Should Plumbing For Top Mount Pool Pump Run?
To answer the core question of how should plumbing for top mount pool pump run, follow this logical sequence. We assume a standard setup: Pool -> Skimmer/Main Drain -> Pump -> Filter -> Return Jets.
Step 1: Positioning the Equipment
Place your pump and filter on a level concrete pad. The pump should be positioned as close to the pool wall as possible to minimize suction line length. This reduces the risk of cavitation (air bubbles forming in the pump).
- Pro Tip: Ensure the pump is slightly lower than the water level of the pool if possible, though most modern pumps are self-priming.
Step 2: Connecting the Suction Side (Input)
This is the most critical area for preventing air leaks.
- Use Teflon tape or pipe dope on all threaded connections.
- Connect the skimmer line and main drain line to the front of the pump basket lid.
- Check Valve: If your pool has a spa or waterfall at a higher elevation, install a check valve on the suction line to prevent back-siphoning when the pump is off.

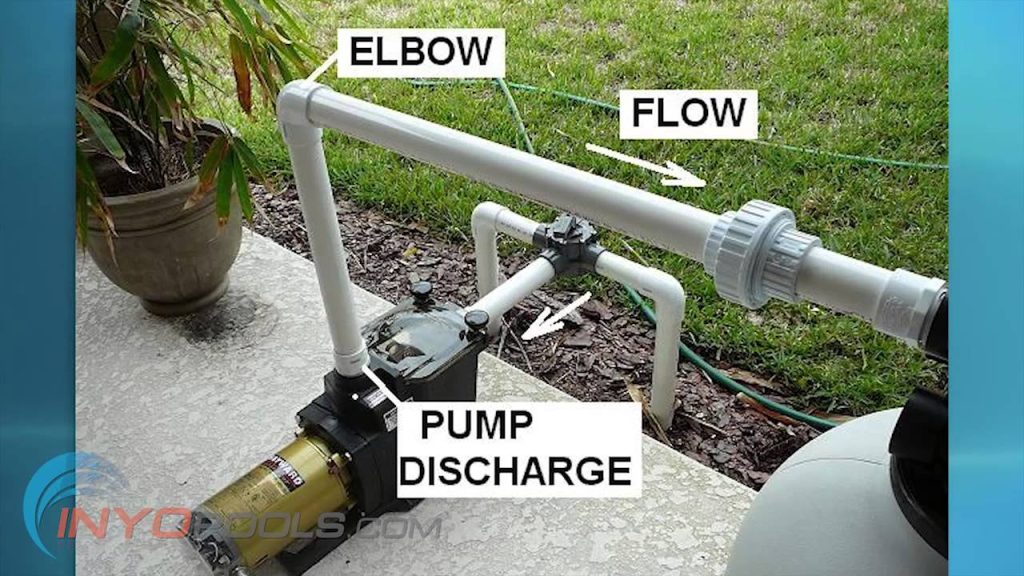

Step 3: Connecting Pump to Filter (The High-Pressure Side)
This is where the specific topology of a top-mount filter comes into play.
- Run a short piece of PVC pipe (usually 1.5” or 2”) from the discharge of the pump to the multiport valve on top of the filter.
- Distance Matters: Keep this connection as short and straight as possible. Every 90-degree elbow adds friction loss.
- Union Connections: Install union fittings on both ends of this pipe. This allows you to disconnect the pump from the filter easily for maintenance without cutting pipes.
Step 4: The Multiport Valve Configuration
The multiport valve is the brain of your top-mount filter. Ensure the “PUMP” port on the valve aligns with the pipe coming from your pump. The “RETURN” port should align with the pipe going back to the pool.
Note: Never switch the multiport valve positions while the pump is running. Always turn the pump off, shift the handle, and then restart the pump.
Step 5: Returning Water to the Pool
Connect the “RETURN” port of the multiport valve to your pool’s return jets.
- If you have a heater, chlorinator, or salt cell, these should be installed on the return line after the filter but before the water re-enters the pool.
- Order of Operations: Filter -> Heater -> Chlorinator/Salt Cell -> Pool.
Common Plumbing Mistakes to Avoid
Even with the best intentions, small errors can cripple your system. Here is a comparison of right vs. wrong approaches.
| Feature | Correct Approach | Incorrect Approach | Consequence |
|---|---|---|---|
| Suction Lines | Airtight seals with Teflon tape | Loose fittings or old gaskets | Air locks, loss of prime, pump burnout |
| Pipe Diameter | Matching pump intake size (e.g., 2″) | Reducing pipe size unnecessarily | Increased friction, reduced flow rate |
| Elbows | Long-radius elbows (45° preferred) | Sharp 90° elbows near pump inlet | Turbulence, cavitation noise |
| Support | Pipes supported independently | Pipes resting weight on pump/filter | Cracked housings, misaligned valves |
Optimizing for Efficiency and Longevity
Once you have established how should plumbing for top mount pool pump run, consider these advanced tips to maximize efficiency.
Minimize Friction Loss
Friction is the enemy of flow. According to the Hydraulic Institute, friction loss increases exponentially with flow rate.
- Use larger diameter pipes if your budget allows (e.g., 2-inch instead of 1.5-inch).
- Avoid unnecessary valves on the suction side. Every ball valve adds resistance.
Venting Air
Top-mount filters often trap air at the top of the tank during startup.
- Ensure your multiport valve has a functional air relief valve (if equipped) or manually bleed air through the pressure gauge port during the first few minutes of operation.
- Trapped air reduces the effective surface area of your sand bed, leading to higher pressure readings and shorter filter cycles.
The Importance of Priming
A top-mount system relies on the pump being fully primed. If your plumbing has high points (peaks) between the pool and the pump, air will accumulate there.
- Solution: Ensure all suction pipes slope continuously upward toward the pump. There should be no “humps” in the line where air can get trapped.
FAQ Section
1. Can I run my top-mount filter with the pump above the water level?
Yes, most modern pool pumps are self-priming. However, the suction lift should not exceed the manufacturer’s specifications (usually around 8–10 feet vertical lift). Excessive lift makes it hard for the pump to prime and can cause cavitation.
2. Why is my pump losing prime after I shut it off?
This is almost always a suction-side air leak. Check the pump lid O-ring, the drain plugs on the pump basket, and any unions on the suction side. A small amount of water leaking out when the pump is off means air is sucking in when the pump is on.
3. Do I need a check valve on the return line?
Generally, no, unless you have equipment located above the water level of the pool (like a solar heater on a roof). A check valve prevents water from draining back out of the elevated equipment when the pump turns off, which can cause air locks.
4. How tight should I tighten the PVC connections?
Hand-tight plus a quarter to a half turn with a strap wrench is usually sufficient for threaded PVC. Over-tightening can crack the female fittings, especially on plastic multiport valves. Always use Teflon tape on male threads.
5. What size pipe should I use for a 1.5 HP pump?
For a 1.5 HP pump, 2-inch piping is ideal for the main runs to minimize friction. However, many pumps come with 1.5-inch or 2-inch convertible ports. Check your pump’s manual. Using 1.5-inch pipe on a high-flow pump will restrict performance.
6. Can I use flexible hose instead of PVC?
Flexible hose is acceptable for short connections between the pump and filter, especially if vibration is a concern. However, rigid PVC is preferred for long runs as it maintains its shape and does not collapse under suction. Ensure any flexible hose is rated for pool use (reinforced).
Conclusion
Mastering how should plumbing for top mount pool pump run is not just about connecting pipes; it is about creating an efficient, airtight circuit that protects your equipment and keeps your water clean. By following the flow direction arrows, minimizing friction, and ensuring airtight suction connections, you set your pool system up for years of reliable service.
Remember, a well-plumbed system saves you money on electricity and chemicals. If you found this guide helpful, please share it with your fellow pool owners on social media. A clear pool is a happy pool!
