Support Plumbing Under Mobile Homes Right

Discovering a leak or a frozen pipe beneath your home can be a homeowner’s worst nightmare. It’s not just about the repair cost; it’s the stress of potential water damage and the discomfort of losing essential utilities. If you are wondering how should plumbing lines under manufactured home be supported, you are in the right place. Proper support isn’t just a suggestion—it is critical for the longevity of your home’s infrastructure and your peace of mind.

Unlike site-built homes, manufactured homes have unique structural dynamics. They are designed to be transported, which means they flex and settle differently over time. Without adequate support, plumbing lines can sag, disconnect, or burst. In this guide, we will break down exactly what you need to know to secure your plumbing correctly, safely, and in compliance with federal standards.

Why Proper Support Matters for Manufactured Homes

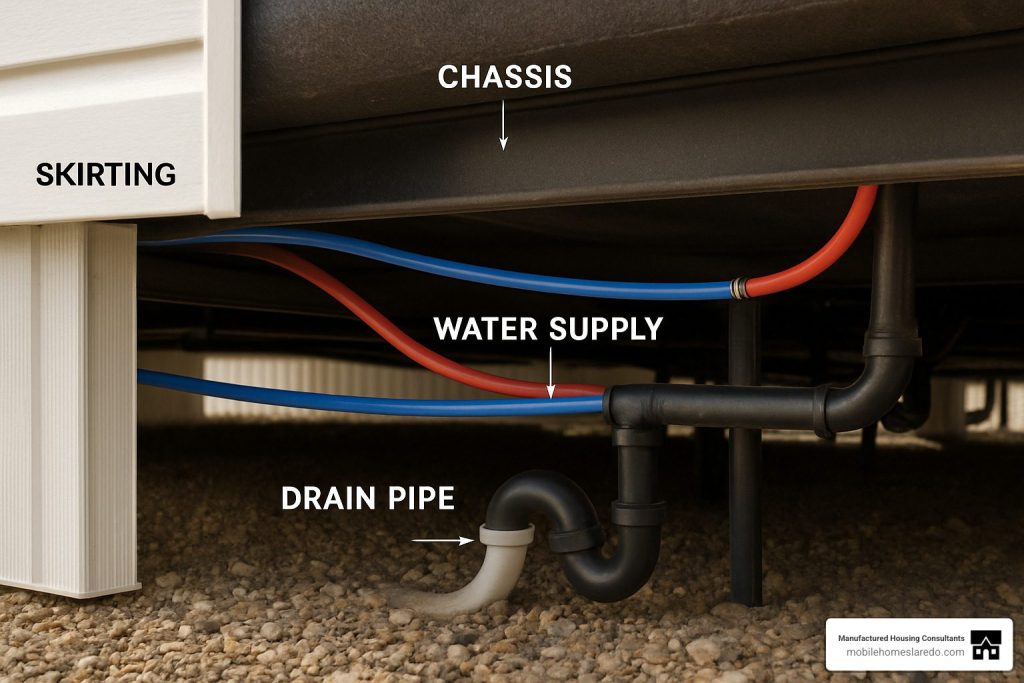

Before diving into the “how,” it is essential to understand the “why.” Manufactured homes are built on a steel chassis with I-beams. The space between the floor joists and the ground (the crawl space) is exposed to weather, pests, and movement.

The Risk of Sagging and Stress

When plumbing lines—whether PEX, copper, or PVC—are not adequately supported, gravity takes its toll. Over time, pipes sag between joists. This creates two major issues:

1. Water Pooling: In drain lines, sagging creates “bellies” where water and waste accumulate, leading to clogs and corrosion.
2. Joint Failure: Constant tension on connections can cause fittings to loosen or crack, resulting in slow leaks that rot floor substructures before you even notice them.

Thermal Expansion and Contraction

Temperature fluctuations cause pipes to expand and contract. If a pipe is held too rigidly without proper allowance for movement, or if it hangs loosely and bangs against framing, it can fail. Proper support systems accommodate this movement while keeping the line secure.

What Are the HUD Code Requirements for Pipe Support?

The primary authority governing manufactured homes in the United States is the U.S. Department of Housing and Urban Development (HUD). The Federal Manufactured Home Construction and Safety Standards (often called the HUD Code) sets specific guidelines for plumbing installation.

According to the HUD Code (24 CFR Part 3280), plumbing systems must be installed to withstand the stresses of transportation and setup. While the code does not always specify exact inch-by-inch spacing for every material type in the main text, it defers to recognized industry standards such as the International Plumbing Code (IPC) or Uniform Plumbing Code (UPC) for best practices.

For authoritative definitions on plumbing standards and safety codes, you can refer to general engineering principles outlined on Wikipedia’s page on Plumbing Codes. However, for manufactured homes specifically, the HUD Handbook 4930.3 provides detailed guidance on repair and maintenance, emphasizing that all repairs must meet or exceed original construction standards.

Key Takeaway from Regulations

• Security: Pipes must be securely fastened to the frame or joists.
• Protection: Lines must be protected from physical damage and freezing.
• Accessibility: Shut-off valves and cleanouts must remain accessible even after support installation.

How Far Apart Should Plumbing Hangers Be?

One of the most common questions homeowners ask is about spacing. While local codes can vary, the general industry standard for horizontal piping support is as follows:

Note: Always check your local state regulations, as some states with harsher winter climates may require tighter spacing for added security.

Why PEX Requires More Supports

You might notice PEX requires supports much closer together than copper. This is because PEX is a flexible plastic. While this flexibility makes it easier to install, it also means it sags more easily under the weight of water. Supporting PEX every 32 inches ensures that the pipe maintains a consistent slope for drainage and prevents excessive movement during water hammer events.

What Materials Are Best for Supporting Pipes?

Not all hangers are created equal. Using the wrong material can lead to corrosion or pipe damage. Here is a breakdown of the best materials for supporting plumbing under a manufactured home.

1. Plastic Pipe Clamps (Best for PEX and PVC)

Plastic clamps are ideal because they do not corrode. They are smooth on the inside, preventing abrasion against the pipe surface.

• Pros: Cheap, rust-proof, easy to install.
• Cons: Can become brittle in extreme cold if low-quality plastic is used.

2. Copper-Plated or Stainless Steel Straps (Best for Copper)

If you have copper pipes, use metal straps. However, ensure they are coated or made of stainless steel to prevent galvanic corrosion.

• Pros: Extremely durable, high heat resistance.
• Cons: More expensive, harder to install (requires nails or screws).

3. Insulated Hangers (Best for Cold Climates)

These are standard hangers lined with foam or rubber.

• Pros: Provides thermal break, reduces noise, prevents condensation dripping.
• Cons: Slightly bulkier, may cost more.

❌ What to Avoid

• Bailing Wire: Never use wire to hold pipes. It cuts into the pipe material over time and offers no stability.
• Unprotected Metal Hangers on Copper: Direct contact between dissimilar metals can cause electrolysis and leaks.
• Nails Through Straps: Always use screws for structural integrity. Nails can work themselves loose due to the vibration of the home.

Step-by-Step Guide to Installing Pipe Supports

If you are DIY-inclined, here is how to properly support your plumbing lines. Always prioritize safety: wear gloves and eye protection, and ensure the area is well-ventilated.

Step 1: Inspect and Clean the Area

Crawl under the home and inspect existing supports. Remove any rusted hangers or debris. If you see wet insulation, replace it before proceeding. Moisture indicates a leak that must be fixed first.

Step 2: Determine the Slope

For drain lines, ensure there is a downward slope of 1/4 inch per foot toward the main sewer line. Use a level to check this. If the pipe sags, you will need to lift it into position before securing it.

Step 3: Choose Your Anchor Point

• Joists: The preferred anchor point is the side of the floor joist.
• I-Beams: For main supply lines running the length of the home, you can attach supports to the steel I-beams using self-tapping metal screws. Do not drill through the I-beam flange.

Step 4: Install the Hangers

1. Lift the pipe gently into the desired position.
2. Place the hanger around the pipe.
3. Secure the hanger to the joist or beam using exterior-grade screws (at least 1.5 inches long).
4. Ensure the pipe sits snugly but is not crushed. It should not rattle, but it should not be compressed out of shape.

Step 5: Add Insulation

Once supported, wrap the pipes in foam insulation tubing. Secure the seams with UL-listed duct tape. This step is crucial for energy efficiency and freeze prevention.

How to Protect Plumbing from Freezing Under the Home

Supporting the pipes is only half the battle. In the US, particularly in the Midwest and Northeast, freezing is a significant risk.

The Role of the Underbelly

The “underbelly” is the insulated fabric covering the bottom of the home. If this is torn, cold air hits your pipes directly.

• Repair Tears Immediately: Use specialized underbelly repair tape or patches.
• Check Ventilation: Crawl space vents should be closed in winter in colder climates to retain heat, but open in summer to prevent moisture buildup. Check local codes for your specific area.

Heat Tape Application

For areas prone to extreme cold, consider applying self-regulating heat tape to vulnerable sections (like near the water heater entry).

• Warning: Never overlap heat tape, as this can cause overheating and fire.
• Installation: Follow the manufacturer’s instructions precisely. Typically, you run the tape along the bottom of the pipe and secure it with electrical tape every 12 inches.

FAQ Section

1. Can I use regular wood screws to attach pipe hangers?

It is better to use exterior-grade deck screws or self-tapping screws for metal beams. Regular indoor wood screws may rust or pull out over time due to the humidity and temperature changes in the crawl space.

2. My pipes are making a banging noise. Is this a support issue?

Likely, yes. This is known as “water hammer.” If pipes are not secured tightly, the surge of water pressure when a valve closes causes them to bang against the framing. Adding cushioned clamps or foam insulation around the pipe at the support points can dampen this noise.

3. How often should I inspect the plumbing under my manufactured home?

You should perform a visual inspection at least once a year, ideally in the fall before winter sets in. Look for sagging pipes, torn insulation, pest damage, or signs of moisture.

4. Is it okay to rest pipes directly on the ground or insulation?

No. Pipes should never rest directly on the ground, gravel, or loose insulation. They must be suspended via hangers. Resting on the ground exposes them to moisture, pests, and uneven settling, which leads to breaks.

5. What if I don’t have access to the crawl space?

Some modern manufactured homes have enclosed skirting with limited access. If you cannot reach the pipes, you may need to remove sections of the skirting. If you are uncomfortable doing this, hire a licensed mobile home repair specialist. Working in confined spaces requires proper safety gear.

6. Does insurance cover damage from unsupported pipes?

This depends on your policy. Most homeowners insurance covers sudden and accidental water damage. However, if an adjuster determines the damage was due to lack of maintenance (such as known sagging pipes that were ignored), they may deny the claim. Proper support is a key part of maintenance.

Conclusion

Understanding how should plumbing lines under manufactured home be supported is essential for protecting your investment. By using the correct hangers, spacing them appropriately (every 32 inches for PEX, for example), and ensuring proper insulation, you can prevent costly leaks and freezes.

Remember, the goal is to keep your pipes secure, sloped correctly, and protected from the elements. Don’t wait for a drip to become a flood. Take action today to inspect your underbelly and secure your lines.
