Is your sink draining slowly, or do you hear ominous gurgling noises coming from your pipes? These are classic signs of poor ventilation, a common issue in older homes or after unauthorized renovations. Knowing how to add a vent to your existing plumbing can save you hundreds of dollars in plumber fees and restore your home’s hygiene. In this guide, we will walk you through the process clearly and safely, ensuring your system breathes correctly again.
Why Your Plumbing Needs Proper Ventilation
Before we pick up a saw, it is crucial to understand why vents matter. Many homeowners assume pipes only carry waste away, but they also need to let air in.
The Physics of Drainage
Plumbing systems rely on gravity. As water flows down a drain, it creates a vacuum behind it. Without a vent to introduce air, this vacuum can siphon water out of your P-traps (the U-shaped pipe under your sink). Once the trap is dry, sewer gases enter your home.
According to basic fluid dynamics principles explained in fluid mechanics resources, pressure equalization is vital for consistent flow. A properly vented system ensures that atmospheric pressure remains balanced, allowing waste to flow smoothly without “glugging” or backing up.
Signs You Need a New Vent
- Slow Draining: Water pools in the sink or tub before slowly disappearing.
- Gurgling Sounds: Air bubbles escaping through water in the trap.
- Sewer Odors: A rotten egg smell indicating dried-out P-traps.
- Toilet Bubbles: Flushing the toilet causes bubbles in the nearby shower drain.
Can You Add a Vent to Existing Plumbing?
The short answer is yes. While installing vents during new construction is easier, retrofitting is entirely possible. You have two primary options:
- Traditional Roof Vent: Cutting into the roof to extend a pipe upward. This is the most code-compliant method but requires significant labor and weatherproofing skills.
- Air Admittance Valve (AAV): Also known as a “Studor vent,” this one-way valve allows air into the system when needed but closes to prevent gas escape. It is installed indoors, usually under a sink or in an attic.
For most DIYers, installing an AAV is the safest, most cost-effective solution. However, always check your local building codes, as some jurisdictions restrict where AAVs can be used.
Tools and Materials You Will Need
Preparation is key to a professional finish. Gather these items before starting:
| Item | Purpose |
|---|---|
| Air Admittance Valve (AAV) | Choose a size matching your drain (usually 1.5″ or 2″). |
| PVC Pipe & Fittings | To extend the vent line if necessary. |
| Hole Saw Kit | For cutting precise holes in cabinetry or walls. |
| Deburring Tool | To smooth rough edges on cut PVC. |
| PVC Primer & Cement | For creating watertight and airtight seals. |
| Adjustable Wrench | For tightening slip-nut connections. |
| Safety Gear | Gloves, safety glasses, and a dust mask. |
Step-by-Step: How to Add a Vent Using an AAV

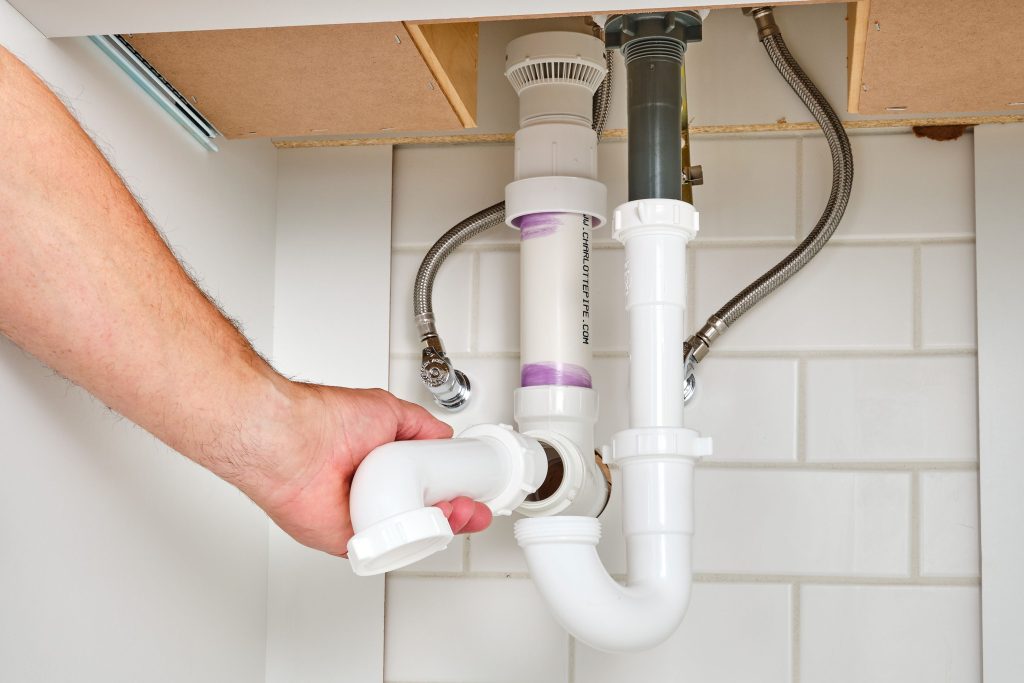

This method focuses on installing an Air Admittance Valve under a sink, which is the most common retrofit scenario.
Step 1: Locate the Installation Point
Identify the drain line for the fixture causing issues. The AAV must be installed above the flood level rim of the fixture. For a standard sink, this means the valve should be at least 4 inches above the horizontal branch drain line.
Pro Tip: Ensure the location is accessible for future maintenance. Do not bury the AAV inside a wall or ceiling.
Step 2: Cut Into the Existing Drain Line
Turn off any nearby water sources to avoid accidental splashes, though you won’t be touching supply lines.
- Place a bucket under the P-trap to catch residual water.
- Unscrew the slip nuts on the P-trap and remove it.
- If you are tapping into a vertical tailpiece, you may need a sanitary tee fitting. If tapping into a horizontal line, you might need to cut a section of the pipe out using a hacksaw or reciprocating saw.
Step 3: Dry Fit the Components
Before gluing anything, assemble the new configuration.
- Connect a sanitary tee to the existing drain line.
- Attach a vertical piece of PVC pipe extending upward from the tee.
- Place the AAV on top of this vertical pipe.
Ensure the AAV is oriented correctly. Most valves have an arrow indicating airflow direction or a specific “up” marking. It must be installed vertically.
Step 4: Prime and Glue
Once the dry fit looks good and the measurements are accurate:
- Clean all mating surfaces with a rag.
- Apply purple PVC primer to the outside of the pipe ends and the inside of the fittings. This cleans and softens the plastic.
- Immediately apply clear PVC cement to the primed areas.
- Push the pieces together firmly and give them a quarter-turn to distribute the glue. Hold for 15 seconds.
Warning: Work in a well-ventilated area. PVC cement fumes are strong and flammable.
Step 5: Reassemble the P-Trap
Reattach the P-trap to the new configuration. Hand-tighten the slip nuts first, then use your adjustable wrench to give them an additional quarter-turn. Do not overtighten, as this can crack the plastic nuts.
Step 6: Test the System
Run water into the sink for at least 30 seconds. Listen for gurgling. If the water drains quickly and silently, you have successfully learned how to add a vent to your existing plumbing. Check for leaks around the new joints. If you see drips, tighten the connections slightly or re-cement if necessary.
Traditional Roof Venting: When to Call a Pro
If your local code prohibits AAVs, or if you have multiple fixtures draining poorly, you may need a traditional roof vent. This involves:
- Cutting into the main stack in the attic.
- Running a new PVC pipe up through the roof rafters.
- Flashing the roof penetration to prevent leaks.
This task carries a high risk of roof damage and water intrusion if done incorrectly. Unless you have extensive carpentry and roofing experience, hire a licensed plumber for this specific task.
Common Mistakes to Avoid
Even experienced DIYers can stumble. Here are the pitfalls to watch out for:
- Installing the AAV Horizontally: AAVs rely on gravity to close the seal. If installed sideways, they will fail, letting sewer gas into your home.
- Ignoring the Flood Level Rim: If the valve is installed below the highest point where water could overflow (e.g., the top of the sink), sewage could back up into the valve mechanism.
- Using the Wrong Size: A 1.5-inch drain needs a 1.5-inch vent. Undersizing restricts airflow; oversizing is generally acceptable but cumbersome.
- Skipping Primer: Skipping the primer step leads to weak bonds that may leak air or water over time.
FAQ: Frequently Asked Questions
1. Do I really need a vent for every drain?
Yes. Every fixture with a trap needs a vent. Without it, the trap can be siphoned dry, allowing dangerous sewer gases into your living space. Code typically requires each fixture to be vented, though some fixtures can share a vent if configured correctly.
2. Are Air Admittance Valves (AAVs) legal?
In the United States, AAVs are approved by the International Plumbing Code (IPC) and Uniform Plumbing Code (UPC). However, local amendments vary. Always check with your local building department before installation. They are widely accepted for remodels where running a roof vent is impractical.
3. How long does an AAV last?
A high-quality AAV typically lasts between 20 to 30 years. They are mechanical devices with moving parts, so they can eventually wear out. If you notice smells returning after years of no issues, the valve may need replacement.
4. Can I vent two sinks with one AAV?
Yes, provided the AAV is sized correctly for the total fixture units. For two standard bathroom sinks, a single 1.5-inch or 2-inch AAV installed on the common drain line is usually sufficient. Ensure the valve is located within the distance limits specified by the manufacturer.
5. What happens if I don’t vent my plumbing?
Without proper venting, you will experience slow drainage, gurgling noises, and potential sewer gas infiltration. In severe cases, the vacuum created can pull waste water out of traps, leading to health hazards and unpleasant odors throughout the home.
Conclusion
Learning how to add a vent to your existing plumbing is a valuable skill that enhances your home’s comfort and safety. Whether you choose an easy-to-install Air Admittance Valve or opt for a traditional roof vent, the goal remains the same: balancing pressure to ensure efficient drainage.
By following the steps outlined above, you can eliminate gurgling sounds and slow drains without breaking the bank. Remember, if you are ever unsure about cutting into main stacks or working on the roof, consulting a professional is the wisest choice.
