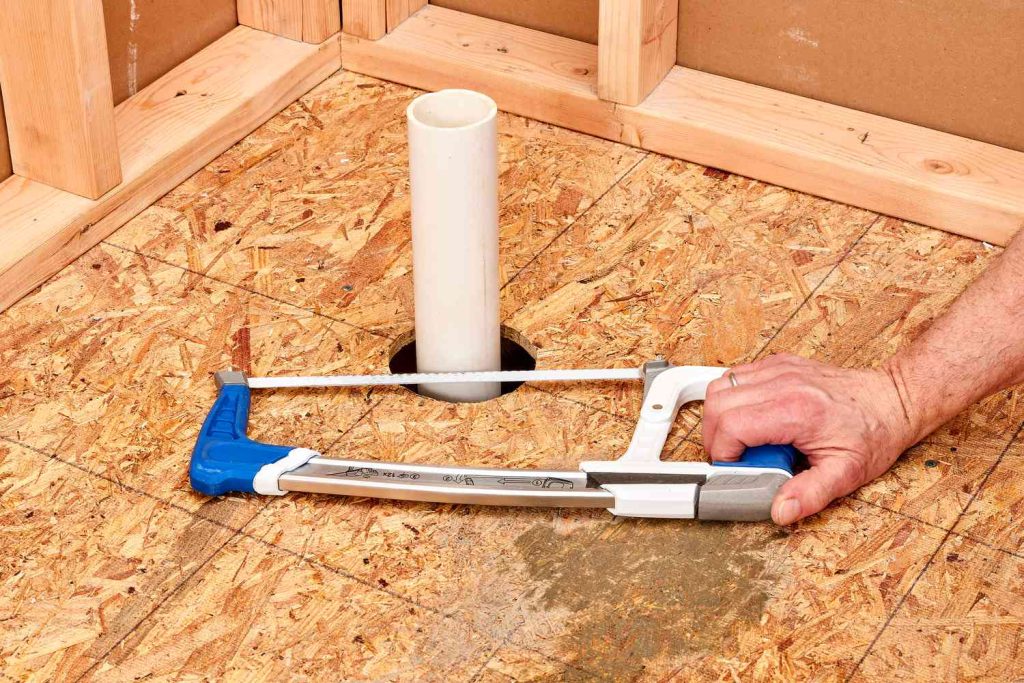

Renovating a bathroom with a slab-on-grade foundation can feel intimidating. Many homeowners worry that breaking into solid concrete will lead to structural issues or costly leaks down the road. However, with the right tools and careful planning, you can successfully integrate new water lines and drains without compromising your home’s integrity. This guide will walk you through exactly how to add plumbing for shower concrete floors, ensuring a professional, code-compliant result that stands the test of time.
Whether you are converting a spare room into a spa-like retreat or updating an outdated master bath, understanding the interaction between concrete slabs and PVC piping is crucial. Let’s dive into the process with confidence and precision.
Can You Run Plumbing Through a Concrete Slab?
The short answer is yes, but it requires specific techniques. Unlike wood-framed floors where you can simply drill between joists, concrete slabs are monolithic structures. Running plumbing through them involves two primary methods: trenching (cutting into the slab) or building up (raising the floor level).
For most retrofit showers, trenching is the preferred method because it maintains the original floor height. However, you must adhere to local building codes regarding the depth of the cut. Generally, you should never cut more than one-third of the slab’s thickness to avoid structural weakening. If your slab is 4 inches thick, your trench should not exceed 1.3 inches deep for structural safety, though plumbing trenches often go deeper in non-load-bearing areas like bathrooms. Always consult a structural engineer if you are unsure about your slab’s reinforcement layout.
Key Considerations Before You Start
- Post-Tension Cables: If your home was built after the 1970s, it may have post-tensioned cables. Never cut these. Hitting a tension cable can cause catastrophic structural failure. Look for warning stamps on the slab or consult original blueprints.
- Rebar Mesh: Standard rebar or wire mesh is common. Cutting through a single strand of wire mesh is usually acceptable, but cutting major rebar requires engineering approval.
- Slope Requirements: Showers require a minimum slope of 1/4 inch per foot toward the drain. You must account for this gradient when digging your trench.
What Tools Do You Need to Cut Concrete for Plumbing?
Having the right equipment is half the battle. Concrete is dense and abrasive, so standard wood-working tools will fail quickly. Here is the essential toolkit for this project:
| Tool | Purpose | Pro Tip |
|---|---|---|
| Angle Grinder with Diamond Blade | Making precise straight cuts for trench edges. | Use a blade rated for reinforced concrete. Wear a respirator. |
| Electric Demolition Hammer | Breaking out the concrete within the trench lines. | Rent a “jackhammer” style tool for slabs thicker than 3 inches. |
| Shop Vacuum (Wet/Dry) | Cleaning up silica dust and debris. | Silica dust is hazardous; keep the area clean as you work. |
| PVC Pipe & Fittings | Creating the water supply and drain lines. | Use Schedule 40 PVC for drains; PEX or Copper for supply lines. |
| Concrete Patching Compound | Refilling the trench after inspection. | Choose a fast-setting, high-strength mix. |
| Waterproofing Membrane | Preventing leaks from reaching the subfloor. | Essential for tile installations over concrete. |
Safety Note: According to OSHA guidelines, crystalline silica dust generated from cutting concrete can cause serious lung disease. Always use a grinder with a vacuum attachment and wear an N95 respirator or better.
Step-by-Step Guide: How to Add Plumbing for Shower Concrete Floors
Follow these detailed steps to ensure your installation is durable and leak-free.
Step 1: Plan and Mark Your Layout
Before touching any tools, map out your shower pan location. Determine where the drain will sit and where the hot/cold water lines will enter the wall.
- Use a chalk line to mark the trench path from the main waste line to the new shower drain location.
- Mark the width of the trench. For a standard 2-inch drain pipe, a trench width of 4–6 inches allows enough room for proper bedding and compaction.
Step 2: Cut the Concrete Edges
Using your angle grinder with a diamond blade, cut along your chalk lines.
- Depth: Cut approximately 2–3 inches deep, or deep enough to accommodate the pipe plus 1 inch of bedding material below it.
- Technique: Make multiple shallow passes rather than one deep cut to prevent blade overheating and binding.
Step 3: Break Out the Concrete
Use the demolition hammer to break the concrete between your cut lines.
- Start from the center of the trench and work outward toward the edges to prevent chipping the remaining slab.
- Remove all debris. The bottom of the trench should be relatively flat and free of loose rocks.
Step 4: Install the Drain and Waste Lines
This is the critical phase. Proper slope is non-negotiable.
- Dry Fit: Assemble your PVC pipes without glue to ensure fit.
- Check Slope: Place a level on the pipe. Ensure it slopes downward toward the main drain at 1/4 inch per foot. Use small shims or compacted sand to hold the pipe in place.
- Glue and Prime: Apply purple primer and clear PVC cement to all joints. Hold each joint firmly for 30 seconds to set.
- Secure the Drain: Install the shower drain flange. It must sit flush with the finished floor height, not the current concrete level. Account for the thickness of your mortar bed, waterproofing, and tile.
Step 5: Pressure Test and Inspection
Before covering anything, you must verify there are no leaks.
- Cap the ends of the new lines.
- Fill the system with water or use an air tester (depending on local code).
- Wait 24 hours. Check for any drop in pressure or visible water seepage.
- If your locality requires it, schedule a rough-in inspection with your local building department.
Step 6: Backfill and Patch
Once approved:
- Cover the pipes with 1–2 inches of sand or fine gravel to protect them from sharp rocks in the concrete patch.
- Mix your concrete patching compound. It should have a consistency similar to thick oatmeal.
- Fill the trench, tamping it down firmly to eliminate air pockets.
- Level the patch with the surrounding floor. Let it cure for at least 48 hours before proceeding with waterproofing.
Pros and Cons: Trenching vs. Building Up
When deciding how to add plumbing for shower concrete floors, you generally have two options. Here is how they compare:
| Feature | Trenching (Cutting In) | Building Up (Raising Floor) |
|---|---|---|
| Floor Height | Maintains existing level. | Increases floor height by 3–5 inches. |
| Labor Intensity | High (heavy demolition). | Moderate (framing and pouring). |
| Structural Risk | Low if done correctly; risk of hitting rebar. | None (adds load, but minimal). |
| Accessibility | Harder to access pipes later. | Easier access if using a removable panel (rare in showers). |
| Best For | Single-story homes, slab foundations. | Multi-story homes, wood subfloors over concrete. |
For most DIYers in single-story homes, trenching is the standard approach because it avoids creating a “step-up” into the shower, which is a tripping hazard and often violates ADA or universal design principles.
Common Mistakes to Avoid
Even experienced contractors can make errors. Avoid these pitfalls to ensure longevity:
- Ignoring the Slope: If the drain pipe is flat or slopes backward, water will sit in the pipe, leading to clogs and odors. Always double-check with a level.
- Poor Waterproofing: Concrete is porous. Just because the slab is concrete doesn’t mean it’s waterproof. You must apply a liquid waterproofing membrane or a sheet membrane (like Kerdi) over the entire shower pan area before tiling.
- Using the Wrong Pipe Material: Never use ABS pipe if your local code mandates PVC, or vice versa. They require different primers and cements. Stick to what is approved in your jurisdiction.
- Rushing the Cure Time: Walking on or tiling over fresh concrete patches too soon can cause cracking. Patience is key.
FAQ Section
Q1: How deep should I cut the concrete for a shower drain?
You typically need to cut deep enough to accommodate the pipe diameter plus 1 inch of bedding material. For a 2-inch PVC pipe, a trench depth of 3–4 inches is standard. Ensure you do not cut more than one-third of the slab’s total thickness.
Q2: Can I run PEX tubing through concrete?
Yes, PEX is excellent for concrete applications. However, it must be encased in a protective sleeve (conduit) where it passes through the concrete to allow for expansion and contraction and to prevent abrasion damage. Never embed PEX directly in concrete without protection.
Q3: Do I need a permit to add a shower on a concrete slab?
In most US jurisdictions, yes. Adding plumbing fixtures usually requires a permit to ensure compliance with health and safety codes. Unpermitted work can lead to fines and issues when selling your home. Check with your local building department.
Q4: What is the best way to waterproof a concrete shower floor?
After patching the trench, apply a topical waterproofing membrane. Liquid-applied membranes (like RedGard or Hydro Ban) are popular for DIYers because they form a seamless barrier. Apply two coats over the entire floor and up the walls 6 inches, reinforcing corners with mesh tape.
Q5: How long does concrete patch take to dry before tiling?
While concrete may feel dry to the touch in 24 hours, it continues to cure for weeks. For tiling purposes, you can usually proceed after 48–72 hours if using a rapid-set patch. However, ensure the moisture content is low enough for your thin-set mortar manufacturer’s recommendations.
Conclusion
Learning how to add plumbing for shower concrete floors is a rewarding skill that can significantly increase your home’s value and functionality. By carefully planning your layout, respecting the structural limits of your slab, and adhering to strict waterproofing protocols, you can achieve a professional-grade result. Remember, the key to success lies in the details: proper slope, secure joints, and thorough testing.
