Upgrading your bathroom with a double vanity is one of the most impactful renovations you can make, adding both functionality and value to your home. However, staring at a tangle of pipes and drains can feel overwhelming if you’ve never tackled plumbing before. Don’t worry; with the right tools and patience, you can master how to connect plumbing for new double sink vanity setups without calling a professional.
This guide breaks down the process into manageable steps, ensuring your new sinks are leak-free and fully functional. Whether you are replacing an old unit or installing a brand-new fixture, understanding the mechanics behind the connections is key to a successful project. Let’s dive in and get your bathroom upgrade completed safely and efficiently.
What Tools and Materials Do You Need?
Before you turn off the water supply, it is crucial to gather all necessary equipment. Being prepared prevents mid-project trips to the hardware store and ensures a smoother workflow. According to industry standards, having the right wrenches and sealants is 50% of the battle in preventing future leaks.
Essential Tool List
- Adjustable Wrenches (2): One for holding nuts steady, one for tightening.
- Channel-Lock Pliers: For gripping slippery pipe fittings.
- Hacksaw or PVC Cutter: To trim drain pipes to the correct length.
- Teflon Tape (Plumber’s Tape): For sealing threaded connections.
- Plumber’s Putty or Silicone Caulk: For creating watertight seals around drain flanges.
- Bucket and Rags: To catch residual water and clean up spills.
- Level: To ensure the vanity sits perfectly flat.
Material Checklist
- Supply Lines: Two flexible braided stainless steel lines (usually 3/8-inch compression to 1/2-inch FIP).
- Drain Kit: A double-bowl waste kit with a central tee and two P-traps.
- Tailpieces: If not included in the drain kit.
- Shut-off Valves: Angle stops if your current ones are old or corroded.
Pro Tip: Always check the diameter of your existing water lines. Most US homes use 1/2-inch copper or PEX lines, but older homes may vary. Measure twice before buying supply lines.
How Do You Prepare the Area for Installation?
Preparation is critical to avoiding water damage and ensuring a clean workspace. Rushing this stage often leads to mistakes during the actual connection phase.
Step 1: Shut Off the Water
Locate the main water shut-off valve for your house or the individual valves under the existing sink. Turn them clockwise until tight. Open the faucet handles to relieve pressure and drain any remaining water from the lines.
Step 2: Disconnect Old Plumbing
Place your bucket under the P-trap. Unscrew the slip nuts connecting the trap to the wall drain and the sink tailpiece. Be prepared for some stagnant water to spill out. Once the trap is removed, disconnect the supply lines from the faucet tails using your adjustable wrench.
Step 3: Remove the Old Vanity
If you are replacing an old unit, cut any caulk sealing the vanity to the wall or floor. Carefully lift the old vanity away. Inspect the wall for any water damage or mold. If you find soft drywall, repair it before proceeding. A solid backing is essential for securing your new heavy double vanity.
For more information on water resistance in building materials, you can refer to this Wikipedia article on Drywall which discusses moisture-resistant variants often used in bathrooms.
How Do You Install the Faucets and Drains?
It is significantly easier to install faucets and drain assemblies before you mount the vanity top or set the cabinet in place. Working in the open space of a workshop or garage saves your back and ensures tighter connections.
Installing the Faucets
- Insert the faucet gasket or apply a bead of silicone under the faucet base.
- Feed the faucet tails and supply line connectors through the mounting holes in the countertop.
- From underneath, secure the faucet with the provided mounting nuts. Hand-tighten first, then give a quarter-turn with pliers. Do not overtighten, as this can crack ceramic or composite sinks.
Installing the Drain Assemblies
- Apply a rope of plumber’s putty around the underside of the drain flange (or use the rubber gasket if specified by the manufacturer).
- Insert the drain body into the sink hole.
- From below, screw on the locking nut and tighten firmly. Wipe away excess putty that squeezes out from the top.
Step-by-Step: How To Connect Plumbing For New Double Sink Vanity
Now comes the core task. Connecting a double sink requires symmetry and precise measurements to ensure both drains flow correctly into the single wall outlet.
Step 1: Position the Vanity
Slide your new double vanity into place. Use shims if the floor is uneven. Check with your level to ensure the top is perfectly horizontal. An unlevel vanity can cause water to pool in one sink instead of draining. Secure the vanity to the wall studs using screws through the back rail.

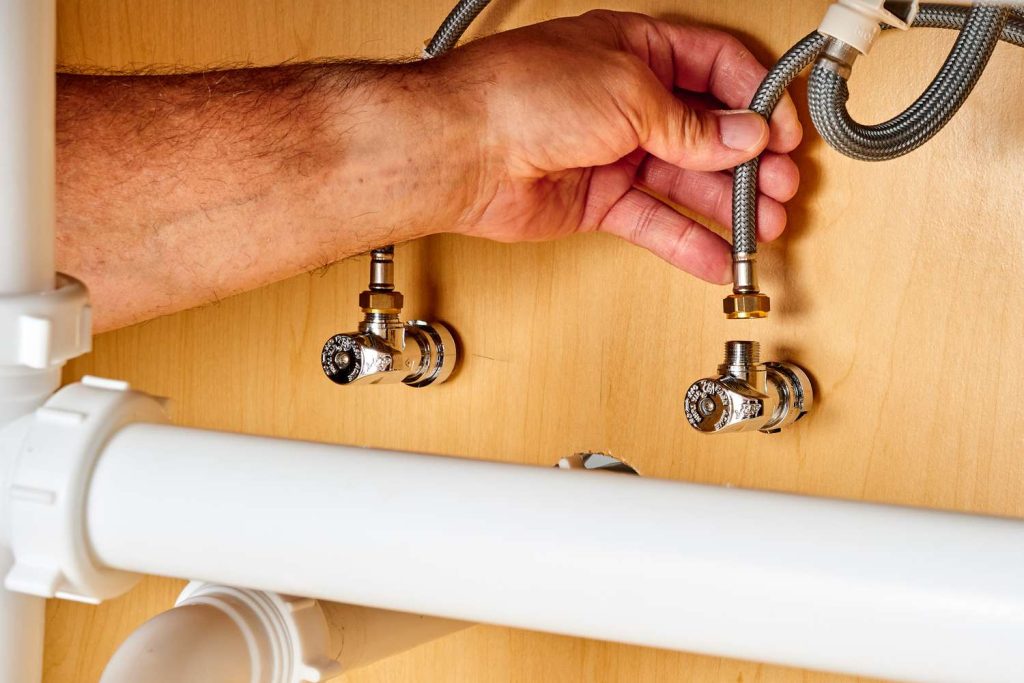

Step 2: Connect the Water Supply Lines
- Attach the new shut-off valves to the water stubs coming out of the wall. Use Teflon tape on the threads for a secure seal.
- Connect the flexible supply lines to the shut-off valves. Hand-tighten, then use a wrench for a final half-turn.
- Connect the other end of the supply lines to the faucet tails. Again, hand-tighten followed by a slight wrench turn.
- Note: Ensure hot water connects to the left (usually red indicator) and cold to the right (blue indicator).
Step 3: Assemble the Double Drain Kit
This is where most DIYers hesitate. A double sink drain kit typically includes two tailpieces, a horizontal cross-pipe, a central tee, and two P-traps.
- Attach Tailpieces: Screw the tailpieces onto the drain bodies you installed earlier.
- Measure and Cut: Hold the horizontal cross-pipe against the tailpieces. Mark where it needs to be cut to fit snugly. Use your hacksaw or PVC cutter for a clean edge. Deburr the edges with sandpaper.
- Connect the Tee: Insert the cross-pipe into the tailpieces and the central tee. The tee should align vertically with the wall drain pipe.
- Install P-Traps: Connect the bottom of the central tee to the P-trap assembly. The P-trap must then connect to the wall drain pipe. You may need to adjust the height of the P-trap using slip joints to align perfectly with the wall outlet.
Step 4: Tighten and Seal
Hand-tighten all slip nuts first. Ensure the washers are seated correctly—they should face the direction of the water flow (towards the nut). Once hand-tight, use channel-lock pliers to give each nut a quarter-turn. Avoid over-tightening plastic nuts, as they can crack easily.
Common Mistakes to Avoid When Connecting Double Sinks
Even experienced handymen can stumble on specific issues when dealing with double vanities. Here is a comparison of common pitfalls and how to avoid them.
| Mistake | Consequence | Solution |
|---|---|---|
| Over-tightening Nuts | Cracked plastic fittings, stripped threads. | Hand-tighten first, then only 1/4 turn with tools. |
| Misaligned P-Traps | Leaks at the wall connection, stress on pipes. | Use adjustable slip joints to align perfectly before tightening. |
| Skipping Teflon Tape | Leaks at threaded shut-off valves. | Always wrap threads clockwise with 3-4 layers of tape. |
| Ignoring Venting | Slow drainage, gurgling sounds. | Ensure the existing vent stack is not blocked; consult a pro if drainage is slow. |
Why Proper Venting Matters
If your sinks gurgle or drain slowly after installation, the issue might not be your connections but the venting. Plumbing systems require air to enter the pipes to allow water to flow smoothly. If you modified the wall structure, ensure you didn’t block the vent pipe.
FAQ: Frequently Asked Questions
1. Can I use the existing single drain hole for a double sink?
No. A standard single sink drain is usually centered. A double vanity requires a wider drain setup, typically involving a cross-pipe that connects two sinks to a central point. You will likely need to modify the wall opening or use a specialized double-sink waste kit designed to route both drains into the existing wall pipe.
2. Do I need a permit to replace a vanity?
In most US jurisdictions, replacing a like-for-like vanity (same location, same type of connections) does not require a permit. However, if you are moving plumbing lines, adding new water lines, or altering the venting system, you may need a permit. Always check with your local building department.
3. Why is my new double sink draining slowly?
Slow drainage is often caused by an improper slope in the pipes or a blockage. Ensure that the horizontal pipes slope slightly downward toward the drain (about 1/4 inch per foot). Also, check that no debris fell into the pipes during installation. If the problem persists, it could be a venting issue.
4. Should I use plumber’s putty or silicone for the drains?
Both work, but they have different applications. Plumber’s putty is traditional and easy to use but can stain porous stones like marble or granite. For stone countertops, use 100% silicone caulk. For ceramic or porcelain sinks, plumber’s putty is generally preferred for its ease of cleanup.
5. How do I test for leaks after installation?
Turn the water supply back on slowly. Run both sinks simultaneously for a few minutes. Place dry paper towels around all connections (supply lines, drain nuts, P-traps). Check the towels for any dampness. If you see water, tighten the corresponding nut slightly or re-seat the washer.
Conclusion
Learning how to connect plumbing for new double sink vanity units is a rewarding skill that can save you hundreds of dollars in labor costs. By following this step-by-step guide, preparing the right tools, and paying attention to detail—especially with the P-trap alignment and sealing—you can achieve a professional-looking result.
Remember, patience is your best tool. Take your time to measure twice and cut once, and always test for leaks before declaring the job done. Your upgraded bathroom will not only look stunning but also function flawlessly for years to come.
