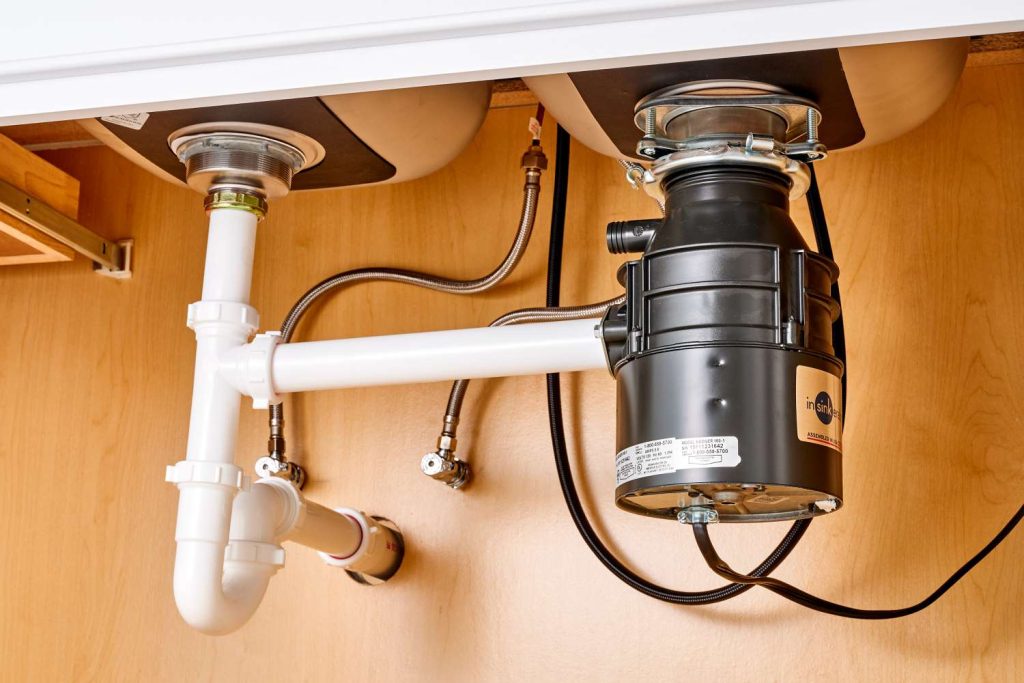

Connect Plumbing Under Kitchen Sink With PVC: Easy Guide

Leaky pipes under your kitchen sink can turn a simple cleanup into a stressful nightmare. Whether you are renovating your kitchen or fixing a persistent drip, knowing how to connect plumbing under kitchen sink with PVC can save you hundreds of dollars in plumber fees. This guide breaks down the process into simple, manageable steps, ensuring you feel confident and capable throughout the project.

Many homeowners hesitate to tackle plumbing because it seems complex. However, modern PVC (Polyvinyl Chloride) and CPVC (Chlorinated Polyvinyl Chloride) materials are designed for user-friendly installation. By following industry best practices and safety standards, you can achieve a professional-grade result right from your own home.

Understanding PVC vs. CPVC for Kitchen Sinks

Before you head to the hardware store, it is crucial to understand which material you actually need. In the United States, strict building codes often dictate what can be used where.

The Temperature Factor

Standard PVC is excellent for cold water and drain-waste-vent (DWV) systems. However, it has a maximum operating temperature of around 140°F (60°C). Kitchen sinks frequently discharge hot water from dishwashers or manual washing.

CPVC, on the other hand, can withstand temperatures up to 200°F (93°C). For this reason, many US plumbing codes require CPVC for hot water lines or recommend it for sink drains that may receive high-temperature discharge.

Pro Tip: Always check your local municipal building codes. While PVC is common for drainage, some jurisdictions strictly mandate ABS (black pipe) or CPVC for specific under-sink applications.

For more detailed technical specifications on plastic piping materials, you can refer to the Wikipedia entry on Polyvinyl chloride, which outlines the chemical properties and industrial standards.

Tools and Materials You Will Need

Preparation is half the battle. Gathering the right tools before you start prevents mid-project frustration. Here is a checklist for a standard under-sink connection.

Essential Tools

• Hacksaw or PVC Pipe Cutter: For clean, straight cuts.
• Deburring Tool or Sandpaper: To smooth rough edges after cutting.
• Tape Measure: For precise length calculations.
• Adjustable Wrenches (2): For tightening slip nuts if using transition fittings.
• Bucket and Rags: To catch residual water and spills.
• Safety Gear: Safety glasses and gloves.

Materials

• PVC or CPVC Pipes: Typically 1.5-inch diameter for kitchen sinks.
• Fittings: Elbows (90-degree or 45-degree), couplings, and P-trap kits.
• Primer and Cement: Ensure the cement matches your pipe type (PVC or CPVC).
• Teflon Tape: For threaded connections.
• Slip-Joint Washers: Usually included in P-trap kits.

Step-by-Step: How to Connect Plumbing Under Kitchen Sink With PVC

Follow these steps carefully. Precision is key to preventing leaks.

Step 1: Preparation and Removal of Old Plumbing

Turn off the water supply valves under the sink. Place a bucket beneath the P-trap to catch any standing water. Loosen the slip nuts on the existing trap and remove the old piping. Clean the area thoroughly; a clean workspace reduces the risk of contaminating your new joints.

Inspect the tailpiece coming down from the sink strainer. If it is corroded or damaged, replace it with a new stainless steel or plastic tailpiece. Ensure it is centered and aligned with the wall drain outlet.

Step 2: Measuring and Cutting the Pipes

Measure the distance between the sink tailpiece and the wall drain stub-out. Remember to account for the depth of the fittings. A common mistake is cutting the pipe too long, which prevents the fittings from seating fully.

1. Mark your cut line with a marker.
2. Use a hacksaw or pipe cutter to make a straight cut.
3. Crucial Step: Use your deburring tool or sandpaper to remove all burrs from the inside and outside of the cut. Rough edges can trap debris and cause clogs later, or prevent a proper seal during gluing.

Step 3: Dry Fitting the Assembly

Before applying any glue, assemble the entire system dry. This includes the P-trap, the extension tubes, and any elbows required to navigate around obstacles.

Check for alignment. The P-trap should sit naturally without being forced. If you have to push or pull hard to make pieces fit, your measurements are slightly off. Adjust as necessary. Once satisfied, take a photo with your phone for reference during the final assembly.

Step 4: Priming and Gluing the Joints

Now comes the permanent part. Work in a well-ventilated area, as PVC primer and cement emit strong fumes.

1. Apply Primer: Apply purple PVC primer to the outside of the pipe end and the inside of the fitting socket. This cleans and softens the plastic.
2. Apply Cement: Immediately apply a thin, even layer of PVC cement to the same areas. Do not skimp, but do not drown it.
3. Connect: Push the pipe into the fitting with a slight quarter-turn twisting motion. This distributes the cement evenly.
4. Hold: Hold the joint firmly for about 15–30 seconds to prevent it from pushing back out.

Warning: PVC cement sets quickly. You have only a few seconds to adjust the angle. Ensure your alignment is correct before the pieces touch.

Step 5: Installing the P-Trap

The P-trap is essential because it holds water to block sewer gases from entering your home. Most modern P-traps use slip-nut connections rather than glue, allowing for easier future cleaning.

1. Slide the slip nut and washer onto the tailpiece.
2. Insert the tailpiece into the top of the P-trap.
3. Hand-tighten the nut. Use pliers for a final quarter-turn, but do not overtighten, as this can crack the plastic or warp the washer, leading to leaks.
4. Connect the other end of the P-trap to the wall drain pipe using the same method.

Step 6: Testing for Leaks

Once the assembly is complete, wait at least 30 minutes for the cemented joints to cure. Then, turn the water supply back on.

Run water in the sink for several minutes. Check every joint for drips. Pay special attention to the slip-nut connections on the P-trap. If you see a leak, tighten the nut slightly. If it persists, disassemble, check the washer for damage, and reassemble.

Common Mistakes to Avoid

Even experienced DIYers make mistakes. Here are the most frequent pitfalls when learning how to connect plumbing under kitchen sink with PVC.

• Using the Wrong Glue: Never use PVC cement on CPVC pipes or vice versa. They have different chemical compositions. Using the wrong cement results in weak joints that will fail over time.
• Ignoring Slope: Drain pipes must slope downward toward the main drain line. A general rule is a slope of 1/4 inch per foot. If the pipe slopes upward or is perfectly level, water will stagnate, leading to clogs.
• Over-Tightening Nuts: Plastic threads are fragile. Cracking a nut means you have to cut the pipe and start over. Hand-tight plus a small turn is usually sufficient.
• Skipping the Primer: Some “all-in-one” cements claim no primer is needed. However, professional plumbers almost always use primer. It ensures a molecular bond that prevents leaks under pressure.

FAQ Section

1. Can I use PVC for hot water under the sink?

Generally, no. Standard PVC is not rated for hot water. If your sink drains hot water regularly (e.g., from a dishwasher), you should use CPVC or ABS (if allowed by local code). Using PVC for hot water can cause the pipes to warp and leak over time.

2. Why is my new PVC connection leaking?

Leaks are usually caused by three issues: insufficient cement, misaligned pipes, or damaged washers. If it is a glued joint, you may need to cut it out and redo it. If it is a slip-nut connection, try tightening it slightly or replacing the rubber washer.

3. Do I need a permit to replace under-sink plumbing?

In most US jurisdictions, minor repairs like replacing a P-trap or short sections of pipe do not require a permit. However, if you are moving the drain location or altering the main stack, a permit may be required. Always check with your local building department.

4. How long should I wait before using the sink after gluing?

While PVC cement sets in minutes, it takes time to fully cure. Wait at least 30 minutes before running water through the system. For full strength, wait 24 hours, though this is rarely necessary for simple drain lines under low pressure.

5. What is the difference between a P-trap and an S-trap?

A P-trap is shaped like the letter ‘P’ lying on its side and vents properly to prevent siphoning. An S-trap drops straight down and then up, which can siphon water out of the trap, allowing sewer gas into your home. Modern codes generally prohibit S-traps; always use a P-trap.

Conclusion

Learning how to connect plumbing under kitchen sink with PVC is a valuable skill that empowers you to maintain your home efficiently. By choosing the right materials, measuring accurately, and following proper gluing techniques, you can ensure a durable, leak-free system.

Remember, patience is your best tool. Rushing the drying process or ignoring small details like deburring pipes can lead to bigger problems down the road. If you found this guide helpful, please share it with your friends or on social media to help other DIY enthusiasts tackle their plumbing projects with confidence!
