Design Plumbing Through Solids in Inventor: A Pro Guide

Have you ever spent hours modeling a complex piping system, only to realize it clashes with a structural beam or a concrete wall? It is one of the most frustrating moments in mechanical design. You know the pipes need to go through the structure, but cutting clean, accurate holes in your 3D solids without breaking the model’s integrity can feel like a puzzle.

You are not alone. Many designers struggle with the intersection of fluid systems and solid geometry. This guide will show you exactly how to design plumbing through solids in Inventor AutoCAD (specifically Autodesk Inventor) using professional, non-destructive workflows. By the end of this article, you will be able to route pipes, create precise cutouts, and verify your designs with confidence.

Why Proper Solid Integration Matters in CAD

Before we dive into the buttons and menus, let’s address why this process is critical. In modern manufacturing and construction, “clashes” are expensive. According to industry reports, poor coordination between MEP (Mechanical, Electrical, and Plumbing) systems and structural elements accounts for nearly 30% of rework costs in construction projects.

When you design plumbing through solids correctly in Autodesk Inventor, you achieve two things:

1. Manufacturing Accuracy: The holes in your walls or plates match the pipe outer diameter (OD) plus insulation tolerance perfectly.
2. Visual Clarity: Your assembly looks professional, with no hidden lines or ambiguous intersections confusing the fabricator.

Note on Terminology: While users often search for “Inventor AutoCAD,” it is important to clarify that Autodesk Inventor and AutoCAD are distinct software packages. Inventor is parametric 3D mechanical design software, while AutoCAD is primarily 2D/3D drafting. This guide focuses on Autodesk Inventor, as it is the industry standard for parametric pipe routing and solid modeling integration. For more on the history of computer-aided design, you can visit Wikipedia’s page on CAD.

Step 1: Preparing Your Solid Body for Penetration

The biggest mistake beginners make is trying to cut holes after the pipe is fully routed. This leads to broken references and update errors. Instead, we use a “Top-Down” design approach.

Create Reference Geometry

To design plumbing through solids in Inventor, you first need to define where the pipe will enter and exit the solid.

1. Open your Assembly file. Ensure your solid body (e.g., a wall, tank, or machine frame) is placed and constrained.
2. Create Work Points. Use the 3D Sketch tool to draw a simple line representing the centerline of your pipe.
3. Project Geometry. Project the faces of the solid body onto your sketch. This ensures that if the wall moves, your entry/exit points update automatically.

Pro Tip: Always keep your reference sketches in a separate component or an adaptive sub-assembly. This keeps your main model tree clean.

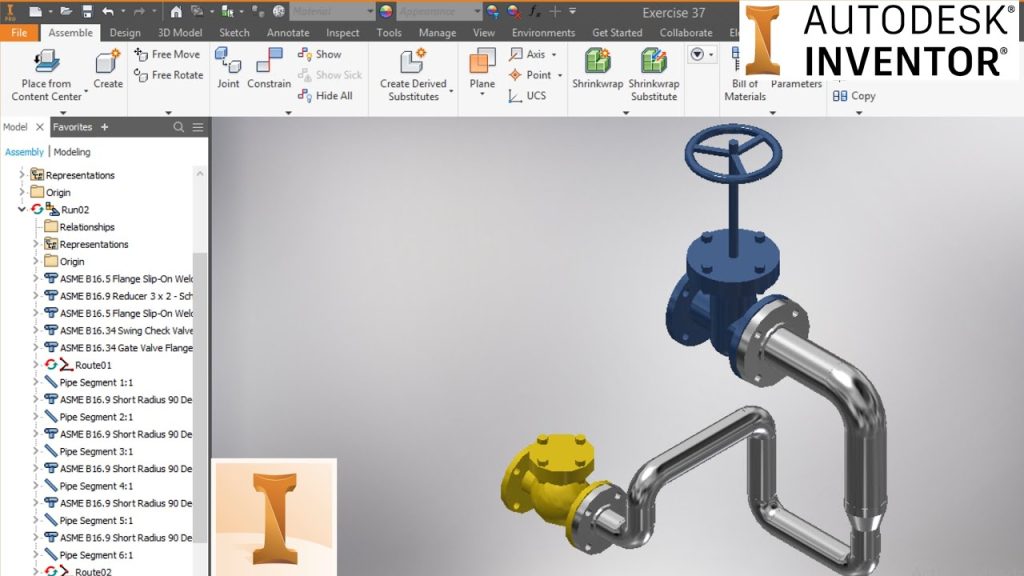

Step 2: Routing the Pipe Using the Tube & Pipe Author

Now that we have our path, we need to generate the actual plumbing geometry. Autodesk Inventor’s Tube & Pipe environment is powerful, but it requires specific settings to interact correctly with solids.

Initiating the Route

1. Go to the Environments tab and select Tube & Pipe.
2. Right-click in the browser and select Create Run.
3. Choose your pipe standard (e.g., ANSI Stainless Steel Schedule 40).

Defining the Path Through the Solid

This is the core of learning how to design plumbing through solids in Inventor AutoCAD workflows.

• Step A: Click on the starting work point you created earlier.
• Step B: As you route the pipe, when you reach the solid body, do not just click arbitrarily. Use the Intersection constraint if available, or manually place a node exactly on the face of the solid.
• Step C: Continue routing to the exit point.

Critical Setting: Ensure your pipe style has the correct Outer Diameter (OD) defined. If you are designing for a 2-inch pipe, the software needs to know the exact OD to calculate the hole size later.

Step 3: Creating the Cutouts (The Boolean Operation)

Once the pipe is routed, you have a solid pipe intersecting a solid wall. Visually, it looks fine, but physically, they are occupying the same space. We need to remove the material from the wall where the pipe passes through.

There are two primary methods to do this in Inventor:

Method A: The Derived Component Approach (Recommended)

This method is non-destructive and keeps your parts modular.

1. Create a new part file named Wall_Cutout.ipt.
2. Use Derive to bring in the Wall.solid and the Pipe_Run.iam.
3. Use the Combine command.
   • Target Body: The Wall.
   • Tool Body: The Pipe (or a constructed cylinder representing the pipe + clearance).
   • Operation: Cut.

Method B: In-Context Editing (Faster, Less Flexible)

1. Open the assembly.
2. Right-click the Solid Body (Wall) and select Edit.
3. Use the Split tool or Extrude Cut.
4. Select the pipe’s outer face as the profile reference.
5. Extrude through all.

Step 4: Adding Clearance and Insulation

Rarely does a pipe touch a concrete wall directly. You usually need space for insulation, clamps, or thermal expansion. When you design plumbing through solids in Inventor, accounting for this gap is vital.

Calculating the Offset

If your pipe OD is 60mm and you need 10mm of insulation, your cutout diameter must be at least 80mm.

1. In your Cutout part, do not use the pipe geometry directly for the cut.
2. Instead, create a Construction Cylinder.
3. Set the diameter to: Pipe OD + (2 x Insulation Thickness) + Clearance.
4. Use this construction cylinder as the tool body for your Boolean Cut operation.

This ensures that even if you change the pipe schedule later, you can simply update the parameter, and the hole in the wall will resize automatically.

Step 5: Verification with Interference Analysis

How do you know you succeeded? You run an interference check. This is the quality control step that separates amateurs from professionals.

1. Go to the Inspect tab.
2. Select Interference Check.
3. Select the Pipe Run as Set 1.
4. Select the Solid Body (Wall) as Set 2.
5. Click Calculate.

Expected Result:

• If you did the cutout correctly, there should be zero interferences between the pipe and the wall.
• If you see red highlights, it means the pipe is still clipping through the solid. Go back to Step 3 and check your boolean operation.

Common Challenges and Solutions

Even with the best plan, you might hit roadblocks. Here are common issues when trying to design plumbing through solids in Inventor.

1. The “Broken Link” Error

Problem: When you move the wall, the pipe doesn’t update, or the cutout stays in the old position. Solution: Ensure you are using Adaptive Components or properly constrained sketches. Avoid hard-coding coordinates. Use geometric constraints (Mate, Flush, Tangent) rather than dimension-only constraints where possible.

2. Slow Performance

Problem: The model lags when rotating. Solution: Complex boolean operations on large assemblies are heavy. Suppress the visual detail of the cutouts when not editing them. Use Level of Detail (LOD) representations to hide the internal plumbing during high-level assembly reviews.

3. Irregular Angles

Problem: The pipe hits the wall at a 45-degree angle, creating an oval hole, but the cutout is circular. Solution: When creating the cutout extrusion, ensure the extrusion direction is perpendicular to the wall face, not parallel to the pipe. For angled entries, use the Split Face tool followed by a Thicken/Cut operation to maintain wall thickness consistency.

FAQ: Designing Plumbing in Inventor

Q1: Can I use AutoCAD Plant 3D data in Inventor?

Yes, you can import data from AutoCAD Plant 3D, but it often comes in as dumb solids. To truly design plumbing through solids in Inventor effectively, it is better to rebuild the route using Inventor’s native Tube & Pipe tools for parametric control.

Q2: How do I handle multiple pipes going through one hole?

Group the pipes into a single “bundle” sketch. Create a single construction shape (like a rectangle or large circle) that encompasses all pipes plus their collective clearance. Use this single shape to cut the solid. This is cleaner than making five separate holes.

Q3: What is the best file format for exporting these designs?

For sharing with stakeholders who don’t have Inventor, use STEP (.stp) files. They preserve the solid geometry and the boolean cuts accurately. Avoid DWG for 3D solid transfer if possible, as it can sometimes lose feature history.

Q4: Does Inventor automatically add fittings when routing through walls?

No. Inventor routes the centerline and generates the pipe segments. You must manually place flanges, bulkheads, or wall sleeves if required by your engineering standards. These are typically added as standard components from the Content Center.

Q5: How can I make the hole waterproof in the model?

In the CAD model, “waterproofing” is represented by adding a Sleeve or Escutcheon component. Model these as separate parts that fit into the cutout hole and seal against the pipe. Do not try to model the sealant material itself; just represent the hardware.

Q6: Why is my interference check showing errors even after cutting?

Check your tolerances. Sometimes, microscopic gaps (0.0001mm) are registered as interferences due to floating-point math errors. In the Interference Check dialog, you can set a Tolerance Value. Set this to a small number (e.g., 0.01mm) to ignore negligible overlaps.

Conclusion

Learning how to design plumbing through solids in Inventor AutoCAD environments is a skill that pays dividends in accuracy and professionalism. By moving away from manual trimming and embracing parametric boolean operations, you create models that are robust, easy to update, and ready for fabrication.

Remember the key steps:

1. Plan your path with reference geometry.
2. Route using the Tube & Pipe author.
3. Create cutouts using derived components or boolean cuts.
4. Always verify with Interference Analysis.
