Navigating the bureaucratic maze of local building departments can feel overwhelming, especially when your home renovation project hinges on official approval. Many homeowners and junior contractors struggle with the technical precision required, often facing costly delays due to rejected submissions. Understanding how to design a plumbing plan for a permit is not just about drawing lines; it is about demonstrating safety, code compliance, and professional competence to your local authorities.

This guide breaks down the complex process into manageable steps, ensuring your application moves smoothly through review. Whether you are adding a bathroom or re-piping an entire house, this article provides the clarity you need to succeed.


Why Do You Need a Professional Plumbing Plan?

Before diving into the “how,” it is crucial to understand the “why.” A plumbing plan is more than a formality; it is a legal document that ensures the health and safety of building occupants.

Safety and Code Compliance

Plumbing systems involve potable water supply and waste removal. Errors in design can lead to cross-contamination, sewage backups, or structural water damage. Local building officials use your plan to verify that your design adheres to the International Plumbing Code (IPC) or the Uniform Plumbing Code (UPC), depending on your stateโ€™s adoption.

Financial Protection

Submitting a flawed plan can result in multiple rejection cycles. Each resubmission often incurs additional fees and delays your project start date by weeks. A well-designed plan minimizes these risks, protecting your budget and timeline.

Expert Insight: According to industry data, projects with professionally drafted initial plans are 40% more likely to receive first-pass approval compared to hand-drawn amateur sketches.


What Are the Key Components of a Plumbing Plan?

To answer how to design a plumbing plan for a permit, you must first know what elements constitute a complete submission. A compliant plan typically includes three distinct layers of information.

1. The Site Plan (If Applicable)

For new constructions or major additions, you must show how the building connects to municipal utilities.

  • Water Main Connection: Location and size of the connection to the city water line.
  • Sewer/Septic Connection: The path from the building to the public sewer or private septic tank.
  • Storm Drainage: How rainwater will be managed separately from sanitary waste.

2. The Floor Plan Layout

This is the core of your submission. It must clearly depict:

  • Fixture Locations: Toilets, sinks, showers, water heaters, and appliances.
  • Pipe Routing: The path of supply lines (hot and cold) and drain-waste-vent (DWV) lines.
  • Cleanouts: Access points for clearing blockages, required at specific intervals.

3. The Isometric Diagram (Riser Diagram)

While floor plans show horizontal layout, isometric diagrams show the vertical relationship of pipes. This 3D-style drawing helps inspectors visualize how vents rise through the roof and how drains slope downward.

ComponentPurposeCommon Mistake
Supply LinesDeliver fresh waterIncorrect pipe sizing (e.g., using 1/2″ for a main feed)
DWV LinesRemove waste & vent gasesInsufficient slope (must be 1/4″ per foot for most drains)
VentsPrevent siphonageTerminating vents too close to windows or air intakes

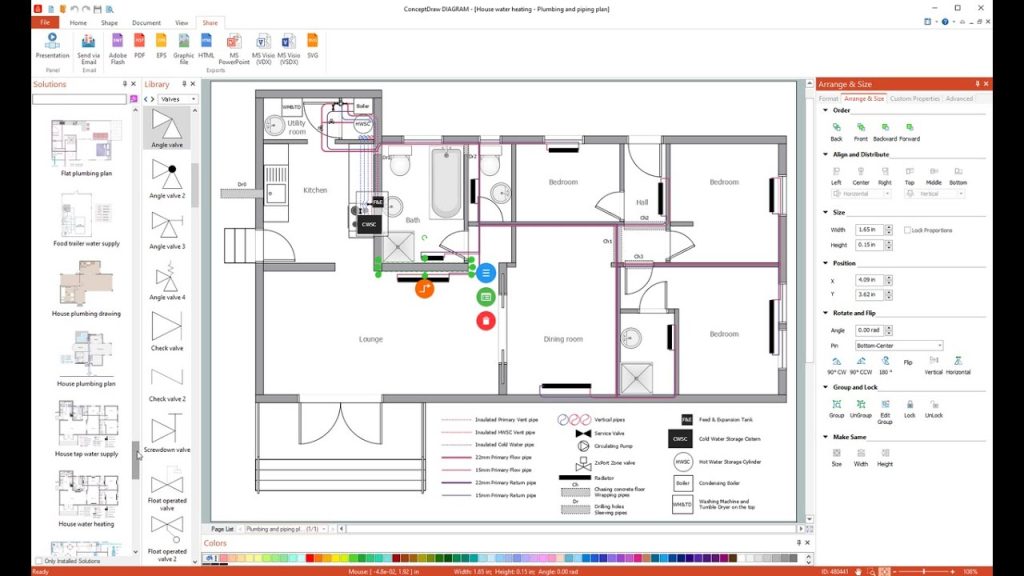

How To Design A Plumbing Plan For A Permit

Step-by-Step: How To Design A Plumbing Plan For A Permit

Follow this logical workflow to create a submission-ready document.

Step 1: Research Local Amendments

National codes like the IPC provide a baseline, but local jurisdictions often have strict amendments. Visit your city or county building departmentโ€™s website. Look for specific requirements regarding:

  • Required paper size (usually 24×36 inches).
  • Digital submission formats (PDF vs. CAD files).
  • Specific font sizes for text readability.

Step 2: Create a Scaled Base Map

Start with an accurate architectural floor plan. If you are renovating, measure existing walls precisely.

  • Use a scale of 1/4 inch = 1 foot for residential projects.
  • Clearly mark all load-bearing walls, as you cannot run large diameter waste pipes through them without engineering approval.

Step 3: Plot Fixtures and Determine Load

Place every plumbing fixture on the map. Once placed, calculate the Water Supply Fixture Units (WSFU) and Drainage Fixture Units (DFU). These values determine the required pipe diameters.

  • Example: A standard toilet might equal 3 DFUs, while a sink equals 1 DFU. The total load dictates if you need a 3-inch or 4-inch main stack.

Step 4: Draft the DWV System

Draw the waste lines first, as they are governed by gravity.

  • Slope is Critical: Ensure all horizontal drain lines slope downward at a rate of 1/8 to 1/4 inch per foot.
  • Venting: Every fixture trap must be vented. Draw vent lines rising vertically from the drain lines, connecting to a main vent stack that exits through the roof.

Step 5: Draft the Water Supply System

Draw the cold and hot water lines.

  • Use solid lines for cold water and dashed lines for hot water (or color-code if allowed: Blue for Cold, Red for Hot).
  • Indicate shut-off valves for each fixture and the main house entry.

Step 6: Add Symbols and Legends

Inspectors do not have time to guess what a symbol means. Include a clear legend on your sheet.

  • Use standard ANSI symbols for fixtures.
  • Label pipe materials (e.g., Copper Type L, PEX-A, PVC Schedule 40).

For a deeper understanding of standardized symbols and technical definitions, refer to the Wikipedia page on Plumbing which outlines historical and modern system architectures.


Common Reasons Plumbing Plans Get Rejected

Understanding pitfalls is half the battle. Here are the most frequent errors found by plan reviewers:

1. Inadequate Venting

The most common rejection reason. If a vent is too far from a fixture trap, the water seal can be siphoned out, allowing sewer gas into the home.

  • Rule of Thumb: A 1.5-inch drain usually requires a vent within 3.5 feet of the trap.

2. Missing Cleanouts

Code requires cleanouts at the base of every stack and at changes of direction greater than 45 degrees. Omitting these makes future maintenance impossible.

3. Unclear Line Weights

If your supply lines and drain lines look identical, the inspector will reject the plan. Use different line weights or colors to distinguish between DWV, water supply, and gas lines.

4. Lack of Professional Stamp

In many US states, plumbing plans for new construction or commercial projects must be stamped by a licensed Professional Engineer (PE) or a licensed Master Plumber. Check your local laws to see if a DIY plan is acceptable for residential work.


FAQ Section

1. Can I draw my own plumbing plan for a permit?

Yes, in many jurisdictions, homeowners can draw their own plans for single-family residential renovations. However, the plan must still meet all code requirements. For new construction or commercial buildings, a licensed professionalโ€™s stamp is usually mandatory.

2. What software is best for designing plumbing plans?

For beginners, SketchUp or Sweet Home 3D offers user-friendly interfaces. For professional results, AutoCAD or Revit are industry standards. There are also specialized plumbing design software options like PlanSwift that help with material takeoffs.

3. How long does it take to get a plumbing permit approved?

Processing times vary widely by location. In rural areas, it may take 3โ€“5 business days. In busy metropolitan cities, it can take 2โ€“4 weeks. Submitting a complete, error-free plan is the best way to avoid delays.

4. Do I need a separate permit for gas lines?

Often, yes. While some jurisdictions bundle gas, water, and waste under one “plumbing permit,” others require a separate mechanical or gas permit. Always verify with your local building department.

5. What is the minimum slope for a drainage pipe?

According to the International Plumbing Code, the minimum slope for a horizontal drainage pipe up to 3 inches in diameter is 1/4 inch per foot. For pipes 4 inches or larger, the minimum slope is 1/8 inch per foot.

6. How much does it cost to get a plumbing plan approved?

Permit fees are typically based on the number of fixtures or the estimated project value. Expect to pay anywhere from $50 to $500 for the permit itself. If you hire a designer or engineer to create the plan, their fees can range from $500 to $2,500+ depending on complexity.


Conclusion

Learning how to design a plumbing plan for a permit is a valuable skill that empowers you to take control of your construction projects. By focusing on accuracy, adhering to local codes, and presenting clear, professional drawings, you significantly increase your chances of a smooth approval process. Remember, the goal is not just to get a stamp on paper, but to ensure a safe, functional, and durable plumbing system for your home.

Take the time to double-check your slopes, vents, and symbols before submitting. Your future selfโ€”and your local inspectorโ€”will thank you.
