Copper Rough-In Plumbing Inspection Guide

Building or renovating a home is one of the most significant investments you will ever make, and the hidden infrastructure within your walls is critical to its longevity. Few things cause more anxiety for homeowners and contractors alike than failing a plumbing inspection after hours of meticulous labor. Knowing exactly how to do a copper rough in plumbing inspection can save you thousands of dollars in rework and prevent catastrophic water damage down the line.

In this guide, we will walk you through the essential steps to ensure your copper piping system meets strict US building codes and industry best practices. Whether you are a DIY enthusiast, a junior plumber, or a home inspector, this article provides the clarity and authority you need to proceed with confidence.

Why the Rough-In Inspection Matters

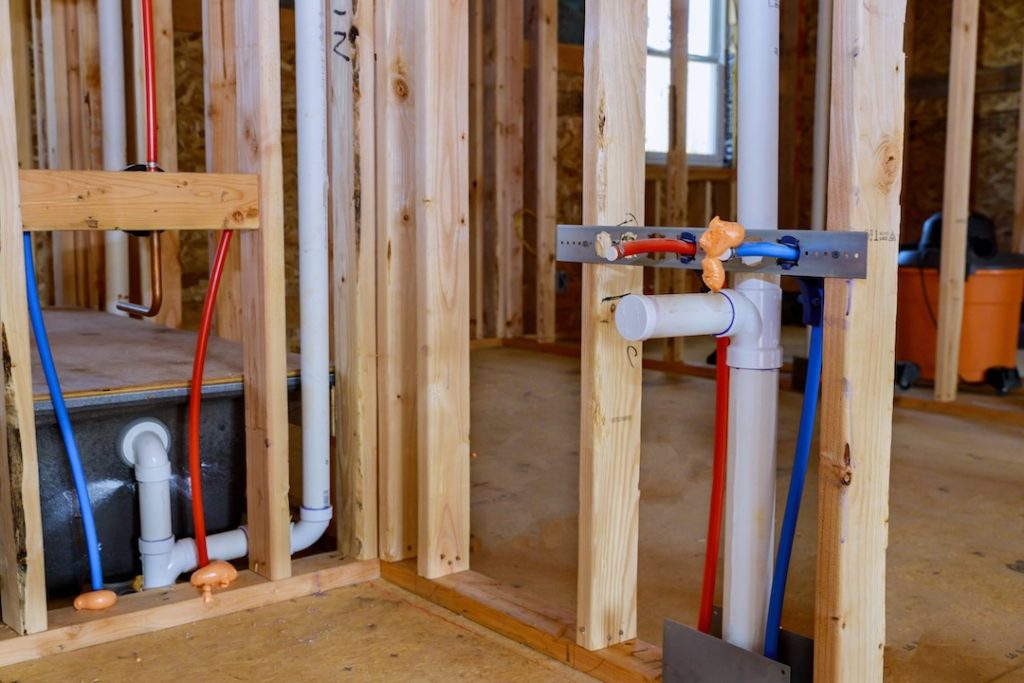

The “rough-in” stage occurs after the pipes are installed but before the walls are closed up with drywall. This is your only chance to visually verify the integrity of the system. Once the walls are sealed, identifying a poor solder joint or an unsupported pipe becomes nearly impossible without destructive testing.

According to the International Residential Code (IRC), plumbing systems must be installed to safeguard against contamination and structural failure. A failed inspection doesn’t just mean fixing a leak; it means tearing out drywall, which significantly impacts your project timeline and budget.

Step 1: Verify Material Quality and Code Compliance

Before inspecting the installation, you must verify that the materials themselves are up to standard. Not all copper is created equal, and using the wrong type can lead to immediate failure.

Type L vs. Type M Copper

For residential water distribution, Type L (blue stripe) and Type M (red stripe) are the most common.

• Type L: Thicker wall, recommended for underground service lines and high-pressure applications.
• Type M: Thinner wall, acceptable for interior above-ground water distribution in many jurisdictions, though some local codes now restrict its use due to durability concerns.

Pro Tip: Always check with your local building department. Some municipalities in the US have banned Type M copper for new constructions due to its susceptibility to pinhole leaks over time.

Prohibited Materials

Ensure no galvanized steel is connected directly to copper without a dielectric union. Direct contact causes galvanic corrosion, leading to rapid pipe degradation. For more details on material properties, you can refer to the Copper tube size Wikipedia page for technical specifications.

Step 2: Inspect Pipe Support and Strapping

One of the most common reasons for failing a rough-in inspection is inadequate support. Copper pipes expand and contract with temperature changes; without proper strapping, they can sag, stress joints, and eventually leak.

Spacing Requirements

Refer to the following general guidelines based on the IRC and Uniform Plumbing Code (UPC):

Installation Best Practices

• Use Proper Hangers: Use copper-compatible hangers. Avoid steel straps that touch copper directly unless they are coated or insulated, as this can cause electrolysis.
• Secure Firmly: Pipes should not sway. However, allow for slight movement during thermal expansion.
• Anchor Near Fittings: Install supports within 12 inches of every elbow, tee, or valve to prevent stress on the solder joints.

Step 3: Evaluate Solder Joints and Connections

The integrity of your system relies entirely on the quality of the soldered joints. This is where the skill of the plumber is most visible.

Visual Inspection Checklist

Walk the entire length of the plumbing system and look for these red flags:

1. Excess Solder: Drips or blobs of solder inside the pipe can restrict water flow and create turbulence.
2. Pinholes: Tiny holes indicate insufficient heat or dirty pipes during soldering.
3. Cold Joints: A dull, grainy appearance suggests the solder did not fully melt into the joint capillary action. A proper joint should be smooth and shiny.
4. Flux Residue: While some residue is normal, excessive flux left on the pipe can be corrosive over time. Wipe joints clean after soldering.

Expert Insight: “A good solder joint looks like a seamless extension of the pipe. If you see a distinct ring of solder bulging out, it’s likely over-soldered. If it looks matte or cracked, it’s a cold joint and must be redone.” – Senior Master Plumber, 20+ Years Experience.

Step 4: Check Clearances and Protection

Copper is durable, but it is not invincible. Physical damage from nails, screws, or abrasion against framing members is a major concern during the rough-in phase.

Nail Plates and Shielding

• Drilling Holes: Holes drilled in studs for pipes must be at least 1.25 inches from the edge of the stud. If this distance cannot be maintained, you must install nail plates (steel protection plates) to prevent drywall screws or nails from puncturing the pipe.
• Abrasion: Ensure pipes do not rub against sharp edges of metal studs or wooden framing. Use grommets or protective sleeves where pipes pass through metal studs.

Distance from Heat Sources

Keep copper water lines at least 6 inches away from heat sources like flues, chimneys, or heating ducts unless insulated. Excessive heat can degrade the pipe structure and affect water temperature stability.

Step 5: Pressure Testing (The Air or Water Test)

Visual inspection is not enough. You must prove the system is leak-free under pressure. Most inspectors require a pressure test before approving the rough-in.

How to Perform a Water Pressure Test

1. Cap All Openings: Ensure all fixture outlets (sinks, toilets, showers) are capped with threaded plugs or test caps.
2. Fill the System: Connect a hose to the lowest point or a designated test port. Fill the system with water, ensuring all air is bled out through the highest vents.
3. Pressurize: Use a hand pump to raise the pressure to 100 PSI (or as specified by local code, typically 1.5x the working pressure).
4. Hold Time: Maintain this pressure for at least 15 to 30 minutes.
5. Inspect: Walk the entire system with a flashlight. Look for any drops in pressure gauge readings or visible moisture at joints. Even a single drop indicates a failure.

Note: Some jurisdictions allow air tests. If using air, exercise extreme caution as compressed air stores significant energy and can be dangerous if a fitting fails explosively. Never exceed 50 PSI for air tests.

Step 6: Verify Venting and Drainage Integration

While this guide focuses on copper supply lines, the rough-in inspection also covers how these lines interact with the DWV (Drain-Waste-Vent) system.

• Air Gaps: Ensure there are proper air gaps for fixtures like dishwashers and indirect waste pipes to prevent backflow contamination.
• Cross-Connections: Verify that there are no cross-connections between potable water lines and non-potable sources (like irrigation systems) without appropriate backflow prevention devices.

FAQ Section

1. Can I use press-fit fittings instead of soldering for copper rough-ins?

Yes, many modern codes approve press-fit systems (like Viega PureFlow or Uponor ProPress) for copper pipes. They are often faster to install and eliminate the fire risk associated with torches. However, you must use the specific tool designed for the fitting brand, and inspectors may require visual verification tags on each fitting.

2. What happens if I fail the rough-in inspection?

If you fail, the inspector will issue a “correction notice” detailing the violations. You must fix the issues (e.g., add straps, redo joints) and request a re-inspection. Re-inspections often incur additional fees, so it is cost-effective to self-inspect thoroughly before calling the official inspector.

3. Is Type M copper legal in all US states?

No. While the International Plumbing Code (IPC) allows Type M, some local jurisdictions and states have amended their codes to prohibit Type M for interior water distribution due to historical issues with pinhole leaks. Always verify with your local building department before purchasing materials.

4. How long does a rough-in inspection take?

A typical residential rough-in inspection takes between 30 to 60 minutes, depending on the size of the home and the complexity of the plumbing system. Being present to answer questions can speed up the process.

5. Do I need to insulate copper pipes during the rough-in stage?

Insulation is generally required for hot water pipes to meet energy efficiency codes (such as IECC) and for any pipes located in unconditioned spaces (like attics or crawl spaces) to prevent freezing. Check your local energy code requirements.

Conclusion

Mastering how to do a copper rough in plumbing inspection is about more than just checking boxes; it is about ensuring the safety, efficiency, and longevity of your home’s water system. By verifying material quality, ensuring proper support, inspecting solder joints meticulously, and conducting rigorous pressure tests, you can pass your inspection with flying colors.

Remember, the extra hour spent double-checking your work now can save you weeks of headache and repair costs later. If you found this guide helpful, please share it with your fellow contractors, DIYers, or home builders on social media. Let’s build safer, higher-quality homes together!
