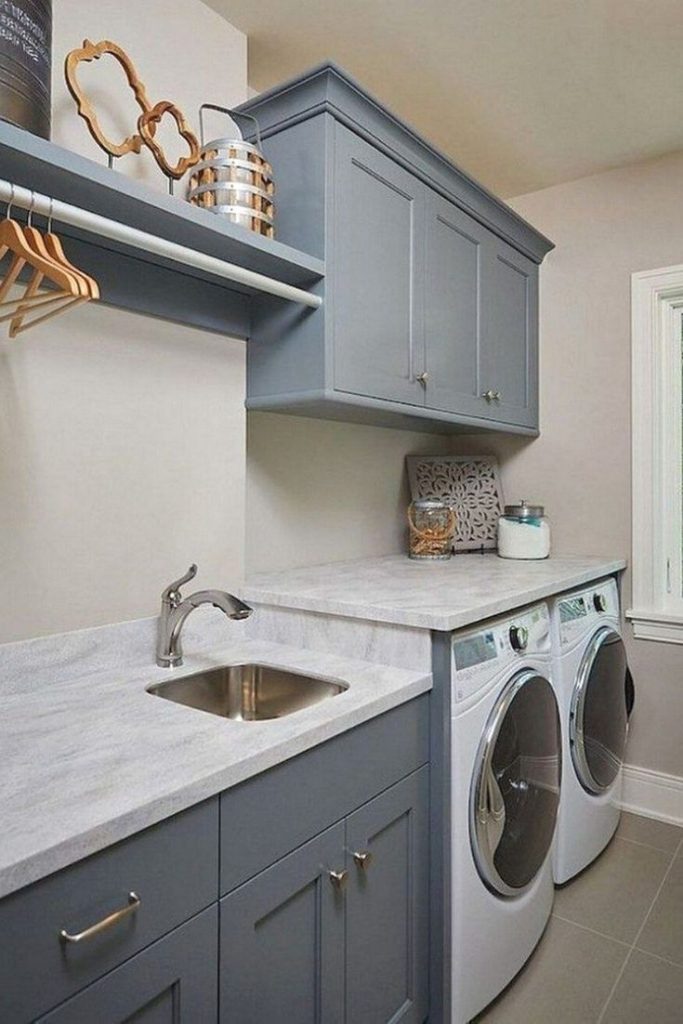

How To Design Plumbing for Sink and Washer Dryer

Planning a new laundry room or remodeling your kitchen? You’re not alone—over 68% of U.S. homeowners tackle at least one major renovation every five years (U.S. Census Bureau, 2024). But if you’re wondering how to do design plumbing for sink and washer dryer, you’re facing a critical decision that affects both functionality and compliance. Poor plumbing design leads to leaks, drainage issues, and even code violations. Don’t worry—we’ll walk you through a smart, efficient, and code-friendly approach that works for DIYers and pros alike.

Why Proper Plumbing Design Matters for Sink and Washer Dryer

Before diving into pipes and fittings, understand this: a washer and utility sink share more than just space—they share drainage demands. A standard washing machine discharges 15–20 gallons per load, often in under two minutes. Pair that with a sink used for hand-washing or pre-rinsing, and you’ve got a high-flow scenario that can overwhelm undersized drains.

According to the International Plumbing Code (IPC), improper venting or drain sizing is among the top causes of plumbing failures in laundry areas. Getting it right from the start saves you thousands in repairs—and potential water damage.

What Are the Key Components of a Combined Sink-Washer Plumbing Layout?

A well-designed setup includes four essential elements:

1. Water Supply Lines – Hot and cold lines for both appliances.
2. Drain System – Adequate pipe diameter and proper slope.
3. Venting – Prevents siphoning and maintains air pressure.
4. Shut-off Valves & Access Points – For maintenance and emergencies.

💡 Pro Tip: Always install individual shut-off valves for each appliance. It’s required by most local codes and makes future repairs far easier.

Step-by-Step Guide: How to Do Design Plumbing for Sink and Washer Dryer

Follow these steps to create a safe, efficient, and code-compliant plumbing system.

Step 1: Plan Your Layout (Before Cutting Any Pipes)

• Position the washer and sink within 3–4 feet of each other to minimize pipe runs.
• Ensure the washer drain standpipe is 30–36 inches tall (per IPC Section 804.1).
• Maintain a minimum 2-inch drain line for the washer—never use a 1.5-inch pipe.
• The utility sink can share the same drain stack if properly sized and vented.

📏 Measurement Note: Use a level and tape measure to mark exact locations. Even a ½-inch error can cause fitting misalignment.

Step 2: Install Water Supply Lines

• Run ½-inch copper or PEX lines from your main supply.
• Use ball valves or quarter-turn shut-offs—they’re more reliable than older gate valves.
• Label hot (red) and cold (blue) clearly to avoid confusion during installation.

Step 3: Set Up the Drain System

• Connect the washer to a 2-inch standpipe with a P-trap below.
• The utility sink drain (typically 1.5-inch) can tie into the same 2-inch horizontal drain downstream of the washer’s P-trap.
• Maintain a ¼-inch per foot slope toward the main stack.

⚠️ Warning: Never connect the washer directly to the sink tailpiece. This violates code and risks overflow.

Step 4: Vent the System Correctly

• Every trap needs a vent within 5 feet (IPC 906.1).
• Use an Air Admittance Valve (AAV) if running a roof vent isn’t feasible—but check local codes first (some jurisdictions restrict AAVs in laundry rooms).
• For best results, tie into an existing vent stack if within 6 feet.

For more on venting principles, see Plumbing Vent Systems on Wikipedia.

Step 5: Test for Leaks and Flow

• Turn on water slowly and check all connections.
• Run a full washer cycle and fill the sink simultaneously.
• Watch for gurgling (indicates poor venting) or slow drainage (suggests inadequate slope or clog risk).

Washer vs. Sink Drain Requirements: Key Differences

✅ Best Practice: Oversize the shared horizontal drain to 2 inches even if the sink only needs 1.5″. It future-proofs your setup.

Common Mistakes to Avoid

• Sharing a trap between washer and sink → Creates siphon risk.
• Using flexible accordion hoses for drains → They sag, trap debris, and violate code.
• Ignoring local amendments → Some cities (e.g., Chicago, Seattle) have stricter laundry plumbing rules.
• Skipping permits → Most combined installations require inspection. Don’t risk fines or insurance denial.

Tools & Materials Checklist

✅ PEX tubing or copper pipe
✅ 2-inch PVC drain pipe & fittings
✅ P-traps (2″ for washer, 1.5″ for sink)
✅ Shut-off valves (¼-turn)
✅ Pipe cutter, wrench, level
✅ Plumber’s putty & Teflon tape
✅ Air admittance valve (if allowed)

FAQ Section

Q1: Can a washer and sink share the same drain pipe?

Yes, but only if the shared section is at least 2 inches in diameter and the washer connects upstream of the sink’s trap. Never connect both fixtures to the same trap arm.

Q2: How far can the washer be from the drain stack?

Per IPC, the maximum distance from the trap to the vent is 5 feet for a 2-inch trap. Keep your washer within this range or install a dedicated vent.

Q3: Do I need a separate vent for the utility sink?

If it’s within 5 feet of the washer’s vented drain line and tied in correctly, no—it can share the vent. Otherwise, add its own vent or AAV.

Q4: What’s the ideal height for a laundry sink?

Most ergonomic utility sinks are 32–36 inches high—taller than kitchen sinks to reduce back strain during hand-washing.

Q5: Can I use a washing machine drain pan?

Yes, and it’s highly recommended—especially on upper floors. Connect the pan drain to a separate 1-inch line that leads to a floor drain or condensate pump.

Q6: Is PEX okay for washer supply lines?

Absolutely. PEX is preferred over copper for its flexibility, freeze resistance, and ease of installation. Use stainless steel braided hoses rated for 120+ PSI.

Conclusion

Knowing how to do design plumbing for sink and washer dryer isn’t just about connecting pipes—it’s about building a system that’s efficient, compliant, and built to last. With the right layout, proper venting, and attention to code details, you’ll avoid 90% of common laundry room plumbing issues before they start.

Whether you’re a weekend DIYer or a seasoned contractor, this guide gives you the foundation to get it right the first time.
