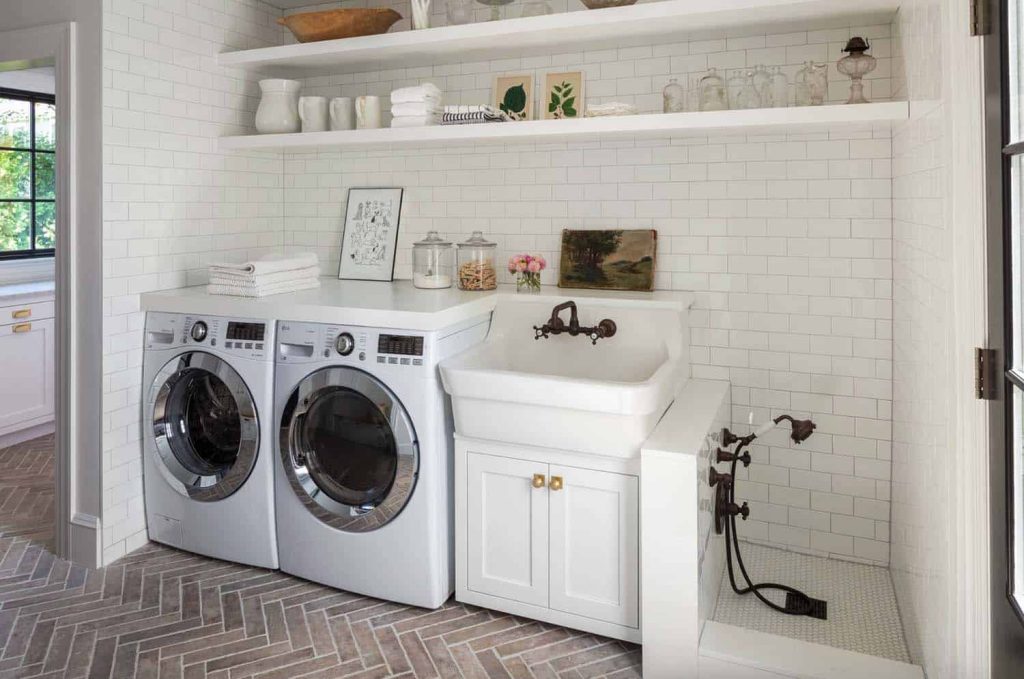

How to Design Plumbing for Sink and Washer Dryer

Planning a new laundry room or remodeling your kitchen? One of the most overlooked—but critical—steps is how to design plumbing for sink and washer dryer properly. Poor plumbing layout can lead to water damage, inefficient appliance performance, and costly repairs down the line. Whether you’re a homeowner tackling a DIY project or a contractor guiding a client, this guide walks you through everything you need to know—safely, efficiently, and in compliance with modern plumbing codes.

Why Proper Plumbing Design Matters for Sink and Washer Dryer

Before diving into pipes and fittings, it’s essential to understand why thoughtful plumbing design is non-negotiable. According to the Insurance Information Institute, water damage and freezing account for nearly 25% of all homeowners insurance claims, with laundry rooms being one of the top sources due to washing machine hose failures.

A well-designed plumbing system:

• Prevents leaks and flooding
• Ensures proper drainage and venting
• Meets local building codes (like the IPC or UPC)
• Maximizes space and accessibility
• Reduces long-term maintenance costs

Ignoring these factors might save time upfront—but it almost always costs more later.

What Are the Key Components of Sink and Washer Dryer Plumbing?

When designing plumbing for both a utility sink and a combo washer-dryer unit (or separate washer and dryer), you’re dealing with three core systems:

1. Cold and hot water supply lines – Typically ½-inch PEX or copper tubing.
2. Drainage system – Includes P-traps, standpipes, and proper slope.
3. Venting – Critical for preventing siphoning and maintaining drain flow.

💡 Pro Tip: Always install shut-off valves on both hot and cold lines for each fixture. This allows quick isolation during maintenance without shutting off water to the whole house.

For reference, the International Plumbing Code (IPC) outlines minimum standards for fixture spacing, pipe sizing, and trap requirements—essential reading before starting any project.

Step-by-Step Guide: How to Design Plumbing for Sink and Washer Dryer

Follow these steps to create a safe, efficient, and code-compliant layout.

Step 1: Plan Your Layout

Start with a scaled sketch of your laundry or utility room. Mark:

• Wall studs and floor joists
• Existing water lines and drain stacks
• Location of sink, washer, and dryer

Ideal spacing:

• Sink: At least 24″ wide basin with 30″ clearance in front
• Washer: Minimum 36″ width, 34″ depth, plus 6″ behind for hoses
• Maintain at least 2 feet between sink drain and washer standpipe to avoid cross-contamination

Step 2: Install Water Supply Lines

• Run two dedicated ½-inch supply lines (hot and cold) to the washer location.
• Use braided stainless steel hoses (rated for 150+ PSI) — they last longer than rubber.
• For the sink, connect to existing lines or branch off nearby supplies using a T-fitting.

⚠️ Never share a single shutoff valve between sink and washer. Each fixture needs independent control.

Step 3: Set Up the Drain System

For the sink:

• Use a standard 1½-inch P-trap connected to a 2-inch drain line.
• Ensure a ¼-inch per foot slope toward the main stack.

For the washer:

• Install a 2-inch ABS or PVC standpipe that extends 30–36 inches above the floor.
• The standpipe must connect to a 2-inch drain line with a P-trap installed 6–18 inches above the floor.
• Never connect the washer drain directly to the sink tailpiece—it can cause overflow and sewer gas backup.

Step 4: Vent the System Properly

Both fixtures require venting within 5 feet of the trap to prevent siphoning. Options include:

• Wet venting (if allowed by local code): Share a vent with another fixture
• Air admittance valve (AAV): A one-way mechanical vent (check local approval)
• Traditional roof vent: Most reliable but requires roof penetration

📌 Expert Insight: “Improper venting is the #1 cause of slow drains and gurgling sounds in laundry rooms,” says Master Plumber Elena Ruiz (20+ years experience, Chicago).

Step 5: Test for Leaks and Flow

• Turn on water slowly and check all connections.
• Run a full washer cycle and fill the sink simultaneously to test drainage capacity.
• Look for slow draining, gurgling, or water pooling—signs of poor slope or venting.

Common Mistakes to Avoid

Even experienced DIYers make these errors:

1. Using undersized drain pipes – Washers discharge 15–20 gallons per minute; a 1½” pipe will overflow.
2. Skipping the P-trap – Leads to sewer gas entering your home.
3. Placing the washer drain too low – Causes siphoning and backflow.
4. Ignoring local codes – Some areas require laundry trays or floor drains for added protection.

✅ Best Practice: Install a laundry pan with a drain under the washer. It catches minor leaks and hose bursts—recommended by FEMA for flood mitigation.

Washer-Dryer Combo vs. Separate Units: Plumbing Differences

If you’re using an all-in-one washer-dryer unit (common in apartments), note:

• It uses only cold water (heats internally).
• Requires a condensate drain or manual water tank emptying (for ventless models).
• Drain flow is slower, so a 2″ standpipe is still required.

In contrast, separate washer and dryer setups:

• Need both hot and cold lines
• Generate more wastewater
• Allow flexible dryer venting (gas/electric)

Choose based on space, utility access, and usage frequency.

FAQ Section

Q1: Can I connect my washing machine drain to the sink drain?

A: Only if done correctly. You can tie the washer standpipe into the same drain line as the sink, but never directly into the sink’s P-trap or tailpiece. Doing so risks overflow and violates plumbing codes. Use a dual-inlet sanitary tee with proper venting.

Q2: How high should a washer standpipe be?

A: Between 30 and 36 inches above the finished floor. Too low, and water may siphon out; too high, and the washer pump may struggle to push water up.

Q3: Do I need a vent for a laundry sink?

A: Yes. Every P-trap must be vented within 5 feet (per IPC). Without it, negative pressure can suck water out of the trap, allowing sewer gases to enter your home.

Q4: What size pipe do I need for a utility sink and washer?

A: Utility sink: 1½-inch drain. Washing machine: 2-inch drain and standpipe. Supply lines: ½-inch for both hot and cold.

Q5: Can I use an air admittance valve (AAV) instead of a roof vent?

A: In many U.S. jurisdictions, yes—but not all. Check with your local building department. AAVs are great for retrofits but can fail over time and aren’t allowed in some states like California for certain applications.

Q6: Should I hire a plumber or DIY this?

A: If you’re comfortable with cutting pipes, soldering (or using SharkBite fittings), and reading local codes—DIY is possible. But if you’re unsure about venting, slope, or permits, hire a licensed plumber. A $200 consultation can prevent a $2,000 water damage claim.

Conclusion

Knowing how to design plumbing for sink and washer dryer isn’t just about connecting pipes—it’s about creating a safe, durable, and efficient system that protects your home and saves money long-term. With proper planning, the right materials, and attention to code details, you can build a laundry or utility space that works flawlessly for years.
