Installing a washing machine might seem intimidating, especially when it comes to the plumbing—but it doesn’t have to be. Whether you’re moving into a new home, upgrading your laundry setup, or replacing an old unit, knowing how to do the plumbing for a washing machine correctly can prevent costly water damage and ensure your appliance runs efficiently. This guide walks you through every step with clarity, confidence, and expert-backed tips.
Why Proper Washing Machine Plumbing Matters
A poorly connected washing machine isn’t just inconvenient—it’s a leading cause of household water damage. According to the Insurance Institute for Business & Home Safety, washing machine hose failures cause over 15,000 home floods annually in the U.S. alone, resulting in thousands of dollars in repairs.
Correct plumbing ensures:
Consistent water supply for optimal cleaning
Safe drainage to prevent backups or overflows
Compliance with local plumbing codes
Extended appliance lifespan
What Tools and Materials Do You Need?
Before you begin, gather these essentials:
Adjustable wrench or basin wrench
Teflon tape (plumber’s tape)
Bucket and towels (for spills)
New washing machine hoses (stainless steel braided recommended)
Drain hose (usually included with the machine)
Shut-off valves (if not already installed)
Level (to ensure machine stability)
💡 Pro Tip: Always replace rubber hoses with stainless steel braided hoses—they’re less prone to bursting and last up to 5x longer.
Step-by-Step: How to Do the Plumbing for a Washing Machine
Follow these steps carefully. Allow 30–60 minutes for a standard installation.
1. Turn Off the Water Supply
Locate the hot and cold water shut-off valves behind your old washer (or where the new one will go). Turn them clockwise until fully closed. Open the washer door and run a short cycle to drain residual water.
⚠️ Safety First: If no shut-off valves exist, you’ll need to turn off the main water supply to your home. Consider installing dedicated valves—they’re required by many local codes and make future maintenance easier.
2. Remove the Old Machine (If Applicable)
Disconnect the drain hose from the standpipe or utility sink. Unscrew the water inlet hoses from the wall valves using a wrench. Place a towel underneath to catch drips. Carefully slide the machine out.
3. Prepare the New Location
Ensure the floor is level and the area is clean. The washing machine should sit within 6 feet of the water supply and drain to avoid hose strain. Check that your drain pipe is at least 30 inches high to prevent siphoning—per the Uniform Plumbing Code (UPC, Wikipedia ).
4. Connect the Water Supply Hoses
Attach the cold water hose (usually marked “C” or blue) to the cold valve.
Attach the hot water hose (“H” or red) to the hot valve.
Hand-tighten first, then use a wrench for ¼ to ½ turn more—do not overtighten!
Wrap Teflon tape clockwise around the valve threads before connecting for a leak-proof seal.

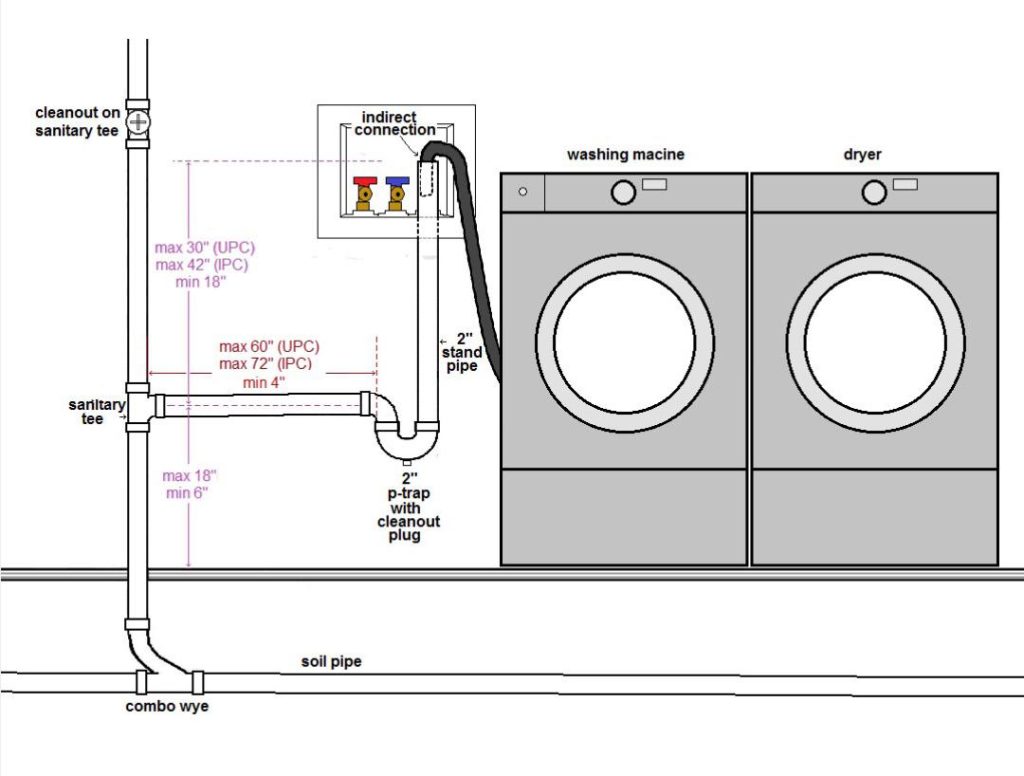

5. Install the Drain Hose
Route the drain hose into the standpipe (typically 2-inch diameter) or utility sink. Use the provided clip to secure it 18–36 inches above the floor. Never seal it airtight—your drain needs an air gap to prevent backflow.
📏 Key Detail: The maximum drain hose height should not exceed 96 inches (8 feet) above the floor, or your pump may struggle to expel water.
6. Level the Washing Machine
Place a level on top of the drum. Adjust the machine’s front feet by turning them clockwise or counterclockwise until it’s perfectly level. An unlevel washer vibrates excessively and can damage floors or hoses.
7. Test for Leaks
Slowly turn on both water valves. Check all connections for drips. Run a quick rinse cycle and inspect again. If you spot a leak, turn off the water and re-tighten slightly.
Common Mistakes to Avoid
Using old rubber hoses
Burst risk within 3–5 years
Replace with stainless steel braided hoses
Overtightening connections
Cracked fittings or stripped threads
Hand-tight + ½ turn with wrench
Ignoring the air gap in drain
Sewage backflow into machine
Never tape or glue drain hose to pipe
Skipping the level check
Excessive vibration & noise
Always level before first use
When to Call a Professional Plumber
While most homeowners can handle basic washer plumbing, call a licensed plumber if:
You lack shut-off valves and can’t access the main water line
Your home has PEX or galvanized pipes requiring special fittings
A: Yes! Most standard top- or front-load washers can be installed by a DIYer with basic tools. Just follow safety steps and check local codes.
Q: Do I need both hot and cold water lines?
A: Modern machines often use only cold water (heating internally for warm cycles), but connecting both gives you full cycle options. If you only have one line, connect it to the cold inlet.
Q: How far can the washing machine be from the drain?
A: Ideally, keep it within 4–6 feet. Longer runs increase the risk of clogs and reduce drainage efficiency.
Q: Why is my washing machine leaking after installation?
A: Most leaks come from loose hose connections or damaged washers inside the hose ends. Turn off water, dry the area, and recheck all fittings.
Q: How often should I replace washing machine hoses?
A: Every 5 years, or immediately if you see bulges, cracks, or corrosion. Stainless steel hoses last longer but aren’t immune to wear.
Q: Can I share a drain with a dishwasher?
A: Not recommended. Each appliance should have its own dedicated drain line to prevent cross-contamination and overflow during simultaneous use.
Conclusion
Now you know exactly how to do the plumbing for a washing machine—safely, efficiently, and like a pro. With the right tools, a little patience, and attention to detail, you’ll avoid common pitfalls and enjoy years of reliable laundry service. Plus, you’ll save on installation fees and protect your home from preventable water disasters.
If this guide helped you, share it with a friend who’s setting up their first washer! And don’t forget to check your hoses every six months—your future self (and your floors) will thank you.
✅ Ready to install? Grab your wrench, double-check those connections, and spin with confidence!
