How To Fix Ice Maker In A Refrigerator Plumbing

There is nothing quite as frustrating as reaching into your freezer for a cold drink, only to find the ice bin empty or, worse, a puddle of water at the bottom of your fridge. For many homeowners, the complex network of tubes and valves behind the appliance feels intimidating, but most issues are surprisingly simple to resolve. If you are wondering how to fix ice maker in a refrigerator plumbing, you are in the right place. This guide will walk you through common problems, from clogged lines to faulty valves, helping you save money on costly service calls while restoring your convenience.

Why Is My Ice Maker Not Working? Understanding the Basics

Before diving into tools and wrenches, it is crucial to understand the basic anatomy of your refrigerator’s water system. The ice-making process relies on a consistent flow of filtered water, regulated pressure, and precise timing. When any part of this chain breaks, ice production stops.

According to general appliance maintenance data, nearly 40% of ice maker failures are related to water supply issues rather than mechanical failure within the ice unit itself. These issues often stem from kinks in the line, sediment buildup, or pressure irregularities.

To build a foundational understanding of how these systems integrate with home infrastructure, you can refer to the general principles of plumbing systems on Wikipedia. However, for immediate repairs, we focus on the specific components behind your fridge.

Step 1: Check the Water Supply Valve and Pressure

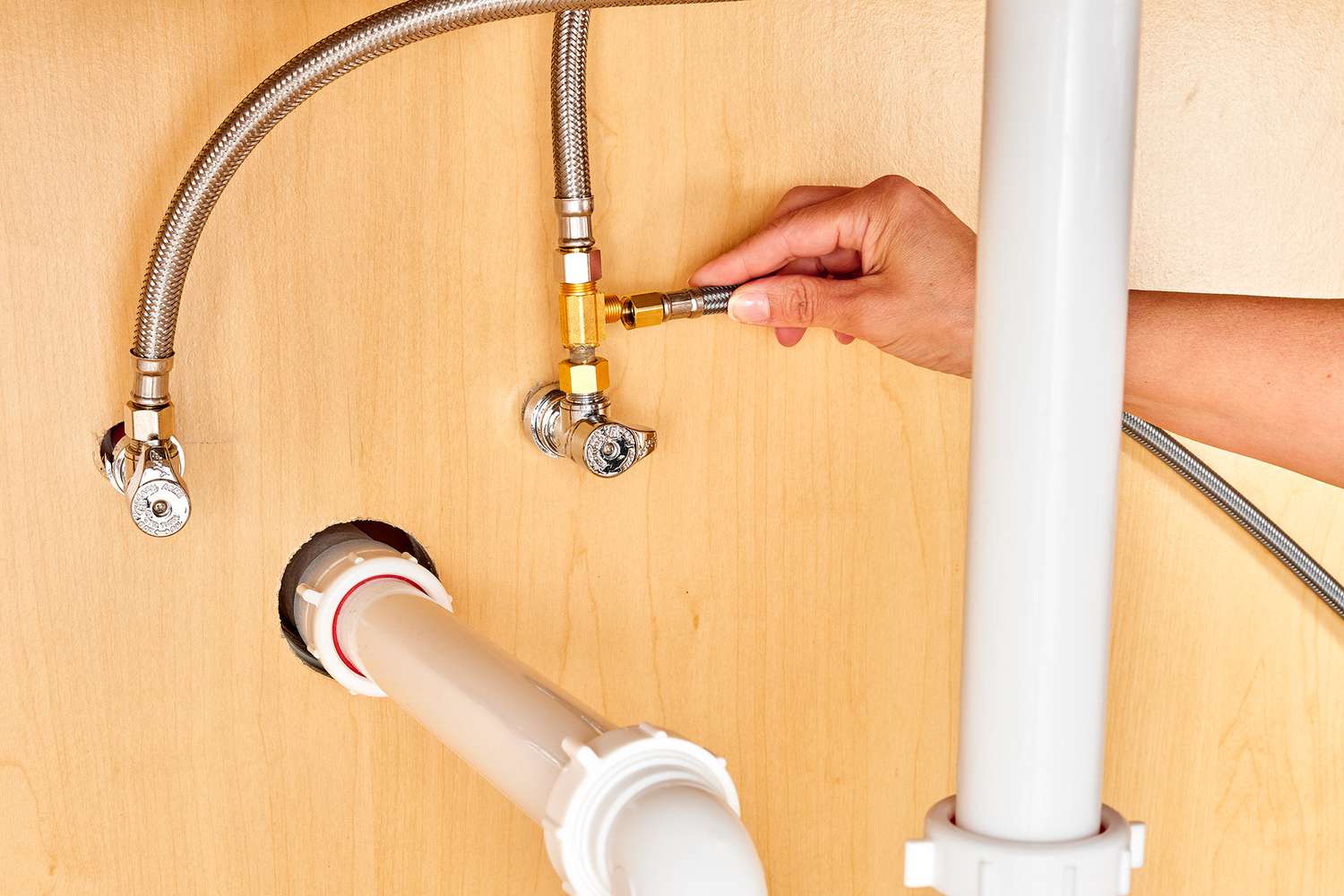

The most common culprit for a dry ice maker is a closed or partially closed water supply valve. This valve is usually located under the sink or behind the refrigerator.

How to Check:

1. Locate the saddle valve or shut-off valve connected to the copper or plastic tubing.
2. Ensure the handle is parallel to the pipe (open position). If it is perpendicular, it is closed.
3. Turn it fully open, then back it off a quarter turn to prevent over-tightening.

Testing Water Pressure: Refrigerator ice makers typically require water pressure between 20 and 120 psi (pounds per square inch). If your home has low water pressure, the valve may not open fully during the cycle.

• Symptom: Small, hollow, or misshapen ice cubes.
• Fix: Install a booster pump if your home’s pressure is consistently below 20 psi, or check for other household leaks draining pressure.

Step 2: Inspect the Water Line for Kinks and Freezes

The tubing that runs from your wall to the fridge is vulnerable to physical damage. Over time, moving the refrigerator for cleaning can pinch or kink the line.

Visual Inspection Checklist:

• Pull the refrigerator out carefully (unplug it first for safety).
• Examine the entire length of the water line, especially where it bends behind the unit.
• Look for sharp creases or flat spots in the tubing.

Thawing a Frozen Line: If the line runs through an unheated space (like a garage or exterior wall), it may freeze in winter.

• Solution: Use a hairdryer on a low setting to gently warm the frozen section. Never use an open flame or high heat, as this can melt the plastic tubing and cause massive leaks.
• Prevention: Insulate pipes in cold areas with foam sleeve insulation.

Step 3: Replace the Water Filter

A clogged water filter is the silent killer of ice production. Most manufacturers recommend changing the filter every 6 months. However, if you have hard water or high sediment levels, you may need to change it every 3–4 months.

Signs Your Filter Needs Replacement:

• Ice tastes odd or has a cloudy appearance.
• Water dispenser flow is slower than usual.
• The filter indicator light on your fridge is red.

Installation Tip: When installing a new filter, run at least 2 liters (approx. 0.5 gallons) of water through the dispenser to flush out air and carbon fines. This prevents airlocks in the ice maker system, which can stop production for days.

Step 4: Clean the Ice Maker Assembly

Sometimes the plumbing is fine, but the ice maker itself is gummed up with mineral deposits or mold. This is common in areas with hard water.

Cleaning Process:

1. Remove the ice bin and discard any old ice.
2. Mix a solution of 1 part white vinegar to 3 parts warm water.
3. Dip a soft cloth or soft-bristle brush into the solution.
4. Gently clean the ice maker tray, the ejector blades, and the fill cup.
5. Wipe down with a clean, damp cloth to remove vinegar residue.

Warning: Do not use harsh chemicals like bleach or abrasive scrubbers, as these can damage the plastic components and leave toxic residues.

Step 5: Test the Water Inlet Valve

If the above steps do not resolve the issue, the water inlet valve might be faulty. This electrically controlled valve opens to let water into the ice maker when signaled. If it fails, no water enters the tray.

Diagnosis Steps:

• Listen: During a cycle, listen for a humming sound from the back of the fridge. Silence may indicate a failed valve or lack of power.
• Multimeter Test: Unplug the fridge. Disconnect the valve wires. Set your multimeter to ohms (Ω). Touch the probes to the valve terminals. A reading between 200 and 500 ohms indicates the valve is good. A reading of infinity (OL) means the coil is burned out and the valve needs replacement.

Step 6: Adjust the Fill Cup and Arm

Mechanical misalignment can also cause issues. If the fill cup is misaligned, water may miss the tray entirely, freezing on the floor of the freezer instead.

Adjustment Guide:

1. Locate the fill tube extending into the ice maker.
2. Ensure it is centered over the tray.
3. Check the shut-off arm (the metal or plastic bar that lifts when the bin is full). If it is stuck in the “up” position, the ice maker thinks the bin is full and won’t cycle. Gently lower it to reset the mechanism.

FAQ: Common Questions About Refrigerator Ice Maker Plumbing

Q1: Why does my ice maker leak water inside the freezer? A: This is often caused by a clogged defrost drain or a cracked fill tube. If water backs up because it cannot drain, it freezes and eventually leaks. Check the drain hole at the back of the freezer for ice blockages and clear them with warm water.

Q2: Can I use any type of tubing for my refrigerator water line? A: No. You should only use tubing rated for potable water and refrigerator use, such as 1/4-inch copper, braided stainless steel, or FDA-approved plastic (polyethylene). Avoid using standard garden hose materials, as they may contain chemicals unsafe for drinking water.

Q3: How long does it take for an ice maker to start working after repair? A: After fixing a plumbing issue, it typically takes 24 hours for the ice maker to complete its first full cycle and produce a batch of ice. Be patient and avoid turning the unit off and on repeatedly.

Q4: Is it safe to fix the ice maker plumbing myself? A: Yes, most plumbing fixes like replacing filters, straightening lines, or changing inlet valves are safe for DIYers. However, always unplug the refrigerator before working on electrical components like the inlet valve to prevent shock.

Q5: Why is my ice cloudy or white? A: Cloudy ice usually indicates trapped air bubbles, which is harmless and often happens after a filter change. If it persists, it may suggest high mineral content in your water. Installing a higher-quality filtration system can help clarify the ice.

Q6: What should I do if the water line is stuck behind the fridge? A: Never force the refrigerator. If the line is stuck, you may need to disconnect it at the valve end, pull the fridge out, and then reattach a new, longer line if necessary. Forcing it can rupture the line inside the wall.

Conclusion

Learning how to fix ice maker in a refrigerator plumbing empowers you to handle common household annoyances with confidence. By systematically checking the water supply, inspecting lines, replacing filters, and cleaning the assembly, you can resolve most issues without professional help. Regular maintenance not only ensures a steady supply of fresh ice but also extends the lifespan of your appliance.
