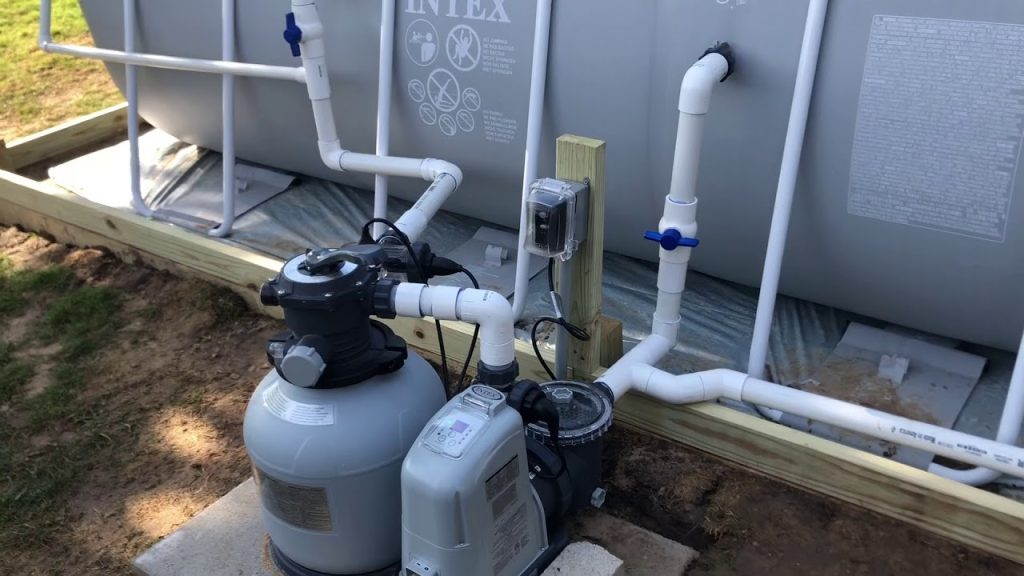

How To Hard Plumb A Hayward Above Ground Pool

Are you tired of dealing with the constant hassle of flexible hoses leaking, kinking, or deteriorating after just one season? Many above-ground pool owners struggle with inefficient filtration systems that rely on temporary connections, leading to higher chemical costs and frustrating maintenance routines. If you are ready for a permanent, professional-grade solution, learning how to hard plumb a Hayward above ground pool is the best investment you can make for your backyard oasis.

Hard plumbing replaces those flimsy corrugated hoses with rigid PVC piping. This not only improves water flow and filtration efficiency but also significantly reduces the risk of sudden leaks that can drain your pool and damage your yard. In this comprehensive guide, we will walk you through the exact steps, tools, and techniques needed to transform your pool’s plumbing system like a pro.

Why Choose Hard Plumbing Over Flexible Hoses?

Before we dive into the tools and trenches, it is essential to understand why this upgrade matters. Most entry-level above-ground pools come with “quick-connect” flexible hoses. While convenient for initial setup, they have significant drawbacks.

The Efficiency Factor

Flexible hoses often have smaller internal diameters and ribbed interiors that create turbulence. This restricts water flow, forcing your pump to work harder. According to fluid dynamics principles, smoother pipes result in lower friction loss. By switching to Schedule 40 PVC, you ensure maximum gallons per minute (GPM) reach your filter, resulting in cleaner water and lower energy bills.

Durability and Aesthetics

UV rays from the sun degrade plastic hoses over time, causing them to become brittle and crack. Rigid PVC, when properly painted or covered, can last for decades. Furthermore, hard plumbing looks cleaner and more integrated into your landscape, boosting your property’s curb appeal.

What Tools and Materials Do You Need?

Successful plumbing requires the right preparation. Gathering these items before you start will prevent mid-project trips to the hardware store.

Essential Tools:

• PVC Pipe Cutter or Hacksaw: For clean, straight cuts.
• Deburring Tool or Sandpaper: To smooth rough edges.
• Tape Measure and Marker: For precise measurements.
• Adjustable Wrenches: For tightening union nuts.
• Shovel: If you plan to bury the lines (optional but recommended).

Materials:

• Schedule 40 PVC Pipes: Typically 1.5-inch or 2-inch diameter, depending on your Hayward pump’s port size.
• PVC Primer and Cement: Specifically designed for pressure pipes.
• PVC Fittings: Elbows (90-degree), couplings, and adapters.
• Union Fittings: Crucial. These allow you to disconnect the pump/filter for maintenance without cutting pipes.
• Teflon Tape: For threaded connections.
• Concrete Pads or Pavers: To stabilize the equipment.

For more detailed information on PVC standards and safety, you can refer to Wikipedia’s page on Polyvinyl Chloride.

Step-by-Step Guide: How To Hard Plumb A Hayward Above Ground Pool

This process involves connecting your pool’s return and suction ports to your Hayward pump and filter system using rigid PVC.

Step 1: Plan Your Layout

Measure the distance between your pool wall ports and where your pump/filter will sit. Remember, the pump should be placed as close to the pool as possible and at a level lower than the water line to ensure proper priming. Sketch a simple diagram noting where you need elbows to turn corners.

Step 2: Prepare the Pool Ports

Remove the existing flexible hoses and adapters from the pool’s suction (skimmer) and return jets. Clean the threads thoroughly. Install new threaded PVC adapters (spigots) into the pool ports. Use Teflon tape on the threads to ensure a watertight seal. Tighten them firmly by hand, then give a quarter-turn with pliers—do not overtighten, as this can crack the pool liner fitting.

Step 3: Dry Fit the PVC Pipes

Cut your PVC pipes to length based on your measurements. Always measure twice and cut once. Before applying any glue, assemble the entire system dry (without cement). This includes the pipes, elbows, and union fittings. Ensure everything aligns correctly and reaches the pump and filter ports without stress.

Pro Tip: Leave a slight gap for the union fittings. They need room to be screwed together tightly.

Step 4: Prime and Glue the Joints

Once the dry fit is perfect, disassemble the pieces. Now, apply the primer and cement.

1. Apply Purple Primer: Coat the outside of the pipe end and the inside of the fitting. This cleans and softens the plastic.
2. Apply PVC Cement: Immediately apply a liberal layer of cement to both surfaces.
3. Connect and Twist: Push the pipe into the fitting while giving it a quarter-turn. This distributes the cement evenly. Hold firmly for 15–30 seconds to prevent push-out.

Warning: Work in a well-ventilated area. PVC cement fumes are strong and flammable.

Step 5: Install Union Fittings at the Pump and Filter

This is the most critical step for future maintenance. You must use union fittings between the rigid PVC pipes and the Hayward pump/filter threads.

• Apply Teflon tape to the pump/filter intake and output threads.
• Screw the male part of the union into the pump/filter.
• Glue the female part of the union to your rigid PVC pipe (as described in Step 4).
• Once the glue cures, connect the two halves of the union by hand-tightening the nut. This creates a seal that can be easily opened later if you need to service the pump.

Step 6: Pressure Test the System

Before backfilling any trenches or considering the job done, test for leaks.

1. Ensure all valves are open.
2. Prime the pump according to the Hayward manual.
3. Turn on the system.
4. Inspect every joint closely for drips or spraying water.
5. Run the system for at least 30 minutes. If you see a leak, turn off the power, drain the line, and re-cement the faulty joint.

Common Mistakes to Avoid

Even experienced DIYers can stumble. Here are the top pitfalls to watch out for:

• Skipping the Unions: If you glue pipes directly into the pump threads, you will never be able to remove the pump for repair without cutting the pipes. Always use unions.
• Using Too Much Cement: Excess cement can pool inside the pipe, restricting water flow and creating weak spots. A thin, even coat is sufficient.
• Ignoring Support: Rigid pipes can sag or vibrate. Use pipe clamps or concrete blocks to support long horizontal runs, preventing stress on the pool wall fittings.
• Not Accounting for Expansion: PVC expands and contracts with temperature changes. If your run is very long, consider using expansion joints or allowing slight flexibility in the layout.

FAQ Section

1. Can I hard plumb an above-ground pool myself?

Yes, absolutely. While it requires more effort than hooking up hoses, it is a manageable DIY project for anyone with basic handyman skills. The key is careful measurement and patience during the gluing process.

2. What size PVC pipe should I use for a Hayward pool pump?

Check the intake and output ports on your specific Hayward pump model. Most residential above-ground pumps use 1.5-inch ports. Therefore, you should use 1.5-inch Schedule 40 PVC. Using a larger pipe (like 2-inch) is possible with reducers, but sticking to the pump’s native size is usually easiest and most efficient.

3. Do I need to bury the PVC pipes?

Burying the pipes is optional but highly recommended. It protects the pipes from UV damage, lawn mowers, and tripping hazards. If you bury them, dig a trench about 6–8 inches deep and surround the pipes with sand to prevent rocks from damaging them.

4. How long does PVC cement take to cure?

PVC cement sets quickly (within minutes), but it takes time to fully cure. Generally, you should wait at least 2–4 hours before pressurizing the system. For full strength, especially in cooler weather, waiting 24 hours is ideal. Refer to the specific instructions on your cement canister.

5. Will hard plumbing void my pool warranty?

Generally, no. Modifying the plumbing configuration does not void the structural warranty of the pool wall or liner. However, if a leak from your DIY plumbing damages the liner, that specific damage might not be covered. Always check your manufacturer’s warranty terms for peace of mind.

6. How do I winterize hard-plumbed pools?

Winterizing is actually easier with hard plumbing. You simply blow out the lines with an air compressor to remove water, plug the ends, and cover the equipment. Rigid pipes are less likely to trap water pockets compared to sagging flexible hoses, reducing the risk of freeze damage.

Conclusion

Learning how to hard plumb a Hayward above ground pool is a transformative upgrade that pays dividends in convenience, efficiency, and aesthetics. By replacing temporary hoses with durable Schedule 40 PVC, you create a robust filtration system that keeps your water clearer and your maintenance headaches minimal.

Remember, the secret to success lies in the details: precise measurements, proper use of unions, and thorough leak testing. Once completed, you’ll enjoy a professional-looking setup that stands the test of time.
