How to Install Compression Fittings on Copper Plumbing (Easy Guide)

Leaky pipes? Need to connect or repair copper tubing without soldering? You’re not alone—how to install compression fittings on copper plumbing is one of the most searched DIY plumbing questions in the U.S. Whether you’re a homeowner tackling a weekend project or a new plumber building your skills, compression fittings offer a reliable, solder-free solution. In this guide, we’ll walk you through every step with clarity, confidence, and expert-backed tips—so you get it right the first time.

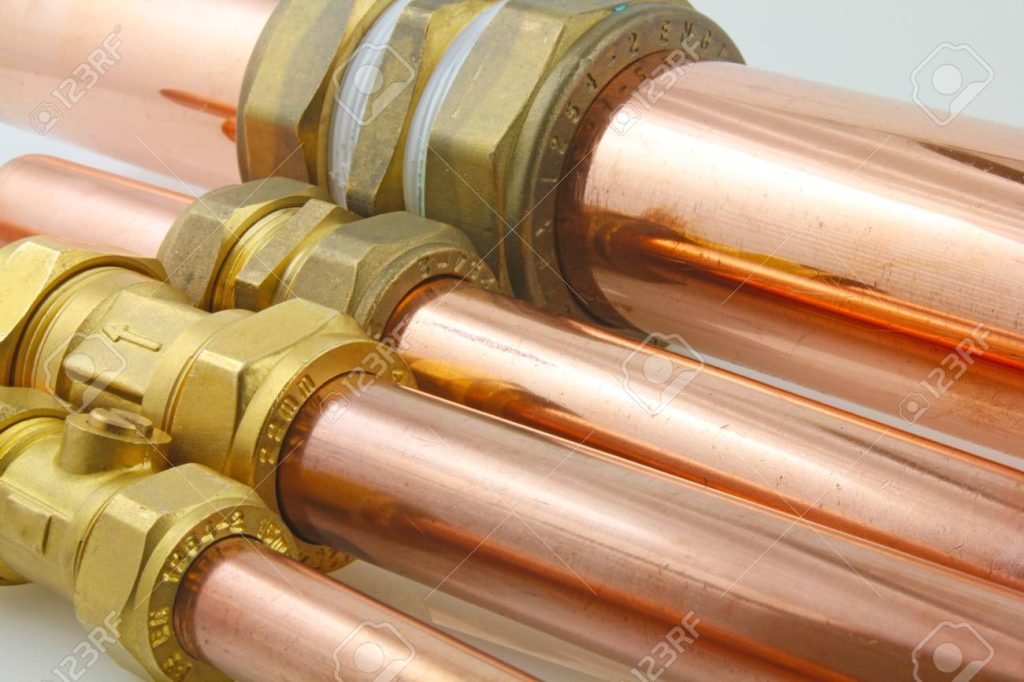

What Are Compression Fittings?

Compression fittings are mechanical connectors used to join copper pipes without heat or glue. They consist of three parts:

1. Compression nut
2. Compression ring (or ferrule)
3. Fitting body

When tightened, the nut compresses the ring onto the pipe, creating a watertight seal. According to the Plumbing-Heating-Cooling Contractors Association (PHCC), compression fittings account for over 30% of residential copper pipe repairs due to their ease of use and reliability when installed correctly.

💡 Did You Know? Compression fittings have been used in plumbing since the early 20th century. Their design hasn’t changed much—because it works. Learn more about pipe fittings on Wikipedia .

When Should You Use Compression Fittings?

Compression fittings shine in specific scenarios:

✅ Emergency repairs (no open flame needed)
✅ Tight spaces where soldering is unsafe
✅ Connecting fixtures like faucets, toilets, or water heaters
✅ Rental properties where non-permanent solutions are preferred

However, avoid them in:
❌ High-vibration areas (e.g., near washing machines)
❌ Underground or concealed walls (unless local codes allow)
❌ Systems with frequent pressure surges

Always check your local plumbing codes—some jurisdictions restrict compression fittings in certain applications.

Tools & Materials You’ll Need

Before you start, gather these essentials:

• Compression fitting (correct size for your pipe—common sizes: 1/2″, 3/4″)
• Copper pipe (clean, deburred, and cut squarely)
• Tube cutter (for clean cuts)
• Emery cloth or sandpaper (to clean pipe ends)
• Adjustable wrench or two pipe wrenches
• Teflon tape (optional, for threaded ends)
• Measuring tape

📏 Pro Tip: Measure twice! A misaligned cut can cause leaks. Use a tube cutter—not a hacksaw—to avoid burrs.

Step-by-Step: How to Install Compression Fittings on Copper Plumbing

Follow these 6 precise steps for a leak-free connection:

Step 1: Turn Off the Water & Drain the Line

Shut off the main water supply. Open the nearest faucet to drain residual water from the pipe. This prevents spills and pressure buildup.

Step 2: Cut & Prepare the Copper Pipe

Use a tube cutter to make a clean, square cut. Remove any burrs inside and outside the pipe with a deburring tool or emery cloth. The pipe end must be smooth—rough edges prevent proper sealing.

Step 3: Slide On the Compression Nut & Ring

Slide the compression nut onto the pipe (threads facing outward), followed by the compression ring (beveled side toward the fitting body). Order matters—nut first, then ring.

Step 4: Insert the Pipe into the Fitting

Push the pipe fully into the fitting body until it bottoms out. You should feel slight resistance. Ensure the pipe is straight—angled insertion causes leaks.

Step 5: Hand-Tighten the Nut

Screw the compression nut onto the fitting body by hand until snug. Don’t overtighten yet.

Step 6: Final Tightening with Wrenches

Hold the fitting body steady with one wrench. Use a second wrench to tighten the nut 1 to 1.5 full turns past hand-tight.

⚠️ Warning: Over-tightening cracks the ferrule and causes leaks. Less is more!

Common Mistakes to Avoid

Even experienced DIYers slip up. Here’s what not to do:

Compression Fittings vs. Other Copper Joining Methods

For most homeowners, compression fittings strike the best balance between safety, simplicity, and reliability.

Testing Your Installation

After assembly:

1. Turn the water back on slowly.
2. Check for drips at the joint.
3. If leaking, do not keep tightening—disassemble, inspect the ferrule, and reassemble with a new ring.

🔍 Expert Insight: “80% of compression fitting leaks are due to improper pipe prep—not the fitting itself,” says Maria Lopez, Master Plumber with 18 years of experience in Chicago.

FAQ Section

Q1: Can I reuse a compression fitting?

A: The fitting body and nut can often be reused, but never reuse the compression ring (ferrule). Once compressed, it loses its sealing ability. Always install a new ferrule.

Q2: Do I need Teflon tape on compression fittings?

A: No. Teflon tape is for threaded pipe joints, not compression connections. The seal comes from the ferrule compressing against the pipe—not the threads.

Q3: Why is my compression fitting leaking after installation?

A: Common causes:

• Pipe wasn’t deburred
• Ferrule was installed backward
• Over-tightening cracked the ring
• Pipe wasn’t fully inserted
  Disassemble, inspect, and reinstall with a new ferrule.

Q4: Are compression fittings code-compliant?

A: Yes—in most residential applications. However, some states (like California) restrict their use in concealed walls. Always verify with your local building department.

Q5: How long do compression fittings last?

A: Properly installed, they can last 20–25 years—comparable to soldered joints. Avoid vibration and extreme temperature swings to maximize lifespan.

Q6: Can I use compression fittings on PEX or PVC?

A: No. Compression fittings are designed only for rigid copper tubing. For PEX, use crimp or clamp rings; for PVC, use solvent cement.

Conclusion

Now you know how to install compression fittings on copper plumbing like a pro—safely, efficiently, and without leaks. Whether you’re fixing a dripping faucet or rerouting a supply line, this solder-free method saves time, reduces risk, and delivers reliable results.

✅ Key Takeaways:

• Always use new ferrules
• Deburr and clean your pipe
• Tighten just 1–1.5 turns past hand-snug
• Test slowly and inspect thoroughly
