How To Install New Plumbing At Washing Machine Location

Are you renovating your laundry room or moving your washer to a new spot? Dealing with water lines and drainage can feel intimidating, but getting it right is crucial for preventing costly water damage. If you are wondering how to install new plumbing at washing machine location, you are in the right place. This guide breaks down the complex process into manageable steps, ensuring your setup is safe, code-compliant, and efficient.

Understanding the Basics: What You Need Before Starting

Before you pick up a wrench, it is vital to understand what a standard washing machine hookup requires. Unlike a simple sink installation, a washer needs both a robust water supply and a high-capacity drainage system.

The Three Essential Components

1. Hot and Cold Water Supply: Most modern washers use both. You will need two shut-off valves (often called “washer boxes” or “standalone valves”).
2. Drainage System: A standpipe with a P-trap to prevent sewer gases from entering your home.
3. Ventilation: Proper venting is required by code to ensure wastewater flows smoothly without siphoning the trap dry.

Pro Tip: According to the International Plumbing Code (IPC), which is adopted by most US states, washing machine drains must have a minimum diameter of 2 inches. Older 1.5-inch pipes are often insufficient for modern high-efficiency washers that discharge water rapidly.

Step 1: Gathering the Right Tools and Materials

You cannot do a professional job with amateur tools. Having the right equipment ensures tight seals and prevents leaks.

Required Tools:

• Pipe cutter (for copper or PEX)
• Adjustable wrenches (two are better than one)
• Tubing bender (if using copper)
• Level
• Stud finder
• Drill and hole saw bits

Materials Checklist:

• Pipes: PEX (cross-linked polyethylene) is recommended for DIYers due to its flexibility and ease of use. Copper is durable but requires soldering. PVC or ABS for drainage.
• Valves: Quarter-turn ball valves (more reliable than multi-turn gate valves).
• Fittings: Elbows, tees, and couplings compatible with your pipe type.
• Standpipe Kit: Pre-fabricated kits often include the P-trap and vent tee.
• Teflon Tape & Pipe Dope: For sealing threaded connections.

Step 2: Planning the Layout and Checking Local Codes

Every municipality in the US has slight variations in plumbing codes. While the IPC provides a baseline, always check with your local building department.

Key Measurements to Remember:

• Standpipe Height: The drain pipe must extend between 18 and 42 inches above the trap weir. This prevents overflow when the pump discharges water quickly.
• Trap Location: The P-trap should be within 6 to 18 inches of the standpipe.
• Box Height: Water supply boxes are typically installed 42 to 48 inches above the floor, allowing easy access behind the machine.

Step 3: Installing the Water Supply Lines

This is where precision matters. Leaks here can cause massive structural damage over time.

Choosing Between PEX and Copper

For most DIYers, PEX tubing is the superior choice. It requires no soldering, uses fewer fittings (reducing leak points), and is resistant to freezing bursts.

Installation Steps:

1. Shut Off Main Water: Locate your home’s main water shut-off valve and turn it off. Open a faucet downstairs to drain remaining pressure.
2. Run the Lines: Run hot and cold PEX lines from your nearest water source (often a nearby sink or main trunk line) to the washer location.
3. Install the Valve Box: Mount a recessed washer box between the studs if possible. This protects the valves and gives a clean look.
4. Connect the Valves: Attach the PEX to the inlet of the ball valves using crimp rings or push-to-connect fittings. Ensure the “Flow” arrow on the valve points toward the hose outlet.
5. Pressure Test: Before closing walls, turn the water back on slowly. Check for drips. Let it sit for 30 minutes under pressure.

Safety Note: Always use braided stainless steel hoses to connect the wall valves to the washing machine. Rubber hoses degrade over time and are a leading cause of laundry room floods.

Step 4: Setting Up the Drainage and Vent System

Improper drainage leads to slow drains, gurgling sounds, and sewer odors.

Step-by-Step Drain Installation:

1. Cut into the Main Drain: If you are tying into an existing stack, use a sanitary tee. Do not use a regular tee, as it can cause blockages.
2. Install the P-Trap: Assemble the P-trap using PVC or ABS glue. Ensure the slip nuts are hand-tightened plus a quarter turn with pliers. Over-tightening can crack the plastic.
3. Attach the Standpipe: Connect the vertical standpipe to the top of the P-trap. Use a long-sweep elbow if turning horizontally to reduce clog risks.
4. Venting: The drain must be vented. You can use an Air Admittance Valve (AAV) if running a vent through the roof is too difficult. An AAV allows air in when water drains but closes to prevent gas escape. Note: Some local codes still require traditional roof venting, so verify this first.

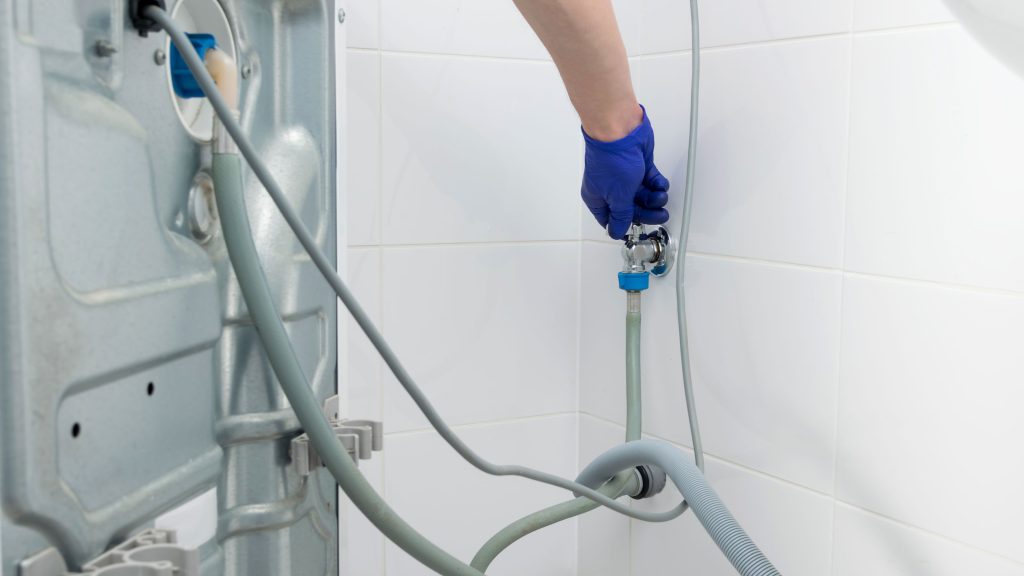

Step 5: Connecting the Washing Machine

Once the plumbing is roughed in and tested, it is time to make the final connections.

1. Position the Machine: Slide the washer into place, leaving about 4–6 inches of space behind it for hoses. Do not crush the hoses against the wall.
2. Attach Hoses: Screw the braided hoses onto the wall valves and the machine inputs. Hand-tighten firmly. Use rubber washers inside the hose connectors—do not use Teflon tape on these compression fittings unless specified by the manufacturer.
3. Insert Drain Hose: Place the corrugated drain hose into the standpipe. Do not push it all the way down. It should rest just inside the top of the pipe. Pushing it too deep can create a siphon effect, pulling dirty water back into the machine or emptying the P-trap.
4. Secure the Hose: Use a hose guide or zip tie to keep the drain hose from vibrating out of the standpipe during the spin cycle.

Common Mistakes to Avoid

Even experienced DIYers make these errors. Avoid them to save time and money.

• Using Gate Valves: Old-style gate valves often seize up or leak. Always use quarter-turn ball valves.
• Ignoring the Trap Primer: If the washer is rarely used, the water in the P-trap can evaporate, letting sewer gas in. Run an empty cycle once a month if the machine is idle.
• Over-extending Hoses: Never stretch supply hoses tightly. They vibrate during operation and need slack to prevent wear at the connection points.
• Skipping the Leak Pan: Consider placing a leak detection pan under the washer. These devices can shut off the water supply automatically if a leak is detected.

FAQ Section

1. Can I install a washing machine anywhere in my house?

Technically, yes, but it requires significant plumbing work. You need access to hot/cold water lines, a 2-inch drain line, and proper venting. Installing a washer on a second floor or in a basement often requires pumping mechanisms (like a Saniflo system) if gravity drainage isn’t possible.

2. Do I need a permit to install new plumbing for a washer?

In most US jurisdictions, adding new plumbing lines or moving existing ones requires a permit. Minor repairs might not, but a new installation usually does. Check with your local building department to avoid fines and issues when selling your home.

3. Why is my washing machine draining slowly?

Slow draining is often caused by a clogged lint filter, a kinked drain hose, or an improperly sized pipe. Ensure you are using a 2-inch drain pipe. If the pipe is correct, check the standpipe for debris or soap scum buildup.

4. What is the difference between a standpipe and a utility sink?

A standpipe is a vertical pipe open to the air, designed specifically for washer discharge. A utility sink allows for manual pre-washing and soaking. Both require a P-trap and vent, but a sink adds complexity regarding faucet installation and countertop support.

5. How often should I replace washing machine hoses?

Manufacturers recommend replacing rubber hoses every 3–5 years. Braided stainless steel hoses last longer, typically 5–7 years, but should be inspected annually for fraying or corrosion at the ends.

Conclusion

Learning how to install new plumbing at washing machine location empowers you to take control of your home renovation projects. By following local codes, using quality materials like PEX and braided hoses, and ensuring proper venting, you create a laundry setup that is both efficient and safe.

Remember, patience is key. Rushing the pressure testing phase can lead to hidden leaks that cause thousands of dollars in damage. Take your time, double-check your connections, and enjoy the convenience of your newly plumbed laundry space.
