Leaking water or low pressure can turn a simple bathroom visit into a stressful mess. If you are renovating your bathroom or replacing an old, corroded supply line, knowing how to install new plumbing lines for a toilet is a crucial skill that saves money and prevents water damage. This guide will walk you through the process with professional precision, ensuring your new fixture works perfectly from day one.
Understanding the Basics: What You Need to Know Before Starting
Before picking up a wrench, it is vital to understand what “plumbing lines” refer to in this context. Typically, this involves two distinct connections: the water supply line (which brings fresh water into the tank) and the waste line (the flange connection that carries waste away). While the waste line is usually part of the rough-in construction, most homeowners looking to “install new lines” are focusing on replacing the flexible water supply hose or connecting a new toilet to existing shut-off valves.
According to the International Plumbing Code (IPC), all plumbing fixtures must be installed to prevent contamination of the potable water supply and ensure proper waste drainage. Adhering to these standards is not just about compliance; it is about protecting your home’s health and structural integrity.
Tools and Materials Checklist
Having the right tools prevents mid-job frustration. Here is what you will need:
- Adjustable Wrenches (2): One for holding the valve, one for tightening the nut.
- Teflon Tape (PTFE Tape): For sealing threaded connections.
- New Supply Line: Braided stainless steel is recommended over plastic for durability.
- Bucket and Towels: To catch residual water.
- Pipe Cutter or Hacksaw: Only if you are cutting copper pipes (rare for simple replacements).
- Level: To ensure the toilet sits evenly.
Step-by-Step Guide: How to Install the Water Supply Line
This section focuses on the most common DIY task: connecting the water source to the toilet tank. Follow these steps meticulously to avoid leaks.
Step 1: Shut Off the Water and Drain the System
Safety and cleanliness come first. Locate the shut-off valve on the wall behind or beside the toilet. Turn it clockwise until it stops.
- Flush the toilet to drain most of the water from the tank and bowl.
- Use a sponge or towel to soak up any remaining water in the tank bottom.
- Place a bucket under the supply line connection to catch drips.
Pro Tip: If the shut-off valve is old and stiff, do not force it. Apply a penetrating oil like WD-40 and let it sit for 15 minutes. Forcing it can break the valve stem, leading to a much larger repair job.

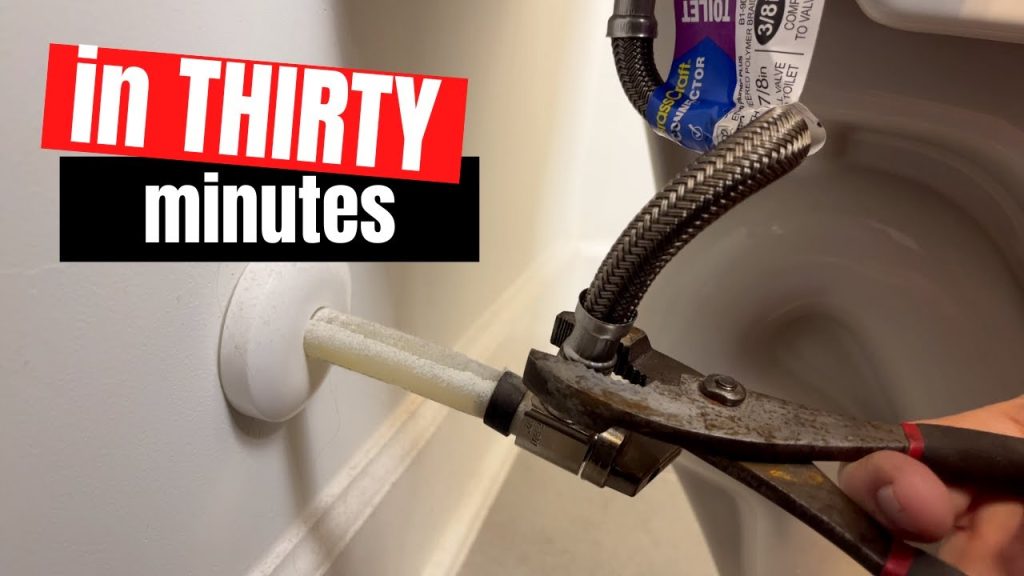

Step 2: Remove the Old Supply Line
Using your adjustable wrench, loosen the nut connecting the supply line to the bottom of the toilet tank. Hold the tailpiece (the metal tube coming out of the tank) steady with your second wrench to prevent it from spinning and cracking the porcelain.
Once the tank side is loose, disconnect the other end from the wall shut-off valve. Discard the old line. Inspect the threads on both the valve and the tank inlet for corrosion or debris. Clean them with a wire brush if necessary.
Step 3: Prepare the New Line
Measure the distance between the shut-off valve and the tank inlet. Add about 2 inches to this measurement to allow for slight movement without kinking.
- Check the Gaskets: Most modern braided steel lines come with rubber gaskets inside the nuts. Do not use Teflon tape on connections that have rubber gaskets, as the tape can cause the gasket to slip and leak.
- When to Use Tape: If you are connecting a rigid pipe or a fitting without a rubber seal, wrap Teflon tape clockwise around the threads 3–4 times.
Step 4: Connect the New Line
Hand-tighten the nut onto the shut-off valve first. Then, hand-tighten the other end to the toilet tank inlet.
- Use your wrench to give each nut an additional quarter to half turn.
- Do not overtighten. Overtightening can crush the rubber gasket or crack the porcelain tank, leading to immediate leaks.
- Ensure the line is not kinked or twisted. It should have a gentle curve.
Step 5: Test for Leaks
Slowly turn the shut-off valve counter-clockwise to restore water flow. Watch the connections closely.
- If you see dripping, tighten the nut slightly (1/8th turn at a time).
- Check the line along its entire length for sprays or seeps.
- Flush the toilet three times. The fill valve will draw a lot of water quickly, which is the most likely time for a weak connection to fail.
Connecting the Toilet to the Waste Flange
If your project involves setting the toilet bowl itself onto the floor flange, the process requires more physical precision.
Preparing the Flange
Inspect the closet flange (the pipe fitting in the floor). It must be clean, level, and securely anchored to the subfloor. If the flange is broken, use a flange repair kit before proceeding. A unstable flange is the number one cause of rocking toilets and wax ring failures.
Installing the Wax Ring
The wax ring creates a watertight seal between the toilet horn and the waste pipe.
- Place the new wax ring directly onto the flange. For easier handling, you can also stick it to the bottom of the toilet horn.
- If your floor is uneven, consider using a wax-free synthetic seal or an extra-thick wax ring with a plastic funnel extension.
Setting the Toilet
- Lift the toilet carefully (get help if needed; toilets are heavy and awkward).
- Align the bolt holes in the base of the toilet with the closet bolts on the flange.
- Lower the toilet straight down. Do not rock it side-to-side excessively, as this can displace the wax ring.
- Once seated, press down firmly on the tank area to compress the wax ring.
Securing the Toilet
Place washers and nuts onto the closet bolts. Tighten them alternately (left, then right) to ensure even pressure.
- Warning: Stop tightening as soon as you feel resistance. Overtightening will crack the toilet base.
- Snap off the excess bolt length with a hacksaw or use plastic caps to cover them.
Common Mistakes to Avoid
Even experienced DIYers can make errors. Here is a comparison of common pitfalls versus best practices.
| Mistake | Consequence | Best Practice |
|---|---|---|
| Overtightening Nuts | Cracked porcelain or stripped threads | Hand-tighten plus 1/4 turn with wrench |
| Reusing Old Wax Rings | Leaks and sewer gas odors | Always use a new wax ring or synthetic seal |
| Ignoring Valve Condition | Valve breaks during installation | Replace old shut-off valves before starting |
| Kinking Supply Line | Restricted water flow | Measure correctly for a gentle curve |
FAQ: Frequently Asked Questions
1. What size supply line do I need for a toilet?
Most standard toilets in the US use a 3/8-inch compression fitting on the valve end and a 7/8-inch ballcock nut on the tank end. Always check your existing fittings before buying a new line. Braided stainless steel lines are available in lengths from 9 to 20 inches.
2. Can I use Teflon tape on all plumbing connections?
No. Do not use Teflon tape on connections that utilize a rubber washer or gasket (like most flexible supply lines). The tape adds bulk and can prevent the gasket from sealing properly, causing leaks. Only use tape on tapered pipe threads (NPT) where metal meets metal.
3. Why is my new toilet supply line leaking?
Leaks are usually caused by three issues: the gasket is misaligned, the nut is loose, or the nut is overtightened (crushing the gasket). Turn off the water, disassemble the connection, check the gasket position, and reassemble. Ensure the line is not under tension.
4. How often should I replace toilet supply lines?
It is recommended to inspect supply lines annually and replace them every 5 to 7 years, or immediately if you see signs of wear, rust, or bulging. Braided steel lines last longer than plastic ones but are not immune to failure.
5. Do I need a permit to replace a toilet supply line?
Generally, no. Replacing a flexible supply line or swapping out a toilet is considered minor maintenance in most US jurisdictions and does not require a permit. However, if you are moving the location of the shut-off valve or altering the waste pipe layout, check with your local building department.
6. What if the closet bolts are rusted stuck?
If the nuts on the floor bolts are rusted and won’t turn, apply penetrating oil and wait. If they still won’t budge, use a hacksaw blade to cut through the bolt vertically between the toilet base and the nut. Be careful not to scratch the porcelain.
Conclusion
Learning how to install new plumbing lines for a toilet empowers you to handle common household repairs with confidence. By following these steps—shutting off the water, using the right materials, and avoiding overtightening—you ensure a leak-free and durable installation. Remember, patience is key in plumbing; rushing leads to mistakes that cost more time and money to fix.
