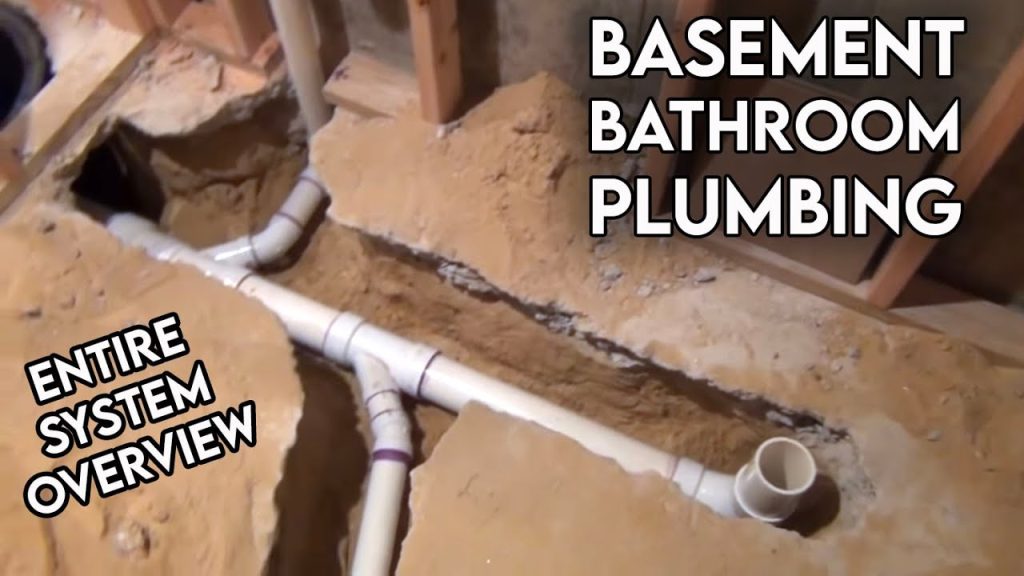

How To Install Plumbing For Shower In A Basement

Adding a bathroom to your unfinished basement is one of the most valuable home improvement projects you can undertake. It instantly boosts your property value and provides much-needed convenience for guests or family members using lower-level living spaces. However, the biggest hurdle isn’t tiling or drywall; it’s figuring out how to install plumbing for shower in a basement where gravity doesn’t naturally help waste water flow away.

If you are worried about complex pipe slopes or breaking through concrete slabs, you are not alone. Many homeowners hesitate because they assume it requires heavy industrial machinery. While it is more complex than an upstairs remodel, it is entirely manageable with the right planning and tools. This guide will walk you through the essential steps, from understanding sewage ejector systems to finalizing the drain connections, ensuring your project meets local building codes and stands the test of time.

Why Is Basement Shower Plumbing Different?

Before picking up a wrench, you must understand the physics involved. In a standard two-story home, wastewater flows down into the main sewer line via gravity. Your toilet, sink, and shower are all located above the main sewer exit point.

In a basement, your new shower drain is likely below the main sewer line that exits your house. Gravity cannot push water uphill. Therefore, you have two primary options:

1. Gravity Feed: Only possible if your municipal sewer line is deep enough or if you have a walk-out basement with a sloped yard allowing a direct downward slope.
2. Sewage Ejector Pump: The most common solution for typical basements. This system grinds up waste and pumps it upward into the main sewer line.

According to general construction data, installing a basement bathroom can increase home value by up to 20%, making the investment in proper plumbing highly lucrative. However, improper installation can lead to severe backups and costly repairs.

Expert Note: Always check your local building codes before starting. Regulations regarding venting and pump specifications vary significantly between states like California, New York, and Texas.

Step 1: Planning the Layout and Permits

You cannot simply dig a hole anywhere. Proper planning prevents structural damage and ensures functionality.

Determine the Drain Location

The shower drain needs to connect to the main soil stack (the large vertical pipe carrying waste). Ideally, place your shower as close to this stack as possible to minimize the length of horizontal piping. Long horizontal runs require precise sloping (1/4 inch per foot) to prevent clogs.

Check Local Codes

Most municipalities require a permit for adding plumbing fixtures. This ensures your work is inspected for safety. Skipping this step can cause issues when you sell your home. You may need to submit a plumbing diagram showing:

• Pipe diameters (usually 2 inches for showers).
• Venting locations.
• Ejector pump specifications.

Gather Your Tools

• Concrete saw or jackhammer
• Shovel and pickaxe
• PVC pipes and fittings (Schedule 40)
• Sewage ejector pump kit
• Level and tape measure
• Primer and PVC cement

Step 2: Installing the Sewage Ejector System

If gravity drainage isn’t an option, the sewage ejector pump is the heart of your system. This is the most critical component when learning how to install plumbing for shower in a basement.

Choosing the Right Pump

Not all pumps are created equal. For a bathroom with a toilet and shower, you need a solids-handling ejector pump (capable of handling 2-inch solids), not just a sump pump. Sump pumps only handle clear water and will clog immediately with waste.

Digging the Pit

1. Mark the Area: Identify where the pump basin will sit, ideally near the main stack.
2. Break Concrete: Use a concrete saw to cut a square outline, then a jackhammer to remove the slab. You typically need a hole about 18–24 inches in diameter and 24–30 inches deep.
3. Install the Basin: Place the plastic ejector basin into the hole. Ensure it is level. The lid should sit flush with the finished floor height.

Connecting the Pump

1. Check Valve: Install a check valve on the discharge pipe above the pump. This prevents pumped water from flowing back into the basin when the pump turns off.
2. Discharge Pipe: Connect a 2-inch PVC pipe from the pump outlet, running it upward and horizontally toward the main sewer line.
3. Venting: The basin must be vented. Connect a vent pipe from the basin lid to the main vent stack or run it separately through the roof. This prevents airlocks and allows gases to escape.

For more technical details on wastewater systems, you can refer to general engineering principles on Wikipedia’s Sanitary Sewer page.

Step 3: Running the Shower Drain Lines

Now that the ejection system is ready, you need to connect the shower itself.

Slope Is Critical

Water needs gravity to move from the shower drain to the ejector basin.

• Rule of Thumb: Slope the pipe 1/4 inch for every foot of horizontal run.
• Too Little Slope: Water moves slowly, leaving debris behind.
• Too Much Slope: Water moves too fast, leaving solids behind (known as “solids stranding”).

Connecting to the Basin

1. Cut an inlet hole in the side of the ejector basin at the appropriate height.
2. Insert a rubber grommet or flexible coupling into the hole.
3. Connect your 2-inch PVC shower drain line to this inlet.
4. Ensure the connection is watertight. Use stainless steel clamps if required by the manufacturer.

Venting the Shower

Your shower trap needs protection from siphoning. Connect a vent pipe from the shower drain assembly (usually within 5 feet of the trap) to the main vent stack. If cutting into the main stack is difficult, you might consider an Air Admittance Valve (AAV), but check if your local code permits them for basement applications.

Step 4: Testing and Inspection

Never close up walls or pour concrete over your pipes without testing.

1. Visual Inspection: Check all glue joints. Ensure PVC primer (purple) and cement were used correctly.
2. Water Test: Pour water into the shower drain. Watch for leaks at the basin connection and along the horizontal runs.
3. Pump Test: Fill the ejector basin with water manually (using a hose) until the float switch activates. Listen for the pump to engage and verify water is being pushed out through the discharge line.
4. Call the Inspector: If a permit was required, schedule your rough-in inspection now. They will check pipe slopes, venting, and material quality.

Common Challenges and Solutions

Challenge 1: Breaking the Concrete Floor

Solution: Rent a high-quality electric jackhammer rather than buying a cheap one. Wear full PPE (safety glasses, ear protection, and a respirator) as concrete dust contains silica, which is hazardous to lung health.

Challenge 2: Low Ceiling Height

Solution: If your basement ceiling is low, running overhead vents might be impossible. In this case, consult a plumber about using an AAV or routing vents through exterior walls if code allows.

Challenge 3: Old Cast Iron Pipes

Solution: If your main stack is old cast iron, do not try to glue PVC directly to it. Use a shielded rubber coupling (no-hub connector) designed to join dissimilar materials securely.

FAQ Section

Q1: Can I install a basement shower without a pump?

A: Yes, but only if your main sewer line is lower than your basement floor. This is rare in flat areas but possible in hillside homes. You must maintain a 1/4 inch per foot slope all the way to the city connection. If the math doesn’t work, you need a pump.

Q2: How much does it cost to install plumbing for a basement shower?

A: Costs vary widely. A DIY approach might cost $500–$1,500 for materials (pump, pipes, concrete repair). Hiring a professional plumber typically ranges from $2,500 to $5,000, depending on complexity and local labor rates.

Q3: What size pipe do I need for a basement shower drain?

A: Standard code requires a 2-inch diameter PVC pipe for shower drains. Do not use 1.5-inch pipe, as it is prone to clogging with hair and soap scum, especially when being pumped uphill.

Q4: Do I need a special trap for a basement shower?

A: No, a standard P-trap is sufficient. However, ensure the trap is accessible for cleaning. Some homeowners install a cleanout plug just after the trap for easier maintenance.

Q5: How deep should the ejector pump pit be?

A: The pit depth depends on the pump model and the incoming pipe height. Typically, the basin is 24 to 30 inches deep. The bottom of the basin should rest on a stable base, often a layer of gravel or concrete, to prevent shifting.

Q6: Can I use a sump pump for a shower?

A: Absolutely not. Sump pumps are designed for clear water (rainwater/groundwater). They lack the impeller design to handle solids and will clog instantly with shower debris or any accidental waste, leading to overflow and sewage backup.

Conclusion

Learning how to install plumbing for shower in a basement is a challenging but rewarding DIY project. By understanding the necessity of a sewage ejector pump, maintaining proper pipe slopes, and adhering to local venting codes, you can create a functional and durable bathroom space.

Remember, patience is key. Rushing the concrete breaking or skipping the inspection phase can lead to expensive mistakes. Take your time to measure twice, cut once, and ensure every joint is sealed perfectly.
