Install Sink Plumbing From Rough-In: A Pro Guide

Are you staring at those open pipes in your wall, feeling overwhelmed by the thought of connecting your new vanity? You are not alone. Many homeowners hesitate at this stage, fearing costly leaks or complex technical requirements. However, knowing how to install sink plumbing from rough in bathroom is a manageable task that can save you hundreds of dollars in plumber fees. With the right tools and a clear plan, you can transform that rough-in chaos into a sleek, functional sink setup with confidence.

Understanding the Bathroom Rough-In Basics

Before you pick up a wrench, it is crucial to understand what you are working with. A “rough-in” refers to the initial stage of plumbing where water supply lines and drain pipes are installed within the walls and floor, but before fixtures like sinks or toilets are attached.

In a typical US bathroom, you will encounter two main components:

1. Water Supply Lines: Usually two flexible tubes (hot and cold) protruding from the wall or floor.
2. Drain Waste Vent (DWV): A larger pipe (typically 1.5 inches in diameter) sticking out of the wall or floor, meant to carry wastewater away.

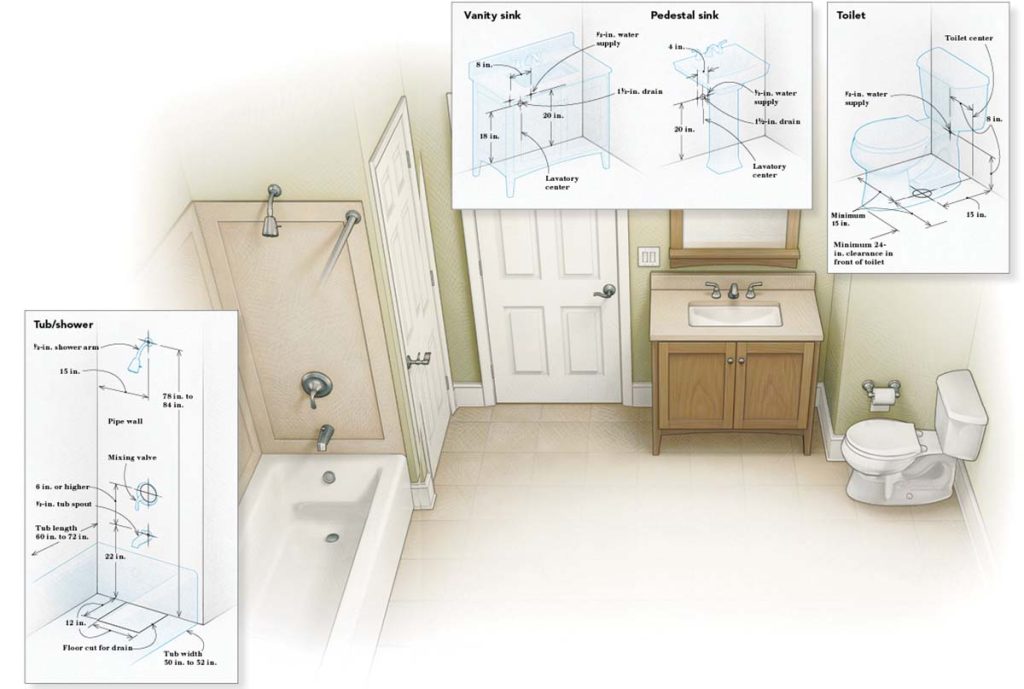

According to the International Plumbing Code, standard rough-in heights for bathroom sinks are typically between 30 to 34 inches from the finished floor to the center of the drain outlet. Ensuring your measurements align with these standards prevents awkward bending or straining of your new plumbing connections.

Tools and Materials You Will Need

Gathering the right gear is half the battle. Here is a checklist to ensure you are prepared:

• Adjustable Wrenches (2): One for holding nuts, one for turning.
• Pipe Cutter or Hacksaw: For trimming PVC or copper pipes if necessary.
• Teflon Tape (Plumber’s Tape): Essential for leak-proof threaded connections.
• PVC Primer and Cement: If you are working with rigid PVC drains.
• Slip-Joint Pliers: For tightening slip nuts without damaging them.
• Bucket and Rags: To catch residual water and clean up spills.
• Level: To ensure your sink sits perfectly straight.

Step 1: Preparing the Rough-In Area

Safety and preparation are paramount. Before touching any pipes, turn off the main water supply to your home. If your rough-in includes individual shut-off valves, turn those off instead. Open a faucet elsewhere in the house to relieve pressure and drain remaining water from the lines.

Inspect the rough-in pipes for debris. It is common for dust, drywall fragments, or even small rocks to find their way into open pipes during construction. Use a flashlight to look inside the drain pipe. If you see obstructions, remove them carefully. A clogged drain now will cause major headaches later.

Check the condition of the water supply stubs. If they are copper, ensure they are not bent or kinked. If they are PEX (cross-linked polyethylene), check for cracks. Damaged supply lines should be replaced before proceeding.

Step 2: Installing the Shut-Off Valves

If your rough-in does not already have angle stops (shut-off valves), you must install them. These valves allow you to cut water to the sink specifically, rather than shutting off the whole house for minor repairs.

1. Wrap Threads: Apply Teflon tape clockwise around the threads of the water supply stubs. Use about 3–4 wraps for a secure seal.
2. Attach Valves: Screw the angle stop valves onto the hot and cold supply lines. Hand-tighten first, then use an adjustable wrench to give them a quarter-turn more. Do not overtighten, as this can crack the valve or strip the threads.
3. Orientation: Ensure the handle of the valve faces outward for easy access.

Pro Tip: If your rough-in uses sweat-fit copper pipes, you may need soldering skills or push-to-connect fittings (like SharkBite) for a tool-free installation. Push-to-connect fittings are highly recommended for DIYers due to their ease of use and reliability.

Step 3: Connecting the Drain Tailpiece

The drain assembly connects your sink basin to the household drainage system. This involves the tailpiece, the P-trap, and the waste arm.

1. Install the Basket Strainer: Place the basket strainer into the drain hole of the sink. Apply a bead of plumber’s putty under the flange to create a watertight seal. Tighten the locking nut from underneath the sink. Wipe away excess putty.
2. Attach the Tailpiece: Connect the tailpiece to the bottom of the basket strainer. Use a slip nut and a washer. Ensure the beveled side of the washer faces the nut. Hand-tighten only at this stage.
3. Measure and Cut: Hold the P-trap curve against the tailpiece and the wall drain stub. Mark where the pipe needs to be cut. Use a hacksaw or pipe cutter to trim the PVC pipe to length. Deburr the cut edges with sandpaper to ensure a smooth fit.

Step 4: Assembling the P-Trap

The P-trap is the U-shaped pipe that holds water, creating a seal that prevents sewer gases from entering your home. It is a critical health and safety component.

1. Dry Fit First: Assemble the P-trap and waste arm without glue or tightening nuts. Check for alignment. The waste arm should slide easily into the wall drain pipe.
2. Glue vs. Slip Joint: If using rigid PVC, you must prime and cement the joints that go into the wall. However, the connections at the sink and the trap curve itself usually use slip joints with washers, which do not require glue. This allows for future cleaning or adjustments.
3. Final Assembly: Insert the waste arm into the wall drain. If the wall pipe is cast iron, you may need a rubber Fernco coupling to connect the PVC waste arm to the iron pipe. Tighten the hose clamps on the coupling securely.

Step 5: Connecting Water Supply Lines

Now that the drain is set, connect the water.

1. Measure Length: Measure the distance from the angle stop valves to the faucet inlet shanks. Buy flexible braided stainless steel supply lines that are slightly longer than needed to avoid tension.
2. Connect to Faucet: Attach one end of the supply line to the faucet shank. Use a wrench to tighten the compression nut. Again, hand-tight plus a quarter turn is sufficient.
3. Connect to Valves: Attach the other end to the angle stop valves. Ensure the hot water line connects to the hot valve (usually left) and cold to cold (usually right).
4. Avoid Kinks: Ensure the lines are not twisted or kinked, as this restricts water flow and can weaken the line over time.

Step 6: Testing for Leaks

This is the most critical step. Do not skip it.

1. Turn On Water: Slowly open the main water supply or the angle stop valves.
2. Check Connections: Inspect every connection point: the angle stops, the supply line ends, the basket strainer, and the P-trap joints.
3. Run Water: Turn on the faucet and let it run for a minute. Fill the sink partially and then release the stopper. The surge of water tests the drain capacity and the P-trap integrity.
4. Dry Touch Test: Run your hand along all pipes. If you feel moisture, tighten the corresponding nut slightly. If it still leaks, disassemble, check the washer for misalignment, and reassemble.

Note: A small drip often means a washer is crooked or missing. Never use excessive force to stop a leak; instead, reseal the connection.

FAQ Section

Q1: What is the standard height for a bathroom sink rough-in?

The standard height for a bathroom sink rough-in drain is typically between 30 and 34 inches from the finished floor. The water supply lines are usually positioned slightly lower, around 20 to 22 inches, or directly adjacent to the drain depending on the vanity design. Always check your specific vanity’s installation manual for precise requirements.

Q2: Can I use old supply lines for my new sink?

It is strongly recommended to replace old supply lines. Over time, rubber washers degrade, and braided metal can develop micro-fractures. New supply lines are inexpensive and provide peace of mind against potential floods. Reusing old lines is a false economy.

Q3: Why is my P-trap leaking even after tightening?

If your P-trap leaks after tightening, the issue is likely a misaligned washer or a cracked nut. Disassemble the joint and ensure the beveled washer is seated correctly. Also, check that the pipes are not under stress or forced into position. The pipes should align naturally without being bent.

Q4: Do I need a permit to install sink plumbing?

Regulations vary by location. In many US jurisdictions, replacing a fixture like-for-like does not require a permit. However, moving pipes or altering the rough-in layout often does. Check with your local building department to ensure compliance with local codes.

Q5: What size pipe is used for a bathroom sink drain?

A bathroom sink drain typically uses a 1.25-inch or 1.5-inch pipe. The tailpiece coming from the sink is usually 1.25 inches, while the P-trap and waste arm connecting to the wall are often 1.5 inches to match the household DWV system. Adapters are available if sizes differ.

Q6: How tight should I tighten plastic slip nuts?

Plastic slip nuts should be hand-tightened firmly, then given an additional quarter-turn with pliers if necessary. Overtightening can crack the plastic or distort the washer, leading to leaks. If it leaks, loosen it and check the washer alignment before trying again.

Conclusion

Learning how to install sink plumbing from rough in bathroom settings empowers you to take control of your home improvement projects. By following these steps—preparing the area, installing valves, assembling the P-trap, and testing for leaks—you ensure a durable and leak-free installation. Remember, patience and attention to detail are your best tools.
