How to Install Plumbing for a Utility Sink

Adding a utility sink to your laundry room, garage, or basement is one of the most practical upgrades you can make to your home. Whether you need a deep basin for soaking muddy gardening tools, washing large pet beds, or handling messy cleaning tasks, a utility sink saves your kitchen and bathroom sinks from unnecessary wear and tear. However, many homeowners hesitate because they assume connecting the water lines and drain is too complex. The good news is that if you have basic DIY skills, you can successfully learn how to install the plumbing for a utility sink without hiring a professional plumber.

This guide will walk you through the entire process, from gathering the right tools to making the final connections. By following these steps, you’ll ensure a leak-free, code-compliant installation that adds significant value and convenience to your household chores.

What Tools and Materials Do You Need?

Before you shut off the water or pick up a wrench, preparation is key. Having all your materials on hand prevents mid-project trips to the hardware store, which can kill your momentum.

Essential Tools

• Adjustable Wrenches (2): One for holding nuts steady, one for tightening.
• Pipe Cutter or Hacksaw: For cutting supply lines or PVC pipes.
• Tape Measure & Pencil: For accurate marking.
• Level: To ensure the sink sits perfectly flat.
• Drill & Bits: If you need to mount the sink to a wall or cabinet.
• Deburring Tool or Sandpaper: To smooth cut pipe edges.

Required Materials

• Utility Sink: Choose a depth and material (plastic, stainless steel, or enameled cast iron) that fits your space.
• Faucet: A standard laundry faucet with hose threads is ideal.
• Supply Lines: Braided stainless steel hoses (usually ½-inch NPT).
• Drain Kit: Includes a tailpiece, P-trap, and waste arm.
• PVC Pipes and Fittings: For extending the drain line if necessary.
• Plumber’s Tape (Teflon Tape): For sealing threaded connections.
• PVC Primer and Cement: For solvent-welding PVC joints.
• Pipe Straps/Hangers: To secure the drain line to the wall.

Pro Tip: Always check your local building codes before starting. Some regions have specific requirements for venting and trap distances that may affect your material list.

How Do You Prepare the Water Supply Lines?

The first major step in learning how to install the plumbing for a utility sink is accessing the water source. Most utility sinks are installed near existing washing machine hookups or water heater lines.

Step 1: Shut Off the Water

Locate the main water shut-off valve for your home or the specific branch line serving the area. Turn it off and open a nearby faucet to drain any remaining pressure and water from the lines.

Step 2: Install Tee Valves

If you are tapping into an existing cold and hot water line, you will need to install saddle valves or, preferably, standard tee valves. Saddle valves are easier to install but are prone to leaks over time; tee valves are more reliable.

1. Cut the existing copper or PEX pipe at the desired location using your pipe cutter.
2. Install the tee fittings. If using copper, you may need to solder the joints. If using PEX, use crimp rings and a crimping tool.
3. Attach shut-off valves to the tee outlets. This allows you to isolate the sink for future repairs without shutting off water to the whole house.

Step 3: Connect Supply Lines

Wrap plumber’s tape clockwise around the threads of your shut-off valves three times. Connect the braided supply lines to the hot and cold valves. Hand-tighten them first, then give them a quarter-turn with an adjustable wrench. Do not overtighten, as this can damage the rubber gaskets inside the hoses.

How Do You Assemble and Mount the Sink?

While the water lines are being prepped, you can assemble the sink itself. Most utility sinks come with pre-drilled holes for the faucet and drain.

Mounting the Faucet

1. Insert the faucet tails through the designated hole in the sink rim.
2. From underneath, place the mounting bracket and nut onto the tails.
3. Tighten the nut securely with your wrench. Ensure the faucet is aligned straight before fully tightening.

Installing the Drain Basket

1. Apply a bead of plumber’s putty around the underside of the drain flange (or use the provided rubber gasket, depending on the manufacturer’s instructions).
2. Insert the drain basket into the sink hole.
3. From underneath, screw the locking nut onto the drain threads. Tighten firmly until the putty squeezes out slightly, creating a watertight seal. Wipe away excess putty.

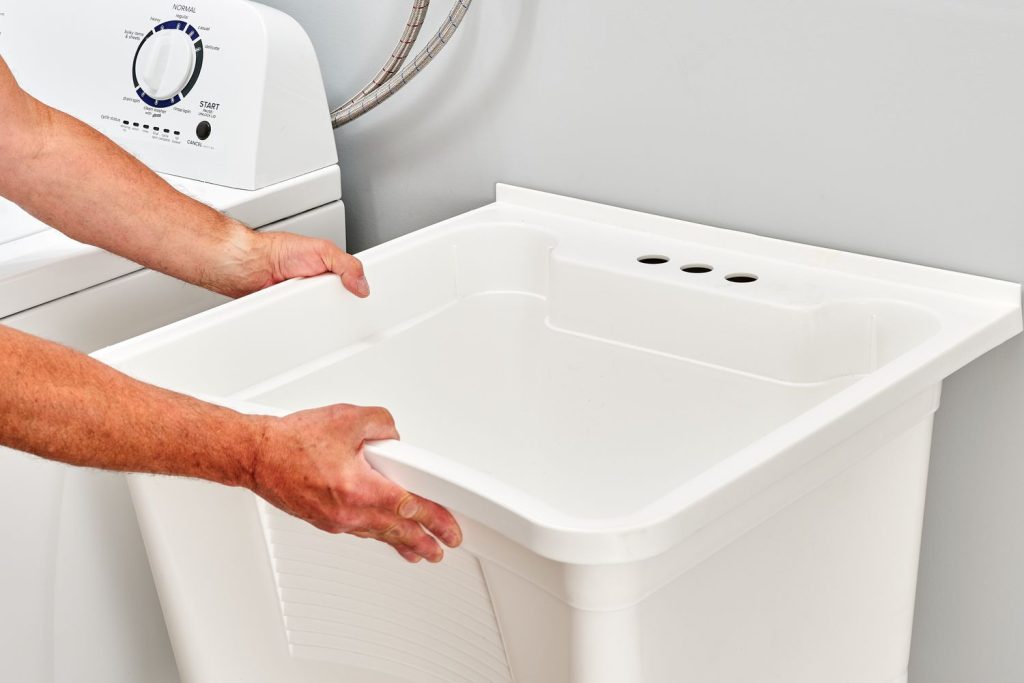

Securing the Sink

Place the sink in its final position. If it is a drop-in model, ensure the rim rests evenly on the countertop or cabinet. If it is a wall-mounted or floor-standing unit, use a level to ensure it is perfectly horizontal. Mark the drilling points, drill pilot holes, and secure the sink with appropriate screws or anchors. A level sink ensures proper drainage and prevents water from pooling on one side.

How Do You Connect the Drain and P-Trap?

The drain system is critical for preventing sewer gases from entering your home and ensuring wastewater flows away efficiently. This is often the most intimidating part for beginners, but it follows a logical pattern.

Understanding the P-Trap

A P-trap is a U-shaped pipe that holds a small amount of water, creating a seal against sewer gases. According to general plumbing standards, the trap should be located as close to the sink drain as possible.

Step-by-Step Drain Connection

1. Attach the Tailpiece: Screw the slip nut onto the bottom of the drain basket tailpiece. Insert the tailpiece into the top of the P-trap. Hand-tighten the nut.
2. Connect the Waste Arm: The other end of the P-trap connects to the waste arm (the pipe that goes into the wall or floor). Use a slip nut and washer to connect these pieces.
3. Align and Tighten: Ensure all pipes are aligned naturally without forcing them. Forced alignment leads to stress cracks and leaks. Once aligned, tighten all slip nuts by hand, then give them a slight turn with pliers. Avoid using excessive force.
4. Extend if Necessary: If the sink is far from the main drain stack, you may need to extend the waste arm using PVC pipes and fittings. Remember to slope the horizontal pipe downward at a rate of ¼ inch per foot toward the main drain to ensure proper flow.

For a deeper understanding of drainage systems and venting requirements, you can refer to general plumbing principles on Wikipedia.

How Do You Test for Leaks and Finalize the Installation?

Once everything is connected, it’s time to test your work. Never skip this step, as catching a small drip now saves you from major water damage later.

The Testing Process

1. Turn On the Water: Slowly open the main water supply and the individual shut-off valves for the sink.
2. Check Supply Lines: Inspect the connections at the wall valves and the faucet base. Look for any immediate drips. If you see a leak, tighten the connection slightly or reapply plumber’s tape.
3. Run Water: Turn on the faucet and let it run for a minute. Fill the sink partially and then release the stopper (if applicable) to send a surge of water down the drain.
4. Inspect the Drain: Check every joint in the P-trap and waste arm. Place a dry paper towel under each connection; if it gets wet, you have a leak.
5. Tighten if Needed: If a slip nut leaks, tighten it gently. If it persists, disassemble the joint, check that the plastic washer is seated correctly, and reassemble.

Final Cleanup

Once you confirm there are no leaks, secure any loose pipes with pipe straps. This prevents vibration and noise during water flow. Clean the sink surface and remove any construction debris.

FAQ Section

1. Do I need a permit to install a utility sink?

Regulations vary by location. In many areas, minor plumbing repairs or additions like a single sink do not require a permit if you are not altering the main stack or venting system. However, some municipalities require permits for any new plumbing fixture. Always check with your local building department to avoid fines or issues when selling your home.

2. Can I install a utility sink without a vent?

No. Every plumbing fixture requires a vent to prevent airlocks and allow wastewater to flow smoothly. Without a vent, you may experience gurgling sounds, slow drainage, or siphoning of the P-trap water. If you cannot connect to an existing vent, you may need to install an Air Admittance Valve (AAV), where local codes permit.

3. What is the standard height for a utility sink faucet?

Standard utility sink faucets are typically taller than bathroom faucets to accommodate deep basins and large items. The spout height usually ranges from 8 to 12 inches above the sink rim. Ensure your faucet has enough clearance for the items you plan to wash.

4. Why is my new utility sink draining slowly?

Slow drainage is often caused by improper slope in the horizontal drain pipes or a blocked vent. Ensure your waste arm slopes downward at ¼ inch per foot. Also, check that the P-trap is not installed too far from the sink drain, as this can reduce the scouring action needed to keep the pipe clear.

5. Should I use PVC or ABS for the drain pipes?

Both PVC (white) and ABS (black) are acceptable for drain lines, but you generally cannot mix them directly without a special transition fitting. PVC is more common in many parts of the US and requires primer and cement. ABS uses only cement. Check your local code to see which is preferred or required in your area.

Conclusion

Learning how to install the plumbing for a utility sink is a rewarding DIY project that enhances your home’s functionality. By carefully preparing your tools, following the step-by-step connection process for both water supply and drain lines, and thoroughly testing for leaks, you can achieve a professional-quality result. Not only does this upgrade save you money on plumber fees, but it also provides a dedicated space for messy tasks, keeping the rest of your home cleaner.
