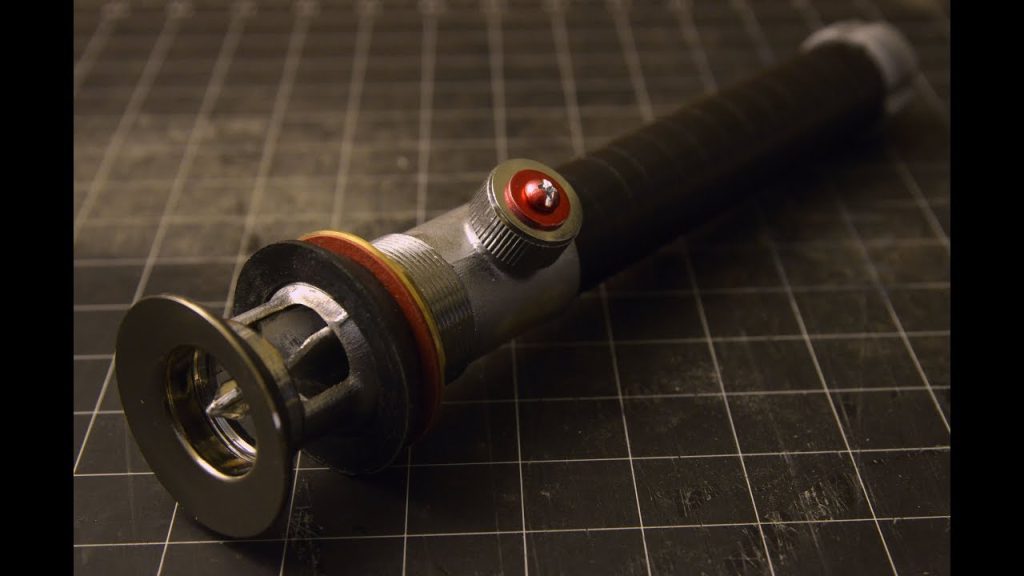

Have you ever dreamed of wielding the power of the Force but felt stopped by the high cost of replica props? You are not alone; many fans want an authentic experience without breaking the bank. Learning how to make a lightsaber out of plumbing parts is the perfect solution for budget-conscious creators who want durability and style.
Why Choose Plumbing Parts for Your Lightsaber?
Before we dive into the tools and glue, let’s address why this method is so popular among the prop-making community. Unlike cheap plastic toys found in big-box stores, plumbing pipes—specifically PVC or steel—are built to withstand pressure and impact. This makes them ideal for a prop that needs to look metallic and feel substantial in your hand.
According to various maker communities, using industrial materials adds a layer of “kit-bashing” realism that pure 3D-printed models sometimes lack. The weight distribution of a metal or heavy-duty PVC pipe mimics the heft of a real hilt, enhancing your role-play experience. Furthermore, these materials are readily available at any local hardware store, meaning you can start your project this afternoon.
What Materials Do You Need to Start?
Gathering the right components is half the battle. While you can customize your design endlessly, there is a standard “starter kit” of plumbing parts that works for 90% of DIY lightsaber builds.
The Core Components
- The Hilt Body: A 1-inch to 1.5-inch diameter pipe. Copper pipes offer a sleek, metallic look right out of the store, while PVC pipes are easier to cut and paint.
- The Handle Grip: A smaller diameter pipe (½ inch) or a rubber hose clamp for texture.
- The Pommel (Bottom Cap): A end cap that fits your main pipe snugly.
- The Emitter (Top): A coupling or a reducer fitting to create the tiered look of the blade emitter.
- Adhesives: High-strength epoxy or super glue for permanent bonds.
Tools Required
- Hacksaw or PVC cutter
- Sandpaper (medium and fine grit)
- Drill (for adding button details)
- Spray paint (primer, metallic silver/black, and accent colors)
- Clear coat sealant
Pro Tip: If you want a heavier, more premium feel, opt for copper or galvanized steel pipes. If you prefer ease of modification and lighter weight, stick with PVC.
How Do You Assemble the Base Structure?
Building the skeleton of your lightsaber requires precision. Follow these steps to ensure your hilt is sturdy and symmetrical.
Step 1: Cut the Main Body
Measure your main pipe to your desired length. A standard lightsaber hilt is typically between 10 to 12 inches long. Use your hacksaw to cut the pipe cleanly. If you are using PVC, deburr the edges with sandpaper to ensure a smooth fit for the caps. For copper pipes, use a pipe cutter for a professional-grade finish.
Step 2: Attach the Pommel
Take your end cap and apply a generous amount of epoxy to the inside rim. Slide it onto one end of your main body pipe. Wipe away any excess glue immediately with a rag. Let this set for at least 15–20 minutes before handling. This end will be the bottom of your saber.
Step 3: Create the Emitter Tier
On the opposite end (the top), you want to create a “step down” effect where the blade would emerge. Use a reducer fitting. For example, if your main body is 1 inch, use a 1-inch to ¾-inch reducer. Glue this securely to the top. You can stack multiple reducers to create a complex, multi-tiered emitter shape often seen in Star Wars lore.
Step 4: Add the Grip Section
Measure about 4 inches up from the pommel. This is where your hand will hold the saber. You can wrap this section in leather strips, bicycle handlebar tape, or glue on small sections of smaller-diameter pipe to create texture. If using pipe sections, ensure they are glued flat against the main body to avoid snagging on costumes.
How Can You Add Authentic Details?
A smooth pipe looks like… well, a pipe. To transform it into a sci-fi weapon, you need to add “greebles”—small details that break up the surface and add visual interest.
Drilling Button Holes
Use your drill to create small indentations or holes along the grip area. These represent activation switches and control panels.
- Drill three small holes in a triangular pattern near the top of the grip.
- Insert small screws, rivets, or even cut-off bolt heads into these holes using epoxy.
- Paint these accents in a contrasting color, such as red or blue, to mimic LED indicators.
Adding Clamps and Rings
Visit the hardware aisle for hose clamps or large washers. Slip a hose clamp over the emitter section and tighten it. This adds an industrial, mechanical look that suggests the blade is held in place by tension. You can also glue large washers around the base of the emitter to create a “shroud” effect.
For a deeper understanding of the cultural impact of these props, you can explore the history of lightsabers on Wikipedia. Understanding the source material helps you make design choices that respect the original aesthetic.
What Is the Best Way to Paint and Finish?
Painting is where your plumbing parts truly lose their identity as construction materials and become a galaxy-far-far-away weapon.
Preparation is Key
Sand the entire surface of your hilt with medium-grit sandpaper. This creates microscopic scratches that help the primer adhere. Wipe down the saber with a tack cloth or damp rag to remove dust.
The Painting Process
- Primer: Apply a coat of black or gray spray primer. This unifies the different metals and plastics under one base tone.
- Base Coat: Spray your primary color. Most classic sabers use a matte black or gunmetal gray. Apply thin, even coats from a distance of 8–10 inches to prevent drips.
- Dry Brushing: This is the secret to making plastic look like worn metal. Dip a dry brush into silver or chrome paint, wipe most of it off on a paper towel, and lightly brush over the raised edges and details of your hilt. This highlights the textures and makes the prop look battle-worn.
- Weathering: Use a small brush to add black washes into the crevices to simulate grease and dirt accumulation.
Sealing the Deal
Once the paint is fully dry (wait at least 24 hours), apply a clear matte sealant. This protects your paint job from chipping during duels or conventions. Avoid glossy finishes unless you are trying to replicate a specific polished chrome look, as matte finishes generally look more realistic and cinematic.
Comparison: PVC vs. Metal Pipes
| Feature | PVC Pipe | Copper/Steel Pipe |
|---|---|---|
| Cost | Very Low ($) | Moderate ($$) |
| Weight | Light | Heavy/Substantial |
| Ease of Cutting | Easy (Hand saw) | Harder (Requires pipe cutter) |
| Durability | Good | Excellent |
| Paint Adhesion | Requires good priming | Natural metallic look |
FAQ: Common Questions About DIY Lightsabers
1. Is it safe to duel with a plumbing pipe lightsaber?
No. Plumbing parts are rigid and hard. They should be used for display or light posing only. If you intend to spar, you must build a separate, padded foam blade and never strike another person with the hilt itself. Always prioritize safety gear.
2. Can I add electronics to this build?
Absolutely. The hollow nature of plumbing pipes makes them perfect for housing LED strips and soundboards. You can purchase DIY lightsaber electronics kits online that fit easily inside a 1-inch pipe. Just ensure you leave enough room for wiring and a battery pack.
3. How much does it cost to make a lightsaber this way?
You can build a basic hilt for under $20–$30 using PVC parts and basic spray paint. Using copper or steel may raise the cost to $40–$50, which is still significantly cheaper than most retail replicas that start at $100+.
4. What size pipe should I use for the blade?
If you plan to attach a removable polycarbonate blade, standard sizes are 1 inch or 7/8 inch in diameter. Ensure your emitter fitting matches the outer diameter of your chosen blade tube.
5. How long does the paint take to cure?
While spray paint feels dry to the touch in 30 minutes, it takes about 24 to 48 hours to fully cure. Avoid handling the prop extensively or attaching accessories until this period has passed to prevent fingerprints and smudges.
6. Can I make a curved hilt with plumbing parts?
Standard plumbing pipes are straight. To make a curved hilt (like Count Dooku’s), you would need to find pre-curved pipe fittings or use flexible vinyl tubing reinforced with wire. However, for beginners, sticking to a straight hilt is recommended for the best structural integrity.
Conclusion
Learning how to make a lightsaber out of plumbing parts is a rewarding journey that combines creativity with basic engineering. You get a custom, durable prop that reflects your personal style, all for a fraction of the retail price. Whether you are building this for a cosplay convention, a Halloween costume, or just for fun, the skills you learn here—cutting, gluing, and weathering—are foundational for any future prop-making projects.
So, head to your local hardware store, grab those pipes, and may the Force be with your craftsmanship! Don’t forget to share photos of your finished build on social media using #DIYLightsaber to inspire other makers.
