Setting up a saltwater aquarium is an exciting journey, but let’s be honest: the plumbing can feel like a tangled nightmare of PVC pipes and confusing fittings. Many hobbyists struggle with leaks, noisy returns, or inefficient water flow simply because they didn’t plan their layout correctly before cutting a single pipe. If you are looking for a clear, reliable method on how to make a reef tank plumbing diagram Reef2Reef enthusiasts swear by, you have come to the right place. This guide will walk you through creating a professional-grade plumbing blueprint that saves time, money, and stress.

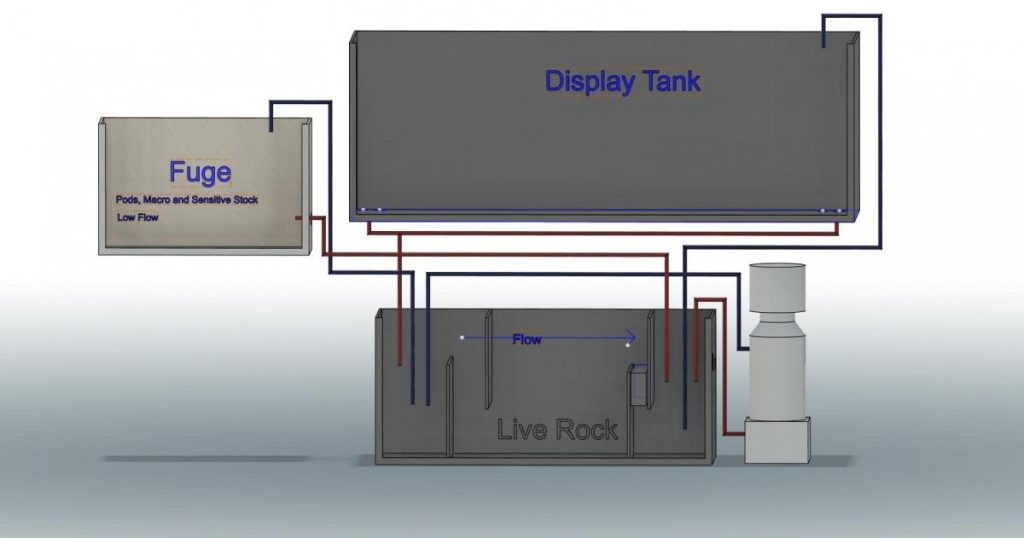

Why You Need a Plumbing Diagram Before You Build

Before you head to the hardware store, understanding why a diagram is crucial can save your tank from disaster. Plumbing is the circulatory system of your reef tank. If the heart (your pump) pushes blood (water) through clogged or poorly designed arteries (pipes), the entire organism suffers.

A detailed diagram helps you visualize:

• Flow Rate: Ensuring your return pump matches your overflow capacity.
• Space Constraints: Fitting everything into your sump without overcrowding.
• Maintenance Access: Making sure valves are reachable for future repairs.

According to community data from major aquarium forums, over 60% of beginner plumbing failures stem from poor planning rather than bad execution. A diagram acts as your insurance policy against these common pitfalls.

Understanding the Core Components of Reef Plumbing

To draw an accurate diagram, you must first understand the players involved. In a typical reef setup, water flows from the display tank to the sump, gets filtered, and is pumped back.

The Overflow System

This is where water leaves your display tank. Most modern tanks use a dual-drain system (Herbie or Durso standpipe). Your diagram must show two distinct lines leaving the tank: one for the primary drain and one for the emergency backup.

The Sump Chamber

Your sump is usually divided into sections. A standard layout includes:

1. Filter Sock/Mechanical Filtration: Where debris is caught.
2. Skimmer Section: Where the protein skimmer sits.
3. Return Pump Section: Where the water is pushed back to the tank.

The Return Line

This is the pressurized line pushing water back up. It requires specific fittings to control flow and reduce noise.

For a deeper scientific understanding of fluid dynamics in closed systems, you can refer to general principles of hydraulics on Wikipedia, which underpin how pressure and flow rate interact in your PVC pipes.

Step-by-Step: How To Make A Reef Tank Plumbing Diagram Reef2Reef Style

Creating a diagram doesn’t require expensive CAD software. You can start with graph paper or a simple digital tool like Lucidchart or even Microsoft Visio. Here is the step-by-step process used by experienced DIYers.

Step 1: Measure Your Space Precisely

Grab a tape measure. You need three key dimensions:

• Vertical Height: From the bottom of the sump to the water surface in the display tank.
• Horizontal Distance: From the sump location to the tank bulkheads.
• Sump Dimensions: Width, length, and height of each baffle section.

Pro Tip: Add 10% to your measurements to account for elbow fittings, which consume pipe length.

Step 2: Sketch the Water Path

Start drawing from the display tank down to the sump. Use straight lines for pipes and curved symbols for elbows.

• Draw the Overflow Box on the tank.
• Draw two lines going down to the sump’s first chamber. Label one “Primary Drain” and the other “Emergency Drain.”
• Indicate the direction of flow with arrows. Gravity pulls water down, so these lines should be straightforward.

Step 3: Map the Sump Internals

Inside the sump sketch, draw the baffles.

• Chamber 1: Draw a filter sock holder. Show water entering from the top and exiting through the first baffle at the bottom.
• Chamber 2: Sketch your protein skimmer. Show air intake and waste output.
• Chamber 3: This is your return section. Draw the return pump sitting on the bottom.

Step 4: Design the Return Line

This is the most critical part of learning how to make a reef tank plumbing diagram Reef2Reef members recommend. The return line goes up against gravity.

• Draw a line from the pump outlet, going up through the side of the sump.
• Include a Union Ball Valve immediately after the pump. This allows you to remove the pump without cutting pipes.
• Add a Check Valve if your pump is below the water line of the display tank (to prevent back-siphoning).
• At the top, near the tank, include a Tee Split. One line goes to the main return nozzle; the other can go to a auto-top-off (ATO) sensor or a mixing station.

Step 5: Specify Pipe Sizes and Fittings

Now, annotate your drawing with specifics.

• Drain Lines: Typically 1-inch or 1.5-inch PVC. Larger diameters reduce noise and increase flow capacity.
• Return Line: Typically ¾-inch or 1-inch PVC.
• Fittings: Mark every 90-degree elbow, 45-degree elbow, and union.

Example Annotation: “Use 1-inch Schedule 80 PVC for all drain lines. Use ¾-inch Schedule 40 for return line.”

Common Plumbing Configurations: Which One Fits You?

Not all reefs are built the same. Choose the configuration that matches your intent.

For most standard 50-100 gallon tanks, the Herbie or BeanAnimal designs are the gold standard in the Reef2Reef community due to their reliability and silence.

Critical Tips for Leak-Proof Success

Even the best diagram fails if the execution is poor. Here are expert tips to ensure your physical build matches your paper plan.

1. Dry Fit Everything First: Never glue a pipe until you have assembled the entire section dry. Check for alignment issues.
2. Use Schedule 80 PVC: While Schedule 40 is cheaper, Schedule 80 has thicker walls and handles pressure better. It also looks more professional with its dark gray color.
3. Support Your Pipes: Water is heavy. Use PVC clamps every 2 feet to prevent sagging, which can stress joints and cause leaks over time.
4. Test for Leaks: Before adding saltwater, run fresh water through the system for 24 hours. Place paper towels under every joint. If they stay dry, you are good to go.

FAQ Section

1. What size PVC pipe should I use for a 100-gallon reef tank?

For a 100-gallon tank, a 1-inch drain line is ideal. It handles flow rates up to 600 gallons per hour (GPH) silently. For the return line, ¾-inch PVC is sufficient for most return pumps used in this size range.

2. Do I really need a union valve on my return pump?

Yes. Absolutely. Without a union valve, if your pump fails or needs cleaning, you would have to cut the PVC pipe. A union valve allows you to unscrew the pump from the plumbing in seconds. It is a small cost for massive convenience.

3. How do I reduce noise in my overflow box?

Noise usually comes from air being sucked down the drain. Using a Herbie or BeanAnimal overflow design eliminates this by keeping the drain pipe completely full of water. Additionally, ensuring your drain lines are large enough (not restricted) prevents the “glug-glug” sound.

4. Can I use flexible tubing instead of rigid PVC?

Flexible tubing (like vinyl) is acceptable for short runs or connections to devices like chillers or reactors. However, for main structural plumbing, rigid PVC is superior. It is more durable, looks cleaner, and is less likely to kink or degrade under UV light.

5. What is the difference between Schedule 40 and Schedule 80 PVC?

Schedule 80 PVC has thicker walls and a smaller inner diameter than Schedule 40. It is stronger and can handle higher pressure. For reef tanks, Schedule 80 is preferred for its durability and aesthetic, though Schedule 40 is perfectly safe for low-pressure drain lines.

6. How many elbows should I avoid in my plumbing?

Every elbow adds resistance (friction loss) to your flow. Try to keep the number of elbows to a minimum. Use 45-degree elbows instead of 90-degree elbows when possible, as they offer less resistance and smoother water flow.

Conclusion

Learning how to make a reef tank plumbing diagram Reef2Reef style is not just about drawing lines on paper; it is about engineering a stable, safe environment for your marine life. By taking the time to measure, sketch, and plan your layout, you avoid the costly mistakes of trial-and-error construction. Remember, a well-planned plumbing system is silent, efficient, and easy to maintain.

Take your diagram, gather your tools, and build with confidence. If you found this guide helpful, please share it with your fellow reefing friends on social media or your local aquarium club. Happy reefing!
