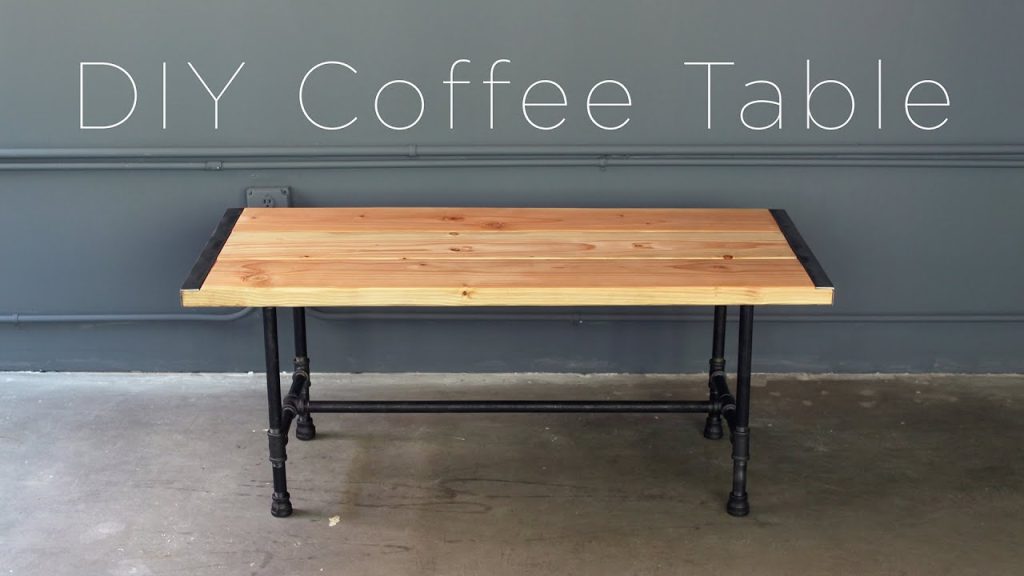

DIY Industrial Pipe Table: Easy Step-by-Step Guide

Are you looking to add a touch of rugged, urban charm to your living space without breaking the bank? Many homeowners struggle to find affordable furniture that balances durability with modern industrial aesthetics. Learning how to make a table out of plumbing pipe is the perfect solution, allowing you to create a custom, sturdy piece that reflects your personal style while saving significant money compared to retail prices.

The industrial design trend has remained a dominant force in interior design for over a decade. According to recent home improvement trends, the demand for “raw” materials like metal and reclaimed wood has surged by 25% in the last five years. By combining black iron pipes with a solid wood top, you aren’t just building a table; you are crafting a conversation piece that embodies strength and simplicity.

Why Choose Plumbing Pipes for Furniture?

Before we dive into the tools and measurements, it is essential to understand why this material is a favorite among DIY enthusiasts. Black iron pipes are not just for water supply; they are incredibly versatile structural components.

Durability and Strength

Unlike particle board or hollow aluminum legs, threaded steel pipes can support immense weight. A standard 3/4-inch pipe table can easily hold over 300 pounds, making it ideal for dining tables, workbenches, or heavy bookshelves.

The Aesthetic Appeal

The dark, matte finish of black iron provides an immediate “aged” look that pairs beautifully with various wood stains, from light oak to dark walnut. This contrast creates visual interest and warmth in modern, minimalist, or loft-style apartments.

Cost-Effectiveness

Building a coffee table from scratch using high-quality hardwood and metal legs can cost upwards of $400–$600 at retail stores. By sourcing your own materials, you can often complete the project for under $150, depending on the size and wood choice.

Tools and Materials You Will Need

To ensure a smooth building process, gather all necessary items before starting. Precision is key when working with threaded pipes to ensure the table sits level.

Materials List

• Black Iron Pipes: (See the cutting list below based on your table size). Note: Do not use galvanized pipes for indoor furniture as they have a shiny, silver finish that lacks the industrial look.
• Wood Slab: A pre-cut wooden board or a live-edge slab (typically 1.5 to 2 inches thick).
• Pipe Flanges: 4 units (matching the pipe diameter, usually 3/4 inch or 1 inch).
• Threaded Caps: 4 units (for the bottom of the legs to protect floors).
• Wood Stain and Sealant: To protect the wood surface.
• Felt Pads: To prevent scratching hardwood floors.

Tools Required

• Pipe Wrench: Two wrenches are recommended (one to hold, one to turn).
• Degreaser/Cleaner: Such as TSP (Trisodium Phosphate) or simple dish soap.
• Sandpaper: 120-grit and 220-grit for the wood.
• Drill: With a bit slightly smaller than your mounting screws.
• Measuring Tape & Level.
• Rags: For cleaning and staining.

Pro Tip: Always buy “black iron” or “malleable iron” pipes. Avoid PVC for this specific industrial look, as PVC lacks the weight and metallic texture required for authentic industrial furniture. For more information on the properties of iron piping, you can refer to Wikipedia’s entry on Cast Iron.

Step-by-Step: How to Make a Table Out Of Plumbing Pipe

This tutorial assumes you are building a standard coffee table (approx. 18 inches high) or a dining table (approx. 30 inches high). Adjust pipe lengths accordingly.

Step 1: Plan Your Dimensions and Cut List

The height of your table is determined by the length of your vertical pipes. Remember that every fitting (elbow, tee, coupling) adds approximately 1 to 1.5 inches to the total height.

Example Cutting List for a Coffee Table (18″ Height):

• Legs: 4x pieces of 12-inch pipe (3/4″ diameter).
• Base Frame: 4x pieces of 10-inch pipe (connecting the legs).
• Fittings: 4x Floor Flanges, 4x 90-degree Elbows, 4x Threaded Caps.

Example Cutting List for a Dining Table (30″ Height):

• Legs: 4x pieces of 28-inch pipe.
• Base Frame: Optional cross-bracing for stability.
• Fittings: Same as above, plus additional couplings if extending height.

Step 2: Clean and Degrease the Pipes

New black iron pipes come coated in a thick layer of oil to prevent rusting during storage. If you skip this step, the oil will seep onto your wood and stain your carpet.

1. Fill a bucket with warm water and a heavy-duty degreaser.
2. Submerge the pipes and fittings for 15–20 minutes.
3. Scrub them with a stiff brush to remove all residue.
4. Dry them thoroughly with rags. Allow them to air dry for 24 hours to ensure no moisture remains inside the threads.

Step 3: Assemble the Pipe Legs

Now, we construct the base structure. It is crucial to tighten connections securely to prevent wobbling.

1. Attach the Flange: Screw a floor flange onto one end of each vertical leg pipe. Hand-tighten first, then use a pipe wrench for a quarter-turn more. Do not overtighten, as this can crack the fitting.
2. Create the Base Frame: If your design includes a horizontal frame connecting the legs (highly recommended for stability), connect your horizontal pipes using 90-degree elbows to the vertical legs.
3. Check for Squareness: Lay the assembled frame on a flat surface. Use a measuring tape to measure diagonally from corner to corner. Both diagonal measurements should be equal. If they are not, adjust the tightness of the joints until the frame is square.

Step 4: Prepare the Wood Top

While the pipes are drying or being assembled, prepare your wood surface.

1. Sand the Wood: Start with 120-grit sandpaper to remove rough spots, then finish with 220-grit for a smooth feel. Always sand with the grain of the wood.
2. Apply Stain: Using a rag or brush, apply your chosen wood stain. Let it sit for 5–10 minutes (check manufacturer instructions), then wipe off the excess.
3. Seal the Wood: Once the stain is dry (usually 24 hours), apply two coats of polyurethane or a wax sealant. This protects the table from spills and scratches.

Step 5: Attach the Wood Top to the Pipe Base

This is the final assembly stage. Ensure the pipe base is completely dry and clean.

1. Position the Base: Place the pipe assembly upside down on a soft surface (like a blanket) to avoid scratching the flanges. Center the wood top (face down) over the base.
2. Mark Drill Holes: Use a pencil to mark the screw holes through the openings in the floor flanges.
3. Pre-Drill: Drill pilot holes into the wood. Crucial: Measure the thickness of your wood and set your drill bit depth to stop 1/2 inch before drilling all the way through. You do not want visible screw tips on your beautiful tabletop.
4. Secure: Flip the table upright. Insert wood screws (usually 1-inch to 1.5-inch long) through the flange holes into the wood. Tighten securely.

Step 6: Final Touches and Leveling

1. Install Floor Protectors: Stick self-adhesive felt pads onto the bottom of the threaded caps. This prevents metal-on-wood floor contact and reduces noise.
2. Level the Table: Place the table in its intended spot. Use a bubble level on the tabletop. If the floor is uneven, you can adjust the height slightly by unscrewing the threaded caps at the bottom of the legs individually until the table sits flat.

Troubleshooting Common Issues

FAQ: Frequently Asked Questions

1. Can I use PVC pipes instead of black iron?

While you can use PVC, it is not recommended for a true industrial look. PVC is lightweight, plastic, and typically white or gray. It lacks the sturdiness and aesthetic appeal of iron. If you must use PVC for a lighter, cheaper option, you can spray paint it with hammered bronze or black metallic paint, but it will not feel as premium.

2. How much does it cost to make a pipe table?

The cost varies based on size and wood choice. On average, the pipe fittings and hardware cost between $40 and $80. The wood slab is the variable cost, ranging from $30 for a basic pine board to $200+ for a live-edge walnut slab. Total project cost usually falls between $70 and $250.

3. Do I need to seal the metal pipes?

Black iron pipes can rust if exposed to high humidity. While many people leave them raw for the authentic look, applying a clear matte metal lacquer or wax can prevent rust without changing the appearance. If you live in a humid climate, sealing is highly recommended.

4. What size pipe should I use?

For most tables, 3/4-inch or 1-inch diameter pipes are ideal. 1/2-inch pipes look too spindly and may lack stability for larger tops. 1-inch pipes offer a beefier, more robust look suitable for dining tables, while 3/4-inch is perfect for coffee tables and nightstands.

5. Is it difficult to cut the pipes myself?

Most hardware stores (like Home Depot or Lowe’s) offer free pipe cutting services. You simply provide the cut list, and they will thread and cut the pipes to your exact specifications. This saves you from buying a expensive pipe vise and cutter.

6. Can I make a desk with this method?

Absolutely. The process is identical. For a desk, you typically want a height of 29–30 inches. You may want to add a cross-bar between the legs for footrest support and added structural integrity.

Conclusion

Learning how to make a table out of plumbing pipe is a rewarding DIY project that combines functionality with high-end industrial style. By following these steps, you create a durable, custom piece of furniture that fits your space perfectly—something mass-produced furniture rarely achieves. Not only do you save money, but you also gain the satisfaction of building something with your own hands.
