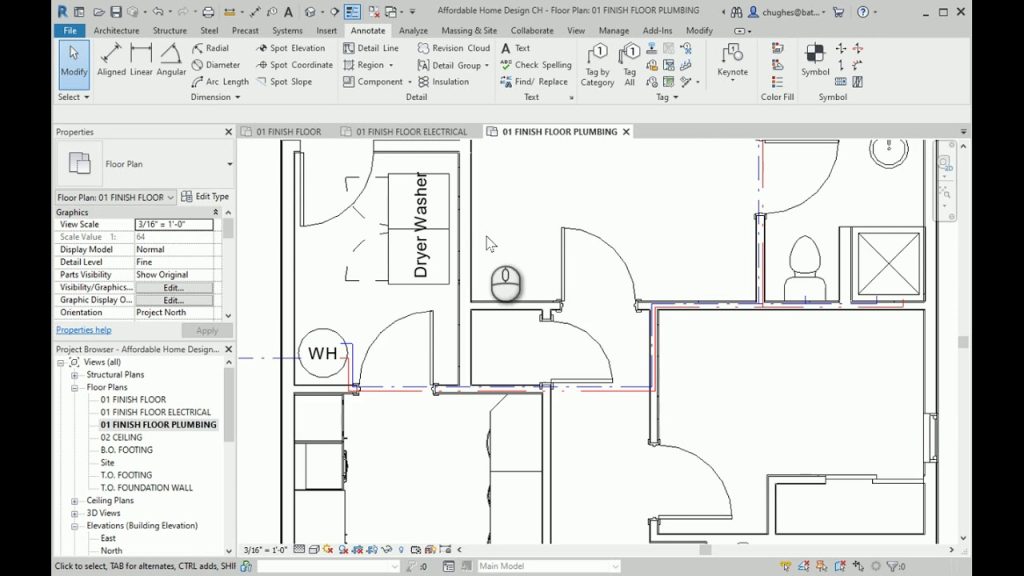

Make Footings Visible in Plumbing Plans: Easy Guide

Have you ever stared at your computer screen, frustrated because the structural foundation seems to have vanished from your view? It is a common headache for drafters and engineers who need to ensure their pipes don’t clash with the building’s backbone. If you are wondering how to make footings visible in my plumbing plan, you are not alone. This guide will walk you through simple, professional steps to restore visibility and ensure your designs are accurate and collision-free.

Why Footings Matter in Plumbing Design

Before diving into the technical “how-to,” it is crucial to understand the “why.” In residential and commercial construction, the footing is the base of the foundation that transfers the building’s load to the soil. Plumbing lines, especially main sewer drains and water supply entries, often run near or under these structures.

If you cannot see the footings, you risk designing a pipe route that physically intersects with concrete. This leads to costly change orders, delayed timelines, and structural compromises. According to industry standards, early coordination between structural and mechanical, electrical, and plumbing (MEP) disciplines can reduce rework costs by up to 10%. [^1]

[^1]: Reference: Construction Industry Institute (CII) studies on cross-disciplinary coordination.

Step-by-Step: How to Make Footings Visible in My Plumbing Plan

The method for making footings visible depends largely on the software you are using. However, the principles remain consistent across most Computer-Aided Design (CAD) platforms like AutoCAD, Revit, or Bluebeam. Here is a universal approach.

1. Check Your Layer Settings

The most common reason footings disappear is layer isolation. In CAD software, every element lives on a specific layer.

• Open the Layer Manager: Look for the “Layer Properties” manager in your toolbar.
• Search for Structural Layers: Look for names like A-STRC-FOOT, S-FOOTING, or Foundation.
• Toggle Visibility: Ensure the lightbulb icon is turned on (yellow/white) rather than off (gray).
• Check Freeze/Thaw: Sometimes layers are not just turned off but “frozen.” Unfreeze them to regenerate the view.

Pro Tip: If you are working in a complex file, use the “Layer Isolate” command cautiously. It hides everything except the selected layer. To reverse this, use “Layer Previous” or “Unisolate.”

2. Verify External References (Xrefs)

In professional workflows, plumbing plans are rarely drawn in the same file as the structural foundation. Instead, the structural drawing is attached as an External Reference (Xref).

• Open the Xref Manager: Type XREF in the command line (for AutoCAD users).
• Check Status: Look at the status column. If it says “Unloaded,” “Not Found,” or “Unresolved,” the footings will not appear.
• Reload the Xref: Right-click the structural file name and select “Reload.”
• Check Pathing: If the file path is broken, you may need to re-path the reference to the correct location on your server or local drive.

3. Adjust Viewports and Scale

Sometimes the footings are there, but they are outside your current view or scaled incorrectly.

• Zoom Extents: Type ZOOM > E to see all elements in the drawing.
• Check Viewport Locks: If you are using paper space, ensure the viewport is not clipped. A clipped viewport might cut off the edges where footings are located.
• Scale Consistency: Ensure the structural Xref is inserted at the correct scale (usually 1:1 or 1:100 depending on your template). Mismatched scales can make footings appear microscopic or invisible.

4. Use Color and Lineweight for Clarity

Once visible, footings might blend in with plumbing lines. Differentiate them for better readability.

By assigning footings a distinct color (like gray) and a heavier lineweight, you create visual hierarchy. This helps plumbers quickly identify structural boundaries without confusing them with pipe routes.

Common Challenges and Solutions

Even after following the steps above, you might encounter specific issues. Here is how to troubleshoot them.

Issue: The Footings Appear but Are Faded

Cause: This is often due to “Xref Fade Control” settings intended to make referenced files less distracting. Solution: Go to your options menu (OP command), find the “Display” tab, and adjust the “Xref Display” fade percentage. Lowering it from 50% to 20% makes the footings clearer while still distinguishing them from your active plumbing work.

Issue: Footings Are Visible but Cannot Be Snapped To

Cause: Object Snap (OSNAP) might be disabled for Xref entities. Solution: Ensure that “Node,” “Endpoint,” and “Intersection” snaps are enabled. In some software, you must explicitly allow snapping to Xref objects in the settings. This is crucial for ensuring your pipes start and end at precise distances from the footing edges.

Issue: Too Much Clutter

Cause: Showing the entire structural plan can overwhelm the plumbing layout. Solution: Use Layer States. Create a custom layer state called “Plumbing Coordination” that only turns on footing layers and wall layers, while turning off beams, columns, and rebar details. This keeps the view clean and focused.

Best Practices for Plumbing and Structural Coordination

Making footings visible is just the first step. To truly excel in your design process, consider these best practices:

1. Maintain Clearances: Always maintain a minimum clearance of 6 inches between plumbing pipes and concrete footings unless specified otherwise by the structural engineer. This allows for proper insulation and prevents stress on the pipes from settling concrete.
2. Coordinate Elevations: Footings have depth. Ensure your plumbing plan includes section views that show the vertical relationship between the bottom of the footing and the top of the pipe.
3. Communicate with Engineers: If a pipe must pass through a footing, do not just draw it. Flag it for the structural engineer. They may need to add a sleeve or reinforce the concrete around the penetration.

FAQ Section

Q1: Why can’t I see the footings in my PDF export?

A: This usually happens if the layer containing the footings is set to “No Plot” in the layer properties. Check the printer icon in the Layer Manager. If it has a red slash through it, the layer will not appear in printed or PDF outputs. Enable plotting for that layer.

Q2: Can I edit the footings directly in my plumbing file?

A: Generally, no. Footings are part of the structural discipline. Editing them in your plumbing file can cause synchronization errors. Always request changes to the structural team so they can update the master structural model.

Q3: What if the structural file is in a different format, like Revit, and I use AutoCAD?

A: You can export the Revit model to DWG format. Ensure the export settings include the “Structural Foundations” category. Then, link this DWG into your AutoCAD plumbing plan as an Xref.

Q4: How do I know if my plumbing pipe is too close to a footing?

A: Use the “Measure” tool in your CAD software. Check the distance from the outer edge of the pipe to the nearest edge of the footing. Compare this against local building codes, which typically require specific setbacks to prevent structural interference.

Q5: Should footings be on the same layer as walls?

A: No. Keep footings on a separate layer (e.g., A-STRC-FOOT) and walls on another (e.g., A-WALL). This allows you to toggle them independently. For example, you might want to see walls but hide footings for a ceiling plan, or vice versa.

Q6: Does making footings visible slow down my computer?

A: It can, if the structural file is extremely detailed with heavy 3D geometry. To improve performance, ask the structural team for a “lightweight” 2D version of the foundation plan specifically for MEP coordination. This reduces file size and improves zoom/pan speed.

Conclusion

Learning how to make footings visible in my plumbing plan is a critical skill for any professional drafter or engineer. It bridges the gap between structural integrity and functional plumbing design. By mastering layer management, Xref handling, and visual hierarchy, you ensure that your plans are not only compliant but also practical for construction teams.

Remember, clear communication and organized digital files save time and money. Don’t let hidden footings lead to visible problems on the job site.
