How to Plumb a Bathroom in a Metal Building: The Ultimate Guide

Are you dreaming of adding convenience to your workshop, garage, or barndominium but feel intimidated by the idea of running water through steel walls? You are not alone. Many property owners struggle with the unique challenges of how to plumb a bathroom in a metal building, fearing leaks, freezing pipes, or complex structural modifications.

The good news is that with the right planning and materials, installing a functional bathroom in a metal structure is entirely achievable. This guide will walk you through the essential steps, from navigating local codes to protecting your pipes against temperature fluctuations, ensuring your project is safe, durable, and up to standard.

Why Is Plumbing in Metal Buildings Different?

Before picking up a wrench, it is crucial to understand why metal buildings require a different approach than traditional wood-frame structures. Metal conducts heat and cold much faster than wood, which poses significant risks to your plumbing system.

The Thermal Challenge

In winter, uninsulated metal walls can cause water pipes to freeze rapidly. In summer, condensation can form on cold water lines, leading to moisture damage inside your walls. According to the U.S. Department of Energy, proper insulation is critical in metal buildings to maintain energy efficiency and protect infrastructure.

Structural Considerations

Unlike wood studs, where you can easily nail pipes or drill holes, metal framing requires specific fasteners and techniques to avoid compromising the building’s integrity. You cannot simply screw into thin-gauge steel without risking deformation or sharp edges that could damage piping.

Step 1: Planning and Permits

Check Local Building Codes

Every municipality in the US has specific plumbing codes. Ignoring these can lead to fines or failed inspections. Most areas follow the International Plumbing Code (IPC) or Uniform Plumbing Code (UPC).

• Permit Requirements: Most jurisdictions require a permit for new bathroom installations.
• Venting Rules: Proper venting is non-negotiable to prevent sewer gases from entering your space.
• Slope Specifications: Drain lines must have a specific slope (usually 1/4 inch per foot) to ensure waste flows correctly.

Create a Detailed Layout

Map out exactly where your toilet, sink, and shower will go. Keep the bathroom close to your main water source if possible to reduce material costs and heat loss.

Step 2: Choosing the Right Materials

PEX vs. Copper vs. PVC

For metal buildings, PEX (Cross-linked Polyethylene) is often the best choice for supply lines.

• Flexibility: PEX can bend around corners, reducing the need for fittings.
• Freeze Resistance: PEX expands slightly if water freezes, making it less likely to burst compared to copper.
• Corrosion Resistance: Unlike copper, PEX does not corrode, which is vital in humid environments.

For drain lines, PVC remains the standard due to its durability and ease of installation. Ensure you use Schedule 40 PVC for pressure resistance and longevity.

Step 3: Framing and Insulation

Building Interior Walls

You will likely need to build interior wood-framed walls within the metal shell to house your plumbing. This creates a “chase” for your pipes.

1. Frame the Wall: Use 2×4 or 2×6 lumber. A 2×6 wall provides more room for insulation and larger pipes.
2. Secure to Metal: Use self-tapping screws designed for metal-to-wood connections. Do not weld framing to the building.

Insulating for Protection

This is the most critical step for how to plumb a bathroom in a metal building.

• Wall Insulation: Use spray foam or rigid foam board between the metal exterior and your interior wood frame. This creates a thermal break.
• Pipe Insulation: Wrap all water supply lines in closed-cell foam insulation. For extra protection in unheated spaces, consider using heat tape on vulnerable sections.

Pro Tip: If your metal building is used seasonally, install a shut-off valve and drain system so you can winterize the bathroom easily.

Step 4: Installing the Supply Lines

Running the Water Lines

1. Turn Off Main Water: Always shut off the main water supply before starting.
2. Drill Holes Carefully: When running pipes through wood framing, drill holes in the center of the studs. Avoid drilling through metal girts unless necessary, and use rubber grommets to protect PEX from sharp metal edges.
3. Connect Fixtures: Run hot and cold lines to your sink, shower, and toilet. Leave enough slack for final connections.

Pressure Testing

Before closing up walls, turn the water back on and check for leaks. Let the system sit under pressure for at least 30 minutes. Look for any drips at fittings or connections.

Step 5: Installing the Drain and Vent System

The Importance of Venting

Without proper venting, your drains will gurgle, smell, and drain slowly. Vents allow air to enter the plumbing system, maintaining balanced pressure.

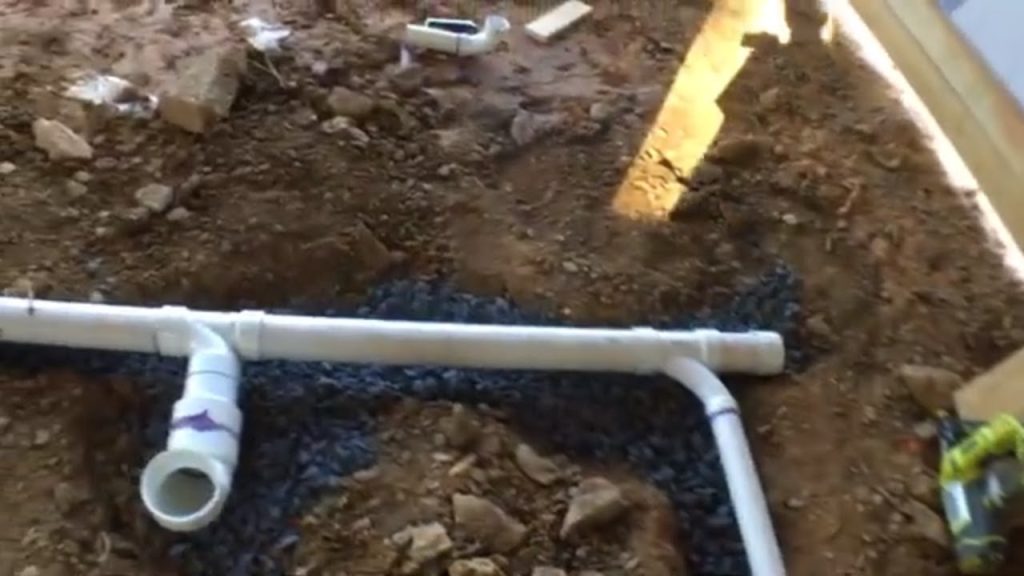

1. Install Drain Pipes: Connect your fixtures to the main drain line using PVC. Ensure every horizontal pipe slopes downward toward the main sewer or septic tank.
2. Add Vent Pipes: Run vent pipes up through the roof or connect them to an existing vent stack. If going through the metal roof, use a specialized flashing kit designed for metal roofs to prevent leaks.

Connecting to Sewer or Septic

If you are connecting to a municipal sewer, you may need a professional plumber to make the final tap. For septic systems, ensure your tank is sized appropriately for the added load of a bathroom.

Step 6: Final Fixes and Inspection

Closing the Walls

Once all tests pass:

1. Install vapor barriers if required by local code.
2. Hang drywall or your preferred wall covering.
3. Seal all gaps around pipes with expanding foam to prevent pests and drafts.

Schedule an Inspection

Most areas require a rough-in inspection (before walls are closed) and a final inspection. Having a professional verify your work ensures safety and compliance.

Common Mistakes to Avoid

• Ignoring Condensation: Failing to insulate cold water lines can lead to dripping inside walls, causing mold.
• Using Wrong Fasteners: Standard wood screws will not hold in metal framing. Use self-drilling metal screws.
• Poor Slope: A drain line that is too flat will clog frequently. Use a level to ensure a consistent 1/4 inch per foot slope.

FAQ Section

Q1: Can I plumb a bathroom in a metal building without a foundation?

A: It depends on your local codes. Some areas allow slab-on-grade foundations for metal buildings, which can accommodate plumbing. However, you must ensure the slab is thick enough and properly reinforced to support plumbing trenches. Always check with your local building department.

Q2: How do I prevent pipes from freezing in a metal building?

A: Insulation is key. Use high-R-value insulation in walls and wrap all pipes in foam. In extremely cold climates, consider installing heat trace cables on supply lines and keeping the interior heated above 55°F (13°C) during winter.

Q3: Do I need a professional plumber for this project?

A: While DIY is possible for supply lines and basic drainage, many jurisdictions require licensed professionals for gas lines, final sewer connections, or complex venting systems. Even if you do the work yourself, having a pro review your plan can save costly mistakes.

Q4: What is the best way to vent a bathroom in a metal building?

A: The most efficient method is to run a vent pipe straight up through the roof using a metal-roof-specific flashing kit. Alternatively, you can use an Air Admittance Valve (AAV) under the sink if local codes permit, which eliminates the need for roof penetration.

Q5: How much does it cost to plumb a bathroom in a metal building?

A: Costs vary widely based on size and complexity. A basic half-bath might cost $1,500–$3,000 in materials, while a full bath with a shower could range from $3,000–$7,000. Labor costs will add significantly if you hire professionals.

Q6: Can I use a composting toilet to avoid complex plumbing?

A: Yes! Composting toilets are an excellent alternative for metal buildings where running sewer lines is difficult. They require no water connection and minimal ventilation, making them a popular choice for remote workshops or cabins.

Conclusion

Learning how to plumb a bathroom in a metal building is a rewarding project that adds significant value and convenience to your property. By focusing on proper insulation, choosing flexible materials like PEX, and adhering to local codes, you can create a durable and efficient bathroom system.

Remember, patience and planning are your best tools. Take the time to inspect your work, insulate thoroughly, and don’t hesitate to consult a professional for complex connections.
