Adding nitrous oxide to your engine is one of the most cost-effective ways to gain massive horsepower, but it comes with a critical caveat: fuel delivery must keep up. If your fuel system cannot supply enough gasoline to match the extra oxygen provided by the nitrous, you risk a catastrophic lean condition that can melt pistons in seconds. Many enthusiasts make the mistake of relying on their stock fuel setup, only to face disaster on the track. In this guide, we will walk you through exactly how to plumb a fuel system for nitrous motors to ensure safety, reliability, and maximum performance.
Why Stock Fuel Systems Fail Under Nitrous Load
Before diving into the plumbing, it is essential to understand why your current setup is likely insufficient. When you inject nitrous oxide (N2O) into the intake manifold, it decomposes at high temperatures, releasing additional oxygen. This allows the engine to burn significantly more fuel.
For every pound of nitrous used, you generally need to add approximately 0.5 to 0.7 pounds of additional fuel, depending on your tune. A stock fuel pump and injectors are calibrated for naturally aspirated or mild forced-induction loads, not the sudden spike in demand caused by a nitrous hit.
The Risk of Lean Conditions
A “lean” condition occurs when there is too much air (or oxygen from nitrous) and not enough fuel. This causes combustion temperatures to skyrocket. According to automotive engineering principles, excessive heat can lead to:
- Detonation (engine knocking)
- Melted piston crowns
- Blown head gaskets
- Cracked cylinder heads
To avoid these issues, your fuel system must be overbuilt, not just “adequate.”
Essential Components for Nitrous Fuel Plumbing
To properly support a nitrous setup, you need to upgrade specific components. Here is what you need before you start cutting lines.
| Component | Recommendation | Why It Matters |
|---|---|---|
| Fuel Pump | High-flow electric (in-tank or external) | Must maintain pressure under high demand. |
| Fuel Lines | AN-6 or AN-8 Braided Stainless | Prevents expansion and ensures consistent flow. |
| Fuel Regulator | Adjustable bypass regulator | Maintains steady pressure regardless of RPM. |
| Injectors | High-impedance, high-flow | Must handle the base load + nitrous enrichment. |
| Fuel Filter | High-micron rating post-pump | Protects expensive injectors from debris. |
Pro Tip: Always use braided stainless steel lines with proper AN fittings. Rubber hoses can expand under high pressure, causing a drop in fuel pressure precisely when you need it most—during the nitrous activation.
Step-by-Step: How To Plumb A Fuel System For Nitrous Motors
Follow these steps carefully. Safety is paramount; work in a well-ventilated area away from open flames or sparks.
Step 1: Calculate Your Fuel Requirements
Before buying parts, determine your total fuel needs. Use this basic formula:
- Base Engine HP: Determine your naturally aspirated horsepower.
- Nitrous Shot Size: e.g., 150hp shot.
- Total HP: Base + Nitrous.
If your engine makes 400hp NA and you add a 150hp shot, your fuel system must support 550hp. Ensure your injectors and pump are rated for at least 10–15% more than this total to provide a safety margin.
Step 2: Install the High-Flow Fuel Pump
If you are using an in-tank pump, ensure it is a high-performance unit capable of sustaining 40–60 PSI consistently. For external pumps, mount them as close to the fuel tank as possible to help with priming.
- Use a relay kit to power the pump directly from the battery, rather than through the factory wiring harness, which may not handle the amperage.
- Install a fuel pressure gauge immediately after the pump to monitor baseline pressure.
Step 3: Upgrade Fuel Lines and Fittings
Replace any restrictive rubber sections with AN-6 (3/8″) or AN-8 (1/2″) braided lines.
- Disconnect the battery negative terminal.
- Relieve fuel pressure from the rail.
- Remove old lines.
- Install new braided lines using proper AN fittings. Do not use Teflon tape on AN fittings; they seal via metal-to-metal contact. Over-tightening can crack the fittings.
Step 4: Install an Adjustable Fuel Pressure Regulator (FPR)
Stock regulators are often non-adjustable or have limited range. An aftermarket adjustable FPR allows you to dial in the exact pressure needed for your nitrous tune.
- Mount the regulator near the fuel rail.
- Connect the return line to the tank if using a return-style system.
- Note: If your car is returnless, you may need a specialized booster pump or a return-style conversion kit for serious nitrous applications.

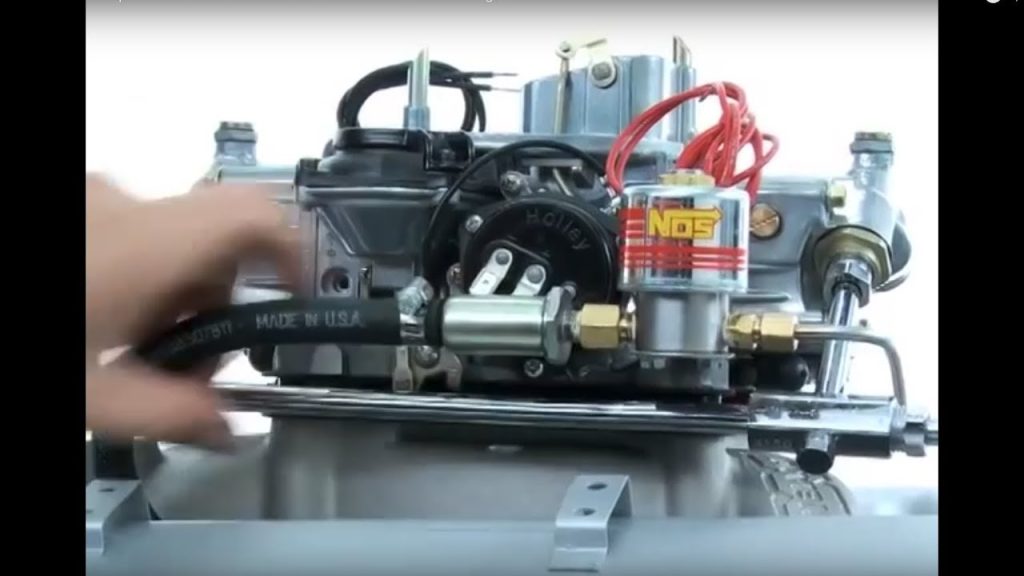

Step 5: Connect the Nitrous Fuel Solenoid
This is the critical junction where the nitrous system taps into your fuel supply.
- Locate a high-pressure source after the fuel filter but before the fuel rail.
- Install a Y-block or dedicated tap for the nitrous fuel solenoid.
- Run a separate AN line from this tap to the nitrous bottle’s fuel solenoid.
- Ensure the fuel solenoid is mounted securely and protected from heat sources like exhaust manifolds.
For more detailed chemical properties and safety data on nitrous oxide, you can refer to the Nitrous Oxide entry on Wikipedia, which provides excellent background on its industrial and automotive applications.
Step 6: Tune and Test
Never activate nitrous without a proper tune.
- Start with a conservative jetting combination.
- Monitor air/fuel ratios (AFR) using a wideband O2 sensor.
- Target an AFR of roughly 11.5:1 to 12.0:1 under nitrous engagement for gasoline engines.
- Check for fuel pressure drop when the nitrous activates. If pressure drops more than 5–10 PSI, your pump or lines are insufficient.
Common Mistakes to Avoid
Even experienced mechanics can overlook details when plumbing for nitrous. Here are the most frequent errors:
- Using Stock Fuel Lines: Rubber lines swell under pressure, causing lag and pressure loss.
- Ignoring Fuel Temperature: Hot fuel is less dense and can cause vapor lock. Consider a fuel cooler if you live in a hot climate or race frequently.
- Undersized Injectors: If your base injectors are already at 90% duty cycle without nitrous, adding nitrous will instantly max them out, causing a lean condition.
- Poor Grounding: Electric fuel pumps require excellent grounding. A bad ground can cause intermittent pump failure, leading to engine damage.
FAQ Section
1. Can I use my stock fuel pump for a small nitrous shot?
It is risky. Even a small 50hp shot increases fuel demand significantly. While some stock pumps might handle it briefly, they are not designed for sustained high-flow output. It is always safer to upgrade to a high-flow pump to ensure consistency and longevity.
2. What size fuel lines should I use for nitrous?
For most street and strip applications up to 500hp of nitrous, AN-6 (3/8 inch) lines are sufficient. For larger shots or high-horsepower builds, step up to AN-8 (1/2 inch) to minimize flow restriction and pressure drop.
3. Do I need a return-style fuel system for nitrous?
While not strictly mandatory, a return-style system is highly recommended. It allows for better fuel pressure regulation and helps keep fuel temperatures lower by circulating fuel back to the tank. Returnless systems can struggle with pressure stability during sudden demand spikes.
4. How do I know if my fuel system is leaning out under nitrous?
The best way is to use a wideband O2 sensor logged with your ECU or a standalone logger. If you see the AFR spike higher (leaner) than your target when the nitrous button is pressed, your system is insufficient. Physical signs include pinging sounds or excessive exhaust gas temperatures (EGT).
5. Should I install a fuel pressure gauge?
Absolutely. A mechanical or electronic fuel pressure gauge is one of the cheapest insurance policies you can buy. It allows you to verify that your pressure remains stable during idle, acceleration, and nitrous activation.
Conclusion
Learning how to plumb a fuel system for nitrous motors is about more than just connecting hoses; it is about engineering a safety net for your engine. By upgrading to high-flow pumps, using braided AN lines, and installing an adjustable regulator, you ensure that every ounce of nitrous is matched with the precise amount of fuel needed.
Remember, nitrous oxide is unforgiving of mistakes. A well-plumbed fuel system is the difference between a record-breaking pass and a towed home. Take your time, double-check your fittings, and always tune conservatively at first.
