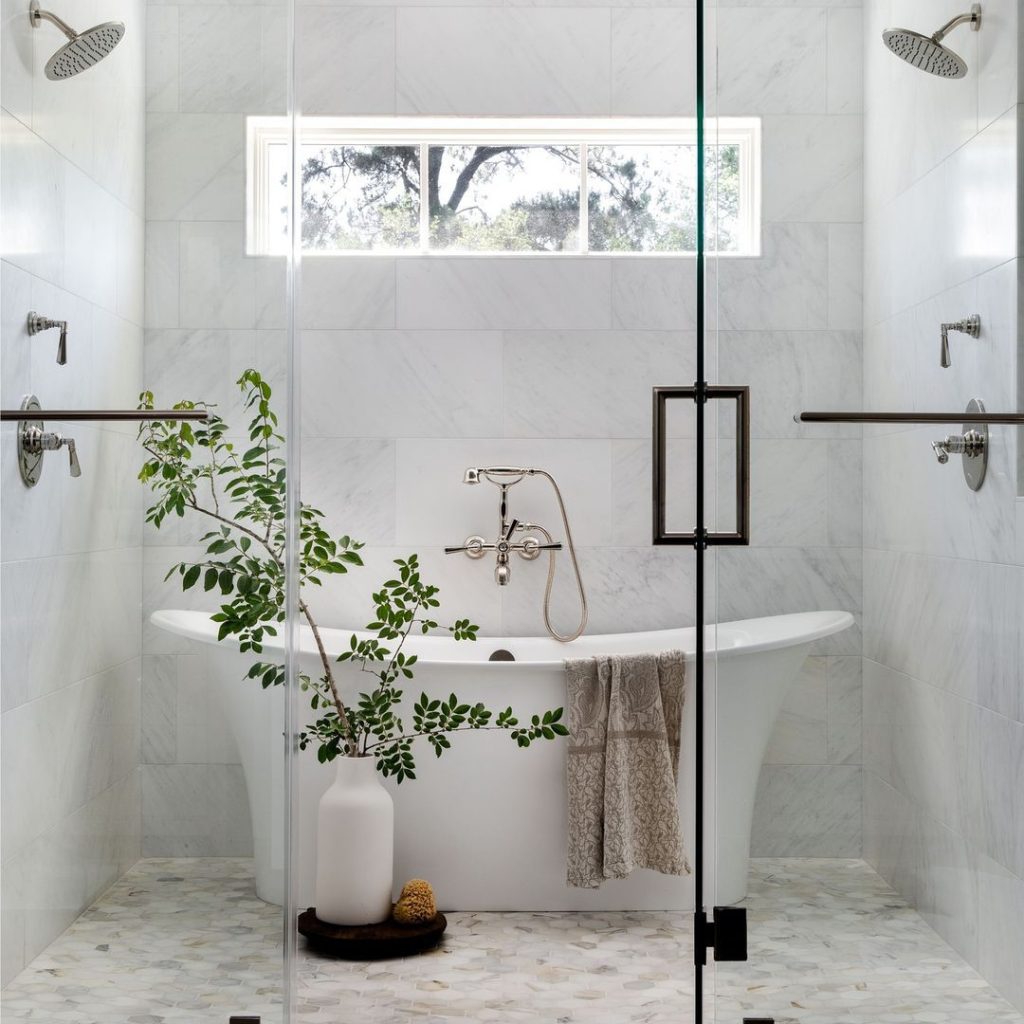

Dreaming of a spa-like retreat but limited by square footage? You are not alone. Many homeowners in the US are looking for ways to combine luxury with functionality, leading to the rising trend of integrating standalone soaking vessels into wet areas. However, figuring out how to plumb a freestanding tub inside of shower spaces can feel daunting due to complex drainage and waterproofing requirements. This guide will walk you through the essential steps, ensuring your project is both beautiful and code-compliant.
Why Combine a Freestanding Tub with a Shower?
Before diving into the pipes and fittings, it is crucial to understand why this design choice is gaining popularity. Traditionally, freestanding tubs were placed in the center of a dry bathroom floor. Moving them into a shower area (often called a “wet room” concept) offers distinct advantages:
- Space Efficiency: It eliminates the need for separate dry zones, maximizing small bathrooms.
- Aesthetic Appeal: It creates a high-end, European-style minimalist look.
- Ease of Cleaning: With proper sloping, water drains away from the tub exterior, reducing mold risk.
However, this design requires precise engineering. Unlike alcove tubs, freestanding models do not have built-in overflow drains connected to the wall, and their placement affects how water moves across the floor.
Critical Pre-Installation Checks
You cannot simply drop a heavy cast iron or acrylic tub onto a standard shower pan. Several structural and logistical factors must be addressed first.
1. Floor Load Capacity
Freestanding tubs are heavy. When filled with water and a person, they can weigh over 1,000 pounds.
- Action: Consult a structural engineer if your bathroom is on an upper floor. Standard residential flooring is typically designed for 40 psf (pounds per square foot), but concentrated loads from tubs require verification.
2. Drain Location Alignment
This is the most common hurdle. The drain hole on the bottom of a freestanding tub is fixed.
- Requirement: Your floor drain must align perfectly with the tub’s waste outlet. If it does not, you will need to break up the concrete slab or reframe the subfloor to move the drain pipe. Note: Moving a main stack drain is expensive and complex; always check existing blueprints first.
3. Waterproofing Integrity
In a standard shower, the walls keep water in. In a tub-inside-shower setup, water splashes everywhere.
- Standard: You need a full-bathroom waterproofing system, not just a shower pan liner. This involves applying liquid membrane or sheet membranes to the entire floor and up the walls at least 6 inches.
Step-by-Step Guide: How To Plumb A Freestanding Tub Inside Of Shower
Follow these steps to ensure a leak-free and functional installation. Always adhere to local building codes, which may vary by state or municipality.
Step 1: Prepare the Subfloor and Drain
The foundation of your project is the drain assembly. For a freestanding tub inside a shower, a centered floor drain is ideal.
- Remove Existing Flooring: Strip the area down to the subfloor or concrete slab.
- Install the Drain Body: Use a clamping ring drain compatible with your waterproofing method. Ensure the drain pipe is securely glued to the main waste line.
- Check Slope: The subfloor must slope toward the drain at a rate of 1/4 inch per foot. This ensures that any water missing the tub still flows away efficiently.
Step 2: Apply Waterproofing Membrane
This step is non-negotiable. Failure here leads to rot and mold behind your walls.
- Material Choice: Use a liquid-applied rubberized asphalt membrane or a fabric-reinforced sheet membrane.
- Application:
- Apply the membrane to the entire floor area.
- Extend it up the walls at least 6–12 inches.
- Pay special attention to the drain flange. Use manufacturer-approved sealant to bond the membrane to the drain clamp.
- Testing: Perform a flood test. Plug the drain and fill the floor with 2 inches of water. Let it sit for 24 hours. Check the ceiling below for leaks. If dry, proceed.
Step 3: Install the Tub Waste and Overflow
Freestanding tubs typically use a “toe-touch” or “push-pull” drain mechanism.
- Connect the Waste Pipe: Attach the P-trap to the floor drain. The P-trap must be within 6–18 inches of the tub’s drain outlet to prevent siphoning.
- Seal the Connection: Use a flexible rubber coupling (Fernco coupling) if there is any slight misalignment between the tub waste and the floor pipe. Tighten the stainless steel clamps securely.
- Test for Leaks: Run water through the tub drain before setting the tub in place. Ensure no water escapes at the joint.
Step 4: Position the Freestanding Tub
Now that the plumbing is roughed in and tested, it is time to place the vessel.
- Weight Distribution: If the tub has adjustable feet, ensure they are level. Use shims if necessary, but avoid putting pressure on the drain pipe.
- Clearance: Leave at least 3–4 inches of space between the tub edge and the shower walls. This allows for cleaning and prevents water from getting trapped in tight corners.
- Securing the Tub: Some manufacturers recommend silicone-adhering the base of the tub to the floor to prevent shifting. Check your warranty guidelines.
Step 5: Install the Faucet and Supply Lines
Since the tub is freestanding, you likely have a floor-mounted or wall-mounted faucet.
- Floor-Mounted Faucet: These require rough-in valves installed in the floor before tiling. Ensure the hot and cold lines are insulated to prevent heat loss.
- Wall-Mounted Faucet: If using a wall fixture, ensure the spout reaches the center of the tub. The standard height for a tub filler is 6–10 inches above the rim of the tub.
For more detailed technical standards on plumbing fixtures, you can refer to general guidelines provided by Wikipedia’s entry on Plumbing.
Common Challenges and Solutions
| Challenge | Solution |
|---|---|
| Drain Misalignment | Use a flexible offset drain kit or reposition the floor drain during rough-in. |
| Water Splashing Outside | Install a glass partition or half-wall to contain spray. Use a high-quality squeegee after use. |
| Slippery Floor | Use textured tile or mosaic sheets with high grout lines for traction. Avoid polished marble. |
| Cold Feet | Install radiant floor heating beneath the tile. It dries the floor faster and adds comfort. |
FAQ Section
Q1: Can I put a freestanding tub in an existing shower stall?
A: It is difficult but possible. Most standard shower stalls are 36×36 or 48×48 inches, which is too small for most freestanding tubs. You would likely need to demolish the existing stall and expand the footprint to at least 60×30 inches. Additionally, you must verify that the existing drain location aligns with the new tub.
Q2: Do I need a special drain for a freestanding tub in a shower?
A: Yes. While the pipe size (usually 1.5 or 2 inches) remains standard, you need a drain assembly that integrates with your waterproofing membrane. A “clamping ring” drain is essential for tying in the liquid or sheet membrane to prevent leaks at the floor level.
Q3: How do I keep the bathroom floor from getting wet?
A: You cannot completely keep it dry in a wet room design. However, you can manage it by:
- Ensuring proper floor slope (1/4 inch per foot).
- Using a handheld showerhead instead of a fixed overhead rain shower to control direction.
- Installing a linear drain near the entrance to catch runoff.
Q4: Is it expensive to plumb a freestanding tub inside a shower?
A: It is generally more expensive than a standard alcove tub installation. Costs increase due to the need for extensive waterproofing, potential floor reinforcement, and precise drain relocation. Expect to pay 20–30% more in labor and materials compared to a traditional setup.
Q5: What type of tile is best for this setup?
A: Porcelain or ceramic tiles with a matte finish are ideal. They are water-resistant, durable, and provide better slip resistance than glossy tiles. Natural stone like slate is also excellent but requires regular sealing.
Q6: Do I need a permit for this renovation?
A: In most US jurisdictions, yes. Any work involving moving drain lines, water supply pipes, or structural modifications requires a building permit. Always check with your local building department before starting.
Conclusion
Learning how to plumb a freestanding tub inside of shower is a rewarding challenge that transforms your bathroom into a luxurious sanctuary. By focusing on proper drainage alignment, rigorous waterproofing, and structural support, you can enjoy the elegance of a standalone tub without sacrificing the practicality of a shower.
Remember, precision is key. A small error in slope or sealing can lead to significant damage over time. If you are unsure about moving drain lines or assessing floor load, consult a licensed plumber or contractor.
