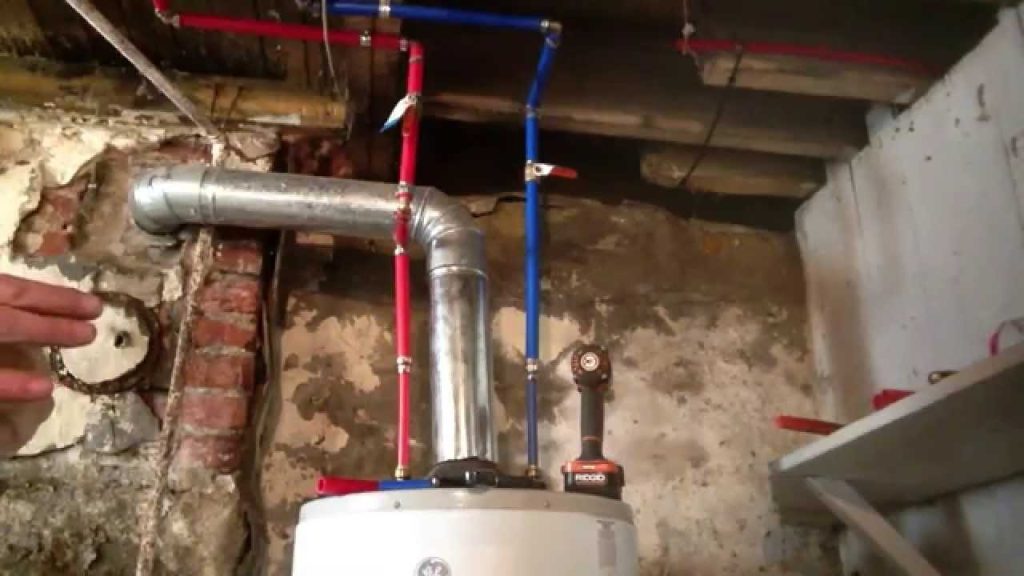

How to Plumb a Hot Water Boiler with PEX

Are you looking to upgrade your home’s heating system or tackle a renovation project? Many homeowners find themselves overwhelmed by the complexity of connecting modern piping to traditional heating units. If you are wondering how to plumb a hot water boiler with PEX, you are not alone. This guide breaks down the process into manageable steps, ensuring you achieve a safe, efficient, and code-compliant installation without the stress.

While copper has been the standard for decades, Cross-linked Polyethylene (PEX) has revolutionized hydronic heating. It is flexible, resistant to scale and chlorine, and significantly easier to install. However, boilers operate at high temperatures and pressures, requiring specific techniques to ensure longevity and safety. Let’s dive into exactly what you need to know to get the job done right.

Why Choose PEX for Boiler Systems?

Before picking up a tool, it is crucial to understand why PEX is a viable choice for your boiler. Unlike domestic cold water lines, boiler loops involve continuous heat cycles. PEX tubing handles these thermal expansions better than rigid metals, reducing the risk of joint failure due to stress.

Key Advantages

• Flexibility: PEX can bend around corners, reducing the need for elbow fittings and potential leak points.
• Corrosion Resistance: Unlike steel or copper, PEX does not corrode from the inside out, extending the life of your system.
• Cost-Effective: Material costs are generally lower, and labor time is reduced due to ease of handling.

However, not all PEX is created equal. For boiler applications, you must use oxygen-barrier PEX. Standard PEX allows oxygen to permeate through the tube walls, which can cause rapid corrosion of cast iron boilers and steel components. Always look for PEX labeled specifically for “hydronic” or “radiant heating” use.

Essential Tools and Materials

Preparation is half the battle. Having the right tools ensures clean cuts and secure connections, which are vital for high-pressure systems.

Step-by-Step: How to Plumb a Hot Water Boiler with PEX

Follow these steps carefully. Remember, local building codes vary, so always check with your municipal authority before starting.

1. Plan Your Layout and Calculate Load

Start by mapping out your heating zones. Determine the BTU load required for each room to size your tubing correctly. Typically, 1/2-inch PEX is used for residential radiant floors, while 3/4-inch or 1-inch may be needed for baseboard radiators or main supply lines.

• Tip: Keep runs as short as possible to maintain water pressure and heat efficiency.

2. Install the Manifold System

The manifold is the heart of your PEX boiler system. It distributes hot water from the boiler to individual zones and returns cooled water back.

• Mount the manifold securely on a wall near the boiler.
• Connect the main supply and return lines from the boiler to the manifold using brass adapters.
• Ensure you install isolation valves on both supply and return sides. This allows you to shut off water flow for maintenance without draining the entire boiler.

3. Connect PEX to the Boiler

This is the most critical step. You cannot connect PEX directly to the boiler’s metal ports.

• Use Transition Fittings: Install brass male or female adapters onto the boiler’s supply and return ports. Use high-temperature pipe dope or Teflon tape rated for heating systems.
• Maintain Distance: Keep the first few feet of PEX away from the immediate high-heat zone of the boiler exhaust or flue. Some codes require a minimum of 18 inches of copper or CPVC between the boiler and the PEX to protect the plastic from excessive radiant heat. Check your local code for specific requirements.

4. Run the Tubing

Unroll the PEX tubing and run it from the manifold to your heating emitters (radiators or floor loops).

• Avoid Kinks: PEX can kink if bent too sharply. Use a bending spring if necessary for tight turns.
• Secure Every 32 Inches: Use PEX hangers or clips to secure the tubing to joists or studs. This prevents sagging and noise from water hammer.
• Protect Through Studs: When passing through wooden studs, use nail plates to prevent accidental puncture from drywall screws later.

5. Make Connections

Cut the PEX to length using a sharp pipe cutter. A jagged cut can compromise the seal.

• Slide the crimp ring over the tube.
• Insert the fitting fully into the tube.
• Position the crimp tool over the ring and compress until it clicks.
• Verify: Use your Go/No-Go gauge. The “Go” side should fit over the crimp, and the “No-Go” side should not.

6. Pressure Test the System

Never skip this step. Before adding water to the boiler, test for leaks.

• Close all zone valves except one.
• Connect a hand pump to the system.
• Pressurize the system to 1.5 times the operating pressure (usually around 30–40 PSI for residential systems, but check your boiler manual).
• Inspect every connection for drips. If a leak is found, cut out the section and redo the connection.

Critical Safety and Code Considerations

Understanding the technical constraints is vital for a safe installation. According to Wikipedia’s entry on Cross-linked polyethylene, PEX is highly durable but has temperature limits. Most PEX is rated for 200°F (93°C) at 80 PSI. However, boilers can exceed these temperatures if controls fail.

Temperature Management

• Mixing Valves: Install a thermostatic mixing valve if your boiler runs hotter than 140°F. This protects the PEX and prevents scalding in radiant floor systems.
• Expansion Tanks: Ensure your system has a properly sized expansion tank. Water expands when heated, and without a place to go, pressure can burst pipes or damage the boiler.

Oxygen Barrier Importance

As mentioned earlier, non-barrier PEX allows oxygen diffusion. This leads to “magnetite” sludge formation in cast iron boilers, which reduces efficiency and can cause premature failure. Always verify your tubing has an EVOH (Ethylene Vinyl Alcohol) oxygen barrier layer.

FAQ: Common Questions About PEX Boiler Plumbing

1. Can I use standard PEX for a hot water boiler?

No. You must use oxygen-barrier PEX. Standard PEX allows oxygen to enter the system, causing rust and corrosion in metal boiler components. Look for tubing specifically labeled for hydronic heating.

2. What is the maximum temperature PEX can handle in a boiler system?

Most PEX tubing is rated for continuous operation at 180°F (82°C) and intermittent peaks up to 200°F (93°C). However, it is best practice to keep boiler supply temperatures below 140°F–160°F for radiant floor systems to protect the tubing and improve comfort.

3. Do I need copper transitions near the boiler?

Many local codes require a minimum length of copper or CPVC (usually 18–24 inches) between the boiler’s heat exchanger and the PEX tubing. This protects the PEX from the intense radiant heat of the boiler cabinet. Always check your local plumbing code.

4. Can PEX be used for the main supply lines to radiators?

Yes, PEX is excellent for supplying baseboard radiators. Use 3/4-inch or 1-inch PEX for main trunks to ensure adequate flow volume, and step down to 1/2-inch or 5/8-inch for individual radiator connections if needed.

5. How do I fix a leak in a PEX boiler line?

If a leak occurs at a fitting, you must cut out the damaged section. Install a new coupling using two new crimp rings. Do not attempt to repair a crimped joint by tightening it further; it will not seal properly.

6. Is PEX better than copper for boiler systems?

For DIYers and complex layouts, PEX is often better due to its flexibility and fewer fittings. Copper is more rigid and requires soldering, which introduces fire risk during installation. However, copper is still preferred by some professionals for exposed piping due to its aesthetic and UV resistance.

Conclusion

Learning how to plumb a hot water boiler with PEX empowers you to create an efficient, durable heating system. By choosing the right oxygen-barrier tubing, respecting temperature limits, and following strict pressure-testing protocols, you can enjoy reliable warmth for years to come.

Remember, while DIY is rewarding, boiler work involves high pressure and temperature. If you are unsure about any step, consult a licensed HVAC professional.
