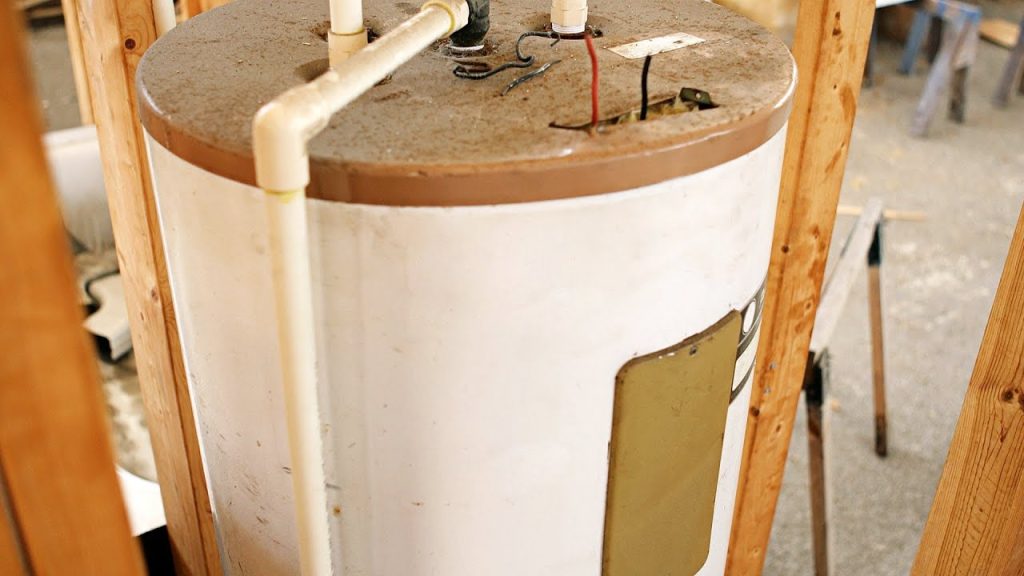

Replacing or installing a water heater can feel daunting, especially when navigating the complex world of piping materials. Many homeowners in the United States are turning to Chlorinated Polyvinyl Chloride (CPVC) due to its affordability, ease of installation, and resistance to corrosion. If you are wondering how to plumb a hot water heater with CPVC, you are not alone; this is one of the most common DIY plumbing queries today. This guide will walk you through the process safely, ensuring your system is efficient, code-compliant, and built to last.
Why Choose CPVC for Your Water Heater?
Before diving into the tools and steps, it is crucial to understand why CPVC is a popular choice for residential hot water systems. Unlike standard PVC, which cannot handle high temperatures, CPVC is specifically engineered to withstand hot water up to 200°F (93°C).
Key Advantages of CPVC
- Corrosion Resistance: Unlike copper, CPVC does not corrode from acidic water or electrolysis.
- Cost-Effective: It is significantly cheaper than copper piping and requires fewer fittings.
- Ease of Installation: No soldering or torches are required. The solvent welding process is clean and quick.
- Quiet Operation: CPVC absorbs water hammer noise better than metal pipes.
However, it is essential to note that CPVC has limitations. It becomes brittle in extreme cold and can degrade under direct UV exposure. Always ensure you are using CPVC rated for hot water (usually marked with a distinct color or label) and not standard PVC.
Tools and Materials You Will Need
Preparation is half the battle in any plumbing project. Having the right tools on hand ensures a smooth workflow and reduces the risk of errors.
Essential Tools:
- CPVC Pipe Cutter: For clean, square cuts.
- Deburring Tool: To remove sharp edges inside and outside the pipe.
- Tape Measure & Marker: For precise measurements.
- Adjustable Wrenches (2): For tightening connections at the heater.
- Primer and Cement: Specifically formulated for CPVC (often purple primer and clear or yellow cement).
Materials:
- CPVC Pipes (typically ¾ inch for main lines).
- CPVC Fittings (elbows, couplings, tees).
- Dielectric Unions: Crucial step. If connecting CPVC to a metal water heater nipple, you must use dielectric unions to prevent galvanic corrosion.
- Teflon Tape or Pipe Dope: For threaded connections.
- Pressure Relief Valve (if not pre-installed).
Step-by-Step Guide: How To Plumb A Hot Water Heater With CPVC
Follow these steps carefully. Safety first: always turn off the power (electric) or gas supply and shut off the main water valve before beginning.
Step 1: Plan Your Layout and Measure
Measure the distance from the water heater’s inlet/outlet ports to your existing main water lines. Add an extra inch for each connection to allow for proper insertion into fittings. Sketch a simple diagram if necessary. Remember, CPVC expands and contracts with temperature changes, so avoid rigid, long straight runs without expansion loops if possible.
Step 2: Prepare the Pipes
Cut the CPVC pipes to your measured lengths using the pipe cutter. Ensure the cuts are perfectly square; angled cuts lead to leaks. Use the deburring tool to smooth the inner and outer edges. A rough edge can scrape away cement during assembly, creating a weak joint.
Step 3: Dry Fit the Connections
Assemble the pipes and fittings without glue to ensure everything fits correctly. Check the alignment. Once satisfied, disassemble and mark the alignment line across the pipe and fitting with your marker. This line helps you verify that the pipe is fully seated during gluing.
Step 4: Apply Primer and Cement
This is the most critical step in learning how to plumb a hot water heater with CPVC.
- Apply purple primer to the outside of the pipe end and the inside of the fitting socket. This cleans and softens the plastic.
- Wait a few seconds for it to dry slightly.
- Apply a liberal layer of CPVC cement to both surfaces.
- Immediately insert the pipe into the fitting, twisting it a quarter turn to distribute the cement evenly.
- Hold firmly for 15–30 seconds to prevent push-out.
- Wipe away excess cement with a rag.
Note: Work quickly. CPVC cement sets fast, especially in warm weather.
Step 5: Install Dielectric Unions
Connect the CPVC piping to the water heater using dielectric unions. Since the water heater tank is metal and CPVC is plastic, direct contact isn’t the issue, but if there are any metal nipples involved, the union prevents electrical current from passing between dissimilar metals, which causes corrosion. Wrap the threaded ends with Teflon tape before screwing them into the heater.
Step 6: Connect the Temperature and Pressure (T&P) Relief Valve
Install the T&P valve on the designated port of the water heater. Connect a CPVC discharge pipe to the valve, running it downward to within 6 inches of the floor. This pipe must never be capped or valved. It is a safety feature that releases water if pressure or temperature gets too high.
Step 7: Pressure Test the System
Before turning on the power or gas:
- Open a hot water faucet in the house to release air.
- Slowly turn on the main water supply.
- Check all new joints for leaks. Look for drips or moisture.
- If you find a leak, you must cut out the faulty joint and replace it. You cannot simply add more cement to a leaking joint.
For more detailed technical specifications on plumbing materials, you can refer to Wikipedia’s entry on Chlorinated Polyvinyl Chloride.
Common Mistakes to Avoid
Even experienced DIYers can make errors. Here are the top pitfalls when working with CPVC:
| Mistake | Consequence | Solution |
|---|---|---|
| Using PVC Cement | Joint failure under heat | Always use cement labeled for CPVC. |
| Skipping Primer | Weak bond, eventual leak | Never skip the priming step. |
| Over-tightening Threads | Cracked fittings | Hand-tighten plus 1–2 turns with a wrench. |
| Ignoring Expansion | Buckling pipes | Leave slight slack or use expansion loops. |
FAQ Section
1. Can I use regular PVC for hot water lines?
No. Standard PVC is only rated for cold water (up to 140°F). Using it for hot water will cause the pipes to soften, warp, and eventually fail, leading to significant water damage. Always use CPVC for hot water applications.
2. Do I need a permit to replace my water heater?
In most US jurisdictions, yes. Plumbing and electrical/gas work typically require a permit to ensure it meets local building codes. Check with your local building department before starting. Failure to obtain a permit can void your home insurance in case of a leak.
3. How long does CPVC cement take to cure?
While CPVC cement sets in minutes, it takes time to fully cure. Generally, you should wait at least 2 hours before pressurizing the system for small diameter pipes (under 2 inches). For larger pipes or cooler temperatures, wait 24 hours for full strength. Refer to the manufacturer’s instructions on the cement can.
4. Is CPVC safe for drinking water?
Yes. CPVC used in plumbing is certified by NSF International (NSF-14 and NSF-61) for potable water. It does not leach harmful chemicals into the water when installed correctly. However, always flush the system thoroughly after installation before using the water for consumption.
5. What is the lifespan of CPVC piping?
When installed correctly and protected from UV light and physical damage, CPVC piping can last 50 to 75 years. It is resistant to scale buildup and corrosion, which often prolongs its life compared to copper in areas with aggressive water chemistry.
6. Can I connect CPVC directly to a copper pipe?
You should not glue CPVC directly to copper. Instead, use a transition fitting. The best practice is to use a threaded adapter: screw a male adapter into the copper (soldered) and a female adapter into the CPVC (glued), then join them with a union. This allows for future maintenance and accommodates different expansion rates.
Conclusion
Learning how to plumb a hot water heater with CPVC is a valuable skill that can save you hundreds of dollars in labor costs. By following the steps outlined above—preparing your tools, using the correct primer and cement, and respecting safety codes—you can achieve a professional-quality installation. Remember, patience is key during the curing process, and attention to detail during the dry-fit phase prevents headaches later.
If you found this guide helpful, please share it with your friends on social media who might be tackling their own home improvement projects. Safe plumbing!
