How To Plumb A Kitchen Sink And Garbage Disposal

Is your old kitchen sink leaking, or are you finally ready to upgrade to a modern setup with a powerful garbage disposal? Many homeowners feel intimidated by the tangle of pipes under the cabinet, but how to plumb a kitchen sink and garbage disposal is actually a manageable DIY project if you have the right guidance. With a little patience and the correct tools, you can save hundreds of dollars on plumber fees and gain the satisfaction of a job well done.

In this guide, we will walk you through every step, from removing the old unit to ensuring your new disposal runs smoothly without leaks. Whether you are a complete beginner or a handy enthusiast, this tutorial is designed to make the process clear, safe, and efficient.

Tools and Materials You Will Need

Before you start turning wrenches, gather all necessary supplies. Having everything within arm’s reach prevents frustration and ensures a smoother workflow.

Essential Tools

• Adjustable Wrenches (2): One for holding nuts steady, one for tightening.
• Pipe Wrench: For stubborn connections.
• Screwdrivers: Both flathead and Phillips head.
• Plumber’s Putty: For creating watertight seals around the sink flange.
• Teflon Tape: For threading connections to prevent leaks.
• Bucket and Towels: To catch residual water and clean up spills.
• Hacksaw: In case you need to cut PVC pipes to size.

Materials Checklist

• New Kitchen Sink (if replacing)
• Garbage Disposal Unit
• P-Trap Kit (usually 1.5-inch diameter)
• Dishwasher Drain Hose (if connecting a dishwasher)
• Mounting Assembly (often included with the disposal)

Pro Tip: Always check your local building codes before starting. Some municipalities require specific types of piping or permits for plumbing modifications.

Step 1: Removing the Old Sink and Disposal

Safety first. Before touching any pipes, ensure the power is off.

1. Disconnect Power: Locate the circuit breaker for the garbage disposal and switch it off. If it is plugged into an outlet under the sink, unplug it. Never rely solely on the wall switch.
2. Shut Off Water: Turn off the hot and cold water supply valves under the sink. Open the faucet to release any remaining pressure.
3. Disconnect Drain Lines: Place your bucket under the P-trap. Loosen the slip nuts and remove the trap. Expect some dirty water to spill out.
4. Remove the Disposal: If you have an existing disposal, support its weight with one hand while unscrewing the mounting ring. Lower it carefully.
5. Detach the Sink: Cut any caulk sealing the sink to the countertop using a utility knife. Lift the old sink out and clean the countertop surface thoroughly.

Step 2: Installing the New Sink Flange

A proper seal here is critical to prevent water from damaging your cabinets.

1. Apply Plumber’s Putty: Roll a rope of plumber’s putty about the thickness of a pencil. Place it around the underside of the new sink flange.
2. Insert the Flange: Push the flange into the drain hole from the top. Ensure it sits evenly.
3. Secure from Below: From under the sink, place the rubber gasket, followed by the metal flange support, and then the locking nut. Tighten the nut firmly with a screwdriver or wrench. Wipe away excess putty that squeezes out.

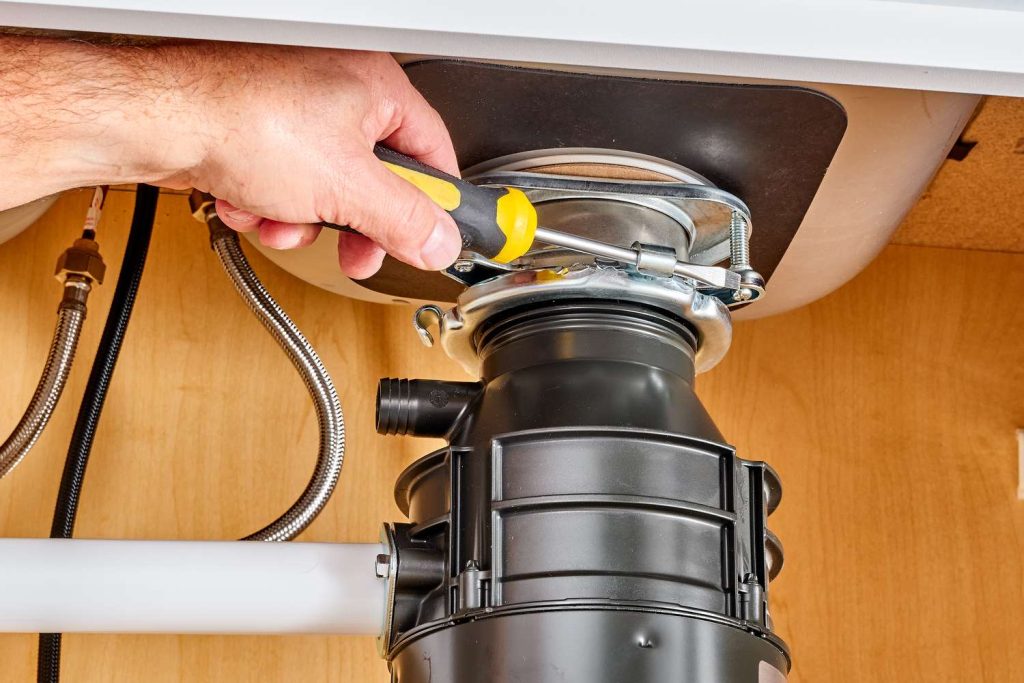

Step 3: Mounting the Garbage Disposal

This is often the trickiest part for beginners, but modern units come with user-friendly mounting systems.

1. Prepare the Mounting Assembly: Follow the manufacturer’s instructions to attach the mounting ring to the sink flange. This usually involves snapping or screwing it into place.
2. Knock Out the Dishwasher Plug: If you plan to connect a dishwasher, use a hammer and screwdriver to knock out the plastic plug inside the disposal’s dishwasher inlet. If you skip this, your dishwasher will not drain.
3. Hang the Disposal: Align the disposal unit with the mounting ring. Twist it clockwise until it locks into place. You should hear a distinct click.
4. Secure the Unit: Some models require you to tighten a mounting screw to lock the disposal firmly against the ring. Check your manual for specifics.

Step 4: Connecting the Drain Pipes (The P-Trap)

Now we address the core of how to plumb a kitchen sink and garbage disposal. The goal is to create a smooth path for wastewater while maintaining a water seal in the P-trap to block sewer gases.

Understanding the P-Trap

The P-trap is the U-shaped pipe under your sink. It holds a small amount of water that acts as a barrier against foul odors and pests coming from the sewer line.

Installation Steps

1. Measure and Cut: If your new tailpiece (the pipe coming down from the disposal) is too long, measure the distance to the wall drain. Cut the PVC pipe using a hacksaw. Deburr the edges with sandpaper.
2. Assemble the Trap: Slide the slip nuts and washers onto the pipes before connecting them. The beveled side of the washer should face the nut.
3. Connect to Disposal: Attach the tailpiece to the bottom of the garbage disposal. Hand-tighten the nut, then give it a quarter-turn with a wrench. Do not overtighten, as this can crack the plastic.
4. Connect to Wall Drain: Connect the other end of the P-trap to the drain pipe coming out of the wall. Ensure the slope is correct; water should flow downward toward the wall.
5. Check Alignment: All pipes should align naturally. If you have to force them, they will likely leak later. Adjust as needed.

Expert Insight: According to general plumbing standards, the maximum distance between the trap and the vent stack is regulated to ensure proper drainage. For most residential kitchens, keeping the trap within 24–36 inches of the vent is ideal. You can read more about standard plumbing configurations on Wikipedia’s page on Plumbing.

Step 5: Electrical and Dishwasher Connections

1. Wire the Disposal: If your disposal is hardwired, connect the black wire to black, white to white, and green/bare copper to the ground screw. Use wire nuts and electrical tape for security. If it uses a cord kit, plug it into a grounded outlet.
2. Connect Dishwasher Hose: Attach the dishwasher drain hose to the inlet on the side of the disposal. Secure it with a hose clamp. Ensure the hose has a “high loop” under the counter to prevent backflow.

Step 6: Testing for Leaks and Functionality

Never skip this step. A small drip now can cause major mold issues later.

1. Turn On Water: Slowly open the hot and cold water valves.
2. Run Water: Let water run into the sink for a minute. Check every connection point with a dry paper towel. If the towel gets wet, tighten the nut slightly.
3. Test the Disposal: Turn on the cold water, then flip the switch for the disposal. Listen for unusual grinding noises.
4. Check for Vibrations: Ensure the unit is stable. Excessive vibration may indicate an improper mount.
5. Run Dishwasher Cycle: If connected, run a short cycle to ensure the dishwasher drains properly through the disposal.

Common Mistakes to Avoid

FAQ Section

Q1: Can I install a garbage disposal if I have a septic system?

A: Yes, but you must use a disposal specifically rated for septic systems. These models grind waste finer to prevent clogging your septic tank. Also, avoid putting fibrous foods like celery or corn husks down the drain.

Q2: Why does my garbage disposal smell bad after installation?

A: This is often due to food debris trapped in the grinding chamber. To fix it, grind ice cubes and citrus peels (like lemon or orange) to clean the blades and freshen the scent. Regular maintenance prevents odor buildup.

Q3: Do I need a permit to replace my kitchen sink?

A: In most US jurisdictions, a simple like-for-like replacement does not require a permit. However, if you are moving plumbing lines or changing the layout significantly, check with your local building department.

Q4: What should I never put in a garbage disposal?

A: Avoid grease, oil, fat, coffee grounds, eggshells, potato peels, and fibrous vegetables. These items can dull the blades, clog the pipes, or damage the motor.

Q5: My disposal is humming but not grinding. What do I do?

A: It is likely jammed. Turn off the power immediately. Use an Allen wrench (usually provided with the unit) to manually turn the motor from the bottom of the disposal. Once it moves freely, reset the overload protector button on the bottom of the unit.

Conclusion

Learning how to plumb a kitchen sink and garbage disposal empowers you to handle one of the most common home improvement tasks with confidence. By following these steps—preparing properly, sealing correctly, and testing thoroughly—you ensure a leak-free and efficient system that will serve your kitchen for years.

Remember, patience is key. Take your time with each connection, and don’t hesitate to double-check your work. A well-installed disposal not only adds convenience but also increases the value of your home.
