How to Plumb a Shower Drain on the 2nd Floor

Adding a bathroom to your upper level can significantly increase your home’s value and convenience, but the plumbing logistics often feel daunting. Many homeowners worry about structural integrity and leak risks when cutting into joists and subfloors. If you are wondering how to plumb a shower drain in second floor structures correctly, you are not alone; proper planning is the key to avoiding costly water damage down the line. This guide will walk you through the process with clarity, safety, and code compliance in mind.

Understanding the Challenges of Upper-Level Plumbing

Plumbing on a second floor differs vastly from slab-on-grade or basement installations. You are working within a confined space between floor joists, where every inch counts. The primary challenge is ensuring adequate slope for drainage while maintaining the structural strength of your floor.

Unlike ground-level drains that drop directly into the earth or a crawl space, second-floor drains must navigate horizontal runs before dropping vertically. According to general building standards, improper sloping is the leading cause of slow drains and clogs in residential showers. Therefore, precision in measurement and assembly is non-negotiable.

Key Considerations Before You Start

• Joist Direction: Determine if you can run pipes parallel to joists (easier) or if you must cut through them (requires reinforcement).
• Ceiling Space Below: Check what is underneath the bathroom. Is it an open basement, a finished ceiling, or another living space? This dictates your access for repairs.
• Venting Requirements: A drain cannot function without a vent. You must plan for an air admittance valve (AAV) or a traditional vent stack running up through the roof.

Essential Tools and Materials

Gathering the right tools before making your first cut saves time and frustration. Here is a checklist for a standard PVC or ABS installation:

Note: Always check local codes to see if PVC or ABS is required in your jurisdiction. They cannot be glued together directly.

Step-by-Step Guide: Installing the Drain

Follow these steps meticulously to ensure a watertight and code-compliant installation.

Step 1: Frame the Opening and Install the Drain Body

Start by marking the exact center of your shower stall on the subfloor. Cut a hole slightly larger than the drain flange using a jigsaw or reciprocating saw. Insert the bottom half of the drain body (the clamping ring) through the hole from above. It should sit flush with the subfloor. Secure it temporarily with screws provided in the kit, ensuring it is perfectly centered.

Step 2: Connect the P-Trap

The P-trap is critical because it holds water to block sewer gases from entering your home. For a second-floor installation, space is tight.

1. Measure the distance from the drain body outlet to where the pipe will turn vertical or horizontal toward the main stack.

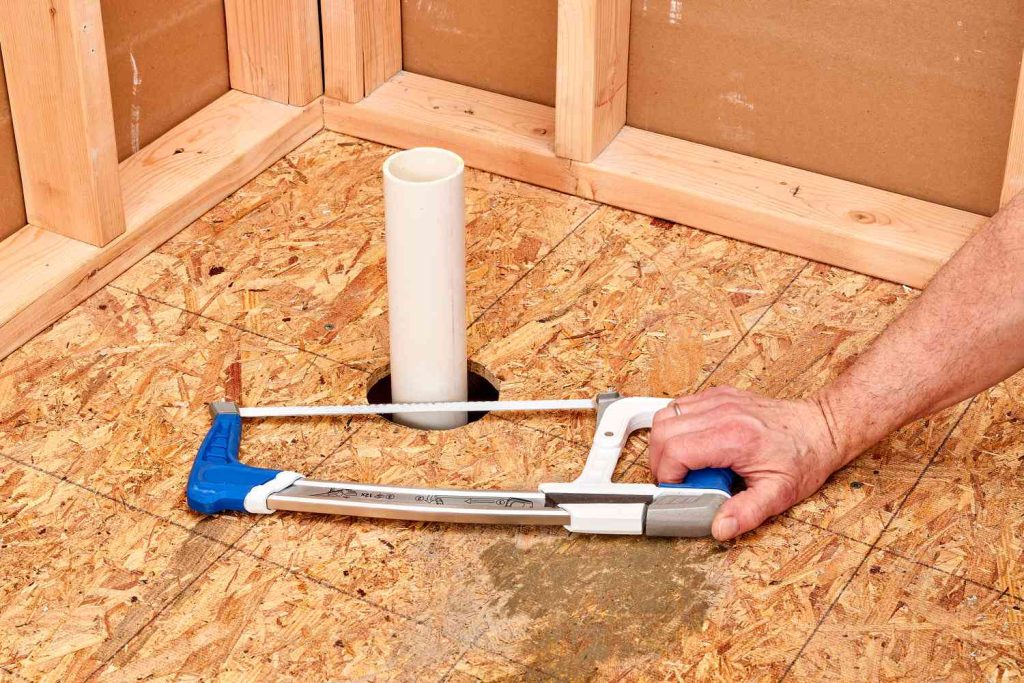

2. Cut your 2-inch pipe to length. Remember: measure twice, cut once.
3. Dry-fit the P-trap and connecting pipes. Ensure the trap arm has a downward slope of 1/4 inch per foot. This is the gold standard for gravity-fed drainage.
4. Once the fit is perfect, apply primer and cement to join the pieces. Work quickly, as these adhesives set fast.

Step 3: Run the Horizontal Drain Line

If your main stack is not directly below the shower, you will need to run a horizontal line.

• Drill holes through the floor joists if necessary. Crucial: Never drill within the top or bottom 2 inches of a joist, as this compromises its strength. Stay in the neutral axis (center third) of the joist.
• Use pipe hangers every 4 feet to support the horizontal run. Sagging pipes create low spots where water pools, leading to clogs.

For more detailed information on building codes regarding pipe sizing and venting, you can refer to the International Plumbing Code overview on Wikipedia.

Step 4: Install the Vent

A drain needs air to flow smoothly. Without venting, you may hear gurgling sounds or experience slow drainage.

• Option A: Run a vertical vent pipe up through the wall and roof. This is the most reliable method.
• Option B: Use an Air Admittance Valve (AAV) under the sink or in the wall cavity if local codes permit. AAVs allow air in but prevent gas from escaping.

Step 5: Test for Leaks

Before closing up walls or pouring the shower pan mortar bed, you must test the system.

1. Plug the end of the drain line.
2. Fill the shower drain and P-trap with water.
3. Let it sit for 15–20 minutes.
4. Check all joints for any signs of moisture. Even a tiny bead of water indicates a failed joint that must be redone.

Common Mistakes to Avoid

Even experienced DIYers can stumble on these pitfalls. Being aware of them can save you hundreds of dollars in repairs.

• Insufficient Slope: A flat pipe will not drain. A slope steeper than 1/4 inch per foot can cause water to outrun solids, leaving debris behind. Stick to the 1/4 inch rule.
• Ignoring Expansion Gaps: Plastic pipes expand and contract with temperature changes. Leave a slight gap (about 1/8 inch) when inserting pipes into fittings before gluing to allow for movement.
• Over-tightening Connections: When screwing the drain flange, do not overtighten. This can crack the PVC or distort the seal, leading to leaks into the ceiling below.

Pros and Cons: DIY vs. Hiring a Pro

Deciding whether to tackle this project yourself depends on your skill level and comfort with risk.

If you are uncomfortable cutting into structural joists or navigating complex venting requirements, hiring a licensed plumber is the safer choice. However, for simple replacements or straightforward new installs, DIY is very achievable.

Frequently Asked Questions (FAQ)

1. Can I use flexible piping for a second-floor shower drain?

While flexible piping exists, it is generally not recommended for main drain lines inside walls or floors. Rigid PVC or ABS is preferred because it maintains consistent slope and is less prone to sagging or kinking over time. Flexible connectors should only be used for final connections to fixtures if absolutely necessary.

2. What size pipe should I use for a shower drain?

The standard size for a shower drain is 2 inches in diameter. This size accommodates the volume of water from modern showerheads and meets most international plumbing codes. Using a 1.5-inch pipe is often insufficient and may violate code in many jurisdictions.

3. Do I need a permit to plumb a shower on the second floor?

In most US municipalities, yes, you need a plumbing permit for new installations or major modifications. Permits ensure that your work is inspected for safety and code compliance. Skipping this step can lead to fines and issues when selling your home. Always check with your local building department.

4. How do I prevent leaks into the room below?

Leak prevention starts with proper priming and cementing of joints. Additionally, install a waterproof membrane (like a sheet membrane or liquid-applied waterproofing) over the subfloor before tiling. This secondary layer protects the structure even if the drain flange seal eventually fails.

5. What if my joists are in the way of the drain pipe?

If you must cut through a joist, you are required to reinforce it. This is typically done by “sistering” a new joist alongside the damaged one or installing metal joist hangers and headers. Never cut more than one-third of the joist’s depth without professional engineering advice.

Conclusion

Learning how to plumb a shower drain in second floor bathrooms is a rewarding skill that empowers you to take control of your home renovation projects. By focusing on proper slope, secure connections, and adequate venting, you can create a durable and efficient drainage system. Remember, patience during the dry-fit phase and rigorous leak testing are your best defenses against future headaches.
