How To Plumb A Shower Drain Pier And Beam

Renovating a bathroom in a pier and beam home offers unique advantages, such as easy access to utilities, but it also presents distinct challenges regarding pipe support and alignment. If you are struggling with unstable flooring or confusing layout constraints, learning how to plumb a shower drain pier and beam structures is essential for a leak-free, long-lasting installation. This guide will walk you through the process with clarity, ensuring your new shower stands the test of time.

Understanding the Pier and Beam Structure

Before picking up a wrench, it is crucial to understand why plumbing in these homes differs from slab-on-grade foundations. Pier and beam houses are elevated on concrete piers or wooden posts, creating a crawl space beneath the floor joists.

Why Support Matters More Here

In a slab foundation, pipes are encased in concrete. In a pier and beam setup, your pipes hang in the air. Gravity is your enemy here. Without proper support, PVC or ABS pipes can sag over time, leading to:

• Water Pooling: Incorrect slope causes standing water, leading to odors and mold.
• Joint Stress: Sagging puts pressure on glued joints, increasing the risk of leaks.
• Noise: Loose pipes can rattle against joists when water flows.

According to general building principles, maintaining a consistent slope is not just a recommendation; it is a code requirement. For detailed standards on plumbing fixtures, you can refer to the International Plumbing Code (IPC) guidelines, which are adopted by most US jurisdictions.

Step-by-Step Guide: Installing the Shower Drain

This section breaks down the physical installation process. Always check your local municipal codes before starting, as requirements can vary by state and county.

Step 1: Planning the Route and Slope

The golden rule of drainage is gravity. Your drain pipe must slope downward toward the main sewer line or septic tank.

• Required Slope: The standard requirement is 1/4 inch per foot of pipe run.
• Measurement Tip: For a 10-foot run, the pipe must drop 2.5 inches from start to finish.

Use a laser level or a long spirit level to mark your joists. Identify the path of least resistance that avoids electrical wiring and HVAC ducts commonly found in crawl spaces.

Step 2: Cutting and Preparing the Joists

You may need to drill holes through floor joists to run the pipe horizontally.

1. Locate the Center: Drill holes in the center of the joist’s vertical height. Drilling too high or too low compromises the structural integrity of the wood.
2. Hole Size: The hole should be no larger than one-third the depth of the joist.
3. Protection: If the hole is within 1.5 inches of the edge of the joist, you must install a metal nail plate to prevent accidental puncture from future flooring nails.

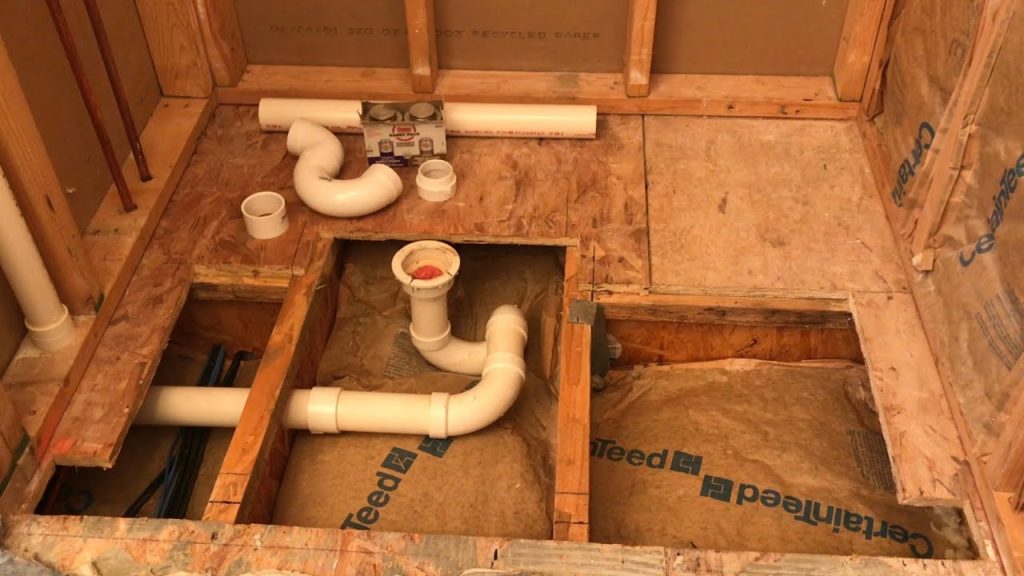

Step 3: Assembling the Drain Assembly

For a shower, you will typically use a 2-inch diameter PVC or ABS pipe.

1. Dry Fit First: Assemble the trap, elbow, and tailpiece without glue. Ensure the shower drain flange aligns perfectly with the cutout in the subfloor.
2. Check the Trap: The P-trap must be installed close to the drain fixture. The distance between the trap weir and the vent connection is regulated by code (usually no more than 5 feet for a 2-inch pipe).
3. Glue Up: Once satisfied with the fit, apply primer and cement. Push fittings together with a quarter-turn twist to ensure an even seal. Hold for 15–30 seconds to set.

Step 4: Supporting the Pipes (Critical Step)

This is where most DIYers fail in pier and beam homes. You cannot let the pipe rest solely on the dirt or hang loosely between joists.

• Use Pipe Hangers: Install plastic or metal pipe hangers every 4 feet for horizontal runs.
• Strapping: Use perforated metal strapping screwed into the side of the joists to cradle the pipe.
• Avoid Tight Straps: Do not overtighten straps around PVC. The pipe needs slight room to expand and contract with temperature changes.

Step 5: Connecting to the Main Line

Connect your new shower branch to the existing main waste line using a sanitary tee or a wye fitting. Never use a sharp 90-degree elbow for horizontal-to-horizontal connections, as this can cause clogs. A combination wye and 45-degree elbow is the professional standard for smooth flow.

Common Challenges and Solutions

Dealing with Limited Crawl Space Height

If your crawl space is shallow (less than 18 inches), working overhead is difficult.

• Solution: Pre-assemble sections of the pipe on the ground. Lift them into place and connect them using couplings. This minimizes the time you spend working in awkward positions.

Preventing Condensation

In humid climates, cold water pipes and even drain lines can sweat, dripping onto insulation or subflooring.

• Solution: Wrap drain pipes with foam insulation sleeves. This is inexpensive and prevents moisture damage to your wooden structure.

Venting Requirements

A drain cannot flow properly without a vent to equalize pressure.

• Requirement: Ensure your shower drain is connected to a vent stack that exits through the roof. If you cannot tie into an existing vent, you may need to install an Air Admittance Valve (AAV) under the sink or in the wall, provided local codes allow it.

FAQ Section

Q1: Can I use flexible piping for my shower drain in a pier and beam home?

A: No. Flexible piping (like Fernco connectors) should only be used for final connections to cast iron mains or in areas subject to vibration. For the entire run, use rigid Schedule 40 PVC or ABS. Flexible pipes can sag easily and do not maintain the required 1/4 inch per foot slope consistently.

Q2: How deep should the shower drain pipe be under the subfloor?

A: The depth depends on your joist size. Typically, a 2-inch pipe requires about 2.5 inches of vertical space including the fitting hubs. Ensure you have enough clearance below the joists so the pipe doesn’t hang too low, which could be damaged by pests or debris in the crawl space.

Q3: Do I need a permit to plumb a shower drain?

A: In most US municipalities, yes. Adding or moving plumbing fixtures usually requires a permit and subsequent inspection. This ensures your work meets safety codes and prevents future issues when selling your home. Always check with your local building department.

Q4: What is the best material for shower drains: PVC or ABS?

A: Both are acceptable, but check your local code. PVC is white and generally more resistant to chemical damage. ABS is black and slightly more impact-resistant in cold weather. Never glue PVC directly to ABS; you must use a special transition cement if connecting the two.

Q5: How do I test for leaks before closing the walls?

A: Perform a water test. Plug the end of the drain line and fill the shower base with water up to the overflow level (if applicable) or simply run water for several minutes. Inspect all joints in the crawl space with a flashlight. Look for any drips or moisture. Alternatively, professionals use an air pressure test to detect microscopic leaks.

Q6: Can I install a shower drain without accessing the crawl space?

A: It is highly discouraged. While some “top-down” installations exist, they make future maintenance nearly impossible. In a pier and beam home, you have the luxury of access—use it. Properly supporting the pipes from below is the only way to guarantee longevity.

Conclusion

Mastering how to plumb a shower drain pier and beam structures is less about complex engineering and more about meticulous attention to slope and support. By respecting the unique architecture of your home and adhering to the 1/4 inch per foot slope rule, you can avoid costly repairs down the road. Remember, the key difference in these homes is that your pipes are exposed; treat them with care using proper hangers and insulation.
