How to Plumb a Shower in Concrete Basement

Adding a bathroom to your unfinished basement can significantly increase your home’s value and convenience, but the solid concrete slab presents a unique challenge. Many homeowners hesitate because they fear the complexity of cutting through reinforced concrete and managing wastewater gravity flow. If you are wondering how to plumb a shower in a concrete basement, you are not alone; it requires careful planning, the right tools, and a strict adherence to local building codes to prevent costly leaks or sewage backups.

This guide will walk you through the process from start to finish. We will cover everything from selecting the right drain type to the final concrete patch-up, ensuring you have the confidence to tackle this project or effectively supervise a professional contractor.

Understanding the Challenges of Concrete Slab Plumbing

Before you pick up a jackhammer, it is crucial to understand why basement plumbing differs from upper-floor installations. In a standard wood-frame house, pipes run between joists. In a basement, you are working below the finished floor level, which often means digging into the earth beneath your foundation.

The Gravity Problem

Shower drains rely on gravity. According to the International Plumbing Code (IPC), a 2-inch shower drain pipe must have a slope of 1/4 inch per foot. This means for every foot the pipe travels horizontally, it must drop 1/4 inch vertically. In a basement with a flat concrete slab, achieving this slope often requires digging a trench deep enough to accommodate the pipe diameter plus the required fall.

Structural Integrity Concerns

Your concrete slab is likely part of your home’s foundation system. Cutting into it improperly can compromise structural integrity or damage existing footer drains. Always consult your local building department before starting. As noted by structural engineering principles, maintaining the load-bearing capacity of the slab edge is critical Wikipedia: Foundation (engineering).

Step 1: Planning and Permitting

Never skip the permitting phase. Most municipalities in the US require a permit for adding new plumbing fixtures.

• Check Local Codes: Requirements vary by state. Some areas require specific venting methods or trap primers.
• Locate Existing Lines: Use a stud finder with metal detection or consult original blueprints to locate existing sewer lines and water mains.
• Determine Drain Location: Place the shower drain as close to the main soil stack as possible to minimize trenching and maintain proper slope.

Step 2: Choosing the Right Drain System

There are two primary methods for draining a shower in a concrete basement:

Note: This guide focuses on the Standard Underground Drain method, as it is the most common permanent solution.

Step 3: Breaking the Concrete

This is the most labor-intensive part of the project. Safety is paramount.

1. Mark the Area: Outline the trench path and the hole for the drain box. Make the hole slightly larger than the drain assembly to allow for adjustment.
2. Safety Gear: Wear safety goggles, heavy-duty gloves, ear protection, and a respirator mask. Concrete dust contains silica, which is hazardous to inhale.
3. Cutting the Slab: Use a concrete saw with a diamond blade to cut along your marked lines. This creates a clean edge and prevents cracking outside the work area.
4. Breaking Up Concrete: Use an electric jackhammer or a sledgehammer to break the concrete within the cut lines. Remove all debris and vacuum the area thoroughly.

Step 4: Excavating the Trench

Once the concrete is removed, you must dig into the subsoil.

• Depth Calculation: Measure the diameter of your PVC pipe (usually 2 inches for showers). Add 2 inches for bedding material (sand or gravel). Add the required slope distance.
  • Example: If the main sewer line is 10 feet away, you need a drop of 2.5 inches (10 ft x 0.25″). Ensure your trench is deep enough to accommodate this fall without hitting the footing.
• Bedding Material: Lay down 2–3 inches of compacted sand or gravel at the bottom of the trench. This provides a stable, uniform base for the pipe and prevents point-loading stress that could crack the PVC.

Step 5: Installing the Drain and Piping

Now, we install the actual plumbing. Use Schedule 40 PVC for drain lines.

1. Dry Fit First: Assemble the pipes without glue to ensure everything fits and the slope is correct. Use a level to check the 1/4 inch per foot pitch.

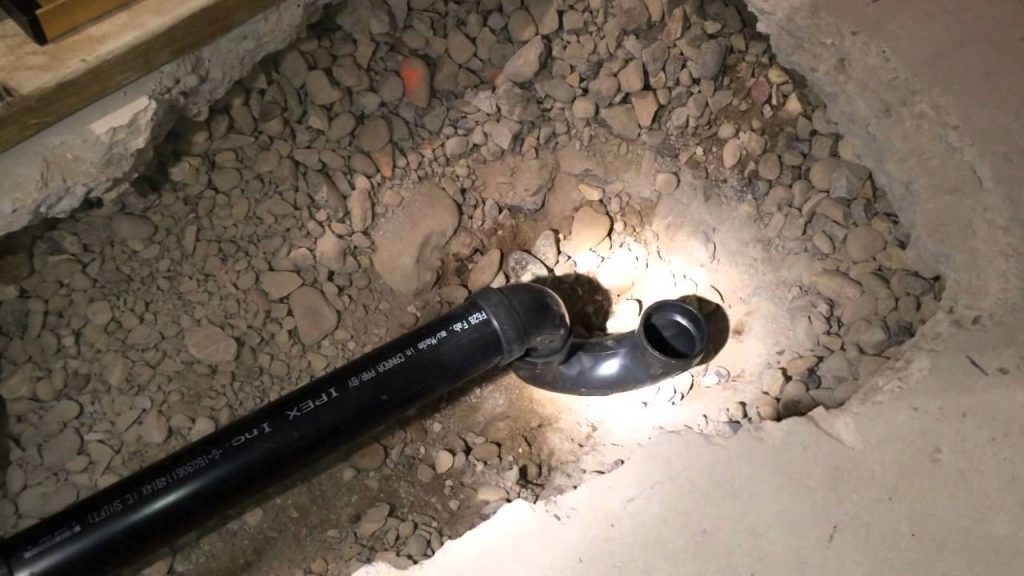

2. Install the Trap: The P-trap must be installed directly under the shower drain. It holds water to prevent sewer gases from entering your home.
3. Glue the Joints: Clean the pipe ends and fittings with PVC primer. Apply PVC cement evenly and push the pieces together with a quarter-turn twist. Hold for 15 seconds.
4. Connect to Main Stack: Tie into your existing main sewer line using a sanitary tee or a wye fitting, depending on code requirements. Never use a sharp 90-degree elbow underground, as it restricts flow and causes clogs.

Step 6: Venting the Shower

A drain cannot function properly without a vent. The vent allows air to enter the plumbing system, preventing vacuum locks that slow drainage.

• Wet Venting: If your basement bathroom includes a sink and toilet nearby, you may be able to “wet vent” the shower through the sink drain. This saves you from running a separate vent pipe through the roof.
• Air Admittance Valve (AAV): In some jurisdictions, you can use an AAV under the sink. This one-way valve opens to let air in when water drains but closes to prevent gas escape. Check if your local code approves AAVs.

Step 7: Testing and Pouring Concrete

Before closing up the floor, you must ensure there are no leaks.

1. Water Test: Plug the drain and fill the shower trap and pipes with water. Let it sit for 15 minutes. Check all joints for drips.
2. Backfill: Once passed, cover the pipes with 2–3 inches of sand or fine gravel. Do not use large rocks, as they can puncture the pipe over time.
3. Pour Concrete: Mix quick-setting concrete according to the manufacturer’s instructions. Typically, you will use a ratio of 1 part cement to 2 parts sand to 3 parts aggregate. Pour the concrete into the trench, leveling it with the existing slab.
4. Curing: Keep the concrete moist for at least 24–48 hours to ensure proper curing strength. Avoid heavy traffic on the patch for 7 days.

Common Mistakes to Avoid

• Insufficient Slope: If the pipe is flat or slopes backward, water will stagnate, leading to clogs and odors.
• Poor Joint Preparation: Skipping the primer step when gluing PVC results in weak joints that will fail under pressure.
• Ignoring the Trap Seal: Ensure the P-trap is accessible for cleaning if a clog occurs. Encasing it entirely in concrete without an access panel is a bad practice.

FAQ Section

1. Can I install a shower drain without breaking the concrete?

Technically, yes, by using an upflush macerator pump system. However, these systems require electricity, can be noisy, and are more prone to mechanical failure than gravity drains. They are best used as a last resort when trenching is not feasible.

2. How deep do I need to dig the trench for a shower drain?

The depth depends on the distance to the main sewer line. You need enough depth to fit the pipe diameter plus bedding material, while maintaining a 1/4 inch per foot slope. For a drain 10 feet away, you might need to dig 6–8 inches deep, but always measure based on your specific layout.

3. What size pipe should I use for a basement shower?

The standard size for a shower drain is 2 inches in diameter. This meets most US plumbing codes and provides adequate flow rate to prevent clogging from hair and soap scum.

4. Do I need a permit to plumb a shower in my basement?

Yes, in almost all US municipalities, adding a new plumbing fixture requires a permit. This ensures the work meets safety and health codes. Unpermitted work can lead to fines and issues when selling your home.

5. Can I use ABS pipe instead of PVC?

It depends on your local code. ABS (black pipe) is common in some regions, while PVC (white pipe) is standard in others. They require different primers and cements. Never glue ABS to PVC directly without a special transition cement. Check with your local building inspector.

Conclusion

Learning how to plumb a shower in a concrete basement is a rewarding DIY project that adds significant functionality to your home. While breaking concrete and digging trenches is hard work, following the correct slope guidelines, using proper materials, and adhering to local codes will ensure a durable and leak-free installation.

Remember, patience is key during the testing phase. A small leak now can cause major damage later. If you feel unsure about any step, especially connecting to the main sewer line, consulting a licensed plumber is a wise investment.
