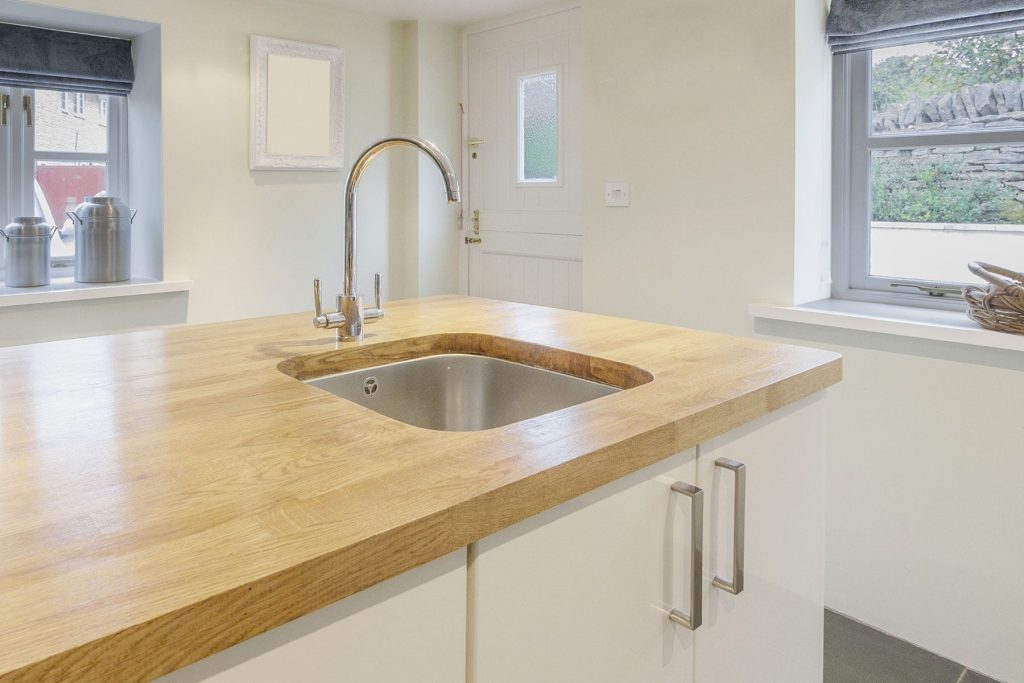

Adding a kitchen island is one of the most popular home improvements in the United States, but it comes with a significant hidden challenge: drainage. If your home is built on a concrete foundation, running pipes underneath the floor is not an option. Many homeowners face frustration when they realize their dream sink might require tearing up the floor. However, understanding how to plumb an island sink with a slab can save you thousands in demolition costs. This guide will walk you through the proven methods to achieve a functional, code-compliant installation without breaking your concrete.
Why Is Plumbing an Island Sink on a Slab So Difficult?
To solve the problem, we first need to understand why it exists. In a standard wall-mounted sink, gravity does the heavy lifting. The drain pipe slopes downward into the main sewer line, and a vent pipe goes up through the wall to the roof. This vent prevents vacuum locks that would slow down drainage and allows sewer gases to escape.
With an island sink, you have two major obstacles:
- No Wall Access: There is no nearby wall to run a traditional vertical vent.
- Concrete Slab Foundation: You cannot dig a trench under the house to lower the drain pipe below the slab level.
According to the International Plumbing Code (IPC) and Uniform Plumbing Code (UPC), every fixture must be vented. Without proper venting, water will gurgle, drain slowly, or siphon water out of your P-trap, letting foul odors into your kitchen. Therefore, the solution isn’t just about moving water out; it’s about managing air pressure within the pipes.
Method 1: The Island Loop Vent (The Gold Standard)
The most widely accepted and robust method for plumbing an island sink on a slab is the island loop vent. This method keeps all piping above the slab level, eliminating the need for core drilling or trenching.
How It Works
Instead of going down through the floor, the drain pipe rises from the sink, loops up high under the countertop, and then drops back down to connect to the horizontal drain line. This “loop” acts as the vent.
Step-by-Step Installation Guide
- Install the P-Trap: Begin by installing the P-trap directly under the sink basin. Ensure it is tightly sealed to prevent leaks.
- Raise the Drain Pipe: From the outlet of the P-trap, extend the pipe vertically. It must rise to a point at least 6 inches above the flood rim of the sink (the highest point water can reach before overflowing). In most cases, this means the pipe goes up under the countertop.
- Create the Loop: Once the pipe reaches the required height, turn it 90 degrees horizontally. Run this section parallel to the floor for a short distance.
- Drop Down: Turn the pipe 90 degrees again to head back down toward the floor. This downward section connects to your main horizontal drain line.
- Connect to Main Drain: The horizontal drain line must slope downward at a rate of 1/4 inch per foot toward the main sewer stack. Since you are on a slab, this horizontal line will run across the top of the concrete (often hidden inside cabinetry or a toe-kick box) until it reaches a wall where it can drop into the existing sewer line.
Pro Tip: Use ABS or PVC pipe depending on your local code. ABS is black and often preferred for its flexibility, while PVC is white and rigid. Always check with your local building department.
Method 2: Air Admittance Valves (AAVs)
If space under your countertop is limited, or if the loop vent seems too complex for your layout, an Air Admittance Valve (AAV) is a viable alternative. Also known as a “Studor vent,” this device allows air to enter the plumbing system when negative pressure occurs but closes to prevent sewer gases from escaping.
Pros and Cons of AAVs
| Feature | Island Loop Vent | Air Admittance Valve (AAV) |
|---|---|---|
| Code Acceptance | Accepted everywhere | Accepted in most US states (check local codes) |
| Maintenance | Zero maintenance | May need replacement after 10–15 years |
| Space Required | Requires vertical clearance under counter | Compact, fits in tight spaces |
| Reliability | Mechanical, fail-safe | Mechanical part can stick or fail |
Installation Steps for AAVs
- Install the P-Trap: As with the loop vent, start with a secure P-trap under the sink.
- Vertical Rise: Extend the pipe vertically from the trap.
- Install the AAV: Attach the AAV to the top of the vertical pipe. The valve must be installed at least 4 inches above the horizontal branch drain and 6 inches above any insulation material.
- Horizontal Run: From the bottom of the P-trap assembly, run your horizontal drain line toward the main stack, maintaining the 1/4 inch per foot slope.
Note: While AAVs are convenient, some purists argue they are less reliable than passive venting. However, for retrofit projects on slabs, they are a lifesaver.
Critical Considerations for Slab Foundations
When learning how to plumb an island sink with a slab, you must address the horizontal run. Since you cannot go under the floor, your drain pipe will travel across the top of the concrete.
Hiding the Pipes
Nobody wants to see exposed plumbing in their kitchen. Here are three common ways to conceal the horizontal drain line:
- Toe-Kick Chase: Build a false bottom in the base cabinets. The pipe runs behind the kickplate, invisible from the front.
- Raised Platform: Raise the entire island platform by 6–8 inches. This provides ample room for pipes and creates a distinct architectural look.
- Corner Cabinetry: Route the pipe through adjacent corner cabinets that are deeper or have modified shelving.
Slope Requirements
Gravity is your only pump. If your horizontal run is 10 feet long, the pipe must drop 2.5 inches over that distance. If your main sewer connection is too high, you may not get enough slope. In such cases, you might need to raise the island sink higher or use a macerating pump (though pumps are generally discouraged for kitchen sinks due to food solids).
Common Mistakes to Avoid
Even experienced DIYers make errors when tackling island plumbing. Avoid these pitfalls:
- Insufficient Vent Height: If your loop vent doesn’t rise high enough above the sink rim, dirty water can siphon into the vent line, causing clogs and odors.
- Flat Pipes: Never run a horizontal drain pipe flat. It must always slope downward. A flat pipe will allow solids to settle, leading to frequent blockages.
- Ignoring Local Codes: Plumbing codes vary by city and county. What works in Texas might not be legal in California. Always pull a permit and have your work inspected. For more detailed national standards, you can refer to the International Plumbing Code guidelines available on Wikipedia.
FAQ Section
1. Can I put a sink in an island if I have a slab foundation?
Yes, absolutely. You do not need to break the concrete. By using an island loop vent or an Air Admittance Valve (AAV), you can keep all plumbing above the slab level. The key is ensuring proper venting and slope for the horizontal drain line.
2. How high does the island loop vent need to be?
The loop vent must rise to a point at least 6 inches above the flood rim of the sink. For a standard kitchen sink, this usually means the pipe goes up to the underside of the countertop before looping back down.
3. Are Air Admittance Valves (AAVs) legal in my area?
AAVs are approved by the International Plumbing Code (IPC) and are legal in most US states. However, some local jurisdictions still restrict their use. Always check with your local building department before purchasing materials.
4. What happens if the drain pipe is too far from the main sewer line?
If the distance is great, maintaining the required 1/4 inch per foot slope might require the pipe to start very high. If you cannot raise the sink high enough, you may need to install a sewage ejector pump, though this is rare for simple kitchen sinks and adds maintenance complexity.
5. Can I use a garbage disposal with an island sink on a slab?
Yes, a garbage disposal works perfectly with both loop vents and AAVs. Just ensure your horizontal drain line is large enough (typically 1.5 inches or 2 inches in diameter) to handle the ground-up food waste without clogging.
6. Do I need a professional plumber for this?
While a skilled DIYer can handle this project, plumbing mistakes can lead to costly water damage or code violations. If you are unsure about calculating slopes or connecting to the main stack, hiring a licensed plumber is a wise investment.
Conclusion
Learning how to plumb an island sink with a slab doesn’t have to be a nightmare. By utilizing an island loop vent or an Air Admittance Valve, you can bypass the need for expensive concrete cutting. The key lies in precise measurements, maintaining proper slope, and adhering to local building codes. Whether you choose the mechanical reliability of a loop vent or the compact convenience of an AAV, your dream kitchen island is within reach.
