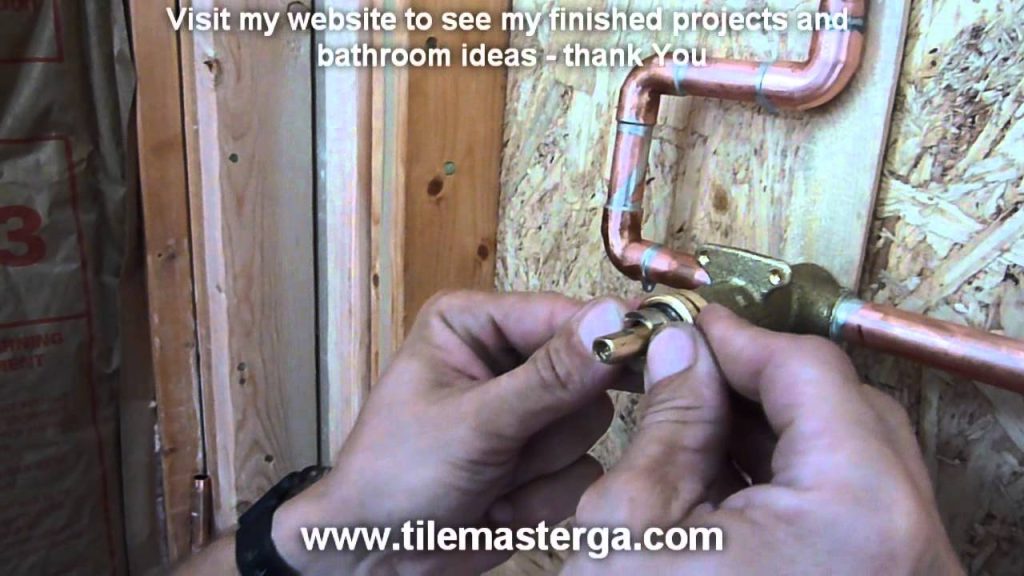

How to Plumb in a Kohler Threeway Transfer Valve

Are you staring at a pile of brass fittings and copper pipes, wondering if you’ve bitten off more than you can chew? You are not alone. Many homeowners feel intimidated by the complexity of multi-outlet shower systems, fearing that one wrong move could lead to costly water damage. However, understanding how to plumb in a Kohler threeway transfer valve is less about magic and more about methodical preparation. This guide will walk you through the process with empathy and precision, ensuring your new shower system delivers the luxury experience you deserve without the plumbing nightmares.

Why Choose a Kohler Threeway Transfer Valve?

Before we pick up the wrench, it is essential to understand why this specific component is the heart of your shower system. A threeway transfer valve allows you to direct water flow between three different outlets—such as a rain showerhead, a hand shower, and body sprays—either individually or in combination, depending on the model.

Kohler is renowned for its engineering precision. According to industry standards, high-quality brass valves like those from Kohler offer superior durability compared to plastic alternatives, resisting corrosion and mineral buildup over decades of use. By choosing a genuine Kohler valve, you are investing in long-term reliability. For more context on plumbing standards and safety, you can refer to general guidelines on plumbing fixtures to understand the broader regulatory environment.

Tools and Materials You Will Need

Preparation is 80% of a successful plumbing job. Having the right tools within arm’s reach prevents frustration and ensures a clean installation.

Essential Tools:

• Pipe cutter or hacksaw
• Propane torch and soldering kit (for copper pipes) OR PEX crimping tool (for PEX)
• Adjustable wrenches (two recommended)
• Teflon tape (PTFE tape)
• Pipe dope (thread sealant)
• Level
• Tape measure

Materials:

• Kohler threeway transfer valve kit
• Copper or PEX piping (matching your home’s existing system)
• Shut-off valves (if not already present)
• Escutcheon plates

Step 1: Preparation and Safety First

Turn Off the Water Supply This cannot be stressed enough. Locate your main water shut-off valve and turn it off. Open a faucet on the lowest floor of your house to drain any remaining pressure and water from the lines.

Check Local Codes Plumbing codes vary by state and municipality in the US. While Kohler products meet national standards, always verify if your local jurisdiction requires a licensed plumber for rough-in work. This step protects your home insurance validity and ensures safety.

Measure Twice, Cut Once Determine the exact location of your valve. The standard height for a shower valve is typically between 48 to 52 inches from the finished floor. Use your level to ensure the valve body will sit perfectly vertical. A tilted valve can cause operational issues and aesthetic problems with your trim plate later.

Step 2: Understanding the Valve Ports

A common mistake beginners make is confusing the inlet with the outlets. A typical Kohler threeway transfer valve has:

1. One Inlet Port: Where the hot and cold mixed water enters (usually from the bottom or back, depending on the model).
2. Three Outlet Ports: Labeled or positioned for Outlet 1, Outlet 2, and Outlet 3.

Pro Tip: Consult the specific installation sheet included in your Kohler box. Models like the Kohler K-7280 or K-7690 may have slight variations in port orientation. Ignoring the manufacturer’s diagram is the fastest way to create a “water feature” inside your wall.

Step 3: Connecting the Water Supply

For Copper Pipes:

1. Clean the ends of your copper pipes with emery cloth until they shine.
2. Apply flux to the pipe ends and the inside of the valve’s sweat connections.
3. Slide the pipes into the valve ports.
4. Heat the joint evenly with your propane torch until the flux sizzles, then touch the solder wire to the joint. Capillary action will pull the solder in.
5. Wipe away excess solder with a damp rag immediately.

For PEX Pipes:

1. Cut the PEX tubing squarely using a PEX cutter.
2. Slide the crimp ring over the tube.
3. Insert the fitting adapter into the tube until it bottoms out.
4. Position the crimp tool over the ring and squeeze firmly until the tool releases.
5. Use a go/no-go gauge to verify the crimp is secure.

Important: Ensure you install stop valves (shut-offs) before the transfer valve if they are not already present. This allows you to service the valve in the future without shutting off water to the entire house.

Step 4: Plumbing the Outlets

Now that the water is coming in, you need to route it to your shower fixtures.

1. Identify Your Outlets: Decide which port goes to the rain head, which to the hand shower, and which to the body sprays. Label them with masking tape now to avoid confusion later.
2. Run the Lines: Connect your piping from the valve outlets to the drop-ears (elbows) where your shower heads will be installed.
3. Maintain Slope: If possible, ensure pipes have a slight slope back toward the valve to allow for complete draining, which helps prevent freezing in colder climates.
4. Secure the Pipes: Use pipe straps every 4–6 feet to secure the lines to the studs. Vibrations from water hammer can loosen unsecured pipes over time.

Step 5: Pressure Testing (The Critical Step)

Do not close up your wall yet! You must verify there are no leaks.

1. Turn the main water supply back on slowly.
2. Operate the transfer valve handle to direct water to each outlet individually.
3. Check every joint, solder point, and crimp connection for moisture.
4. Let the system run for at least 15 minutes. Sometimes, small leaks only appear after the pipes expand slightly from warm water.

If you see even a single drop, turn the water off, drain the line, and repair the joint. A small leak now is a minor fix; a leak behind tiled walls is a major disaster.

Common Mistakes to Avoid

FAQ Section

1. Do I need a professional plumber to install a Kohler transfer valve?

While a skilled DIYer can handle this task, many US local codes require licensed professionals for any work involving the main water supply or concealed piping. If you are unsure about soldering or local regulations, hiring a pro is a wise investment for peace of mind.

2. Can I install this valve myself if I have PEX plumbing?

Yes, actually. PEX is often easier for DIYers than copper because it requires no open flame or soldering. You only need a crimping or expansion tool, which can be rented from most hardware stores.

3. Why is my water pressure low after installing the transfer valve?

Low pressure can result from kinked pipes, debris in the valve screen, or using too many outlets simultaneously. Check the inlet screens for debris and ensure your home’s main pressure is adequate. Note that running three high-flow fixtures at once will naturally reduce pressure at each head.

4. What is the difference between a diverter valve and a transfer valve?

Technically, they are often used interchangeably in casual conversation. However, a diverter usually switches flow from one outlet to another (exclusive), while a transfer valve may allow for simultaneous flow to multiple outlets, depending on the internal cartridge design. Always check your specific Kohler model’s specifications.

5. How do I maintain my Kohler transfer valve?

Maintenance is minimal. Occasionally remove the handle and trim plate to clean any mineral buildup around the stem. If you have hard water, consider installing a whole-house water softener to extend the life of the valve’s internal seals.

Conclusion

Learning how to plumb in a Kohler threeway transfer valve transforms your bathroom from a functional space into a personal spa. By following these steps—preparing thoroughly, respecting the materials, and testing rigorously—you ensure a leak-free, high-performance shower system. Remember, patience is your best tool. Rushing leads to leaks, while careful attention to detail leads to lasting quality.
