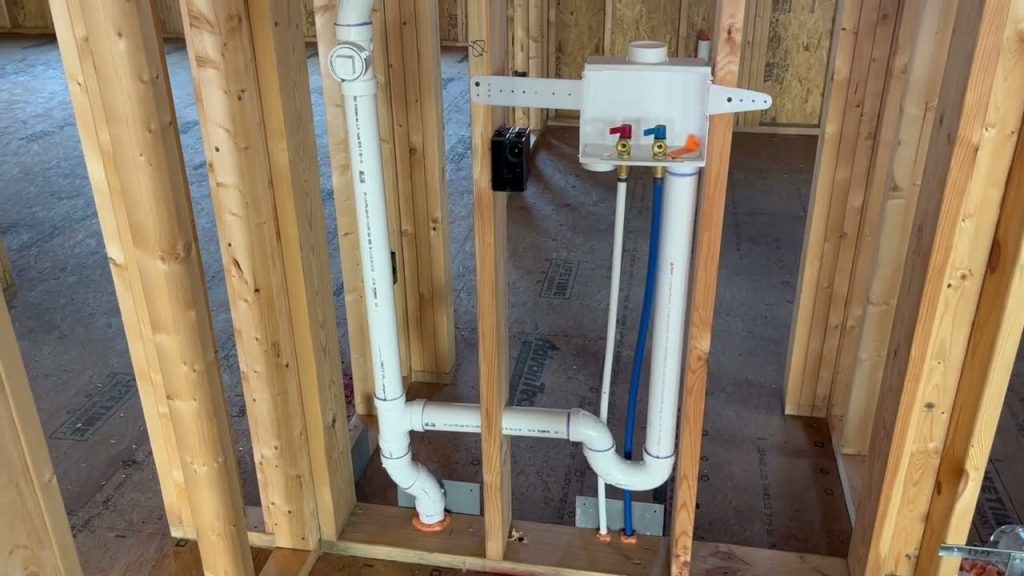

Staring at exposed pipes in your unfinished bathroom or kitchen and wondering how to connect hot and cold water lines correctly? You’re not alone. Many homeowners and even new contractors feel overwhelmed during the rough-in phase—but getting it right is crucial for leak-free, code-compliant plumbing. In this guide, you’ll learn exactly how to plumb hot and cold water from rough-in, with clear, actionable steps that prioritize safety, efficiency, and long-term reliability.
What Does “Rough-In” Mean in Plumbing?
Before diving into installation, it’s essential to understand what “rough-in” actually means. In construction, the plumbing rough-in phase refers to the stage where all supply and drain lines are installed within walls and floors—but fixtures (like faucets, toilets, or showers) aren’t yet connected.
According to the International Residential Code (IRC), water supply lines must be pressure-tested before walls are closed up. This ensures no hidden leaks develop behind drywall—a common (and costly) mistake among DIYers.
💡 Pro Tip: Always leave stub-outs (short pipe extensions) protruding 2–4 inches from the wall for easy fixture connection later.
What Tools and Materials Do You Need?
Getting started requires the right gear. Here’s a checklist:
Copper, PEX, or CPVC piping (PEX is most popular for residential use due to flexibility and freeze resistance)
Shut-off valves (angle stops for sinks, quarter-turn ball valves for showers/tubs)
Pipe cutter or tubing shear
Crimping or expansion tool (for PEX)
Teflon tape or pipe dope (for threaded connections)
Pipe supports/clamps (every 32″ for horizontal runs per IRC)
Pressure testing kit
📊 Did You Know? A 2024 study by the National Association of Home Builders found that 78% of new single-family homes now use PEX tubing for water supply lines—up from just 35% in 2010—thanks to its ease of installation and durability.
Step-by-Step: How to Plumb Hot and Cold Water from Rough-In
Follow these precise steps to ensure a professional-grade installation:
Step 1: Plan Your Layout
Sketch your bathroom or kitchen layout. Mark fixture locations (sink, shower, dishwasher, etc.). Remember:
Hot water is always on the LEFT, cold on the right (per U.S. plumbing standards).
Maintain at least 2 inches of separation between hot and cold lines to reduce heat transfer.
Step 2: Run Supply Lines from Main
Start at your water heater (for hot) and main cold line. Use continuous runs where possible to minimize fittings—each joint is a potential leak point.
For PEX: Use a home-run system (manifold) or trunk-and-branch. Manifolds offer better pressure balance.
For copper: Solder joints with lead-free flux and silver-bearing solder (required by NSF/ANSI 61).
Step 3: Install Stub-Outs at Fixture Locations
Cut pipes so they extend 3 inches from the finished wall surface. Attach:
Chrome-plated brass angle stops for sinks
Drop-ear elbows secured to studs for showers/tubs
⚠️ Safety Note: Always support pipes within 8 inches of any fitting (IRC P2904.6). Unsupported lines can sag or crack over time.
Step 4: Pressure Test Before Closing Walls
This is non-negotiable.
Cap all open ends.
Connect an air compressor or water pump.
Pressurize to 80 PSI (standard residential pressure).
Hold for 2 hours—no drop allowed.
If pressure drops, you have a leak. Locate and fix it before drywall goes up.
Step 5: Insulate Hot Water Lines (Optional but Recommended)
Insulating hot water pipes reduces heat loss by up to 4°F per 10 feet (U.S. DOE). Use pre-slit foam sleeves—especially in unhe heated spaces like basements or garages.
Common Mistakes to Avoid
Even experienced plumbers slip up. Watch out for these pitfalls:
Mistake
Consequence
Fix
Reversing hot/cold lines
Confusing faucet operation
Always label lines during rough-in
Skipping supports
Pipe movement → joint failure
Clamp every 32″ horizontally
Using wrong valve type
Poor flow or premature wear
Use quarter-turn ceramic valves
Not pressure testing
Hidden leaks behind walls
Test every rough-in, no exceptions
PEX vs. Copper vs. CPVC: Which Should You Use?
Not all pipes are equal. Here’s a quick comparison:
PEX Tubing ✅ Pros: Flexible, freeze-resistant, fewer fittings, lower cost ❌ Cons: UV-sensitive (can’t be used outdoors), not recyclable
Copper Pipe ✅ Pros: Durable, recyclable, high heat tolerance ❌ Cons: Expensive, requires soldering, prone to pinhole leaks in acidic water
CPVC ✅ Pros: Cheap, easy glue joints, good for hot water ❌ Cons: Brittle in cold temps, degrades over time with chlorine
🏆 Verdict: For most U.S. homeowners, PEX-A (with expansion fittings) offers the best balance of cost, ease, and reliability.
FAQ Section
Q1: How far apart should hot and cold water lines be?
A: Maintain at least 2 inches between parallel hot and cold lines to minimize heat transfer. Closer spacing can cause the cold line to warm up, wasting energy.
Q2: Can I mix PEX and copper in the same system?
A: Yes—but use a dielectric union or brass fitting to prevent galvanic corrosion where dissimilar metals meet.
Q3: Do I need separate shut-off valves for each fixture?
A: Absolutely. Individual shut-offs let you service one sink or toilet without cutting off water to the whole house—a requirement in many local codes.
Q4: What’s the standard height for sink supply lines?
A: Rough-in supply lines for vanities are typically 20–22 inches above the floor, centered 4–6 inches apart. Always confirm with your faucet specs first.
Q5: How do I know if my rough-in passed inspection?
A: Your local building department will inspect after pressure testing but before drywall. They check pipe material, support spacing, valve types, and labeling.
Q6: Can I do this myself, or should I hire a plumber?
A: If you’re comfortable with tools and understand local codes, DIY is possible. But if you’re unsure—hire a licensed plumber. A single mistake can lead to thousands in water damage.
Conclusion
Mastering how to plumb hot and cold water from rough-in isn’t just about connecting pipes—it’s about building a safe, efficient, and long-lasting system that serves your home for decades. By following code-compliant practices, pressure testing rigorously, and choosing the right materials (like PEX), you’ll avoid costly callbacks and enjoy reliable water flow for years.
If this guide helped you, share it with a friend tackling their own renovation! Got questions? Drop them in the comments—we’re here to help you succeed, one pipe at a time. 💧🔧
