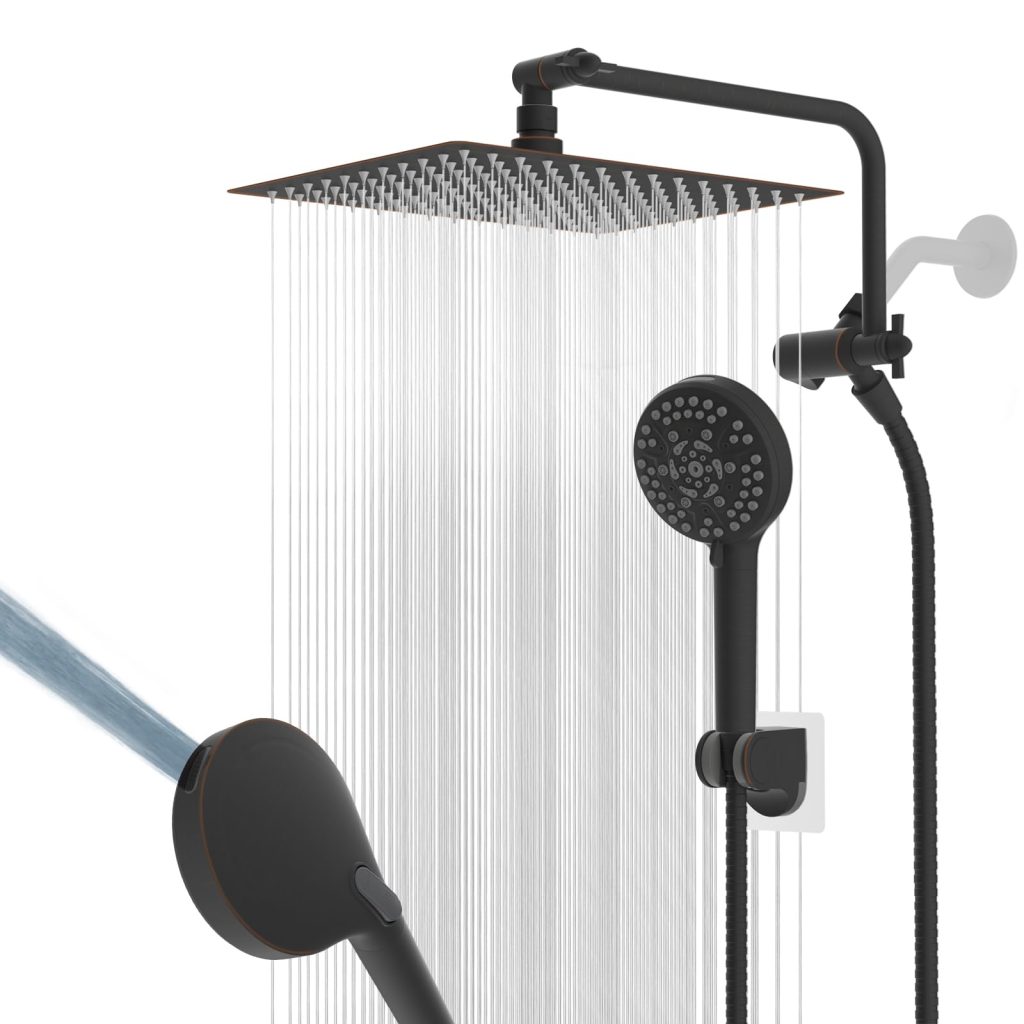

How To Plumb One Shower Head With Rain Head

Are you tired of choosing between a powerful spray and a luxurious rainfall experience? Many homeowners face this dilemma when upgrading their bathrooms. Learning how to plumb one shower head with rain head can give you the best of both worlds without breaking the bank or requiring a complete bathroom overhaul.

Why Combine a Standard Shower Head with a Rain Head?

Before diving into the plumbing process, it’s essential to understand why this combination has become increasingly popular among US homeowners. According to recent home improvement surveys, over 65% of bathroom renovators prioritize shower upgrades, with dual-head systems ranking among the top choices.

The beauty of combining a standard handheld or fixed shower head with an overhead rain head lies in versatility. You get the concentrated pressure for quick rinses and the gentle, spa-like coverage for relaxation. This setup mimics high-end hotel experiences while maintaining practicality for daily use.

What Tools and Materials Do You Need?

Successful installation begins with proper preparation. Here’s what you’ll need:

Essential Tools:

• Adjustable wrench
• Pipe wrench
• Teflon tape (plumber’s tape)
• Screwdriver set
• Drill with appropriate bits
• Level
• Measuring tape

Required Materials:

• Diverter valve (3-way or 2-way depending on your setup)
• Rain shower head (typically 8-12 inches diameter)
• Standard shower head or handheld unit
• Shower arm extensions (if needed)
• Copper pipes or PEX tubing
• Pipe fittings and connectors
• Mounting brackets

Safety Equipment:

• Safety glasses
• Work gloves

Pro tip: Always check your local building codes before starting any plumbing project. Some municipalities require permits for significant plumbing modifications.

Understanding the Plumbing Configuration

The key to successfully learning how to plumb one shower head with rain head lies in understanding the water flow configuration. Unlike single-head installations, dual systems require a diverter valve that directs water to either fixture or both simultaneously, depending on the valve type.

There are three main configuration options:

According to plumbing experts, the 3-way diverter system provides the most flexibility, though it requires adequate water pressure (minimum 40 PSI) to function optimally. You can check your home’s water pressure using a simple gauge available at hardware stores.

Step-by-Step Installation Guide

Step 1: Shut Off Water Supply and Prepare the Area

Begin by turning off the main water supply to your bathroom. Open the existing shower faucet to release any remaining pressure and drain residual water from the pipes. Lay down drop cloths to protect your bathroom floor and fixtures.

Step 2: Remove the Existing Shower Head

Using an adjustable wrench, carefully unscrew the current shower head from the shower arm. Wrap the wrench jaws with cloth to prevent scratching the finish. Clean the threads of the shower arm and inspect for corrosion or damage.

Step 3: Install the Diverter Valve

This is the most critical step in learning how to plumb one shower head with rain head. The diverter valve serves as the control center for your dual-head system.

1. Apply Teflon tape clockwise around the shower arm threads (3-4 wraps)
2. Screw the diverter valve onto the existing shower arm
3. Tighten securely but avoid overtightening, which can crack fittings
4. Ensure the valve handle is accessible and positioned comfortably

Step 4: Route Plumbing for the Rain Head

For ceiling-mounted rain heads, you’ll need to run new plumbing lines:

1. Measure the distance from your diverter valve to the desired rain head location
2. Cut copper pipe or PEX tubing to length, adding 2 inches for connections
3. Install support brackets every 4 feet along the pipe route
4. Connect the pipe to the diverter valve’s upper outlet using appropriate fittings
5. Run the pipe through wall studs or ceiling joists as needed

Important: Maintain a minimum slope of 1/4 inch per foot for proper drainage and prevent water accumulation in pipes.

Step 5: Mount the Rain Shower Head

Ceiling-mounted rain heads require secure mounting:

1. Locate ceiling joists using a stud finder
2. Mark the installation point, ensuring it’s centered over your shower area
3. Cut an access hole slightly larger than the rain head’s mounting plate
4. Secure the mounting bracket to the joist using lag screws
5. Connect the rain head to the plumbing line
6. Apply Teflon tape to all threaded connections

Standard rain heads should be mounted 7-8 feet above the shower floor for optimal coverage. For taller users, consider mounting at 8.5 feet.

Step 6: Install the Secondary Shower Head

Connect your standard or handheld shower head to the diverter valve’s secondary outlet:

1. Attach a shower arm extension if needed for proper positioning
2. Apply Teflon tape to all connections
3. Mount the shower head at comfortable height (typically 6-6.5 feet)
4. For handheld units, install the slide bar and holder according to manufacturer instructions

Step 7: Test for Leaks and Adjust Pressure

Before finishing the installation:

1. Turn the water supply back on slowly
2. Test each shower head individually
3. Check all connections for leaks
4. If using a 3-way diverter, test simultaneous operation
5. Adjust the pressure-balancing valve if water temperature fluctuates

Minor leaks usually indicate insufficient Teflon tape or loose connections. Tighten fittings gradually and retest.

Common Challenges and Solutions

Even experienced DIYers encounter obstacles. Here are frequent issues and their fixes:

Low Water Pressure:

• Check for kinks in supply lines
• Ensure pipes aren’t undersized (minimum 1/2 inch diameter recommended)
• Consider installing a pressure-boosting pump if household pressure is below 40 PSI

Leaking Connections:

• Disassemble and reapply Teflon tape (always wrap clockwise)
• Use pipe dope supplement for extra seal on problematic joints
• Replace worn washers or O-rings

Uneven Water Distribution:

• Verify the diverter valve is fully engaged in each position
• Check for blockages in shower head nozzles
• Ensure pipe diameters match throughout the system

For more detailed information about residential plumbing standards, visit Wikipedia’s article on plumbing.

Maintenance Tips for Long-Lasting Performance

Proper maintenance extends your dual shower system’s lifespan:

• Monthly: Clean shower head nozzles with vinegar solution to prevent mineral buildup
• Quarterly: Inspect all visible connections for signs of leakage
• Annually: Check water pressure and adjust if necessary
• As needed: Replace washers and seals when wear becomes apparent

Hard water areas may require more frequent cleaning. Consider installing a whole-house water softener if mineral deposits accumulate rapidly.

FAQ Section

Can I install a rain head and standard shower head without professional help?

Yes, many homeowners successfully complete this project themselves. However, if you’re uncomfortable working with plumbing systems, lack the necessary tools, or encounter complex routing challenges, hiring a licensed plumber is advisable. Local codes may also require professional installation for certain modifications.

Will adding a second shower head reduce water pressure?

It depends on your home’s water pressure and the diverter type. A quality 3-way diverter with adequate supply lines (minimum 1/2 inch) should maintain sufficient pressure for both heads. If your home has low water pressure (below 40 PSI), consider installing a pressure-boosting system or using a 2-way diverter that operates one head at a time.

How much does it cost to plumb one shower head with rain head?

DIY installations typically range from $150-$400, depending on fixture quality and materials needed. Professional installation adds $200-$500 in labor costs. Premium rain heads and complex routing can increase total costs to $800-$1,200. While expensive, this upgrade often increases home value and provides daily luxury.

What’s the ideal height for mounting a rain shower head?

The standard mounting height is 7-8 feet above the shower floor. This provides optimal coverage for most users while preventing excessive water splash outside the shower area. Adjust based on ceiling height and user preferences, but maintain at least 6.5 feet clearance for safety and functionality.

Can I use my existing shower valve with a dual-head setup?

In most cases, you’ll need to install a new diverter valve rather than modifying the existing one. Your current valve controls temperature and overall flow, while the diverter manages distribution between shower heads. Some integrated systems combine both functions, but these require more extensive installation.

How do I prevent leaks at connection points?

Proper sealing is crucial. Always use Teflon tape wrapped clockwise around male threads (3-4 layers), ensure fittings are clean and undamaged, and tighten connections firmly without overtightening. For added security on critical joints, apply pipe thread compound alongside Teflon tape. Regular inspection helps catch minor leaks before they become major problems.

Conclusion

Learning how to plumb one shower head with rain head transforms your daily routine into a spa-like experience while adding value to your home. With proper planning, the right tools, and careful execution, this project is achievable for motivated DIYers. The combination of powerful spray and gentle rainfall creates unmatched versatility that single-head systems simply cannot match.

Remember to prioritize quality materials, follow local building codes, and take your time with each step. The investment in time and money pays dividends in comfort and satisfaction every time you step into your upgraded shower.
