How to Plumb Wall for a Vanity Sink: Step-by-Step Guide

Are you planning a bathroom renovation and wondering how to plumb wall for a vanity sink plumbing? You’re not alone. Many homeowners face the challenge of installing proper water supply and drainage lines behind their new vanity, often feeling overwhelmed by the technical requirements. Getting this right is crucial—not just for functionality, but also to avoid costly leaks and water damage down the road. In this comprehensive guide, we’ll walk you through every step, from planning to final connections, so you can tackle this project with confidence.

Understanding Vanity Sink Plumbing Basics

Before diving into the actual installation, it’s essential to understand what vanity sink plumbing involves. Unlike pedestal or wall-mounted sinks, vanity sinks require both hot and cold water supply lines and a drain assembly that connects to your home’s main waste line—all hidden within or behind the wall structure.

Key Components You’ll Need

• Water supply lines: Typically ½-inch copper pipes or PEX tubing
• Shut-off valves: Angle stops for hot and cold water
• Drain assembly: Includes P-trap, tailpiece, and waste arm
• Vent pipe: Ensures proper drainage and prevents sewer gas entry
• Mounting hardware: Brackets and supports for the vanity unit

According to the International Plumbing Code, proper venting and trap installation are non-negotiable for health and safety compliance.

Planning Your Vanity Sink Plumbing Layout

Where Should Supply Lines Be Positioned?

The standard height for water supply lines is 21 inches above the finished floor, measured from the center of each valve. For a typical 30- to 36-inch wide vanity, position the hot water valve on the left and the cold water valve on the right, spaced approximately 8 inches apart (center to center).

What About Drain Placement?

The drain outlet should be centered under the sink basin, typically 18 to 20 inches above the finished floor. This height accommodates most P-trap configurations while allowing enough clearance for the vanity cabinet. Ensure the drain aligns with your existing waste line or plan for new piping if you’re relocating the vanity.

Quick Reference Table: Standard Measurements

*AFF = Above Finished Floor

Step-by-Step: How to Plumb Wall for a Vanity Sink

Step 1: Turn Off Water Supply and Prepare the Area

Safety first. Locate your home’s main water shut-off valve and turn it off completely. Open existing faucets to drain remaining water from the lines. Use a bucket and towels to catch any residual water. Mark your planned supply line and drain locations on the wall using a pencil and level.

Step 2: Cut Open the Wall

Using a drywall saw, carefully cut along your marked lines. Create an opening large enough to work comfortably—typically 12 inches wide by 18 inches tall for supply lines, and larger if you’re also installing new drain piping. Wear safety goggles and a dust mask during this process.

Step 3: Install Water Supply Lines

If you’re working with copper pipes:

1. Measure and cut copper pipes to length using a pipe cutter
2. Clean pipe ends with emery cloth
3. Apply flux to joints and solder using a propane torch
4. Install angle stop valves at the designated heights

For PEX tubing (easier for beginners):

1. Cut PEX tubes to required lengths
2. Insert fittings and secure with crimp rings using a crimping tool
3. Connect to existing supply lines using appropriate adapters

Pro tip: Always pressure-test your connections before closing the wall. Turn the water back on briefly and check for leaks.

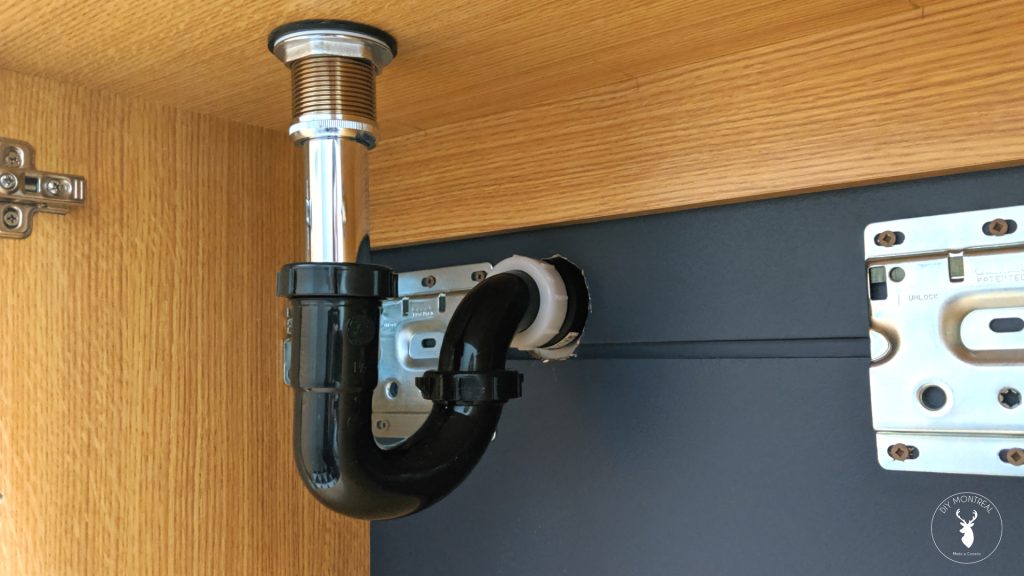

Step 4: Install the Drain Assembly

1. Attach the tailpiece to the sink drain opening
2. Connect the P-trap to the tailpiece, ensuring the curved portion faces downward
3. Extend the waste arm to connect with your main drain line
4. Use plumber’s putty or silicone sealant around the drain flange to prevent leaks

Ensure all connections are tight but not over-tightened, which can crack plastic components. The P-trap must maintain a proper seal to block sewer gases—this is a critical health requirement.

Step 5: Add Proper Ventilation

Every drain requires a vent to function correctly. If your existing vent stack is within 5 feet of the new drain, you can tie into it using a sanitary tee. Otherwise, you may need to install an Air Admittance Valve (AAV) under local code allowances. AAVs allow air into the system when needed but prevent sewer gas from escaping.

Step 6: Close Up the Wall

Once everything is tested and leak-free:

1. Insulate exposed pipes if they’re in exterior walls
2. Replace drywall patches and tape seams
3. Apply joint compound and sand smooth
4. Prime and paint to match surrounding walls

Common Mistakes to Avoid

Even experienced DIYers make errors when learning how to plumb wall for a vanity sink plumbing. Here are the most frequent pitfalls:

• Incorrect slope: Drain pipes must slope downward at ¼ inch per foot toward the main line. Too little slope causes standing water; too much can separate solids from liquids.
• Missing shut-off valves: Always install individual shut-offs for easy maintenance without affecting the entire house.
• Poor support: Secure all pipes with straps every 4 feet for horizontal runs and every 10 feet for vertical runs.
• Skipping pressure tests: Never assume connections are leak-free. Test thoroughly before closing walls.

Tools and Materials Checklist

Having the right tools makes the job significantly easier:

Essential Tools

• Pipe cutter or hacksaw
• Adjustable wrenches (two recommended)
• Propane torch and solder (for copper)
• PEX crimping tool (if using PEX)
• Level and measuring tape
• Drywall saw
• Drill with bits

Materials

• Copper pipes or PEX tubing
• Angle stop valves (×2)
• P-trap kit
• Tailpiece and waste arm
• Pipe straps and hangers
• Teflon tape and pipe dope
• Plumber’s putty or silicone

FAQ Section

Q1: Can I use PEX instead of copper for vanity sink plumbing?

A: Absolutely. PEX (cross-linked polyethylene) is increasingly popular due to its flexibility, ease of installation, and resistance to freezing. It’s approved by most building codes and often costs less than copper. However, ensure you use the correct fittings and crimping technique for reliable connections.

Q2: How deep should water lines be in the wall?

A: Water supply lines should be recessed far enough to allow drywall to sit flush against studs—typically ¾ to 1 inch from the stud face. This provides adequate protection while maintaining structural integrity.

Q3: Do I need a permit for vanity sink plumbing?

A: Requirements vary by location. Most municipalities require permits for new plumbing installations or major modifications. Check with your local building department before starting. Unpermitted work can cause issues when selling your home.

Q4: What size drain pipe do I need for a vanity sink?

A: Standard bathroom sink drains use 1¼-inch or 1½-inch diameter pipes. The 1½-inch size is more common and provides better flow, reducing clog risks. Always verify local code requirements.

Q5: How long does it take to plumb a vanity sink?

A: For an experienced DIYer, expect 4 to 8 hours for a straightforward installation. First-timers may need a full weekend, especially if encountering unexpected challenges like old piping or tight spaces.

Q6: When should I call a professional plumber?

A: Consider hiring a licensed plumber if you’re uncomfortable with soldering, if local codes are complex, or if you discover significant issues like corroded existing pipes. Professional installation typically costs $150–$450 but ensures code compliance and warranty protection.

Conclusion

Learning how to plumb wall for a vanity sink plumbing might seem daunting, but with careful planning and attention to detail, it’s entirely achievable for motivated DIYers. By following proper measurements, using quality materials, and testing thoroughly, you’ll create a reliable plumbing system that serves your bathroom beautifully for years to come.

Remember: patience and precision beat speed every time in plumbing work. Take your time, double-check measurements, and don’t hesitate to consult local codes or professionals when needed.
