Are you planning a bathroom remodel or dealing with a stubborn leak that requires moving your toilet’s waste line? It can feel overwhelming to cut into concrete or subflooring, but understanding the process is the first step toward a professional result. Knowing how to put plumbing in floor for a toilet correctly ensures long-term durability, prevents costly water damage, and keeps your home up to code. Whether you are a seasoned DIYer or a homeowner looking to understand the scope of work before hiring a pro, this guide will walk you through every essential detail.
Understanding the Basics: What Goes Under the Floor?
Before you pick up a saw or a hammer, it is crucial to understand what “plumbing in the floor” actually entails. For a toilet, this primarily refers to the drain-waste-vent (DWV) system and the flange that connects the toilet to the sewer line.
The most critical component is the closet flange. This is the pipe fitting that mounts to the floor and holds the toilet in place while connecting it to the drainpipe. If this is not installed level and secure, you risk leaks, rocking toilets, and broken wax rings.
According to the International Plumbing Code (IPC), which is adopted by many US states, the flange must be anchored securely to the structural floor, not just the finish flooring. This distinction is vital for preventing movement over time.
Tools and Materials You Will Need
Having the right tools makes the difference between a frustrating afternoon and a successful project. Here is a checklist of essentials:
- Safety Gear: Safety glasses, gloves, and a respirator (especially if cutting concrete).
- Measuring Tools: Tape measure, level, and marker.
- Cutting Tools: Reciprocating saw (for wood subfloors) or concrete saw (for slab foundations).
- Plumbing Supplies:
- 3-inch or 4-inch PVC or ABS pipe (check local code).
- Closet flange (stainless steel ring recommended for durability).
- Primer and Cement for PVC/ABS.
- Wax ring or rubber gasket.
- Fasteners: Stainless steel screws for securing the flange.
Step-by-Step: How To Put Plumbing In Floor For A Toilet
Follow these steps carefully to ensure a watertight and code-compliant installation.
Step 1: Locate and Mark the Drain Position
Precision is key. The standard distance from the finished wall behind the toilet to the center of the drain pipe is 12 inches. However, older homes may have 10-inch or 14-inch rough-ins. Measure carefully from the back wall (not the baseboard) to the center of where the new flange will sit.
- Tip: If you are moving the toilet, ensure the new location aligns with the existing soil stack or allows for a proper slope (1/4 inch per foot) to the main sewer line.
Step 2: Cut the Opening in the Floor
If you are working with a wood subfloor:
- Drill pilot holes at the corners of your marked area.
- Use a reciprocating saw to cut out the section of the subfloor.
- Ensure the hole is slightly larger than the pipe diameter to allow for adjustments.
If you are working with a concrete slab:
- Use a concrete saw to cut along your marked lines.
- Break out the concrete with a chisel and hammer.
- Dig down to expose the existing drain pipe or create space for new piping.
Step 3: Install the Drain Pipe
Connect your new drain pipe to the existing sewer line. Use appropriate fittings (such as a wye or tee-wye) to maintain proper flow.
- Slope Requirement: Ensure the horizontal pipe has a downward slope of 1/4 inch per foot toward the main drain. This gravity-fed slope is critical for preventing clogs.
- Venting: Do not forget the vent pipe. Every toilet drain must be vented to prevent siphoning of the trap seal. Connect the vent within the required distance specified by local code (usually within 6 feet for a 3-inch pipe).

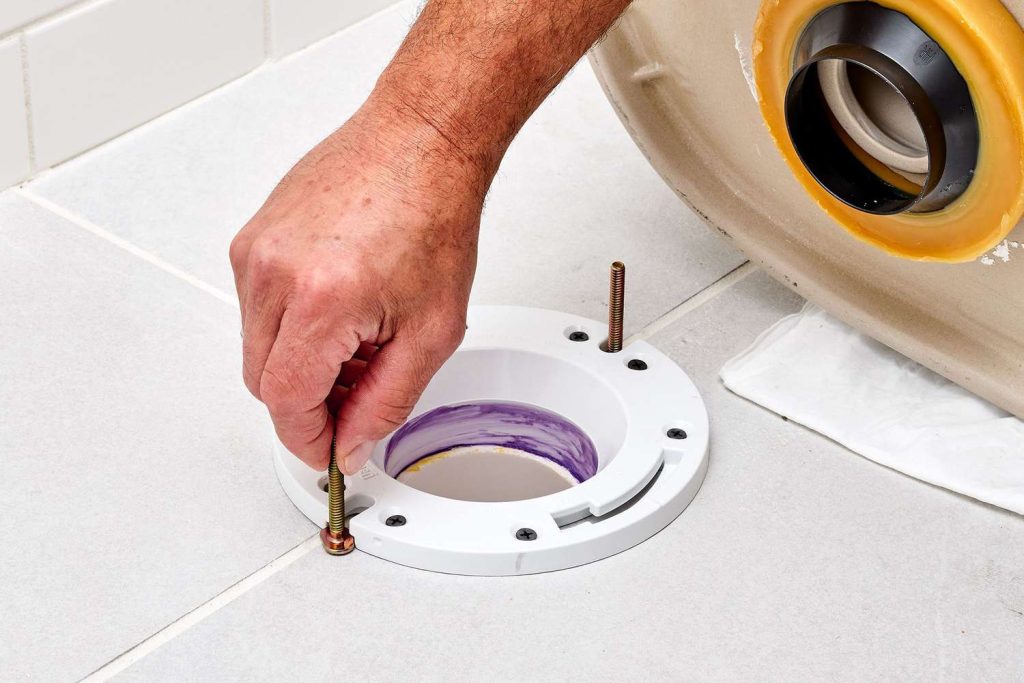

Step 4: Secure the Closet Flange
This is the most important step in learning how to put plumbing in floor for a toilet. The flange must sit on top of the finished floor, not flush with the subfloor.
- Dry-fit the flange to ensure it sits level.
- Apply primer and cement to the pipe and flange hub.
- Insert the flange and twist slightly to spread the cement.
- Once set, secure the flange to the floor using stainless steel screws. If on concrete, use concrete anchors.
- Check with a level. An unlevel flange will cause the toilet to rock.
Step 5: Test for Leaks
Before installing the toilet, plug the drain and fill the pipe with water to check for leaks at the joints. Alternatively, you can use an air test if you have the equipment. Catching leaks now saves you from tearing up the bathroom later.
Common Challenges and Solutions
Even with careful planning, issues can arise. Here is how to handle common problems:
| Challenge | Solution |
|---|---|
| Flange is too low | Use a flange extender kit or stack two wax rings (though a single extra-thick ring is preferred). |
| Pipe is off-center | Use an offset flange or a flexible toilet connector (check local code approval). |
| Concrete is too thick | Rent a core drill for precise holes rather than breaking concrete manually. |
| Old cast iron pipe | Use a no-hub coupling with stainless steel clamps to connect new PVC to old cast iron. |
Why Professional Help Might Be Needed
While DIY is rewarding, plumbing involves health and safety risks. Incorrect venting can lead to sewer gas entering your home, which contains methane and hydrogen sulfide. According to the CDC, exposure to sewer gas can cause headaches, dizziness, and nausea. If you are unsure about venting requirements or local codes, consulting a licensed plumber is a wise investment.
FAQ Section
Q1: Can I install a toilet flange directly on the subfloor?
A: No. The flange should always be installed on top of the finished floor (tile, vinyl, etc.). If installed on the subfloor, the wax ring may compress too much or not enough once the final flooring is added, leading to leaks.
Q2: What is the standard height for a toilet flange?
A: The bottom of the flange should sit flush with the top of the finished floor. If it is below the floor level, use spacers or extenders. If it is above, it may prevent the toilet from sitting flat.
Q3: Do I need a permit to move a toilet drain?
A: In most US jurisdictions, yes. Moving plumbing fixtures typically requires a permit and inspection to ensure compliance with building codes. Check with your local building department before starting.
Q4: Can I use PVC pipe for the entire installation?
A: Yes, PVC is widely accepted for DWV systems in residential construction. However, some local codes may require ABS or cast iron for specific sections. Always verify with local regulations.
Q5: How do I know if my toilet is properly vented?
A: A properly vented toilet will drain quickly without gurgling sounds. If you hear gurgling in nearby sinks or showers when flushing, it indicates a venting issue.
Q6: What size pipe is required for a toilet drain?
A: The standard size for a toilet drain pipe is 3 inches in diameter. Some older homes may have 4-inch pipes, which are also acceptable and less prone to clogging.
Conclusion
Learning how to put plumbing in floor for a toilet is a valuable skill that empowers you to take control of your home renovation projects. By following the correct steps—measuring accurately, ensuring proper slope, securing the flange, and testing for leaks—you can achieve a professional-quality installation. Remember, patience and attention to detail are your best tools.
If you found this guide helpful, please share it with your friends on social media who might be tackling their own bathroom upgrades. Happy plumbing!
