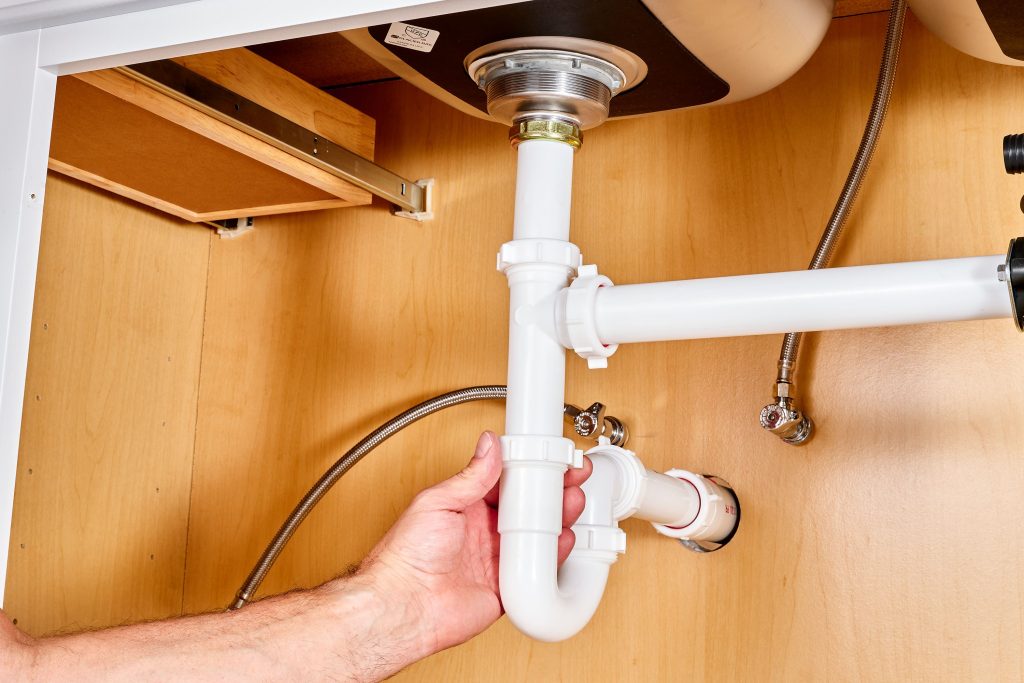

Are you planning a kitchen remodel or building a new home from the ground up? One of the most critical yet often overlooked stages is the initial plumbing setup. Getting it wrong can lead to leaks, code violations, and expensive repairs down the line. This guide will walk you through exactly how to rough in plumbing for a kitchen sink, ensuring your project starts on solid ground. Whether you are a seasoned DIYer or a homeowner looking to understand the process, this article provides the clarity and confidence you need.
Understanding the Basics: What Is “Rough-In” Plumbing?
Before we pick up a wrench, let’s define what we are doing. “Rough-in” plumbing refers to the installation of all water supply lines, drain pipes, and vent lines before the walls are closed up with drywall or paneling. At this stage, no fixtures (like the actual sink or faucet) are installed. Instead, stub-outs are left in place for final connection later.
According to general construction standards, precision is key. The International Residential Code (IRC) dictates specific heights and distances for these connections to ensure safety and functionality. Ignoring these standards can result in failed inspections. For a deeper understanding of residential code requirements, you can refer to resources like Wikipedia’s page on Plumbing Codes, which outlines the historical and technical framework governing these installations.
What Are the Standard Dimensions for Kitchen Sink Rough-Ins?
One of the most common questions homeowners ask is, “Where exactly do I put the pipes?” While local codes can vary slightly, there are industry-standard dimensions that work for 90% of kitchen layouts.
Water Supply Lines
The hot and cold water supply lines are typically centered under the sink.
- Height: The standard height for water supply stub-outs is 20 to 24 inches above the finished floor.
- Spacing: The hot water line is usually on the left, and the cold on the right, spaced about 6 to 8 inches apart from center to center.
- Offset: They should be centered relative to the sink base cabinet, usually 3 to 4 inches off the back wall to allow room for shut-off valves.
Drain and Vent Lines
The drain system is more complex because it relies on gravity.
- Height: The drain stub-out is typically located 18 to 20 inches above the finished floor.
- Diameter: Most kitchen sinks require a 1.5-inch or 2-inch drain pipe, depending on local code and whether a garbage disposal is installed.
- Venting: A vent pipe must connect to the drain line within a specific distance (usually 6 feet for a 1.5-inch pipe) to prevent siphoning and allow air to enter the system.
| Component | Standard Height (from floor) | Standard Position | Pipe Size |
|---|---|---|---|
| Hot Water Supply | 20–24 inches | Left side | 1/2 inch |
| Cold Water Supply | 20–24 inches | Right side | 1/2 inch |
| Drain Stub-out | 18–20 inches | Centered | 1.5–2 inches |
| Vent Pipe | Above flood rim level | Connected to drain | 1.5–2 inches |
Note: Always verify these measurements with your specific sink manufacturer’s template, as farmhouse sinks or under-mount styles may have different requirements.
What Tools and Materials Do You Need?
Having the right tools prevents frustration and ensures a professional finish. Here is a checklist of essentials:
- Tools:
- Tape measure and pencil
- Level (2-foot and 4-foot)
- Stud finder
- Drill and spade bits (for drilling through studs)
- Pipe cutter (for copper or PEX)
- Propane torch (if soldering copper) or crimping tool (for PEX)
- Adjustable wrenches
- Materials:
- Copper piping (Type L or M) or PEX tubing (preferred for DIY due to ease of use)
- PVC or ABS piping for drains (check local code for allowed material)
- Shut-off valves (angle stops)
- Pipe hangers and straps
- Teflon tape and pipe dope
- Escutcheon plates (to cover holes in drywall later)
Step-by-Step Guide: How To Rough In Plumbing For A Kitchen Sink
Now, let’s get into the practical application. Follow these steps carefully to ensure a leak-free and code-compliant installation.
Step 1: Plan and Mark Your Layout
Start by identifying the exact location of your sink base cabinet. Use a stud finder to locate the wall studs. Mark the center line of the sink on the wall. From this center line, measure out the positions for your hot and cold water lines and the drain stack.
Tip: Double-check your sink’s specification sheet. If you are using a double-bowl sink with a garbage disposal, you may need additional clearance for the disposal unit.
Step 2: Install the Water Supply Lines
If you are using PEX (cross-linked polyethylene), which is highly recommended for DIYers due to its flexibility and resistance to freezing:
- Cut two lengths of PEX tubing for the hot and cold lines.
- Run the lines from your main distribution manifold or existing supply lines to the sink location.
- Secure the pipes to the studs using pipe clips every 32 inches horizontally and every 4 feet vertically, as per IRC guidelines.
- Leave about 6 to 8 inches of slack protruding from the wall at the marked height (20–24 inches).
- Cap the ends temporarily to keep debris out during construction.
If you are using copper, you will need to solder fittings. Ensure you use lead-free solder for potable water lines.
Step 3: Set the Drain and Vent System
This is the most critical part of learning how to rough in plumbing for a kitchen sink. Improper slope leads to clogs.
- Install the Trap Arm: The horizontal pipe leading from the wall to the trap must have a downward slope. The standard slope is 1/4 inch per foot. Too steep, and water flows too fast, leaving solids behind; too flat, and waste doesn’t move.
- Connect the Vent: The vent pipe must rise vertically from the drain line. It should extend through the roof or connect to an existing vent stack in the attic.
- Secure the Pipes: Use metal hangers to secure PVC/ABS drain lines. Ensure no sagging occurs between supports.
- Stub-Out: Leave the drain pipe protruding from the wall at the 18–20 inch mark. Cap it securely.
Step 4: Pressure Test and Inspect
Before closing up the walls, you must test your work.
- Water Lines: Turn on the main water supply and check for leaks at all connections. If using PEX, ensure crimp rings are properly seated.
- Drain Lines: Perform a “water test” by filling the system with water to check for leaks, or an “air test” if permitted by your local inspector.
- Inspection: Schedule a rough-in inspection with your local building department. They will verify pipe sizes, slopes, and venting. Do not skip this step. Passing inspection protects your home insurance and resale value.
Common Mistakes to Avoid When Roughing In Kitchen Plumbing
Even experienced DIYers make mistakes. Here are the top pitfalls to watch out for:
- Ignoring the Slope: A drain line without the correct 1/4 inch per foot slope is a recipe for constant clogs. Use a level to verify every section.
- Wrong Pipe Diameter: Using a 1.25-inch drain for a kitchen sink is often insufficient, especially with a garbage disposal. Stick to 1.5 inches or 2 inches.
- Poor Venting: Without proper venting, your sink will gurgle and drain slowly. Ensure the vent is not blocked and is sized correctly.
- Not Accounting for Wall Thickness: Remember that your measurements are from the finished wall surface. If you haven’t installed drywall yet, account for the 1/2-inch or 5/8-inch thickness when marking stud positions.
FAQ Section
1. Can I rough in plumbing for a kitchen sink without a permit?
In most jurisdictions, any new plumbing work or significant alterations require a permit. Working without a permit can lead to fines, issues with home insurance, and problems when selling your home. Always check with your local building department.
2. What is the best pipe material for kitchen sink supply lines?
PEX (cross-linked polyethylene) is currently the most popular choice for DIYers and professionals alike. It is flexible, resistant to scale and chlorine, and easier to install than copper. However, copper remains a durable and accepted standard.
3. How high should the sink drain be from the floor?
The standard height for a kitchen sink drain stub-out is between 18 and 20 inches from the finished floor. This allows enough room for the P-trap and tailpiece while keeping the cabinet space usable.
4. Do I need a vent for every kitchen sink?
Yes, every fixture trap must be vented. However, multiple fixtures can share a single vent line if they are connected properly within the allowable distance limits specified by code.
5. What happens if the drain slope is incorrect?
If the slope is too flat, waste will accumulate and cause clogs. If the slope is too steep, water will outrun the solid waste, leaving debris behind to harden and block the pipe. Consistency is key.
6. Can I move the sink location after the rough-in is done?
Moving a sink after the rough-in is completed and walls are closed is difficult and expensive. It involves opening walls, extending or rerouting pipes, and patching drywall. It is crucial to finalize your layout before the rough-in phase.
Conclusion
Learning how to rough in plumbing for a kitchen sink is a valuable skill that can save you thousands of dollars in labor costs. By following standard dimensions, using the right materials, and adhering to local codes, you can ensure a functional and durable plumbing system. Remember, precision in the rough-in phase translates to ease during the final fixture installation.
Take your time, measure twice, and don’t hesitate to call a professional if you encounter complex venting issues. If you found this guide helpful, please share it with your friends on social media who might be tackling their own kitchen renovations. Happy building!
