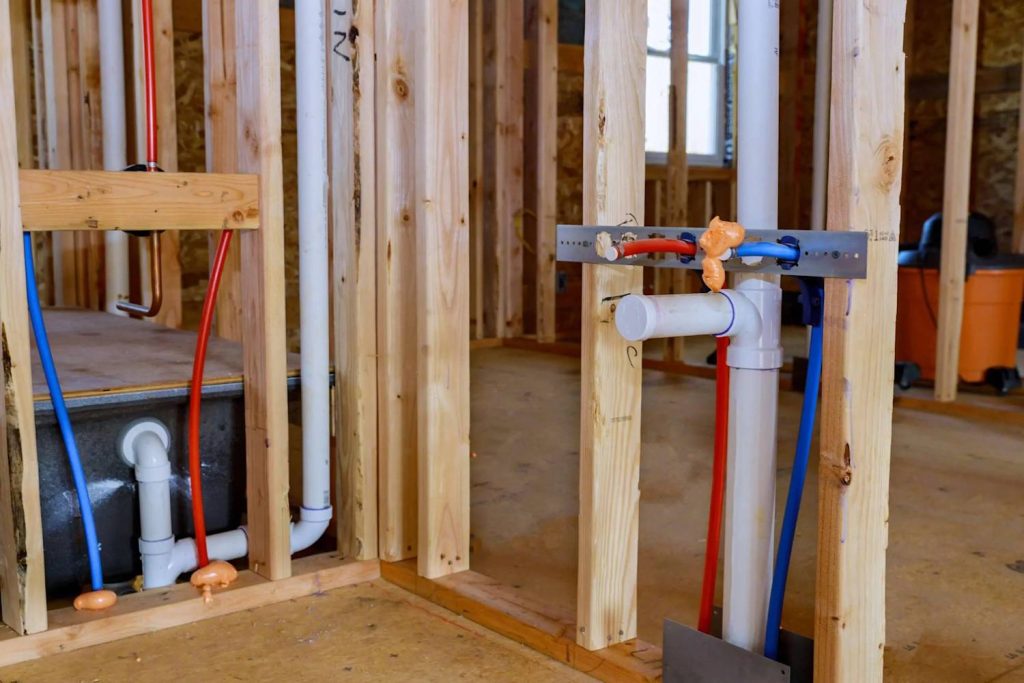

Building a new home is one of the most exciting yet stressful journeys you will ever undertake. One of the most critical phases, often hidden behind walls before the drywall goes up, is the plumbing system. If you are wondering how to rough in plumbing for a new house, you are likely looking to understand the process, ensure code compliance, or perhaps manage your subcontractors more effectively. Getting this stage right is vital because fixing mistakes later means tearing down finished walls. This guide will walk you through the essentials, helping you navigate this complex phase with confidence and clarity.
What Is Plumbing Rough-In and Why Does It Matter?
Before we dive into the tools and techniques, it is crucial to understand what “rough-in” actually means. In construction terms, the rough-in phase refers to the installation of all water supply lines, drain-waste-vent (DWV) pipes, and gas lines before the walls are closed up with drywall or plaster.
At this stage, no fixtures (like sinks, toilets, or showers) are installed. Instead, pipes are terminated at specific points where fixtures will eventually connect. This phase is the backbone of your home’s hygiene and comfort. A poorly executed rough-in can lead to low water pressure, slow drains, or even catastrophic leaks inside your walls years down the line.
According to industry standards, the plumbing rough-in must pass a rigorous inspection before any wall cavities are sealed. This ensures that every joint is secure, every vent is properly sized, and the entire system adheres to local building codes.
Essential Tools and Materials for the Job
You cannot build a sturdy house without the right foundation, and you cannot rough in plumbing without the proper toolkit. While professional plumbers have specialized equipment, understanding the basics helps you oversee the work or tackle simple tasks if you are experienced.
Key Materials
- PEX Tubing: Cross-linked polyethylene (PEX) has become the standard for water supply lines in new US homes due to its flexibility and resistance to scale and chlorine.
- Copper Pipe: Still used in many high-end builds for its durability and bacteriostatic properties, though it is more expensive and harder to install.
- PVC and ABS Pipes: These plastics are commonly used for DWV (Drain-Waste-Vent) systems. PVC is white, while ABS is black; check your local code to see which is permitted.
- Cast Iron: Sometimes required for main stack lines in multi-story homes for sound dampening.
Essential Tools
- Pipe Cutter: For clean cuts on copper or PEX.
- Propane Torch: For soldering copper joints (if using copper).
- PEX Crimping Tool: Essential for securing PEX fittings.
- Level: To ensure drain pipes have the correct slope.
- Measuring Tape and Marker: Precision is key when aligning with future fixture locations.
Step-by-Step: How To Rough In Plumbing For A New House
Roughing in plumbing is not a random act of connecting pipes; it is a calculated process that follows the architectural blueprints. Here is a logical breakdown of the process.
1. Review the Blueprints and Local Codes
Before cutting a single pipe, study the floor plans. Identify the location of every bathroom, kitchen, laundry room, and outdoor spigot. You must also familiarize yourself with the International Plumbing Code (IPC) or your local jurisdiction’s specific amendments. Codes dictate pipe sizes, venting requirements, and spacing.
2. Install the Main Water Supply and Shut-Offs
The first physical step is bringing the main water line into the house. This usually connects to the municipal supply or a well pump.
- Install the main shut-off valve immediately where the line enters the home.
- Run the primary distribution lines (often called “home runs” in PEX systems) to central manifolds or branch out to major zones.
3. Frame the DWV System
The Drain-Waste-Vent system is gravity-fed, meaning slope is everything.
- Main Stack: Install the vertical stack that will carry waste to the sewer or septic tank.
- Horizontal Drains: Run horizontal pipes from fixture locations to the main stack. These must have a slope of 1/4 inch per foot for pipes 3 inches in diameter or smaller. This ensures waste flows away efficiently without leaving solids behind.
- Venting: Every fixture trap needs a vent to prevent siphoning and allow sewer gases to escape. Vents typically extend through the roof.
4. Run Water Supply Lines
Once the drains are in place, run the hot and cold water lines.
- Hot Water Lines: Usually marked with red tape or red PEX.
- Cold Water Lines: Usually marked with blue tape or blue PEX.
- Ensure lines are secured with hangers every 4–6 feet to prevent sagging and noise (water hammer).
5. Position Fixture Stubs
This is where precision matters most. You need to leave the pipe ends (stubs) at the exact height and distance required for the final fixtures.
- Toilets: The flange bolt holes should be centered 12 inches from the finished back wall (standard rough-in dimension).
- Sinks: Supply lines are typically 20–22 inches above the floor, centered under the sink cabinet.
- Showers/Tubs: Valve bodies must be installed at the correct height (usually 48 inches for shower controls) and securely braced to the framing.
6. Pressure Test and Inspection
Before the inspector arrives, you must test the system.
- Water Supply: Pressurize the system to 60–80 PSI and check for drops in pressure over 15–30 minutes.
- DWV System: Perform an air test or water test to ensure there are no leaks in the drain pipes.
- Once tested, schedule your inspection. Do not cover any pipes until the inspector signs off.
Common Mistakes to Avoid During Rough-In
Even experienced builders can make errors. Here are the most frequent pitfalls:
| Mistake | Consequence | Solution |
|---|---|---|
| Incorrect Slope | Slow drains or clogs | Use a level to ensure 1/4″ per foot slope. |
| Poor Venting | Gurgling sounds, trap siphoning | Follow code for vent sizing and distance from traps. |
| Unsecured Pipes | Noise and potential joint failure | Use proper hangers and straps at regular intervals. |
| Ignoring Future Access | Difficult repairs later | Install access panels for valves in tight spaces. |
For more detailed technical specifications on pipe materials and safety standards, you can refer to resources like Wikipedia’s page on Plumbing, which provides a broad overview of historical and modern practices.
FAQ: Common Questions About Plumbing Rough-In
1. How long does it take to rough in plumbing for a new house?
For an average-sized single-family home (2,000–2,500 sq. ft.), the plumbing rough-in typically takes 3 to 5 days for a crew of two professional plumbers. Complex designs with multiple bathrooms or luxury features may take longer.
2. Can I do the plumbing rough-in myself?
In many US jurisdictions, homeowners are allowed to do their own plumbing work if they obtain the necessary permits and pass inspections. However, due to the complexity of DWV systems and the risk of costly errors, hiring a licensed plumber is highly recommended unless you have significant experience.
3. What is the standard height for shower valves during rough-in?
The standard height for shower valve rough-in is typically 48 inches from the finished floor to the center of the valve. However, always check the specific manufacturer’s instructions for the trim kit you plan to use, as some may vary slightly.
4. Why is venting so important in plumbing rough-in?
Venting serves two critical purposes: it allows sewer gases to escape safely through the roof, and it equalizes pressure in the drain lines. Without proper venting, water flowing down a drain can create a vacuum that siphons water out of P-traps, allowing dangerous gases into your home.
5. What happens if I fail the plumbing rough-in inspection?
If you fail inspection, the inspector will provide a list of corrections needed. You must fix these issues and schedule a re-inspection. Do not cover the pipes until you pass. Failing to comply can result in fines and delays in your construction timeline.
Conclusion
Learning how to rough in plumbing for a new house is about more than just connecting pipes; it is about creating a reliable, safe, and efficient system that will serve your home for decades. By understanding the importance of proper slope, venting, and code compliance, you can ensure that your new build stands the test of time. Whether you are managing a contractor or getting your hands dirty, attention to detail during this phase saves money and stress later.
If you found this guide helpful, please share it with your friends or family who are embarking on their own home-building journey. A well-plumbed home is a happy home!
