How To Rough In Plumbing For A Pedestal Sink

Are you renovating your bathroom or installing a new powder room? Choosing a pedestal sink adds a touch of classic elegance and saves valuable floor space, but the plumbing requirements are quite different from standard vanity cabinets. Many homeowners struggle with the precision needed because, unlike vanities, pedestal sinks offer zero storage space to hide messy pipes.

If you get the rough-in wrong, you’ll face unsightly exposed pipes or, worse, a sink that doesn’t fit against the wall. This guide will walk you through exactly how to rough in plumbing for a pedestal sink, ensuring a clean, professional, and code-compliant installation that stands the test of time.

Why Pedestal Sink Rough-Ins Are Different

Before picking up a wrench, it is crucial to understand why this task requires extra attention. Standard vanity sinks hide their P-traps and supply lines inside the cabinet. A pedestal sink, however, relies on a ceramic column to conceal the plumbing.

This means your margin for error is nearly zero. The drain pipe and water supply lines must align perfectly with the holes in the pedestal base. If they are off by even an inch, the pedestal won’t sit flush against the wall, creating gaps that collect dust and look unprofessional.

Key Differences at a Glance

Step 1: Determine the Correct Height and Location

The first step in learning how to rough in plumbing for a pedestal sink is establishing the correct height. While personal preference plays a role, industry standards exist for a reason.

Standard Height Guidelines

According to most US building codes and ergonomic studies, the standard height for a bathroom sink rim is between 30 to 34 inches from the finished floor. However, for pedestal sinks, many plumbers recommend aiming for 32 to 34 inches to ensure the pedestal looks proportional and the user doesn’t have to hunch over.

Pro Tip: Always check your local building codes. Some jurisdictions have specific requirements for accessible bathrooms (ADA compliance), which may mandate a maximum height of 34 inches.

Marking the Centerline

1. Find the center of your planned sink location on the wall.
2. Use a level to draw a vertical plumb line from the floor to above the intended sink height.
3. This line is your “truth line.” Every measurement for drains and supplies will stem from here.

Step 2: Roughing In the Drain Pipe

The drain is the most critical component. For a pedestal sink, the drain stub-out must be positioned precisely so the P-trap fits neatly inside the pedestal’s hollow core.

Ideal Drain Measurements

• Horizontal Position: The center of the drain pipe should be exactly on your vertical centerline.
• Vertical Height: The drain stub-out should typically be 18 to 20 inches above the finished floor. This height allows enough room for the P-trap while keeping it low enough to be hidden by the pedestal.
• Pipe Size: Use a 1.5-inch diameter PVC or ABS pipe for the drain. This is the standard for bathroom sinks and ensures proper flow without taking up excessive space inside the pedestal.

Installation Steps

1. Cut the drain pipe to the correct length, leaving about 1–2 inches protruding from the wall.
2. Install a sanitary tee or an appropriate elbow fitting to direct the flow downward into the main waste line.
3. Ensure the pipe is securely anchored to the wall studs. Vibration from water flow can loosen unsecured pipes over time.

For more detailed information on plumbing codes and drainage standards, you can refer to the Uniform Plumbing Code guidelines available via Wikipedia.

Step 3: Positioning the Water Supply Lines

Unlike the drain, the hot and cold water supply lines have slightly more flexibility, but they still need to be tidy. The goal is to have them enter the pedestal cleanly without kinking.

Supply Line Specifications

• Height: Position the stop valves (angle stops) approximately 20 to 22 inches above the finished floor. They should be slightly higher than the drain to prevent interference with the P-trap.
• Spacing: The hot and cold lines should be spaced 6 to 8 inches apart, centered on your vertical plumb line.
• Type: Use 1/2-inch copper, PEX, or CPVC lines. Ensure you install shut-off valves (angle stops) for easy future maintenance.

Left vs. Right Configuration

• Hot Water: Always on the left.
• Cold Water: Always on the right.

Mixing these up is a common DIY mistake that can confuse users and potentially violate code inspections.

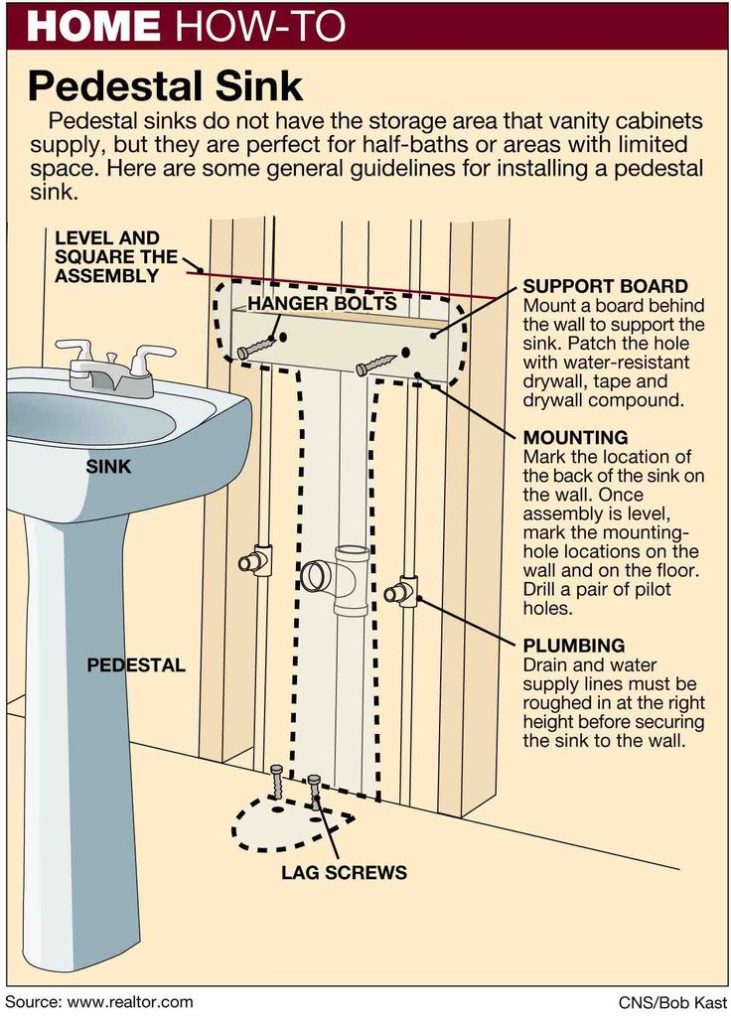

Step 4: Blocking and Wall Support

This is the step most amateurs skip, leading to wobbly sinks later. A pedestal sink does not rest its weight on the pedestal; the pedestal is merely a cover. The sink itself is bolted to the wall.

Installing Blocking

1. Identify the mounting hole locations on the back of your specific sink model (check the manufacturer’s template).
2. Install horizontal wooden blocking (2x4s) between the wall studs at the exact height where the sink’s mounting bolts will go.
3. This blocking provides the necessary structural integrity to hold the heavy ceramic sink and the force of someone leaning on it.

Without proper blocking, drywall anchors will eventually pull out, causing the sink to crack or detach—a dangerous and expensive repair.

Common Mistakes to Avoid

Even with the best intentions, errors happen. Here are the top pitfalls when figuring out how to rough in plumbing for a pedestal sink:

• Ignoring the Finished Floor Height: Always measure from the finished floor (tile, vinyl, etc.), not the subfloor. If you tile after roughing in, your heights will be off by 0.5 to 1 inch.
• Using the Wrong Trap: Do not use a deep-seal trap if space is tight. Standard 1.5-inch P-traps are designed to fit most pedestals.
• Forgetting the Vent: Ensure your drain line is properly vented. An unvented sink will gurgle and drain slowly. The vent should be within the distance limits specified by your local code (usually 5 feet for a 1.5-inch pipe).

FAQ Section

Q1: Can I move the drain pipe if it’s in the wrong spot?

A: Yes, but it requires cutting into the wall and extending or rerouting the pipe. It is much easier to get it right during the rough-in phase. If you must move it, use flexible couplings or solder new copper extensions carefully.

Q2: What if my pedestal is too narrow for the P-trap?

A: Measure the interior width of your pedestal before buying fixtures. Most standard pedestals accommodate a 1.5-inch trap. If yours is unusually narrow, consider using a “bottle trap” which has a smaller footprint, though check local codes as some areas restrict their use.

Q3: Do I need a permit to rough in plumbing for a sink?

A: In most US jurisdictions, yes. Moving water supply lines or drain pipes typically requires a plumbing permit and inspection. Always check with your local building department to avoid fines or issues when selling your home.

Q4: How far from the wall should the drain stick out?

A: The drain stub-out should protrude about 1 to 2 inches from the finished wall surface. This provides enough length to attach the tailpiece and P-trap without being so long that it hits the back of the sink basin.

Q5: Can I use PEX for the supply lines?

A: Absolutely. PEX is highly recommended for DIYers because it is flexible, resistant to freezing, and easier to install than copper. Just ensure you use the correct fittings (crimp or clamp) and support the lines properly.

Conclusion

Learning how to rough in plumbing for a pedestal sink is a rewarding DIY project that combines precision with aesthetic sensibility. By following the standard heights—18–20 inches for the drain and 20–22 inches for supplies—and ensuring robust wall blocking, you set the stage for a beautiful, functional bathroom fixture.

Remember, the key to success is measuring twice and cutting once. Take your time to align everything with your centerline, and don’t skip the permit process if required in your area.
