Are you planning a laundry room renovation or building a new home from the ground up? One of the most critical yet often overlooked steps is ensuring your water supply and drainage are positioned correctly before the drywall goes up. Knowing how to rough in plumbing for a washing machine properly can save you from costly leaks, inefficient drainage, and frustrating retrofits later on.
In this guide, we will walk you through the exact measurements, code requirements, and best practices used by professional plumbers. Whether you are a seasoned DIYer or a homeowner trying to understand the process, this article will give you the confidence to get the job done right.
Understanding the Basics of Laundry Rough-In
Before you pick up a wrench or a saw, it is essential to understand what “roughing in” actually means. In construction terms, rough-in refers to the initial installation of plumbing pipes, electrical wiring, and HVAC ducts before the interior finishes (like drywall and flooring) are installed.
For a washing machine, this involves three main components:
- Hot and Cold Water Supply Lines: These bring water into the machine.
- Drain Pipe: This removes wastewater from the machine.
- Vent Pipe: This prevents sewer gases from entering your home and allows water to drain smoothly.
According to general building standards, accuracy at this stage is non-negotiable. A misaligned drain by just a few inches can lead to siphoning issues or require expensive corrective work after the walls are closed.
What Are the Standard Heights for Washing Machine Plumbing?
One of the most common questions homeowners ask is about specific measurements. While local building codes can vary slightly, there are industry-standard heights that ensure compatibility with almost all modern washing machines.
Water Supply Valve Height
The hot and cold water shut-off valves should typically be installed between 34 and 36 inches above the finished floor.
- Why this height? Most washing machines have their water inlet connections near the top back panel. Placing the valves at this height ensures that the hoses hang down naturally without kinking or being stretched tight against the wall.
- Spacing: The valves should be spaced approximately 8 inches apart, centered around the drain pipe.
Drain Standpipe Height
The drain standpipe (the vertical pipe where the washing machine hose inserts) has stricter code requirements.
- Minimum Height: The top of the standpipe must be at least 30 inches above the trap weir (the bottom of the U-bend).
- Maximum Height: It should not exceed 42 inches above the trap weir.
- Practical Tip: Aim for a standpipe height of 36 to 42 inches from the finished floor. This range accommodates both top-loading and front-loading machines effectively.
Expert Insight: If the standpipe is too low, wastewater can siphon back into the machine. If it is too high, the pump may struggle to push water out, leading to premature motor failure.

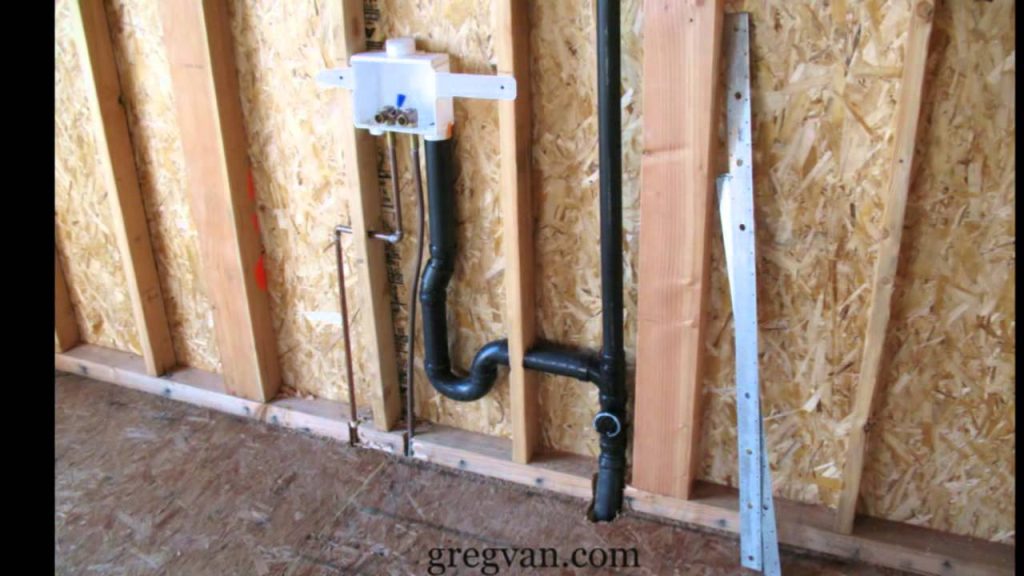

Step-by-Step Guide: How To Rough In Plumbing For A Washing Machine
Now that we understand the dimensions, let’s break down the actual installation process. Always consult your local building department for specific code amendments in your area.
Step 1: Plan Your Layout
Mark the center line of your washing machine on the wall studs. Typically, the machine is centered in a 30–36 inch wide alcove. Mark the location for the drain pipe in the center, with water supplies 4 inches to the left and right.
Step 2: Install the Drain Line
- Cut the Hole: Cut a hole in the bottom plate of the wall frame for the 2-inch drain pipe.
- Install the P-Trap: Connect a 2-inch P-trap to the horizontal drain line. Ensure the trap arm slopes downward toward the main stack at a rate of 1/4 inch per foot.
- Attach the Standpipe: Connect a vertical 2-inch pipe to the P-trap. This is your standpipe. Extend it to your desired height (36–42 inches).
- Cap It Temporarily: Cap the top of the standpipe to prevent debris from falling in during construction.
Step 3: Run the Water Supply Lines
- Choose Your Material: Copper, PEX, or CPVC are common choices. PEX is increasingly popular due to its flexibility and ease of installation.
- Run the Pipes: Run hot and cold water lines from your main supply to the washing machine location.
- Install Shut-Off Valves: Install individual shut-off valves for both hot and cold lines. Use brass fittings for durability.
- Positioning: Secure the valves to the studs so they protrude slightly beyond the future drywall surface. This makes connecting the hoses easier later.
Step 4: Venting the Drain
Proper venting is crucial to prevent airlocks. You can use an Air Admittance Valve (AAV) if connecting to a main vent stack is difficult, but a traditional vent pipe connected to the roof is preferred by many inspectors. Ensure the vent connects to the drain line downstream of the P-trap.
Step 5: Pressure Test and Inspection
Before closing the walls:
- Turn on the water supply and check for leaks at all joints.
- Pour water down the standpipe to ensure the P-trap holds water and drains freely.
- Schedule a rough-in inspection with your local building authority if required by code.
Common Mistakes to Avoid When Roughing In Laundry Plumbing
Even experienced DIYers can make errors. Here are the most frequent pitfalls:
| Mistake | Consequence | Solution |
|---|---|---|
| Standpipe too short | Wastewater siphons out of the trap, allowing sewer gas in. | Ensure standpipe is min. 30″ above trap weir. |
| Standpipe too tall | Washing machine pump burns out trying to push water up. | Keep standpipe under 42″ above trap weir. |
| Using 1.5″ drain pipe | Modern high-efficiency machines discharge water too fast, causing overflow. | Always use a 2-inch drain pipe. |
| No individual shut-offs | Difficult to service machine without shutting off water to the whole house. | Install dedicated hot/cold valves. |
For more detailed information on plumbing codes and standards, you can refer to the International Plumbing Code guidelines available on Wikipedia.
Tools and Materials Checklist
To complete this project efficiently, gather the following items:
- Pipes: 2-inch PVC or ABS for drain; 1/2-inch PEX or Copper for supply.
- Fittings: P-trap, elbow joints, tees, and couplings.
- Valves: Two quarter-turn ball valves (hot and cold).
- Tools: Pipe cutter, deburring tool, PVC primer and cement (or PEX crimping tool), level, tape measure, and stud finder.
- Safety Gear: Safety glasses and gloves.
FAQ Section
Q1: Can I use a 1.5-inch pipe for the washing machine drain?
A: No. Most modern building codes require a 2-inch diameter drain pipe for washing machines. Older homes might have 1.5-inch pipes, but high-efficiency washers release large volumes of water quickly, which can overwhelm a smaller pipe and cause flooding.
Q2: Do I need a dedicated circuit for my washing machine?
A: While this is an electrical question, it is relevant to the rough-in phase. The National Electrical Code (NEC) requires a dedicated 20-amp circuit for laundry rooms. Ensure your electrician roughs this in simultaneously with your plumbing.
Q3: What is the difference between a standpipe and a utility sink drain?
A: A standpipe is a vertical pipe specifically designed for a washing machine hose. A utility sink has its own drain assembly. If you are installing both, they can sometimes share a common drain line, but each must have its own trap and proper venting.
Q4: How far can the washing machine be from the main stack?
A: This depends on the pipe diameter and slope. Generally, a 2-inch drain can travel up to 8 feet horizontally before needing a vent, but local codes vary. Always check with your local inspector for maximum distances.
Q5: Should I install a flood pan under the washing machine?
A: It is highly recommended, especially if the laundry room is on an upper floor. A flood pan catches minor leaks and directs them to a drain or alerts you via a sensor, preventing significant water damage to ceilings below.
Q6: Can I move the plumbing after the drywall is up?
A: Yes, but it is significantly more expensive and invasive. You would need to cut open the drywall, potentially damage finished flooring, and patch everything afterward. Getting the rough-in right the first time is always the best approach.
Conclusion
Learning how to rough in plumbing for a washing machine is a valuable skill that ensures your laundry room functions efficiently for years to come. By adhering to the standard heights—34–36 inches for water valves and 36–42 inches for the drain standpipe—and using the correct 2-inch piping, you set yourself up for success.
Remember, precision during the rough-in phase prevents headaches during the final installation. Take your time, double-check your measurements, and don’t hesitate to call a licensed plumber if you encounter complex venting issues.
