Are you planning a bathroom renovation or building a new home from scratch? The thought of dealing with pipes behind the walls can feel overwhelming, especially if you are worried about making costly mistakes that lead to leaks down the road. You are not alone; many homeowners hesitate at this stage, but mastering how to rough in plumbing for new bathroom PEX is actually more accessible than you might think. With the right tools and a clear plan, you can create a durable, efficient system that saves you money on materials and labor while ensuring your bathroom functions perfectly for decades.
Why Choose PEX for Your Bathroom Rough-In?
Before we dive into the tools and measurements, it is crucial to understand why PEX (Cross-linked Polyethylene) has become the gold standard for modern residential plumbing. Unlike traditional copper or PVC, PEX offers flexibility, resistance to scale and chlorine, and fewer connections, which significantly reduces the risk of leaks.
According to industry data, PEX installation can be up to 50% faster than copper piping because it requires fewer fittings and no soldering. This speed translates directly into cost savings for both DIYers and professional contractors. Furthermore, PEX expands when water freezes, making it less likely to burst in cold climates compared to rigid pipes. For a detailed history of polymer development in construction, you can refer to Wikipedia’s entry on Cross-linked polyethylene.
Essential Tools and Materials Checklist
Success in any plumbing project begins with preparation. Having the right tools on hand prevents mid-project trips to the hardware store and ensures clean, professional-grade connections.
Tools You Will Need:
- PEX Crimping Tool: Ensure it matches the size of your pipe (usually 1/2-inch and 3/4-inch).
- PEX Cutter: A sharp, dedicated cutter ensures square cuts, which are vital for leak-free seals.
- Go/No-Go Gauge: This small tool verifies that your crimps are tight enough to hold pressure.
- Stud Finder and Level: For accurate placement of supply lines and drain holes.
- Drill and Spade Bits: For boring holes through studs and joists.
- Pipe Insulation: To prevent condensation and heat loss.
Materials List:
- PEX Tubing (Red for hot, Blue for cold, or White with color rings).
- Brass or Plastic Fittings (Elbows, Tees, Couplings).
- Copper Crimp Rings.
- Pipe Straps and Hangers.
- Valve Boxes (for shower and sink shut-offs).
Step 1: Planning Your Layout and Measuring Distances
The most critical phase of learning how to rough in plumbing for new bathroom PEX is the layout. Poor planning leads to wasted material and awkward pipe runs that are difficult to cover later. Start by sketching a simple diagram of your bathroom, marking the exact locations of the toilet, vanity, shower, and tub.
Key Measurements to Remember:
- Toilet Flange: Centered 15 inches from the side wall (standard clearance) and 12 inches from the finished back wall (rough-in distance).
- Vanity Sink: Supply lines typically 20–22 inches above the finished floor, centered under the faucet.
- Shower/Tub Valve: Usually positioned 48–52 inches above the finished floor, depending on local code and user height.
Always check your local building codes, as they may have specific requirements for spacing and pipe sizing. A common mistake is forgetting to account for the thickness of drywall and tile. Always measure from the finished wall surface, not the stud face.
Step 2: Drilling Holes and Running the Main Lines
Once your layout is marked on the studs, it is time to drill. Use a spade bit that is slightly larger than the diameter of your PEX pipe to allow for expansion and contraction.
Best Practices for Drilling:
- Stay Central: Drill holes in the center of the stud to maintain structural integrity. Avoid drilling within 1.25 inches of the edge of the stud unless you use a protective steel plate.
- Protect the Pipe: If you must drill near the edge, install nail plates to prevent accidental punctures during drywall installation.
- Smooth Edges: Deburr any rough wood edges in the hole to prevent abrasion on the PEX tubing over time.
Run your main hot and cold lines from the water heater and main supply respectively. Use red PEX for hot water and blue for cold to avoid confusion later. Secure the pipes every 32 inches using plastic pipe straps, ensuring they are snug but not so tight that they restrict movement.
Step 3: Installing Fixtures and Valves
This step involves connecting the PEX lines to the specific fixtures. Precision here is key to ensuring everything fits when you install the final trim.
Toilet Supply: Install a stop valve approximately 6–8 inches above the floor, offset slightly to the right or left of the flange center to accommodate the supply line connection.
Vanity Sink: For a double-sink vanity, run a continuous line across the back wall and tee off for each sink. Install angle stops for both hot and cold lines. Ensure the vertical drop from the counter level allows enough slack for the faucet connections.

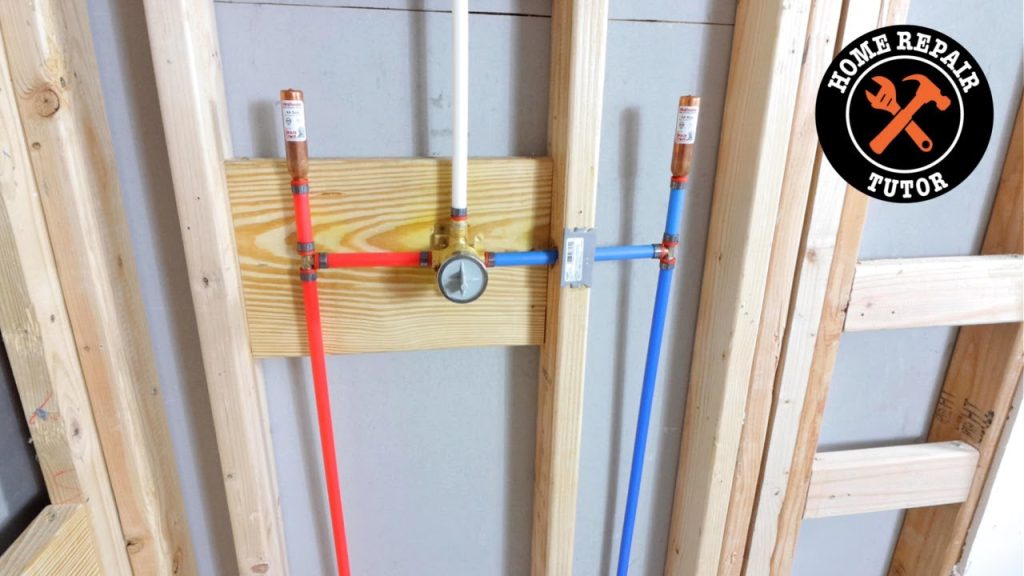

Shower and Tub: This is often the most complex part. Install a valve box to protect the mixing valve. The valve should be flush with the future finished wall surface. Use an elbow fitting to bring the pipe out horizontally, then cap it temporarily. Tip: Leave extra length (about 6 inches) coiled neatly behind the wall to allow for adjustments during final trim installation.
Step 4: Making Connections and Crimping
Now comes the technical part: joining the PEX tubes. The crimp method is popular for its reliability and ease of use.
How to Crimp Correctly:
- Cut the PEX tube squarely using a PEX cutter. A jagged cut will compromise the seal.
- Slide a copper crimp ring onto the tube.
- Insert the fitting fully into the tube. Ensure the tube goes all the way to the shoulder of the fitting.
- Position the crimp ring about 1/8 to 1/4 inch from the end of the tube.
- Squeeze the crimping tool firmly until the jaws close completely.
- Verify: Use the Go/No-Go gauge. The “Go” side should fit over the crimp, and the “No-Go” side should not.
| Connection Type | Pros | Cons | Best For |
|---|---|---|---|
| Crimp | Inexpensive tools, reliable | Permanent, hard to remove | DIYers, tight spaces |
| Clamp (Cinch) | Easy to inspect, reusable tool | Slightly more expensive rings | High-volume work |
| Push-to-Connect | No tools needed, fast | Most expensive per fitting | Quick repairs, tight spots |
Step 5: Pressure Testing Your System
Never close up your walls without testing. A leak inside a wall is a nightmare to fix. Connect a pressure test pump to your system and pressurize it to 100 PSI (or as required by local code).
Let the system sit for at least 15–30 minutes. Check every single connection for drops in pressure or visible moisture. If the pressure holds steady, you have successfully completed the rough-in. If it drops, listen for hissing sounds or use soapy water on joints to find bubbles indicating a leak.
FAQ Section
Q: Can I use PEX for outdoor plumbing? A: Standard PEX is not UV resistant. If exposed to sunlight, it will degrade and become brittle. Always keep PEX indoors or shielded from direct sunlight. If outdoor use is necessary, use insulated, UV-resistant covers.
Q: What is the maximum distance between supports for PEX? A: Generally, horizontal PEX lines should be supported every 32 inches, and vertical lines every 4 feet. However, always consult your local building code, as some jurisdictions require closer spacing.
Q: Do I need a permit to rough in plumbing? A: In most US municipalities, yes. Plumbing work affects health and safety, so a permit ensures your work meets code standards. Skipping this can lead to fines and issues when selling your home.
Q: Can I connect PEX directly to my water heater? A: Most manufacturers recommend using at least 18 inches of copper pipe or a specialized dielectric union before connecting PEX to the water heater. This prevents heat damage to the PEX and reduces corrosion.
Q: How long does it take to rough in a bathroom? A: For an experienced DIYer, roughing in a standard bathroom with three fixtures (toilet, sink, shower) typically takes 1–2 days. Beginners may take 3–4 days to ensure accuracy.
Conclusion
Learning how to rough in plumbing for new bathroom PEX empowers you to take control of your home improvement projects. By choosing PEX, you benefit from a flexible, durable, and cost-effective material that simplifies the installation process. Remember, careful planning, precise measurements, and thorough pressure testing are the pillars of a successful job.
