Building a straw bale home is a rewarding journey toward sustainability, but integrating modern utilities into organic walls can feel daunting. Many DIY builders worry about compromising the structural integrity or moisture resistance of their bales when installing essential services. If you are wondering how to wire and plumb a straw bale house without creating mold risks or fire hazards, you are in the right place. This guide breaks down the process into manageable, code-compliant steps to ensure your natural home is safe, efficient, and comfortable.

Why Standard Methods Don’t Work for Straw Bales

Before diving into the “how,” it is crucial to understand why you cannot simply nail wires to studs or drill holes randomly through bales. Straw is an organic material that is highly susceptible to moisture and compression.

• Moisture Risk: Traditional plumbing leaks inside a wall cavity can rot wooden frames quickly. In straw bale construction, trapped moisture leads to decomposition and mold, which compromises both health and structure.
• Compression Issues: Straw bales settle over time. Rigid pipes or wires attached directly to the bale surface can become loose, damaged, or cause uneven settling.
• Fire Safety: While dense straw is surprisingly fire-resistant, loose straw dust is not. Proper containment of electrical sources is non-negotiable.

According to building science principles, the key to longevity in natural buildings is keeping the structure dry and breathable.

How to Plan Your Electrical Layout

Planning is 80% of the battle. Unlike conventional framing where you have open cavities between studs, straw bale walls require strategic channeling.

Step 1: Choose Your Conduit Strategy

You should never run loose Romex (NM-B) cable directly through straw. Instead, use Electrical Metallic Tubing (EMT) or rigid PVC conduit. These materials protect the wires from rodents, moisture, and physical damage.

Step 2: Map Your Channels

Mark your outlet and switch locations on the plaster surface before cutting. Ensure boxes are spaced at least 12 inches apart horizontally to maintain the structural integrity of the bale.

Pro Tip: Always consult local electrical codes. In many US jurisdictions, straw bale homes fall under alternative building codes, but electrical standards usually align with the National Electrical Code (NEC).

Step-by-Step: Installing Electrical Wiring

Follow these precise steps to install wiring safely.

1. Cut the Channels: Using a sharp bale needle or a specialized chisel, carve out channels in the straw where the conduit will sit. The channel should be slightly deeper than the conduit diameter to allow for plaster coverage.
2. Insert the Conduit: Place your EMT or PVC pipe into the channel. Secure it temporarily with bamboo skewers or long nails driven into the wooden frame posts (not just the straw).
3. Pull the Wires: Once the conduit is secure, pull your THHN/THWN wires through. Leave at least 6–8 inches of slack at each box location for connections.

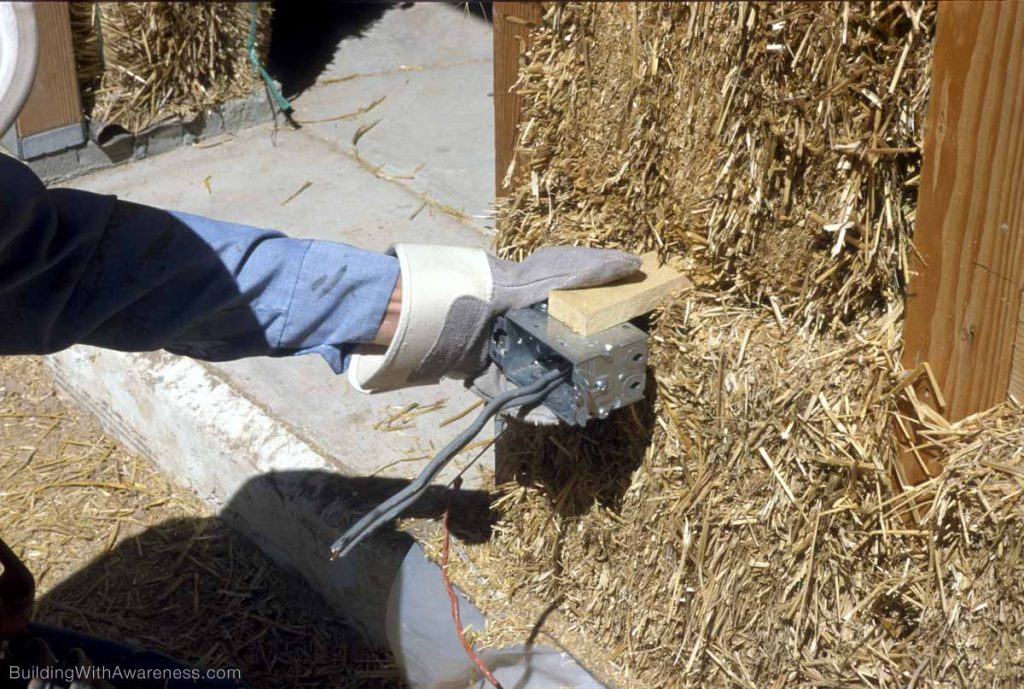

4. Install Boxes: Use deep electrical boxes designed for masonry or thick walls. Secure them to the wooden structural posts behind the bales using long screws. Never hang a heavy fixture box solely on the straw.
5. Seal and Plaster: Before applying the final plaster coat, seal the entry points of the conduit into the boxes with fire-rated caulk. This prevents air leakage and pest entry.

For more detailed information on sustainable building materials, you can refer to general construction principles on Wikipedia.

How to Plumb a Straw Bale House Safely

Plumbing presents a higher risk than electrical work because water is the enemy of straw. The golden rule is: Keep water lines accessible and isolated from the bales whenever possible.

Option A: Interior Partition Walls (Recommended)

The safest method is to run all major water supply and drain lines through interior partition walls built with conventional wood framing (2×4 or 2×6 studs). This keeps the straw bale exterior walls free from penetration risks.

Option B: Running Lines Through Bale Walls

If you must run pipes through exterior bale walls, follow this strict protocol:

1. Use PEX Tubing: Cross-linked polyethylene (PEX) is flexible, resistant to freezing expansion, and has fewer joints than copper, reducing leak risks.
2. Create a Chase: Build a wooden “chase” or box frame within the wall thickness. This creates a hollow tunnel for the pipes, ensuring they do not touch the straw directly.
3. Insulate Aggressively: Wrap all hot and cold water lines with closed-cell foam insulation. This prevents condensation on cold lines, which can drip onto the straw.
4. Slope Drain Lines Correctly: Ensure all waste lines have a minimum slope of 1/4 inch per foot to prevent clogs and standing water.

Dealing with Fixtures

When installing sinks or showers against a bale wall:

• Build a knee wall or a false wall using metal studs or wood framing in front of the bale.
• Run all plumbing inside this false wall.
• Apply a waterproof membrane (like Kerdi or RedGard) behind tiles in wet areas.

Critical Considerations for Moisture Control

Moisture management is the single most important factor in straw bale longevity.

• Vapor Barriers: Avoid using plastic vapor barriers inside bale walls. Straw needs to breathe. Use vapor-permeable plasters (lime or clay-based) rather than cement-based stucco, which can trap moisture.
• Roof Overhangs: Ensure your roof has wide overhangs (at least 2 feet) to keep rain off the walls. This reduces the load on your plumbing and electrical exterior penetrations.
• Leak Detection: Install smart water leak detectors near all plumbing entries. Early detection can save your home from catastrophic damage.

FAQ: Common Questions About Straw Bale Utilities

1. Can I run electrical wires directly through the straw?

No. You must use conduit (EMT or PVC). Direct burial of wires in straw violates most electrical codes and poses a significant fire and rodent risk.

2. What type of plaster is best for covering conduits?

Lime-based or clay-based plasters are ideal. They are vapor-permeable, allowing any minor moisture within the wall to escape, unlike hard cement stucco which can crack and trap water.

3. How do I prevent pipes from freezing in straw bale walls?

Straw bale walls have excellent insulation value (R-30 to R-50), but pipes should still be insulated. Run hot and cold lines together in the same insulated chase, and consider adding heat tape in extremely cold climates.

4. Is it harder to get insurance for a straw bale home?

It can be challenging, but not impossible. Insurance companies look for code compliance. Having your electrical and plumbing work inspected and certified by licensed professionals is crucial for obtaining coverage.

5. Can I use standard electrical boxes?

Standard boxes may be too shallow. Use “old work” boxes or masonry boxes that are deeper to accommodate the thickness of the plaster and the conduit behind it.

6. What is the biggest mistake beginners make?

The biggest mistake is penetrating the weather-resistant barrier (if used) or the plaster skin without proper sealing. Every hole for a pipe or wire must be sealed air-tight and water-tight with high-quality caulk.

Conclusion

Learning how to wire and plumb a straw bale house requires a shift in mindset from conventional construction. It demands respect for the material’s organic nature and a rigorous approach to moisture management. By using conduit for electrical work, isolating plumbing in chases or interior walls, and choosing breathable finishes, you can build a home that is not only eco-friendly but also safe and durable for generations.

Remember, while DIY spirit is admirable, always hire licensed professionals for the final connections and inspections. Your safety and legal compliance depend on it.
