Have you ever stared at a complex set of blueprints, feeling overwhelmed by the maze of lines and symbols, wondering if your dream bathroom renovation will actually work? You are not alone. Many homeowners and even junior contractors struggle with indicating rough in plumbing for bathroom in construction plan, often leading to expensive mid-project changes or code violations.
Getting this stage right is critical because once the drywall is up, fixing a misplaced drain or supply line is a nightmare. This guide will walk you through exactly how to read and create accurate plumbing layouts, ensuring your project runs smoothly from the first hammer swing to the final faucet installation.
Why Accurate Plumbing Plans Matter More Than You Think
Before we dive into the symbols, it is essential to understand the stakes. Rough-in plumbing is the “skeleton” of your bathroom’s water system. It happens after the framing is complete but before the walls are closed up.
According to industry data, plumbing errors account for nearly 15% of all construction rework costs in residential projects. A mistake here isn’t just about a leaky pipe; it’s about structural integrity, mold prevention, and meeting strict local building codes.
When you are indicating rough in plumbing for bathroom in construction plan, you are creating the roadmap for the plumber. If the map is wrong, the destination (a functional bathroom) becomes unreachable without significant expense.
Decoding the Language: Standard Plumbing Symbols
Construction plans use a universal language of symbols to save space and reduce ambiguity. If you cannot read these, you cannot verify the plan.
Supply Lines vs. Drain Lines
Supply Lines: These are typically drawn as single solid lines. Cold water is often indicated with a blue dash or the letter “C,” while hot water uses a red dash or “H.” In modern CAD drawings, they may simply be labeled “HW” and “CW.”
Drain/Waste/Vent (DWV): These are usually thicker lines. The main waste line is often dashed or dotted to distinguish it from water supply lines.
Fixture Symbols
Each fixture has a specific representation:
Toilet: Usually a circle or oval representing the flange, with a rectangular outline for the tank.
Sink/Vanity: A rectangle with a circle inside (the drain).
Shower/Tub: A square or rectangle with an ‘X’ or a circle indicating the drain location.
Pro Tip: Always check the “Legend” or “Key” sheet of your blueprint. While there are national standards, individual architects may use slight variations.

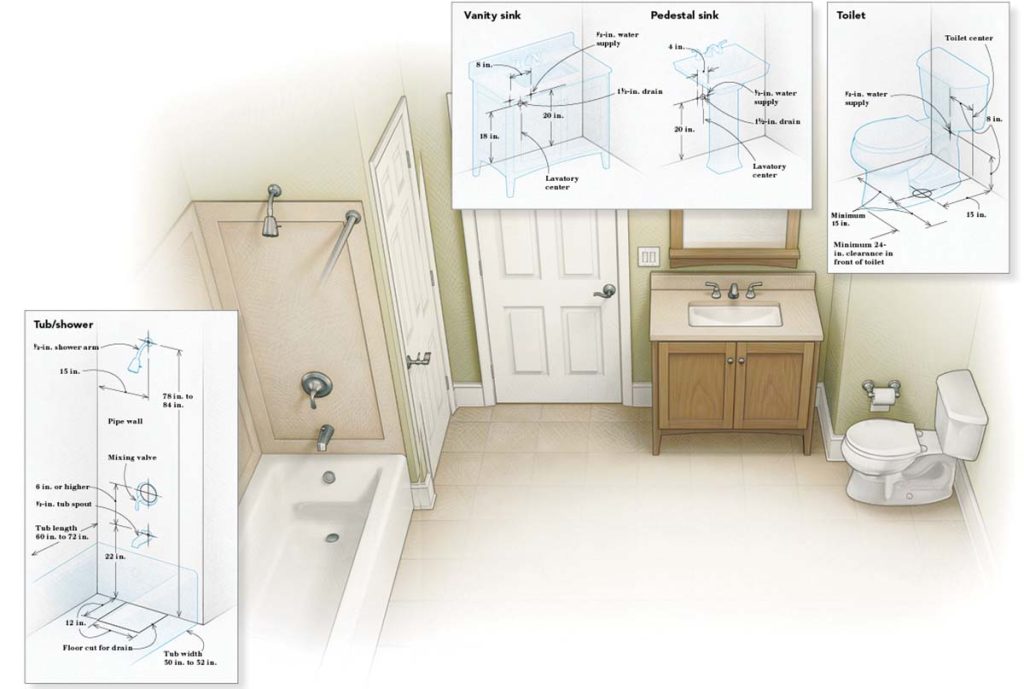

The most common error involves the toilet. The center of the waste flange must be exactly 12 inches from the finished back wall. Note that this is from the finished wall, not the stud. If you have half-inch drywall, you measure 12.5 inches from the stud face. Failing to account for this leads to toilets that sit too far from the wall or don’t fit at all.
Step-by-Step: How to Indicate Rough-In on Your Plan
If you are drafting your own plan or reviewing one from a contractor, follow this logical workflow.
Step 1: Locate the Main Stack
Identify where the main soil stack (the large vertical pipe) exits the house. All new bathroom fixtures should connect to this stack or an existing branch line with minimal distance to ensure proper gravity flow.
Step 2: Map the Drainage First
Drainage is harder to move than supply lines because it requires a specific slope (pitch).
Slope Requirement: Drain pipes must slope downward at 1/4 inch per foot toward the main stack.
Indicate the direction of flow with arrows on your plan.
Ensure the shower drain is positioned correctly within the shower pan footprint.
Step 3: Add Water Supply Lines
Once drains are set, map the hot and cold water lines.
Keep runs as short as possible to reduce heat loss and water wait time.
Indicate shut-off valves for each fixture. This is crucial for future maintenance.
Step 4: Venting Requirements
Every fixture trap needs a vent to prevent sewer gases from entering the home and to allow wastewater to flow smoothly.
Indicate vent stacks rising vertically through the roof.
Even experienced DIYers make these errors when indicating rough in plumbing for bathroom in construction plan.
1. Ignoring Clearance Codes
The International Residential Code (IRC) requires a minimum of 21 inches of clear space in front of any toilet, bidet, or sink. Mark this “clearance zone” on your plan with a dashed line. If a door swings into this zone, the plan fails inspection.
2. Confusing “Rough-In” with “Finish”
Remember, rough-in dimensions are for the pipes, not the final trim.
Example: The shower valve rough-in is at 48 inches, but the final handle plate might sit slightly differently depending on the tile thickness. Always specify “Face of Stud” measurements in your notes.
3. Overlooking Future Access
If you are installing a tub/shower combo, consider where the access panel will be. If the plumbing is against an exterior wall, you may need to indicate an access point from the outside or design an interior closet for access.
Materials and Methods: What to Specify
Your plan should also note the type of piping material, as this affects connection methods and local code acceptance.
PEX (Cross-linked Polyethylene): The current industry standard for supply lines. It is flexible, resistant to scale and chlorine, and easier to install than copper.
Copper: Traditional, durable, but more expensive and labor-intensive. Still required in some commercial applications or specific local jurisdictions.
PVC/ABS: Used for drain lines. PVC is white and glued; ABS is black and cemented. Check your local code, as some areas prohibit ABS.
Comparison Table: PEX vs. Copper for Supply Lines
Feature
PEX
Copper
Cost
Low
High
Installation Speed
Fast (fewer fittings)
Slow (soldering required)
Freeze Resistance
High (expands)
Low (can burst)
Longevity
50+ years
50+ years
Code Acceptance
Widely Accepted
Universally Accepted
FAQ Section
Q1: Can I move a toilet drain easily during a remodel?
A: No, moving a toilet drain is one of the most difficult plumbing tasks. It involves cutting into the concrete slab (if on grade) or modifying floor joists (if on a second story). It is best to design your plan around the existing stack location whenever possible.
Q2: How deep should I mark the shower valve on the plan?
A: Standard shower valves are typically installed so that the face of the valve box is flush with the finished wall surface. On your plan, specify the height from the subfloor (usually 48–52 inches) and note that the plumber should account for tile/backer board thickness.
Q3: Do I need a permit for rough-in plumbing?
A: Yes, almost all jurisdictions in the US require a permit for rough-in plumbing. This ensures that a certified inspector verifies the work before it is covered by drywall. Unpermitted work can void insurance and cause issues when selling your home.
Q4: What is the minimum slope for a shower drain pipe?
A: The standard minimum slope for horizontal drain piping is 1/4 inch per foot. For shower pans specifically, the floor itself must slope 1/4 inch per foot toward the drain to prevent standing water.
Q5: How far apart should the hot and cold water lines be for a sink?
A: Standard center-to-center spacing for sink supply lines is 8 inches. However, many modern faucets come with flexible supply lines, allowing for some variation. Sticking to 8 inches is a safe bet for standard installations.
Q6: Can I use 90-degree elbows for drain lines?
A: Generally, no. Sharp 90-degree turns can cause clogs. Instead, use two 45-degree elbows to create a gentle sweep, or use a long-sweep 90-degree elbow. This maintains better flow and reduces the risk of blockages.
Conclusion
Mastering the art of indicating rough in plumbing for bathroom in construction plan is the difference between a seamless renovation and a costly disaster. By understanding the symbols, adhering to standard measurements, and respecting local codes, you empower yourself to communicate effectively with your contractor and inspectors.
Remember, a well-drawn plan is your best defense against budget overruns. Take the time to double-check those toilet flange distances and shower valve heights now, and you’ll thank yourself later when your bathroom functions perfectly for years to come.
