Names Labeled Type Of Plumbing Used Under Sink Drain: The Complete Guide

Have you ever looked under your kitchen or bathroom sink and felt completely overwhelmed by the maze of plastic tubes, metal curves, and mysterious connectors? You are not alone. For many homeowners, identifying the specific components in that cramped cabinet is the first step toward fixing a leak or upgrading a fixture without calling an expensive professional. Understanding the Names Labeled Type Of Plumbing Used Under Sink Drain empowers you to communicate effectively with hardware store staff and tackle minor repairs with confidence.

In this comprehensive guide, we will decode the jargon, explain the function of each part, and provide you with the knowledge needed to maintain your home’s plumbing system efficiently.

What Are the Main Components Under a Sink?

When you open the cabinet door beneath your sink, you are looking at a carefully engineered system designed to carry wastewater away while preventing sewer gases from entering your home. While configurations can vary based on the age of your home and local building codes, most modern setups share common elements.

The primary assembly is often referred to as the “trap assembly.” It connects the sink basin to the wall or floor drain pipe. Here are the key players you need to know:

1. The Tailpiece: This is the vertical pipe that extends directly down from the sink strainer or stopper assembly. It is usually made of chrome-plated brass in older homes or PVC/plastic in newer installations.
2. The P-Trap: Named for its distinctive “P” shape, this curved pipe holds a small amount of water. This water seal acts as a barrier, blocking noxious sewer gases from rising up through the drain.
3. The Slip Joint Nuts: These are the threaded rings that hold the pipes together. They allow for easy disassembly for cleaning or repairs without needing soldering or glue.
4. The Drain Arm (or Trap Arm): This horizontal pipe connects the P-trap to the main drain line in the wall or floor.

Understanding these basic parts is crucial because a failure in any one of them can lead to significant water damage or unpleasant odors. According to industry standards, proper installation of these components is critical for maintaining hygiene and structural integrity in residential buildings Wikipedia – Plumbing.

Why Is It Called a P-Trap and How Does It Work?

You might wonder why this specific curve is so universal. The P-Trap is named for its resemblance to the letter “P” when viewed from the side. However, its function is far more important than its shape.

The Science Behind the Seal

The bottom curve of the P-trap is designed to retain approximately 2–3 inches of water after every use. This standing water creates an airtight seal. Without this seal, methane and hydrogen sulfide gases from the municipal sewer system or septic tank would flow freely into your living space.

Common Variations

While the P-trap is standard for sinks, you may encounter other shapes depending on the spatial constraints under your cabinet:

• S-Trap: An older design that looks like an “S.” These are largely obsolete and often prohibited by modern plumbing codes because they are prone to “siphoning,” where the water seal is sucked out, allowing gases to escape.
• Drum Trap: A cylindrical container used in very old homes. These are notorious for clogging and are difficult to clean, often requiring replacement during renovations.

If you are renovating an older home and find an S-trap or drum trap, it is highly recommended to replace it with a modern P-trap assembly to ensure compliance with current safety standards.

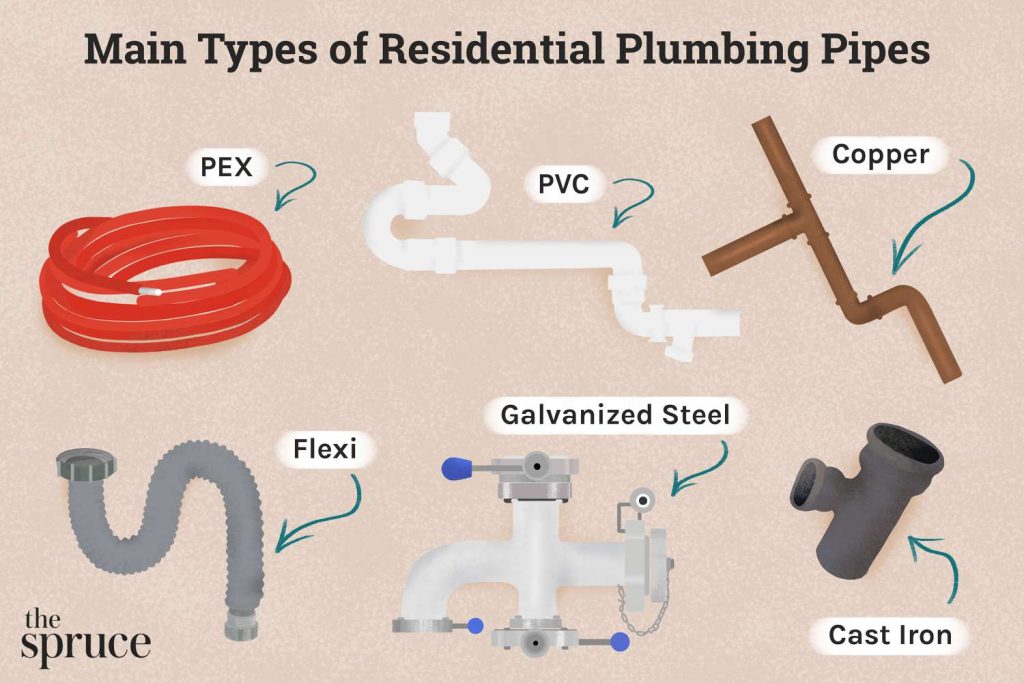

What Materials Are Used for Under-Sink Plumbing?

Not all pipes are created equal. The material of your under-sink plumbing affects durability, ease of installation, and resistance to corrosion. Here is a comparison of the most common materials you will encounter:

For most DIY enthusiasts, PVC or ABS plastic is the go-to choice. It is forgiving, easy to work with, and widely available at any hardware store. If aesthetics are a priority and the pipes will be visible, chrome-plated brass offers a sleek, professional finish.

How to Identify and Fix Common Leaks

Leaks under the sink are among the most common household plumbing issues. Fortunately, most leaks occur at the connections rather than in the pipes themselves. Here is how to diagnose and fix them:

Step 1: Locate the Source

Dry all pipes thoroughly with a towel. Run water for a minute, then check for moisture.

• Leak at the top: Usually indicates a loose slip joint nut or a worn-out washer where the tailpiece meets the sink strainer.
• Leak at the curve: Often caused by a cracked P-trap or misaligned threads.
• Leak at the wall: Could indicate a problem with the drain arm or the main line connection.

Step 2: Tighten the Connections

Before replacing any parts, try tightening the slip joint nuts by hand. Do not use pliers unless absolutely necessary, as overtightening can crack plastic nuts or distort washers. A quarter-turn past hand-tight is usually sufficient.

Step 3: Check the Washers

If tightening doesn’t stop the leak, the rubber or plastic washers inside the slip joints may be hardened, cracked, or missing.

1. Place a bucket under the trap to catch residual water.
2. Unscrew the slip joint nuts.
3. Remove the old washers and inspect them.
4. Replace with new washers of the same size and material.
5. Reassemble and test.

Step 4: Replace the P-Trap

If the pipe itself is cracked or corroded, replacement is necessary.

1. Measure the diameter of your existing pipes (typically 1.25 inches for bathroom sinks and 1.5 inches for kitchen sinks).
2. Purchase a replacement P-trap kit that matches your material preference.
3. Follow the manufacturer’s instructions for assembly, ensuring all washers are seated correctly before tightening.

When Should You Call a Professional Plumber?

While many under-sink issues are DIY-friendly, some situations require professional expertise. Consider calling a licensed plumber if:

• You notice water damage on the cabinet floor or walls, indicating a long-term hidden leak.
• The leak persists after replacing washers and tightening connections.
• You are dealing with cast iron pipes, which are fragile and require specialized tools.
• Local codes require permits for plumbing modifications, which is common in major renovations.

Investing in professional help for complex issues can prevent costly water damage repairs down the line.

Frequently Asked Questions (FAQ)

1. What is the standard size for under-sink drain pipes?

The standard diameter for bathroom sink drains is 1.25 inches, while kitchen sinks typically use 1.5-inch pipes. Always measure your existing tailpiece before buying replacement parts to ensure a proper fit.

2. Can I use Teflon tape on plastic slip joint nuts?

No, you should not use Teflon tape on slip joint connections. These joints rely on a compression washer to create a seal. Teflon tape can interfere with the washer’s ability to seat properly, potentially causing leaks. Teflon tape is reserved for threaded pipe connections (NPT), not slip joints.

3. Why does my sink smell like rotten eggs?

A rotten egg smell usually indicates that the water seal in your P-trap has dried out or been siphoned away. This can happen if a sink is rarely used. To fix this, simply run water for a minute to refill the trap. If the smell persists, check for cracks in the trap or improper venting in your plumbing system.

4. Is it better to use plastic or metal pipes under the sink?

For most homeowners, plastic (PVC or ABS) is the better choice due to its ease of installation, resistance to corrosion, and lower cost. Metal pipes are more durable and aesthetically pleasing but are harder to work with and more expensive. Unless you are aiming for a specific high-end look, plastic is perfectly adequate and reliable.

5. How often should I clean my P-trap?

It is good practice to clean your P-trap once or twice a year to prevent buildup of hair, soap scum, and food particles. Regular maintenance can prevent stubborn clogs and keep your drain flowing smoothly.

Conclusion

Identifying the Names Labeled Type Of Plumbing Used Under Sink Drain is not just about memorizing technical terms; it is about gaining control over your home’s maintenance. By understanding the roles of the P-trap, tailpiece, and slip joints, you can quickly diagnose leaks, perform simple repairs, and make informed decisions when upgrading your fixtures.

Remember, a little knowledge goes a long way in saving time and money. Next time you hear a drip, you won’t panic—you’ll grab your wrench and fix it with confidence.
