Is that persistent drip under your sink driving you crazy? Or perhaps you are planning a kitchen renovation and feel overwhelmed by the maze of tubes and fittings behind the cabinet doors. You are not alone; plumbing issues are among the most common household headaches in the United States. Understanding the specific Parts To A Kitchen Sink Plumbing Water Hose Connector is the first step toward a leak-free, efficient kitchen. This guide breaks down every component you need to know, helping you save money on plumber fees and gain confidence in your home maintenance skills.

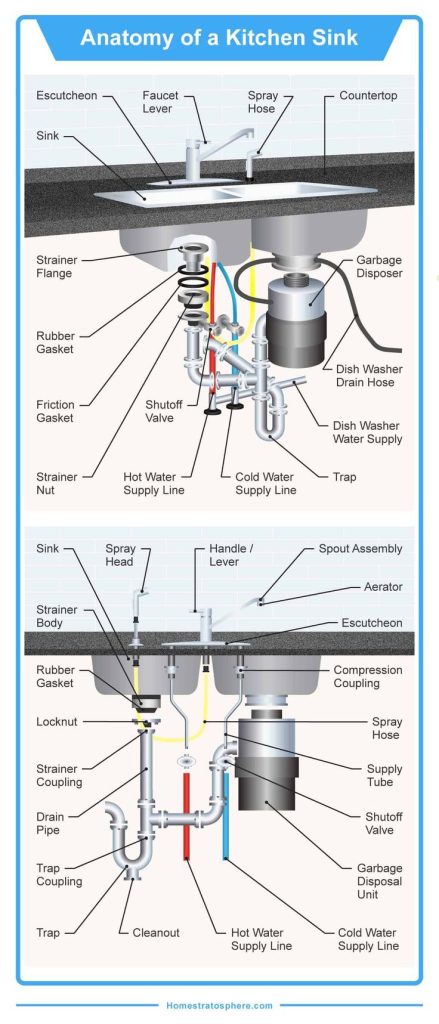

What Are the Core Components of a Sink Hose Connector?
Before you can fix or replace a part, you need to know what you are looking at. The connection between your water supply lines and your faucet is not just a single piece of hardware; it is an assembly of several critical components working together under pressure.
1. The Supply Line (The Hose Itself)
The supply line is the flexible tube that carries water from the shut-off valve to the faucet. In modern US homes, you will typically find two types:
- Braided Stainless Steel: These are the gold standard. They feature a rubber or PVC inner tube wrapped in a stainless steel mesh. They are durable, resistant to kinking, and less likely to burst than older alternatives.
- PVC or Vinyl: Often found in older installations or budget-friendly setups. These are stiffer and more prone to cracking over time.
2. The Fittings (The Ends)
The ends of the hose are where the magic happens. These metal pieces ensure a watertight seal.
- Female End: This side usually connects to the faucet tailpiece. It often uses a 3/8-inch compression fitting or a 1/2-inch IPS (Iron Pipe Size) thread, depending on the faucet model.
- Male End: This side connects to the angle stop (shut-off valve) on the wall or floor. It typically features a 3/8-inch compression nut with a rubber washer inside.
3. The Washers and O-Rings
Never underestimate the small black rubber rings. These are the unsung heroes of plumbing.
- Rubber Washers: Located inside the compression nuts, these create the seal against the valve stem. If they dry out, crack, or flatten, you will have a leak.
- O-Rings: Found on some cartridge-style faucets or specific connector types, these provide a secondary seal within the fixture itself.
Pro Tip: Always inspect the washer before tightening any connection. A twisted washer is the number one cause of “mystery leaks” in new installations.
How Do I Identify the Right Connector Size?
One of the most frequent mistakes DIYers make is buying the wrong size. In the US, kitchen sink plumbing follows fairly standardized sizing, but variations exist.
| Component | Standard US Size | Alternative Size | Common Use Case |
|---|---|---|---|
| Supply Line Nut (Valve Side) | 3/8 inch Compression | 1/2 inch IPS | Most modern angle stops use 3/8″. |
| Faucet Tailpiece | 1/2 inch IPS | 3/8 inch Compression | Older faucets may vary; check manufacturer specs. |
| Shut-Off Valve Outlet | 3/8 inch OD | 1/2 inch NPT | Wall-mounted valves often differ from floor-mounted. |
How to Measure: If you are unsure, take the old part to the hardware store. If that is not possible, use a ruler or caliper. Measure the outside diameter of the threaded part.
- 3/8 inch is approximately 0.67 inches (17mm) in outer diameter.
- 1/2 inch is approximately 0.84 inches (21mm) in outer diameter.
For more detailed information on pipe thread standards, you can refer to this Wikipedia article on National Pipe Thread to understand the technical differences between NPT and compression fittings.
Step-by-Step: How to Replace a Leaky Hose Connector
Replacing a faulty connector is a manageable DIY task if you follow safety protocols. Here is a precise, step-by-step guide.
Tools Needed:
- Adjustable wrench or basin wrench
- Bucket or towel
- New supply line (correct length and fittings)
- Plumber’s tape (Teflon tape) – optional for certain threads
Step 1: Shut Off the Water
Locate the angle stop valves under the sink. Turn them clockwise until they stop. Open the faucet to release any remaining pressure and drain the lines. Place a bucket under the connections to catch residual water.
Step 2: Disconnect the Old Hose
Using your adjustable wrench, loosen the nut connecting the hose to the shut-off valve. Hold the valve body steady with another wrench to avoid damaging the pipe in the wall. Once loose, unscrew it by hand. Repeat this process for the faucet end. Note that the faucet end may require a basin wrench if space is tight.
Step 3: Prepare the New Connector
Check the new hose’s washers. Ensure they are seated correctly inside the nuts. Do not use plumber’s tape on compression fittings (the ones with rubber washers), as the tape can prevent the washer from sealing properly. Only use tape on threaded pipe connections (NPT) that do not use a compression washer.
Step 4: Install the New Hose
Hand-tighten the nut onto the shut-off valve first. Ensure it is straight and not cross-threaded. Then, connect the other end to the faucet tailpiece. Again, hand-tighten initially.
Step 5: Tighten and Test
Use your wrench to give each nut an additional quarter to half turn. Do not overtighten. Over-tightening can crush the rubber washer or strip the threads, causing immediate leaks. Turn the water back on slowly and check for drips. If it leaks, tighten slightly more. If it persists, turn off the water, disassemble, and check the washer alignment.
Common Problems and Troubleshooting Tips
Even with the right parts, issues can arise. Here is how to diagnose common problems related to Parts To A Kitchen Sink Plumbing Water Hose Connector.
Problem: Leak at the Valve Connection
- Cause: Worn-out rubber washer or loose nut.
- Solution: Tighten the nut slightly. If that fails, replace the washer. Ensure the valve stem is clean and free of debris.
Problem: Leak at the Faucet Connection
- Cause: Cross-threaded connection or missing gasket.
- Solution: Unscrew and re-align. Many faucet connections use a flat rubber gasket rather than a cone-shaped washer. Ensure this gasket is present and not pinched.
Problem: Low Water Pressure
- Cause: Kinked hose or clogged aerator.
- Solution: Check the hose path under the sink. Ensure it is not bent sharply. Also, clean the faucet aerator, as debris from old pipes can accumulate there.
Problem: Corroded Fittings
- Cause: Age and moisture exposure.
- Solution: If the nut is fused to the valve due to corrosion, you may need a penetrating oil (like WD-40 Specialist) and significant leverage. In severe cases, replacing the angle stop valve may be necessary.
FAQ Section
Q1: How often should I replace my kitchen sink supply lines?
It is recommended to inspect supply lines annually and replace them every 5 to 7 years, even if they look fine. Rubber degrades internally over time, and braided steel can develop micro-fractures. Proactive replacement prevents catastrophic flooding.
Q2: Can I use a dishwasher hose for my kitchen sink faucet?
No. Dishwasher hoses are designed for different pressure ratings and temperature fluctuations. They often have different fitting sizes (usually 3/4 inch GHT for the machine end). Always use hoses specifically rated for faucet supply lines.
Q3: What is the difference between a compression fitting and an IPS fitting?
A compression fitting uses a nut and a rubber washer to create a seal around a smooth pipe surface. An IPS (Iron Pipe Size) fitting uses tapered threads that seal against each other, often requiring plumber’s tape or pipe dope. Most modern flexible supply lines use compression fittings on the valve end for ease of installation.
Q4: Why is my new hose still leaking after tightening?
The most common reason is a misaligned or damaged washer. Turn off the water, disconnect the hose, and inspect the black rubber ring. If it looks flattened, cracked, or twisted, replace it. Also, ensure the mating surface on the valve is clean and smooth.
Q5: Are stainless steel braided hoses better than rubber ones?
Yes, generally. Stainless steel braided hoses are more resistant to bursting, kinking, and rodent damage. They also tend to have a longer lifespan and look more professional. However, high-quality reinforced rubber hoses are acceptable if installed correctly and inspected regularly.
Conclusion
Understanding the Parts To A Kitchen Sink Plumbing Water Hose Connector empowers you to handle minor repairs with confidence and avoid costly emergency plumber visits. By knowing the difference between compression and IPS fittings, recognizing the importance of rubber washers, and following proper installation techniques, you can ensure a dry and efficient kitchen sink.
Remember, the key to successful plumbing is patience and precision. Never force a connection, and always double-check your washers. If you found this guide helpful, please share it with your friends and family on social media. Helping others master their home maintenance creates a safer, more self-reliant community. Happy fixing!
