Is your shower temperature fluctuating wildly, or is that single handle feeling loose and unresponsive? You are not alone; millions of homeowners face these frustrating issues annually, often leading to wasted water and uncomfortable mornings. Understanding the Parts Of Shower Plumbing With Single Handle Shower Control is the first step toward regaining control of your bathroom comfort and avoiding costly plumber bills.
In this guide, we will break down the complex anatomy of your shower valve into simple, manageable components. Whether you are a DIY enthusiast looking to replace a cartridge or simply want to understand how your home works, this article provides the clarity and expertise you need. Let’s dive into the mechanics behind your daily rinse.

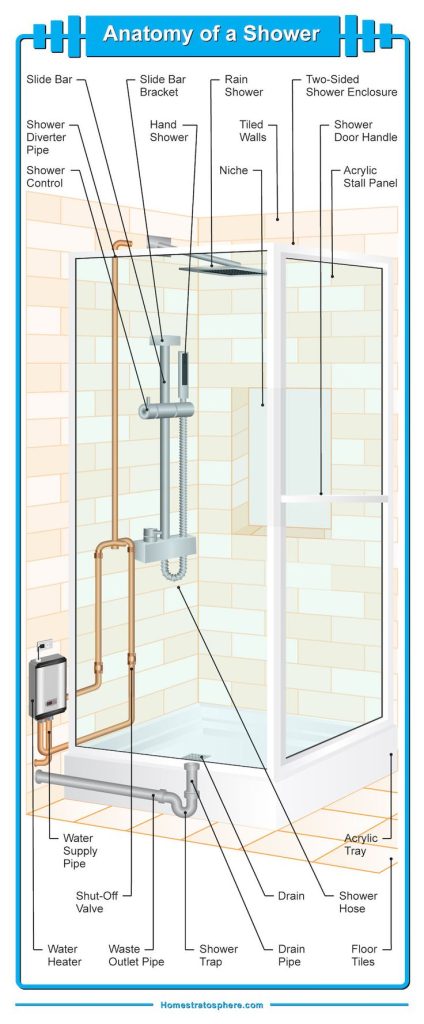

What Is Inside a Single Handle Shower Valve?
To troubleshoot effectively, you must first visualize what lies behind the wall trim. A single-handle shower control is an engineering marvel designed to mix hot and cold water precisely using one lever. Unlike older two-handle systems, these units rely on internal precision components to balance pressure and temperature simultaneously.
The core assembly typically consists of three main sections:
- The Trim Kit: The visible parts (handle, escutcheon plate).
- The Valve Body: The brass or plastic housing installed inside the wall.
- The Internal Mechanism: The moving parts that regulate flow (cartridge, ball, or disc).
According to industry standards, most modern single-handle valves use either a cartridge, ball, or ceramic disc mechanism. Identifying which type you have is crucial before attempting any repair.
Key Components of Single Handle Shower Plumbing
Let’s dissect the specific Parts Of Shower Plumbing With Single Handle Shower Control. Knowing these names will help you communicate with suppliers or follow tutorial videos accurately.
1. The Shower Cartridge (The Heart)
The cartridge is the most critical component. It sits inside the valve body and controls both the volume of water and the temperature mix.
- Function: As you move the handle, the cartridge shifts internally to allow more hot or cold water into the mix.
- Common Issues: Over time, rubber O-rings wear out, or mineral deposits clog the ports, leading to leaks or stiff handles.
- Types: Pressure-balancing cartridges (prevent scalding) and thermostatic cartridges (maintain exact temperature).
2. The Valve Body
This is the permanent fixture installed during construction. It connects to your home’s hot and cold supply lines.
- Material: Usually made of brass for durability and corrosion resistance.
- Role: It houses the cartridge and directs water to the showerhead or tub spout.
- Note: You rarely replace the entire valve body unless it cracks or corrodes severely.
3. The Handle and Escutcheon Plate
- Handle: The lever you touch. It attaches to the cartridge stem via a screw.
- Escutcheon Plate (Trim Plate): The decorative cover that hides the hole in the tile or drywall. It protects the internal workings from moisture and debris.
4. The Limit Stop / Temperature Restrictor
Many modern codes require a safety feature that prevents the handle from turning all the way to “scalding hot.”
- Location: Usually found behind the handle or integrated into the cartridge.
- Adjustment: If your shower isn’t getting hot enough, adjusting this stop is often the solution, not replacing parts.
5. Diverter Valve (For Tub/Shower Combos)
If your single handle controls both a tub spout and a showerhead, there is a diverter.
- Type A: Built into the tub spout (pull-up knob).
- Type B: Integrated into the valve body (third position on the handle).
How Does a Single Handle Mix Hot and Cold Water?
Understanding the mechanism helps demystify repairs. Most single-handle faucets use one of three technologies:
| Mechanism Type | How It Works | Pros | Cons |
|---|---|---|---|
| Ball Valve | A slotted metal ball rotates to align with hot/cold inlets. | Simple design, easy to find parts. | Prone to wear on rubber seals; can feel “notchy.” |
| Cartridge (Ceramic Disc) | Two ceramic discs slide against each other to regulate flow. | Extremely durable, smooth operation, leak-resistant. | More expensive to replace; sensitive to sediment. |
| Pressure-Balancing Spool | Uses a piston that moves side-to-side to equalize pressure. | Prevents sudden temperature spikes if toilet is flushed. | Can reduce overall water flow slightly. |
For most modern US homes built after 2000, the ceramic disc cartridge is the standard due to its longevity and compliance with strict water conservation laws.
Common Problems and Troubleshooting Steps
Even high-quality plumbing parts fail. Here is how to diagnose common issues related to the Parts Of Shower Plumbing With Single Handle Shower Control.
Problem 1: Water Leaks from the Handle
If water drips from under the handle when the shower is on, the issue is likely the O-rings or the cartridge seal.
- Solution: Turn off the water supply, remove the handle, and inspect the cartridge. Replace the O-rings or the entire cartridge if cracked.
Problem 2: Stiff or Hard-to-Turn Handle
Mineral buildup (calcium and lime) is the usual culprit, especially in areas with hard water.
- Solution: Soak the removed cartridge in white vinegar for 2–4 hours to dissolve deposits. If the problem persists, replace the cartridge.
Problem 3: Inconsistent Temperature
If the water swings from hot to cold unexpectedly, your pressure-balancing mechanism may be stuck.
- Solution: Check the pressure-balancing valve functionality. Often, flushing the lines or replacing the cartridge restores balance.
Expert Tip: Always shut off the main water supply before disassembling any plumbing parts. Use a bucket to catch residual water in the pipes to keep your workspace dry.
Step-by-Step: How to Replace a Shower Cartridge
Replacing the cartridge is the most common repair for single-handle showers. Follow these steps carefully.
- Shut Off Water: Locate the shut-off valves for the shower or turn off the main house water supply. Open the shower handle to release pressure.
- Remove the Handle: Look for a small set screw (often hidden under a decorative cap labeled “H” or “C”). Use an Allen wrench to loosen it and pull the handle off.
- Remove the Trim Plate: Unscrew the escutcheon plate to expose the valve body.
- Extract the Cartridge: Remove the retaining clip or nut holding the cartridge in place. Use pliers gently to pull the old cartridge straight out. Note the orientation: Take a photo before removing it so you know which way the new one faces.
- Install New Cartridge: Insert the new cartridge, ensuring it seats fully. Reattach the retaining clip/nut.
- Reassemble: Put the trim plate and handle back on. Tighten the set screw.
- Test: Turn the water back on slowly. Check for leaks around the handle and test the temperature range.
FAQ Section
Q1: Can I replace just the O-rings instead of the whole cartridge?
Yes, if the cartridge body is intact and only the seals are worn, you can replace the O-rings. However, many plumbers recommend replacing the entire cartridge because internal wear might cause future failures, and complete kits are relatively inexpensive.
Q2: Why does my single-handle shower squeak when I turn it?
Squeaking usually indicates friction between dry moving parts or mineral buildup. Applying a silicone-based plumber’s grease to the O-rings and moving parts of the new cartridge during installation can prevent this. Avoid petroleum-based greases as they can degrade rubber seals.
Q3: Do all single-handle shower cartridges fit all valves?
No. Cartridges are brand-specific and often model-specific. A Moen cartridge will not fit a Delta valve. Always check the manufacturer’s label on your existing trim or valve body before purchasing replacements.
Q4: How often should I replace my shower cartridge?
There is no fixed timeline, but most cartridges last between 5 to 10 years. Factors like water hardness and frequency of use affect lifespan. If you notice leaks or difficulty adjusting temperature, it’s time to inspect it.
Q5: Is it difficult to adjust the temperature limit on a single-handle shower?
It is generally straightforward. Most modern valves have a rotational limit stop that can be adjusted by removing the handle and rotating a plastic ring or moving a clip. Consult your specific brand’s manual for the exact method, as it varies between Delta, Moen, and Kohler.
Conclusion
Mastering the knowledge of Parts Of Shower Plumbing With Single Handle Shower Control empowers you to maintain your bathroom efficiently. From the intricate ceramic discs in the cartridge to the sturdy brass valve body, each component plays a vital role in your daily comfort. By understanding these parts, you can diagnose leaks, fix temperature issues, and perform replacements with confidence.
Don’t let a dripping shower ruin your day. With the right tools and this guide, you can tackle most minor plumbing issues yourself. If you found this guide helpful, please share it with friends or family who might be struggling with their own shower woes. Happy fixing!
